TASK 72-31-11-200-001-B00 Annulus Filler - Examine The Annulus Filler

DMC:V2500-A0-72-31-1102-00B-310A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-31-11-200-001-B00 Annulus Filler - Examine The Annulus Filler

Effectivity

FIG/ITEM

PART NO.

01-100

5A0353

01-100

5A1638

01-100

5A1854

General

This TASK gives the procedure for the inspection of the annulus fillers. For the other LP compressor blades and fillers parts, refer to TASK 72-31-11-200-000 (INSPECTION/CHECK-000).

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-11-03-100-501.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, the SPM TASK 70-02-02-350-501

Inspection of Parts, the SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-31-11-230-058 Examine the Annulus Filler (01-100) for Cracks

    1. NOTE

      Make sure that the dry film lubricant on the annulus fillers is removed before fluoresent penetrant inspection. Refer to TASK 72-31-11-100-000 (CLEANING-000).

      NOTE

      Removal of the anodize coat may be required to complete the inspection. Refer to TASK 72-31-11-100-000 (CLEANING-000).

      Clean the part. Refer to TASK 72-31-11-100-000 (CLEANING-000).

      2. Do the test for cracks on the part that is given below.

        PART IDENT

        TASK/SUBTASK

        Annulus filler

        1. Cracked

        1. Reject

    3. Apply the anodize coat after subsequent inspection, if removed. Refer to repair, VRS1019 TASK 72-31-11-300-019 (REPAIR-019).

    2. SUBTASK 72-31-11-220-078 Examine the Annulus Fillers (01-100) Platform

    1. Refer to Figure.

      2. Examine the platform at location 6.

        1. Nicked.

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Repair, VRS1004 TASK 72-31-11-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

        2. Dented.

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Repair, VRS1004 TASK 72-31-11-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

        3. Scratched.

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Repair, VRS1004 TASK 72-31-11-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

        4. Missing anti-erosion coating.

          1. Up to 1.0 sqin (6.54 sqcm) in total

          1. Repair, VRS1016 TASK 72-31-11-300-027 (REPAIR-027) or Repair, VRS1009 TASK 72-31-11-300-002 (REPAIR-002)

          2. More than in Step

          1. Repair, VRS1009 TASK 72-31-11-300-002 (REPAIR-002)

        5. Corrosion pitted.

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Repair, VRS1004 TASK 72-31-11-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

    3. SUBTASK 72-31-11-220-079 Examine the Annulus Fillers (01-100) Seal

    1. Refer to Figure.

      2. Examine the seal at location 3.

        1. Missing or damaged

        1. Repair, VRS1007 TASK 72-31-11-300-003 (REPAIR-003)

    4. SUBTASK 72-31-11-220-080 Examine the Annulus Fillers (01-100) Bumper

    1. Refer to Figure.

      2. Examine the bumper at location 7.

        1. Missing or damaged

        1. Repair, VRS1007 TASK 72-31-11-300-003 (REPAIR-003)

    5. SUBTASK 72-31-11-220-171 Examine the Annulus Fillers (01-100) Front Trunnion

    1. Refer to Figure.

      2. Examine the trunnion front surfaces at location 15.

        1. Nicked.

          1. Up to 0.0035 in. (0.09 mm) in depth

          1. Repair, VRS1004 TASK 72-31-11-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

        2. Scratched, galled and dented.

          1. Up to 0.0059 in. (0.15 mm) in depth

          1. Repair, VRS1004 TASK 72-31-11-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

        3. Missing dry film lubricant

        1. Repair, VRS1008 TASK 72-31-11-300-004 (REPAIR-004)

      3. Examine the trunnion rear surfaces at location 9.

        1. Scratched, galled and dented.

          1. Up to 0.002 in. (0.05 mm) in depth

          1. Repair, VRS1004 TASK 72-31-11-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

        2. Missing dry film lubricant

        1. Repair, VRS1008 TASK 72-31-11-300-004 (REPAIR-004)

      4. Examine the fillet R at location 10.

        1. Scratched, galled, nicked and dented

        1. Reject

        2. Missing dry film lubricant

        1. Repair, VRS1008 TASK 72-31-11-300-004 (REPAIR-004)

      5. Examine trunnion diameter D1.

        1. If the trunnion diameter D1 is between 0.7049 and 0.7080 in. (17.903 and 17.984 mm)

        1. Accept

        2. Less than 0.7049 in. (17.903 mm)

        1. Reject

    6. SUBTASK 72-31-11-220-172 Examine the Annulus Fillers (01-100) Aft Trunnion

    1. Refer to Figure.

      2. Examine the trunnion upper surfaces at location 11.

        1. Nicked.

          1. Up to 0.0078 in. (0.20 mm) in depth

          1. Repair, VRS1004 TASK 72-31-11-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

        2. Scratched, galled and dented.

          1. Up to 0.010 in. (0.26 mm) in depth

          1. Repair, VRS1004 TASK 72-31-11-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

        3. Missing dry film lubricant

        1. Repair, VRS1008 TASK 72-31-11-300-004 (REPAIR-004)

      3. Examine the trunnion lower surfaces at location 12.

        1. Scratched, galled, nicked and dented.

          1. Up to 0.0141 in. (0.37 mm) in depth

          1. Repair, VRS1004 TASK 72-31-11-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

        2. Missing dry film lubricant

        1. Repair, VRS1008 TASK 72-31-11-300-004 (REPAIR-004)

      4. Examine the hook at location 13.

        1. Scratched, galled, nicked and dented.

          1. Up to 0.035 in. (0.90 mm) in depth

          1. Repair, VRS1004 TASK 72-31-11-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

      5. Examine the fillet R at location 14.

        1. Scratched, galled, nicked and dented

        1. Reject

      6. Examine the trunnion diameter D2.

        1. If the trunnion diameter is between 0.8548 and 0.8618 in. (21.710 and 21.890 mm)

        1. Accept

        2. Less than 0.8548 in. (21.710 mm)

        1. Reject

    7. SUBTASK 72-31-11-220-082 Examine the Annulus Fillers (01-100) Front and Rear Faces

    1. Refer to Figure.

      2. Examine the front and rear faces at locations 2 and 8.

        1. Galled.

          1. Up to 0.003 in. (0.07 mm) in depth

          1. Repair, VRS1004 TASK 72-31-11-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

    8. SUBTASK 72-31-11-220-083 Examine the Annulus Fillers (01-100) Pin

    1. Refer to Figure.

      2. Examine the pin at location 1.

        1. Distorted or damaged

        1. Repair, VRS1010 TASK 72-31-11-300-005 (REPAIR-005)

    9. SUBTASK 72-31-11-220-084 Examine the Annulus Fillers (01-100) Thread Insert

    1. Refer to Figure.

      2. Examine the thread insert at location 4.

        1. Damaged

        1. Repair, VRS1013 TASK 72-31-11-300-014 (REPAIR-014)

        2. Loose

        1. Repair, VRS1013 TASK 72-31-11-300-014 (REPAIR-014)

    10. SUBTASK 72-31-11-220-085 Examine the Annulus Fillers (01-100) Coating Surface

    1. Refer to Figure.

      2. Examine the coating surface at location 5.

        1. Missing dry film lubricant

        1. Repair, VRS1008 TASK 72-31-11-300-014 (REPAIR-004)

    11. SUBTASK 72-31-11-220-235 Examine the Annulus Fillers (01-100) Remaining Surface

    1. Refer to Figure.

      2. Examine the remaining surfaces at location 16.

        1. Nicked, dented, scratched or corrosion pitted

          1. Not more than 0.010 in. (0.25 mm)

          1. Repair, VRS1004 TASK 72-31-11-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

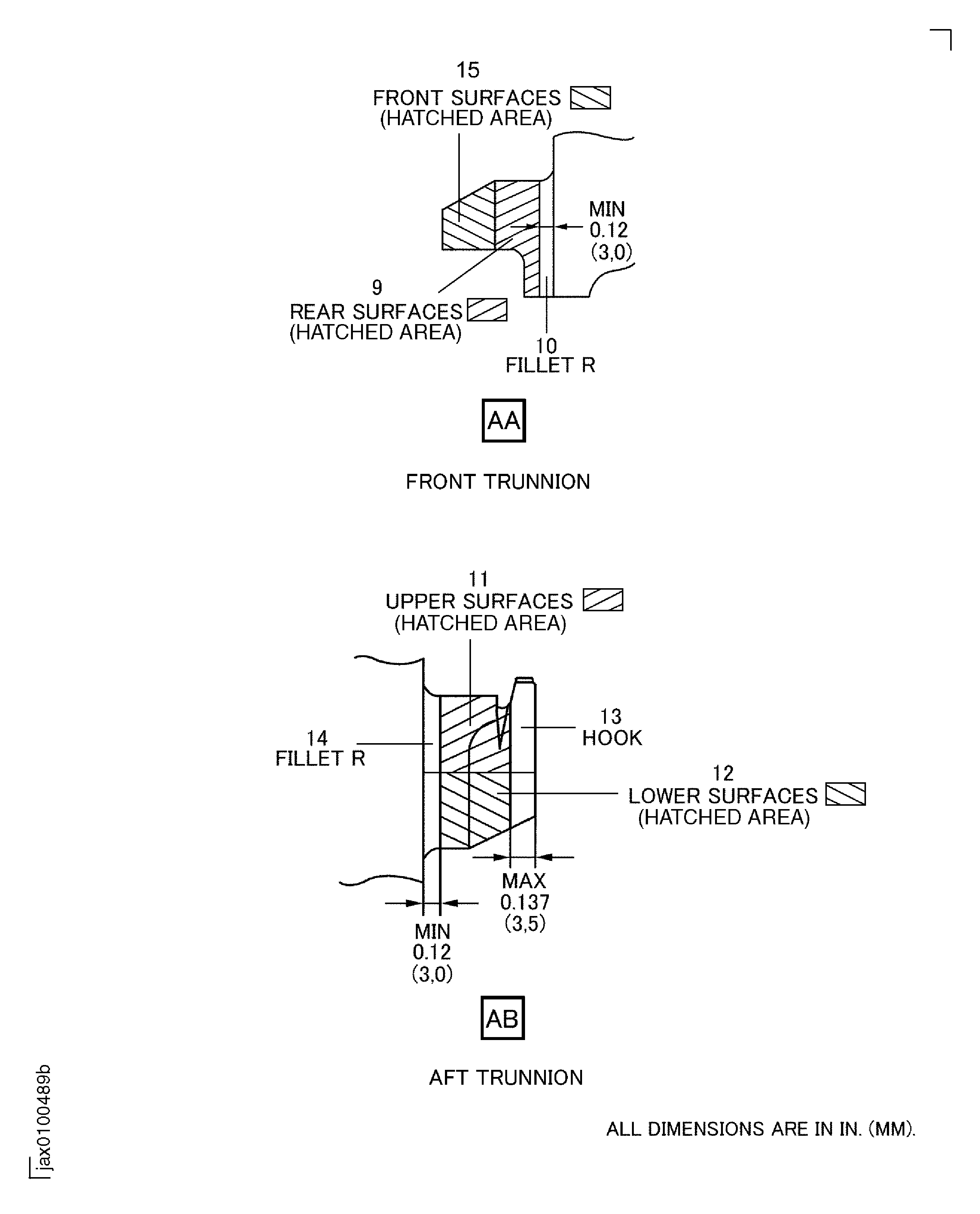

    12. Figure: Location on the Annulus Filler

    Sheet 1

    Legend
    Location on the Annulus Filler

    Sheet 1

    Close

    Figure: Location on the Annulus Filler

    Sheet 2

    Legend
    Location on the Annulus Filler

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
