TASK 72-32-03-200-003-A00 Fan Frame - Examine, Inspection-003

DMC:V2500-A0-72-32-0301-00A-300A-C|Issue No:002.00|Issue Date:2015-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-03-200-003-A00 Fan Frame - Examine, Inspection-003

Effectivity

FIG/ITEM

PART NO.

03-100

5A0083

03-100

5A0256

03-100

5A0349

03-100

5A0359

03-100

5A0362

03-100

5A0363

03-100

5A0364

03-100

5A0365

03-100

5A0366

03-100

5A0395

03-100

5A0397

03-100

5A0399

03-100

5A0401

03-100

5A0403

03-100

5A0405

03-100

5A0407

03-100

5A0409

03-100

5A0856

03-100

5A1047

03-100

5A1049

03-100

5A1062

03-100

5A1064

03-100

5A1065

03-100

5A1068

03-100

5A1070

03-100

5A1072

03-100

5A1074

03-100

5A1167

03-100

5A6592

03-100

5A6596

General

This TASK gives the procedure for the inspection of the fan frame assembly. For the other intermediate structure parts, refer to TASK 72-32-03-200-000 (INSPECTION-000).

All Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-03-100-000 (CLEANING-000).

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the crack test before the part is visually examined.

A ** following a repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in the repair before a discarded part is used again or oversize parts are installed.

Parts which must be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, TASK 70-02-02-350-501

Inspection of Parts, TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-03-230-051 Examine the Fan Frame Assembly (03-100) for Cracks

    1. Clean the part. Refer to TASK 72-32-03-100-000 (CLEANING-000).

      2. Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure.

        PART IDENT

        TASK/OP

        Fan frame assembly

        1. Outer struts.

          1. Cracked

          1. Repair, VRS1181 TASK 72-32-03-300-005 (REPAIR-005)**

        2. Other area.

          1. Cracked

          1. Reject

    2. SUBTASK 72-32-03-220-059 Examine the Fan Frame Assembly (03-100) Outer Struts

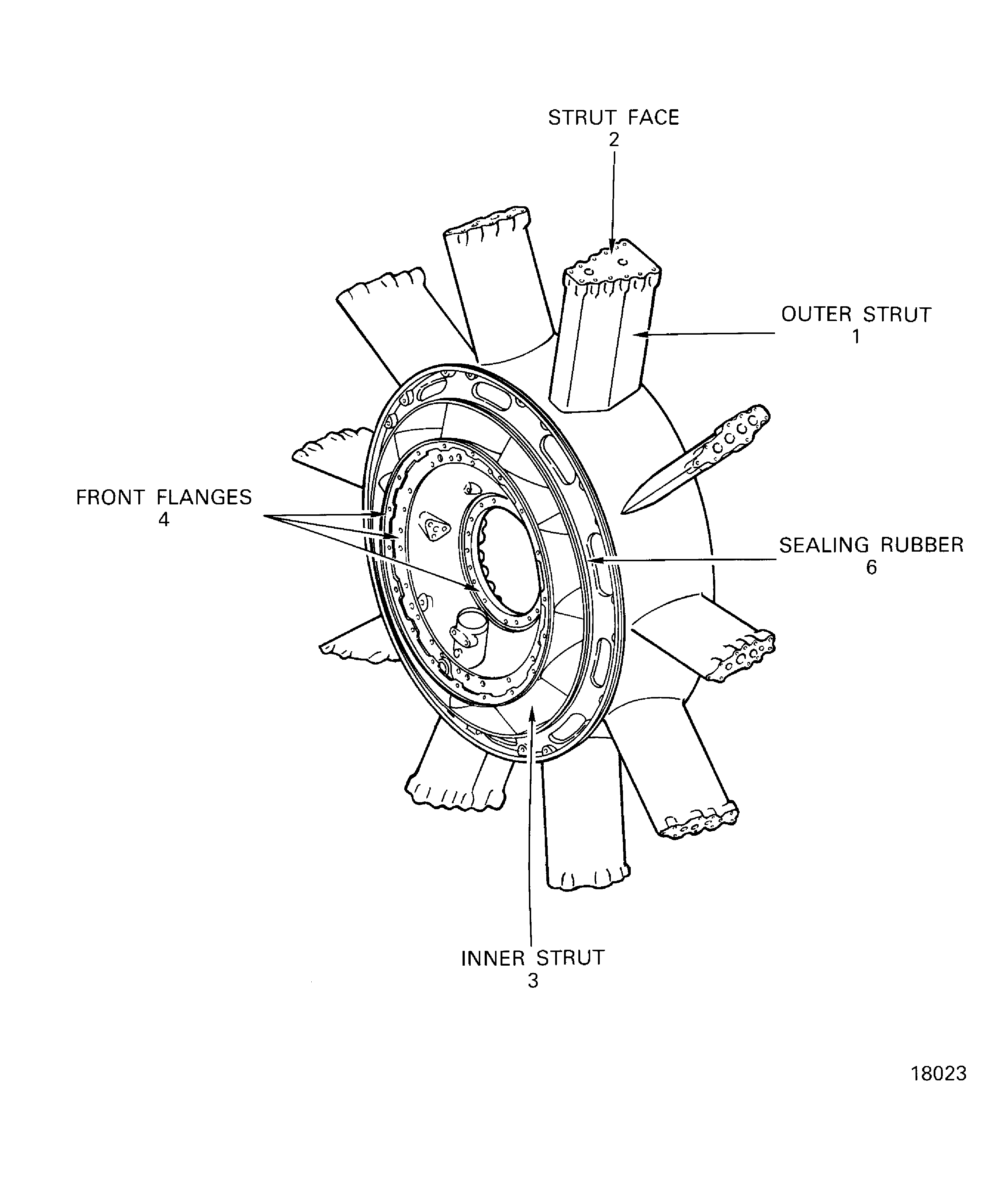

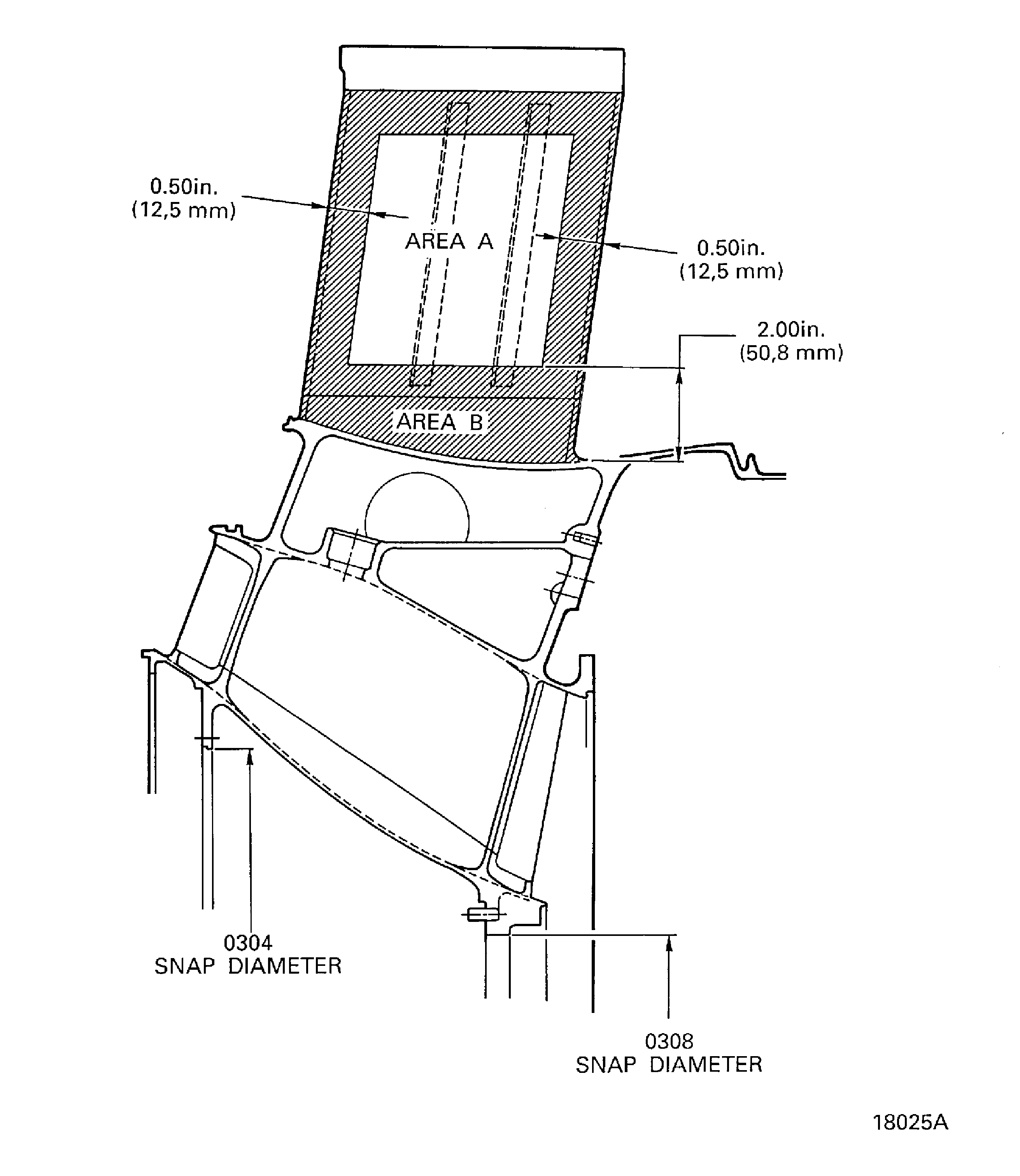

    1. Refer to Figure and Figure.

      2. Examine the outer struts at location 1.

        1. Dented.

          1. Area A, two smooth contoured dents per strut 0.030 in. (0.76 mm) in depth if there is no connecting distortion in Area B

          1. Accept

          2. Area B, two smooth contoured dents per strut 0.020 in. (0.50 mm) in depth

          1. Accept

          3. More than in Step and Step

          1. Repair, VRS1181 TASK 72-32-03-300-005 (REPAIR-005)**

        2. Nicked and scratched.

          1. Area A, any nicks or scratches

          1. Repair, VRS1180 TASK 72-32-03-300-004 (REPAIR-004)

          2. Area B, any nicks or scratches

          1. Repair, VRS1180 TASK 72-32-03-300-004 (REPAIR-004)

        3. Blocked.

          1. Air tubes

          1. Clean with high pressure air blast

            NOTE

            Clean obstacles from the inside of the strut which have blocked the tube.

        4. Cracked

        1. Repair, VRS1181 TASK 72-32-03-300-005 (REPAIR-005)**

      3. Examine the strut faces at location 2.

        1. Galled

        1. Repair, VRS1180 TASK 72-32-03-300-004 (REPAIR-004)

        2. Scored

        1. Repair, VRS1180 TASK 72-32-03-300-004 (REPAIR-004)

        3. Loose wire thread inserts

        1. Repair, VRS1182 TASK 72-32-03-300-006 (REPAIR-006)

        4. Damaged wire thread inserts

        1. Repair, VRS1182 TASK 72-32-03-300-006 (REPAIR-006)

        5. Locking torque of the wire thread inserts

          1. Other than the torque limits as given in the SPM TASK 70-42-01-400-501

          1. Repair, VRS1182 TASK 72-32-03-300-006 (REPAIR-006)

    3. SUBTASK 72-32-03-220-060 Examine the Fan Frame Assembly (03-100) Inner Struts

    1. Refer to Figure.

      2. Examine the inner struts at location 3.

        1. Dented.

          1. Up to 0.020 in. (0.50 mm) in depth

          1. Accept

          2. More than in Step

          1. Reject

        2. Nicked

        1. Repair, VRS1180 TASK 72-32-03-300-004 (REPAIR-004)

        3. Blocked

          1. Air tubes

          1. Clean with high pressure air blast

    4. SUBTASK 72-32-03-220-061 Examine the Fan Frame Assembly (03-100) Front Flanges

    1. Refer to Figure and Figure.

      2. Examine the front flange at location 4.

        1. Galled.

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1180 TASK 72-32-03-300-004 (REPAIR-004)

          3. More than 30 per cent of each flange surface

          1. Reject

        2. Nicked.

          1. Up to 0.006 in. (0.15 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1180 TASK 72-32-03-300-004 (REPAIR-004)

        3. Loose wire thread inserts

        1. Repair, VRS1182 TASK 72-32-03-300-006 (REPAIR-006)

        4. Damaged wire thread inserts

        1. Repair, VRS1182 TASK 72-32-03-300-006 (REPAIR-006)

        5. Locking torque of the wire thread inserts

          1. Other than the torque limit as given in the SPM TASK 70-42-01-400-501

          1. Repair, VRS1182 TASK 72-32-03-300-006 (REPAIR-006)

        6. Damaged self locking nuts threads

        1. Repair, VRS1184 TASK 72-32-03-300-007 (REPAIR-007)

        7. Locking torque of the self locking nuts

          1. Other than the torque limit as given in the SPM TASK 70-42-01-400-501

          1. Repair, VRS1184 TASK 72-32-03-300-007 (REPAIR-007)

        8. Loose rivets

        1. Repair, VRS1184 TASK 72-32-03-300-007 (REPAIR-007)

        9. Missing rivets

        1. Repair, VRS1184 TASK 72-32-03-300-007 (REPAIR-007)

        10. Loose pins

        1. Repair, VRS1190 TASK 72-32-03-300-009 (REPAIR-009)

        11. Damaged pins

        1. Repair, VRS1190 TASK 72-32-03-300-009 (REPAIR-009)

      3. Examine the snap diameter at location 0304, Figure.

        1. Worn.

          1. If the diameter is between 21.4961 and 21.5003 in. (546.000 and 546.110 mm)

          1. Accept

          2. More than 21.5003 in. (546.110 mm)

          1. Reject

          2. Write down the dimension of the diameter.

    5. SUBTASK 72-32-03-220-062 Examine the Fan Frame Assembly (03-100) Sealing Rubber

    1. Refer to Figure.

      2. Examine the sealing rubber at location 6.

        1. Torn

        1. Repair, VRS1185 TASK 72-32-03-300-008 (REPAIR-008)

        2. Unbonded

        1. Repair, VRS1185 TASK 72-32-03-300-008 (REPAIR-008)

    6. SUBTASK 72-32-03-220-063 Examine the Fan Frame Assembly (03-100) Rear Flange

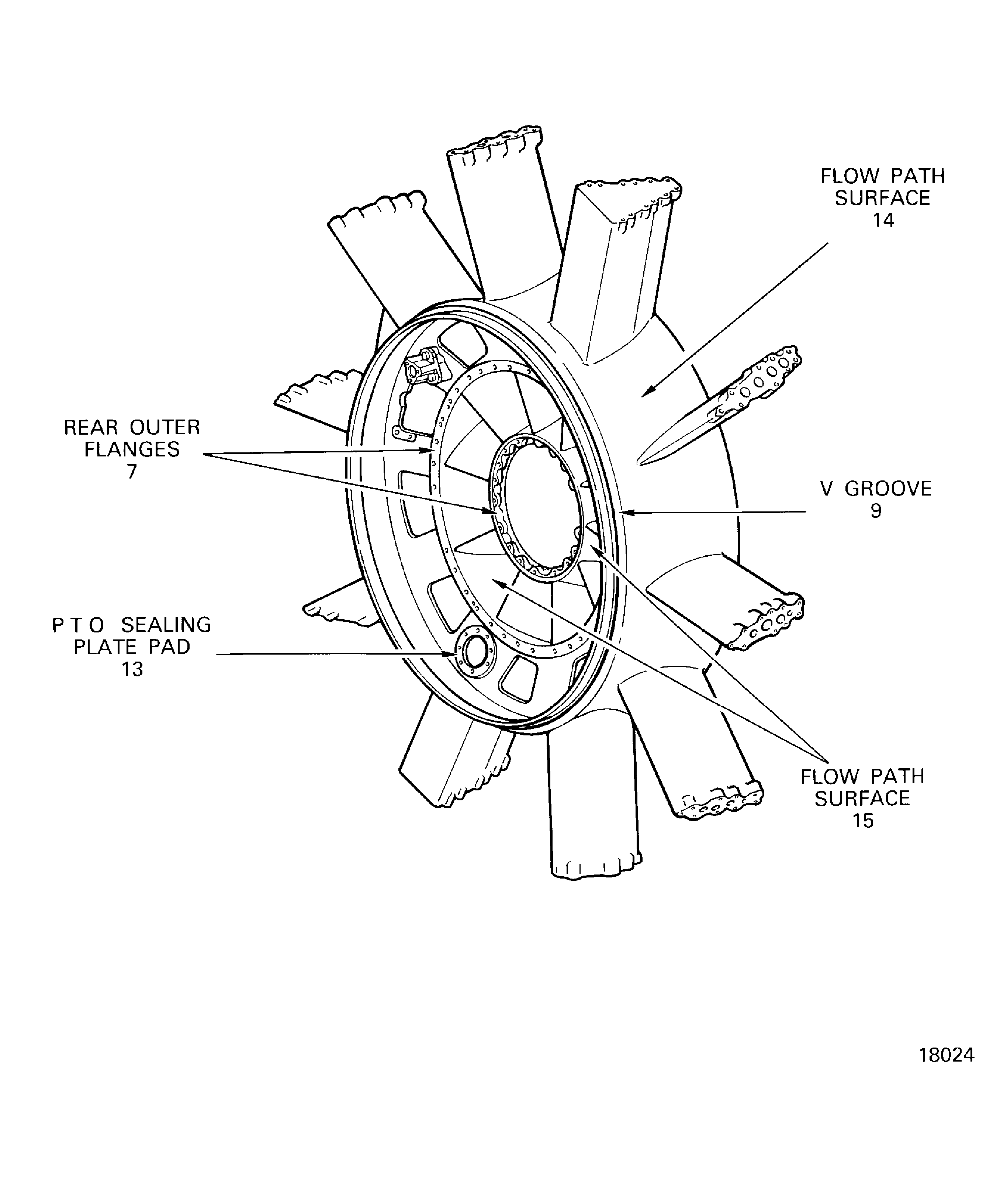

    1. Refer to Figure and Figure.

      2. Examine the rear flanges at location 7, Figure.

        1. Nicked.

          1. Up to 0.006 in. (0.15 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1180 TASK 72-32-03-300-004 (REPAIR-004)

        2. Loose wire thread inserts

        1. Repair, VRS1182 TASK 72-32-03-300-006 (REPAIR-006)

        3. Damaged wire thread inserts

        1. Repair, VRS1182 TASK 72-32-03-300-006 (REPAIR-006)

      4. Locking torque of the wire thread inserts

        5. Other than the torque limit as given in the SPM TASK 70-42-01-400-501

        1. Repair, VRS1182 TASK 72-32-03-300-006 (REPAIR-006)

        6. Loose pins

        1. Repair, VRS1190 TASK 72-32-03-300-009 (REPAIR-009)

        7. Damaged pins

        1. Repair, VRS1190 TASK 72-32-03-300-009 (REPAIR-009)

      3. Examine the snap diameter at location 0308, Figure.

        1. Worn.

          1. If the diameter is between 11.3381 and 11.3400 in. (287.986 and 288.036 mm)

          1. Accept

          2. More than 11.3400 in. (288.036 mm)

          1. Reject

          2. Write down the dimension of the diameter.

    7. SUBTASK 72-32-03-220-064 Examine the Fan Frame Assembly (03-100) V Groove

    1. Refer to Figure.

      2. Examine the V groove at location 9.

        1. Galled

        1. Repair, VRS1180 TASK 72-32-03-300-004 (REPAIR-004)

    8. SUBTASK 72-32-03-220-065 Examine the Fan Frame Assembly (03-100) Thrust Mount Pads

    1. Refer to Figure.

      2. Examine the thrust mount pads at location 10.

        1. Loose pins

        1. Repair, VRS1190 TASK 72-32-03-300-009 (REPAIR-009)

        2. Damaged pins

        1. Repair, VRS1190 TASK 72-32-03-300-009 (REPAIR-009)

        3. Loose studs

        1. Repair, VRS1192 TASK 72-32-03-300-010 (REPAIR-010)

        4. Damaged studs

        1. Repair, VRS1192 TASK 72-32-03-300-010 (REPAIR-010)

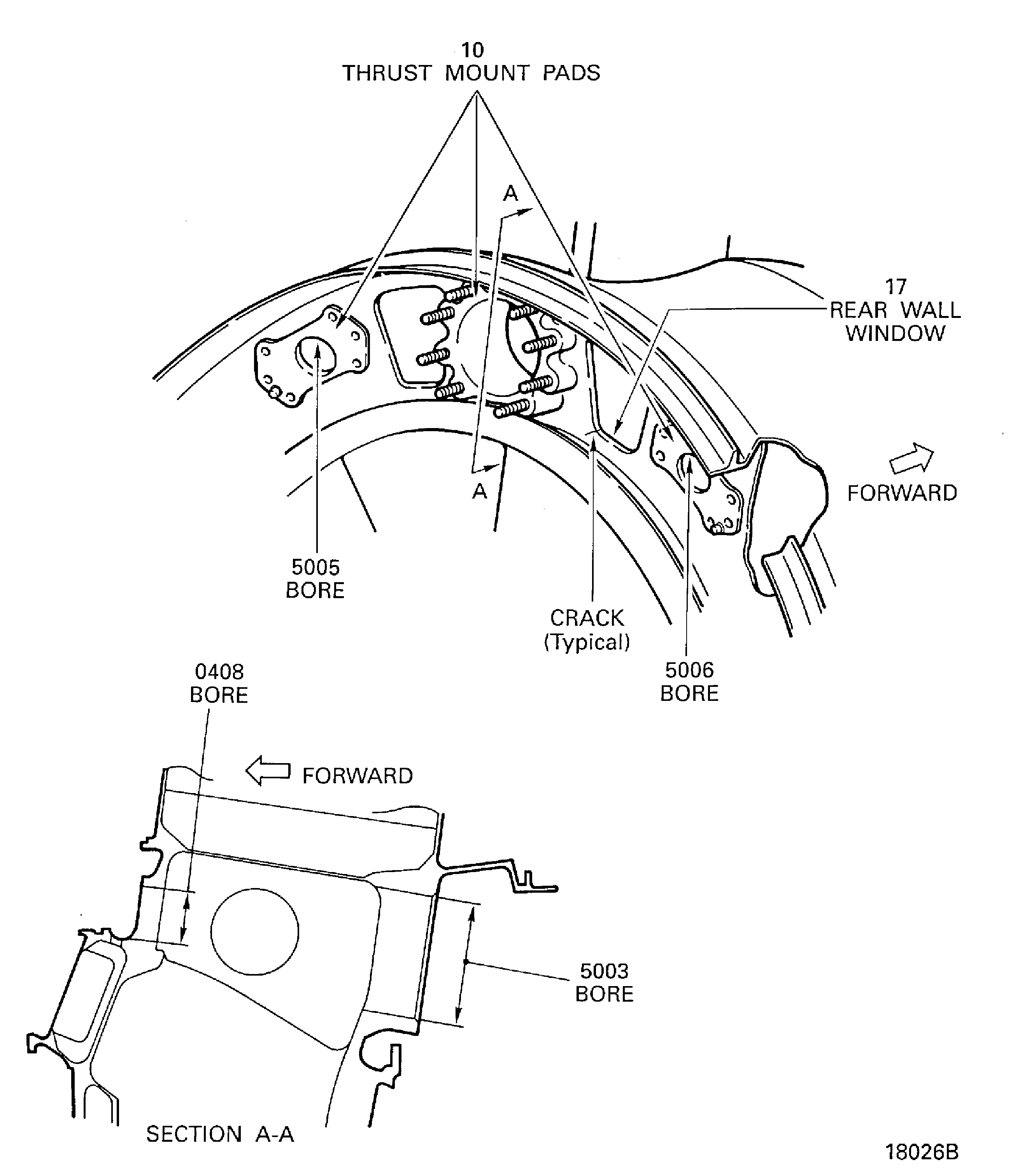

      3. Examine the bore diameter in the thrust mount pads at locations 5005 and 5006.

        1. Worn.

          1. If the diameter is between 1.7323 and 1.7338 in. (44.000 and 44.039 mm)

          1. Accept

          2. More than 1.7338 in. (44.039 mm)

          1. Reject

          2. Write down the dimension of the diameter.

      4. Examine the bore diameter in the thrust tube mount pad at location 5003.

        1. Worn.

          1. If the diameter is between 3.9371 and 3.9378 in. (100.000 and 100.022 mm)

          1. Accept

          2. More than 3.9378 in. (100.022 mm)

          1. Reject

          2. Write down the dimension of the diameter.

    9. SUBTASK 72-32-03-220-066 Examine the Fan Frame Assembly (03-100) PTO Sealing Plate Pad

    1. Refer to Figure.

      2. Examine the PTO sealing plate pad at location 13.

        1. Loose pins

        1. Repair, VRS1190 TASK 72-32-03-300-009 (REPAIR-009)

        2. Damaged pins

        1. Repair, VRS1190 TASK 72-32-03-300-009 (REPAIR-009)

        3. Loose wire thread inserts

        1. Repair, VRS1182 TASK 72-32-03-300-006 (REPAIR-006)

        4. Damaged wire thread inserts

        1. Repair, VRS1182 TASK 72-32-03-300-006 (REPAIR-006)

        5. Locking torque of the wire thread inserts

          1. Other than the torque limit as given in TASK 70-42-01-400-501

          1. Repair, VRS1182 TASK 72-32-03-300-006 (REPAIR-006)

    10. SUBTASK 72-32-03-220-067 Examine the Fan Frame Assembly (03-100) Flow Path Surface

    1. Refer to Figure

      2. Examine the flow path surfaces at locations 14 and 15.

        1. Dented.

          1. Up to 0.020 in. (0.50 mm) in depth

          1. Accept

          2. More than in Step

          1. Reject

        2. Nicked

        1. Repair, VRS1180 TASK 72-32-03-300-004 (REPAIR-004)

    11. SUBTASK 72-32-03-220-074 Examine the Fan Frame Assembly (03-100) Thermocouple (03-890)

    1. Refer to Figure.

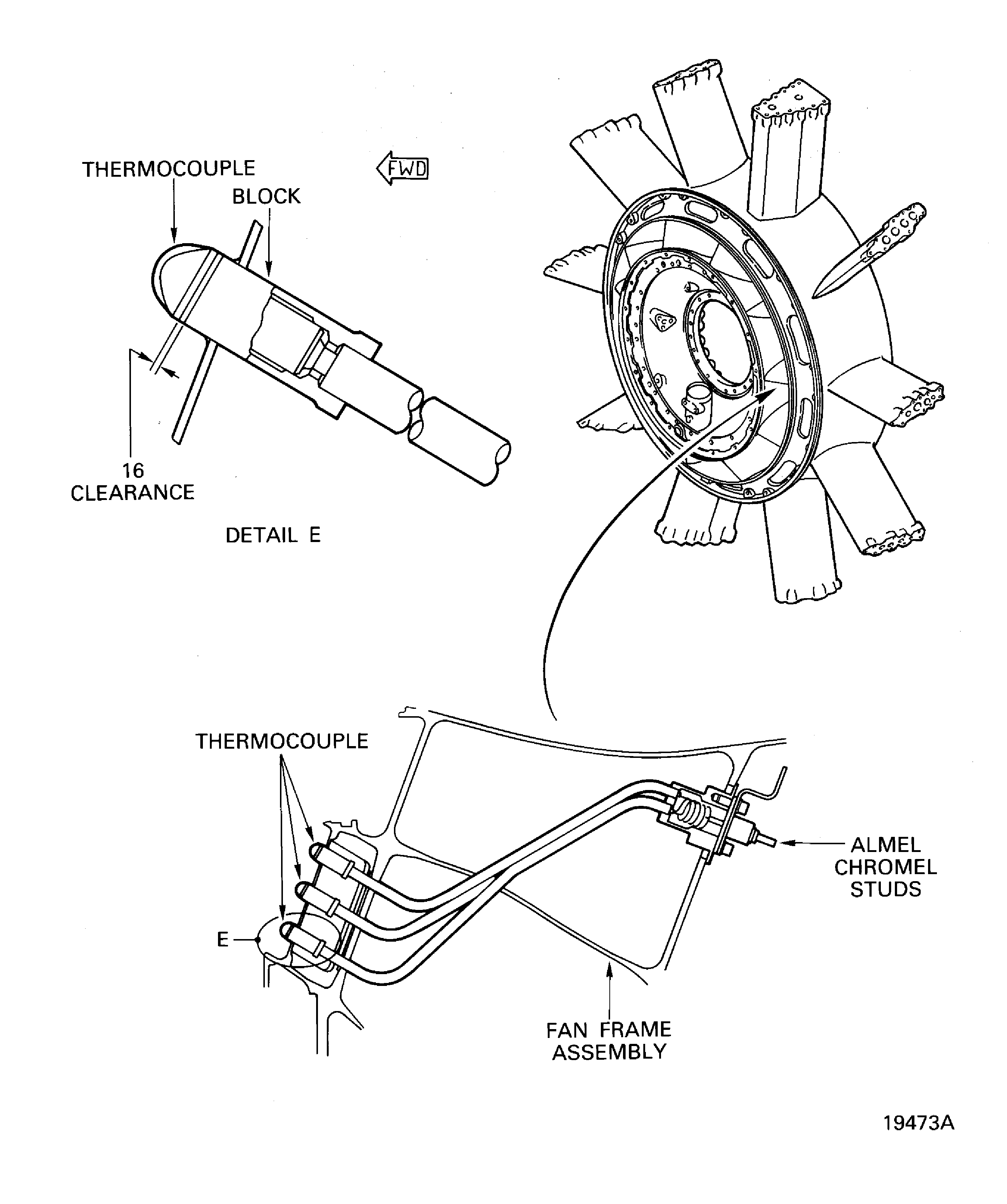

      2. Visual examine the thermocouple at location 16.

        1. Clearance between the thermocouple and the fan frame assembly.

          1. No clearance

          1. Accept

          2. If clearance is identified

          1. Repair, VRS1727 TASK 72-32-03-300-013 (REPAIR-013)

      3. Do a loop resistance check between the almel stud and the chromel stud. Use a megger to measure the loop resistance of the thermocouple

        1. If the loop resistance is between 0.4 and 1.8 ohms at room temperature

        1. Accept

      4. Other than in Step

      1. Repair, VRS1727 TASK 72-32-03-300-013 (REPAIR-013)

    12. SUBTASK 72-32-03-220-113 Examine the Fabrication Fan Frame Assembly (03-100) Rear Wall Window

    1. Refer to Figure.

      2. Examine the rear wall window at location 17.

        1. Cracked.

          1. Up to 0.20 in. (5.08 mm) in length

          1. Repair, VRS1732, TASK 72-32-03-300-016 (REPAIR-016)

          2. Between 0.20 and 0.60 in. (5.08 and 15.24 mm) in length

          1. Repair, VRS1783, TASK 72-32-03-300-020 (REPAIR-020)**

          3. More than in Step

          1. Reject

    13. SUBTASK 72-32-03-220-116 Examine the Fabrication Fan Frame Assembly (03-100) Bushing Bore

    1. Refer to Figure.

      2. Examine the bushing bore diameter at Location 0408.

        1. Worn.

          1. If the diameter is between 1.7323 and 1.7332 in. (44.000 and 44.025 mm)

          1. Accept

          2. More than 1.7332 in. (44.025 mm)

          1. Reject

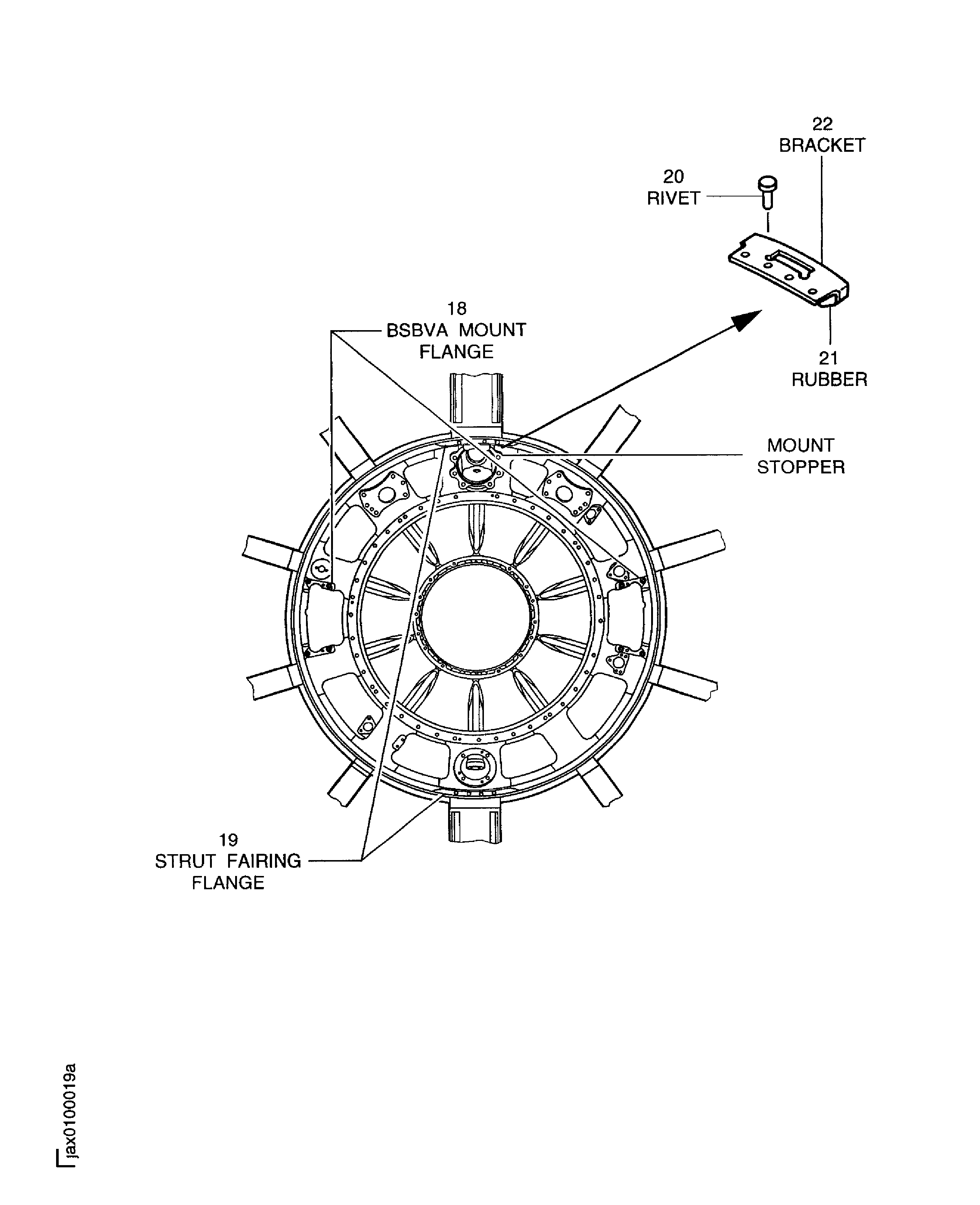

    14. SUBTASK 72-32-03-220-149 Examine the Fan Frame Assembly (01-100) Booster Stage Bleed Valve Actuator (BSBVA) Mount Flange

    1. Refer to Figure.

      2. Examine the BSBVA mount flange at location 18.

        1. Loose or damaged rivet nuts

        1. Repair, VRS1222 TASK 72-32-03-300-033 ((REPAIR-033)

        2. Loose or damaged pins

        1. Repair, VRS1190 TASK 72-32-03-300-009 (REPAIR-009)

    15. SUBTASK 723-32-03-220-150 Examine the Fan Frame Assembly (03-100) Strut Fairing Mount Flange

    1. Refer to Figure.

      2. Examine the strut fairing mount flange at location 19.

        1. Loose or damaged rivet nuts

        1. Repair, VRS1222 TASK 72-32-03-300-033 (REPAIR-033)

    16. SUBTASK 72-32-03-220-151 Examine the Fan Frame Assembly (03-100) Mount Stopper

    1. Refer to Figure.

      2. Examine the rivets at location 20.

        1. Loose, missing or damaged

        1. Repair, VRS1223 TASK 72-32-03-300-031 (REPAIR-031)

      3. Examine the rubber at location 21.

        1. Deformed

        1. Accept

        2. Peeled

        1. repair, VRS1223 TASK 72-32-03-300-031 (REPAIR-031)

      4. Examine the bracket at location 22.

        1. Distorted

        1. Repair, VRS1223 TASK 72-32-03-300-031 (REPAIR-031)

        2. Bent or missing tangs

        1. Repair, VRS1223 TASK 72-32-03-300-031 (REPAIR-031)

        3. Nicked or scratched

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1223 TASK 72-32-03-300-031 (REPAIR-031)

    17. Figure: Locations on the fabrication fan frame assembly

    Locations on the fabrication fan frame assembly

    Figure: Locations on the fabrication fan frame assembly

    Locations on the fabrication fan frame assembly

    Figure: Locations on the fabrication fan frame assembly

    Locations on the fabrication fan frame assembly

    Figure: Locations on the fabrication fan frame assembly

    Locations on the fabrication fan frame assembly

    Figure: Locations on the fabrication fan frame assembly

    Locations on the fabrication fan frame assembly

    Figure: Locations on the fan frame assembly

    Locations on the fan frame assembly

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised incorrect dimension for location 0304. (PSCOMM TSP455 TK)

Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Tool Number:Fluorescent penetrant inspection equipment
Tool Name:Fluorescent Penetrant Inspection Equipment
