TASK 72-60-23-200-001 Hydraulic Pump Drive Gear Housing - Examine, Inspection-001

DMC:V2500-A0-72-60-2304-00A-300A-C|Issue No:003.00|Issue Date:2015-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-23-200-001 Hydraulic Pump Drive Gear Housing - Examine, Inspection-001

Effectivity

FIG/ITEM PART NO.

01-460

4B0192

01-460

4B0313

01-460

4B0350

01-460

4B0372

General

This TASK gives the procedure for the inspection of the hydraulic pump drive housing. For the other parts of the hydraulic pump drive gear assembly, refer to TASK 72-60-23-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-11-03-300-503.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in the SPM TASK 70-23-00-230-501. Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items:

Definitions of Damage, SPM TASK 70-02-02-350-501,

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501,

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM:

Method of Testing for Crack Indications,

Chemical Processes,

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Tridimensional measuring unitLOCALTridimensional measuring unit
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-23-230-051 Do a Crack Test on the Hydraulic Pump Drive Housing (01-460) (Fluorescent Penetrant)

      1. Clean the parts. Refer to TASK 72-60-23-100-000.

      1. Do the test for cracks on parts that are given below. Use the applicable penetrant procedure.

        PART IDENT TASK/SUBTASK

        Hydraulic pump housing

        2. Cracks

        1. Reject

        3. Through porosity.

        1. Reject

    2. SUBTASK 72-60-23-220-052 Examine the Hydraulic Pump Housing (01-460) All Areas

      1. Cracks

      1. Reject

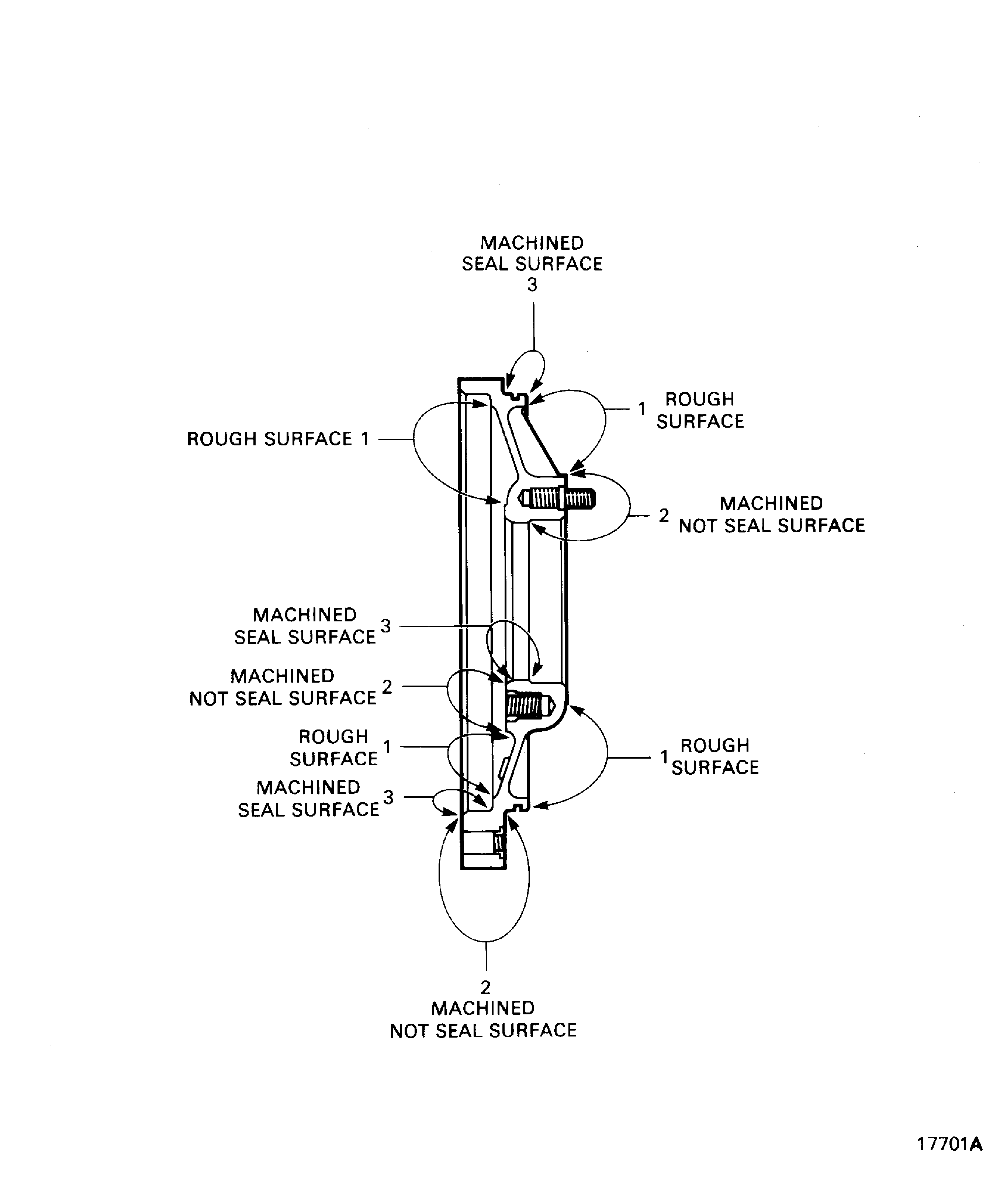

    3. SUBTASK 72-60-23-220-071 Examine the Hydraulic Pump Housing (72-60-23,01-460) Rough Surfaces at Location 1

    1. Refer to Figure.

      2. Nicked/Scored/Dented/Scratched.

        1. All quantity, all length, not more than 0.0138 in. (0.350 mm) in depth.

        1. Accept

        2. More than Step.

        1. Repair VRS5034, TASK 72-60-23-300-001 (REPAIR-001).

    4. SUBTASK 72-60-23-220-072 Examine the Hydraulic Pump Housing (72-60-23,01-460) Machined Seal Surfaces at Location 3

    1. Refer to Figure.

      2. Nicked/Scored/Dented/Scratched.

        1. All quantity, all length, not more than 0.004 in. (0.10 mm) in depth not extended across the seal surface.

        1. Accept

        2. More than Step.

        1. Repair VRS5034, TASK 72-60-23-300-001 (REPAIR-001).

    5. SUBTASK 72-60-23-220-073 Examine the Hydraulic Pump Housing (72-60-23,01-460) Machined not Seal Surfaces at Locations 2

    1. Refer to Figure.

      2. Nicked/Scored/Dented/Scratched.

        1. All quantity, all length, not more than 0.008 in. (0.20 mm) in depth.

        1. Accept

        2. More than Step.

        1. Repair VRS5034, TASK 72-60-23-300-001 (REPAIR-001).

    6. SUBTASK 72-60-23-220-074 Examine the Hydraulic Pump Housing (72-60-23,01-460) Studs/Lockrings

    1. Refer to Figure and Figure.

      2. Perpendicularity.

        1. More than 0.0138 in. (0.350 mm) each 3.937 in. (100.00 mm). No axial movement is permitted (moved by hand).

        1. Repair VRS5035, TASK 70-60-23-300-002 (REPAIR-002).

        2. Thread damaged or not there.

        1. Repair VRS5035, TASK 70-60-23-300-002 (REPAIR-002).

    7. SUBTASK 72-60-23-220-075 Examine the Hydraulic Pump Housing (72-60-23,01-460) Threaded Inserts/Lockrings

    1. Refer to Figure and Figure.

      2. Loose, missing or with the internal thread damage.

      1. Repair VRS5036, TASK 72-60-23-300-003 (REPAIR-003).

    8. SUBTASK 72-60-23-220-076 Examine the Hydraulic Pump Housing (72-60-23,01-460) Inserts (SBE 72-0492PRE)

    1. Refer to Figure and Figure.

      2. Loose, missing or with the internal thread damage.

      1. Repair VRS5416, TASK 72-60-23-300-019 (REPAIR-019).

    9. SUBTASK 72-60-23-220-170 Examine the Hydraulic Pump Housing (72-60-23,01-460) Helcoil Inserts (SBE 72-0492)

      1. Loose, missing or with the internal thread damage.

      1. Repair VRS5697, TASK 72-60-23-300-023 (REPAIR-023).

    10. SUBTASK 72-60-23-220-171 Examine the Hydraulic Pump Housing (72-60-23,01-460) Screw Thread Inserts (SBE 72-0492 and SBE 70-0950)

      1. Loose, missing or with the internal thread damage.

      1. Repair VRS5698, TASK 72-60-23-300-024 (REPAIR-024).

    11. SUBTASK 72-60-23-220-077 Examine the Hydraulic Pump Housing (72-60-23,01-460) Pin

    1. Refer to Figure and Figure.

      2. Loose or missing.

      1. Repair VRS5417, TASK 72-60-23-300-020 (REPAIR-020).

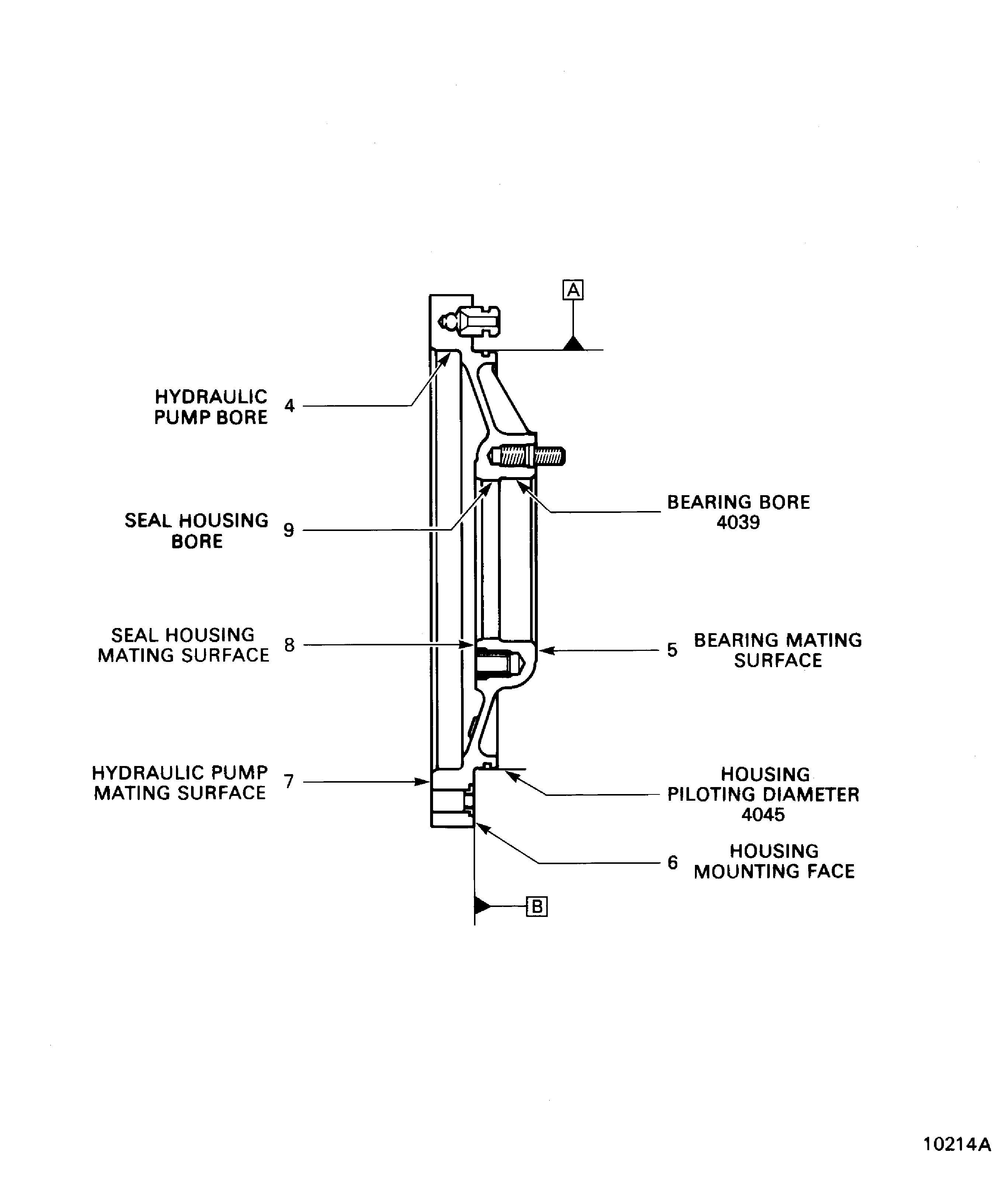

    12. SUBTASK 72-60-23-220-078 Examine the Hydraulic Pump Housing (72-60-23,01-460) Hydraulic Pump Bore at Location 4

    1. Refer to Figure.

      2. Diameter.

        1. Between 7.0000 and 7.0020 in. (177.800 and 177.850 mm).

        1. Accept

        2. More than 7.0020 in. (177.850 mm).

        1. Repair VRS5040, TASK 72-60-23-300-007 (REPAIR-007).

      3. Runout

        1. In 0.002 in. (0.05 mm) FIR. in relation to surfaces A and B.

        1. Accept

        2. More than Step.

        1. Repair VRS5040, TASK 72-60-23-300-007 (REPAIR-007).

    13. SUBTASK 72-60-23-220-079 Examine the Hydraulic Pump Housing (72-60-23,01-460) Bearing Bore at Location 4039

    1. Refer to Figure.

      2. Diameter

        1. Between 2.9522 and 2.9529 in. (74.985 and 75.004 mm).

        1. Accept

        2. More than 2.9529 in. (75.004 mm).

        1. Repair VRS5042, TASK 72-60-23-300-009 (REPAIR-009).

      3. Runout

        1. In 0.0008 in. (0.020 mm) FIR. in relation to surfaces A and B.

        1. Accept

        2. More than Step.

        1. Repair VRS5042, TASK 72-60-23-300-009 (REPAIR-009).

    14. SUBTASK 72-60-23-220-080 Examine the Hydraulic Pump Housing (72-60-23,01-460) Bearing Mating Surface at Location 5

    1. Refer to Figure.

      2. Parallelism.

        1. In 0.0010 in. (0.025 mm) FIR. in relation to surface B

        1. Accept

        2. More than Step.

        1. Repair VRS5039, TASK 72-60-23-300-006 (REPAIR-006).

    15. SUBTASK 72-60-23-220-081 Examine the Hydraulic Pump Housing (72-60-23,01-460) Piloting Diameter at Location 4045

    1. Refer to Figure.

      2. Diameter

        1. Between 6.9685 and 6.9669 in. (177.00 and 176.960 mm).

        1. Accept

        2. Less than 6.9669 in. (176.960 mm).

        1. Repair VRS5044, TASK 72-60-23-300-011 (REPAIR-011).

      3. Perpendicularity

        1. In 0.002 in. (0.05 mm) FIR. in relation to surface B.

        1. Accept

        2. More than Step.

        1. Repair VRS5044, TASK 72-60-23-300-011 (REPAIR-011).

    16. SUBTASK 72-60-23-220-082 Examine the Hydraulic Pump Housing (72-60-23,01-460) Mounting Face at Location 6

    1. Refer to Figure.

      2. Planarity

        1. In 0.0014 in. (0.035 mm) FIR.

        1. Accept

        2. More than Step.

        1. Repair VRS5043, TASK 72-60-23-300-010 (REPAIR-010).

    17. SUBTASK 72-60-23-220-083 Examine the Hydraulic Pump Housing (72-60-23,01-460) Hydraulic Pump Mating Surface at Location 7

    1. Refer to Figure.

      2. Parallelism.

        1. In 0.002 in. (0.05 mm) FIR. in relation to surface B.

        1. Accept

        2. More than Step.

        1. Repair VRS5037, TASK 72-60-23-300-004 (REPAIR-004).

    18. SUBTASK 72-60-23-220-084 Examine the Hydraulic Pump Housing (72-60-23,01-460) Seal Housing Mating Surface at Location 8

    1. Refer to Figure.

      2. Parallelism

        1. In 0.002 in. (0.05 mm) FIR. in relation to surface B.

        1. Accept

        2. More than Step

        1. Repair VRS5038, TASK 72-60-23-300-005 (REPAIR-005).

    19. SUBTASK 72-60-23-220-085 Examine the Hydraulic Pump Housing (72-60-23,01-460) Seal Housing Bore at Location 9

    1. Refer to Figure.

      2. Diameter

        1. Between 2.6791 and 2.6831 in. (68.050 and 68.150 mm).

        1. Accept

        2. More than 2.6831 in. (68.150 mm).

        1. Repair VRS5041, TASK 72-60-23-300-008 (REPAIR-008).

      3. Runout

        1. In 0.002 in. (0.05 mm) FIR. in relation to surfaces A and B.

        1. Accept

        2. More than Step.

        1. Repair VRS5041, TASK 72-60-23-300-008 (REPAIR-008).

    20. Figure: Locations - Hydraulic Pump Housing

    Sheet 1

    Legend
    Locations - Hydraulic Pump Housing

    Sheet 1

    Close

    Figure: Locations - Hydraulic Pump Housing

    Sheet 2

    Legend
    Locations - Hydraulic Pump Housing

    Sheet 2

    Close
