TASK 72-00-40-420-004-B00 HP System Module - Install The Initial HP System Module Components And Air Off-Take Ducts, Installation-007

DMC:V2500-A5-72-00-4000-04C-720A-B|Issue No:005.00|Issue Date:2020-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 72-00-40-420-004-B00 HP System Module - Install The Initial HP System Module Components And Air Off-Take Ducts, Installation-007

General

This TASK gives the procedure to install the components and the air off take ducts on the HP compressor/diffuser case assembly. Refer to the TASKS which follow for other related procedures:

Install the components, the ducts, the electrical harnesses and the tubes on to the HP compressor case vertical split line by 72-00-40-420-005-A00 (INSTALLATION-008) or TASK 72-00-40-420-005-B00 (INSTALLATION-008).

Install and connect the components, the electrical harnesses and the tubes on to the front of the HP compressor case by 72-00-40-420-006-A00 (INSTALLATION-009) or TASK 72-00-40-420-006-B00 (INSTALLATION-009).

Install the components, the electrical harnesses and the tubes on to the HP turbine by 72-00-40-420-007-A00 (INSTALLATION-010) or TASK 72-00-40-420-007-B00 (INSTALLATION-010).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

For standard torque data and procedures refer to SPM TASK 70-41-01-400-501.

Special torque data is identified with the symbol * after the torque value.

Assembly tolerances are included in this procedure.

For lockwire data and procedures refer to SPM TASK 70-42-05-400-501.

For safety cable data and procedures refer to SPM TASK 70-42-08-400-501.

Safety the threaded fasteners in this TASK with CoMat 02-274 SAFETY CABLE KIT or CoMat 02-275 SAFETY CABLE KIT for the ATA Chapter/Section/Subjects which follow:

A1/A5 series engines:

71-51-41

71-52-43

72-41-34

73-22-49

75-23-49

75-31-42

75-31-43

75-32-42

Refer to the V2500 Illustrated Tool and Equipment Manual (ITE-V2500-1IA) for the illustrations of the special tools used in this procedure.

Transportation covers/blanks must not be removed until immediately before installation of the components.

Do not remove the special plastic caps from electrical connections or tube connections which are not applicable in this procedure. This will give protection from unwanted material.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS unless other lubricants are referred to in this procedure.

After assembly apply CoMat 07-038 AIR DRYING ENAMEL damaged surface protection, joint flanges and attach parts. Use the correct color of air drying enamel. Refer to SPM TASK 70-38-21-380-501.

NOTE

To identify the consumable materials refer to the PCI.
SBE 70-0813: Announcement of introduction of safety cable as a preferred method to lockwire.
Safety the threaded fasteners in this TASK with safety cable for the ATA Chapter/Section/Subjects detailed in 2. General.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1P16092 Igniter immersion gage0AM53IAE 1P160921
IAE 1P16139 Wrench0AM53IAE 1P161391
IAE 1R18001 Wrench0AM53IAE 1R180011
IAE 1R18003 Wrench0AM53IAE 1R180031

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
DELETEDLOCALDELETED
CoMat 01-573 WAX BLEND, PARAFFIN24269CoMat 01-573
CoMat 02-126 LOCKWIRELOCALCoMat 02-126
CoMat 02-141 LOCKWIRELOCALCoMat 02-141
CoMat 02-148 ADHESIVE TAPE (ELECTRICAL)LOCALCoMat 02-148
CoMat 02-274 SAFETY CABLE KITLOCALCoMat 02-274
CoMat 02-275 SAFETY CABLE KITLOCALCoMat 02-275
CoMat 07-038 AIR DRYING ENAMELk3504CoMat 07-038
CoMat 10-003 COLLOIDAL GRAPHITE DRY FILM LUBRICANTLOCALCoMat 10-003
CoMat 10-038 PETROLEUM JELLYLOCALCoMat 10-038
CoMat 10-060 LIQUID PARAFFINLOCALCoMat 10-060
CoMat 10-077 APPROVED ENGINE OILSX333XCoMat 10-077

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Preformed packing18
Gasket3
Gasket6
Preformed packing18
Gasket3
Gasket6
Preformed packing24
Gasket4
Gasket8

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-40-420-353 Install the Fuel Nozzles

    1. Refer to Figure and Figure.

    2. Install the 20 gaskets Fuel Nozzle And Support Assembly (73-13-41, 01-010) in to the recesses on the diffuser case. Use CoMat 01-573 WAX BLEND, PARAFFIN to hold the gaskets in position.

    3. Install 13 of the fuel nozzles Fuel Nozzle And Support Assembly (73-13-41, 01-020) at assembly positions 1, 4, 6, 7, 8, 9, 10, 12, 13, 15, 16, 17 and 20. Attach each fuel nozzle to the diffuser case with three bolts Fuel Nozzle And Support Assembly (73-13-41, 01-040). Torque the bolts to 65 * lbf.in to 85 * lbf.in (7.3 Nm to 10 Nm) and safety with CoMat 02-141 LOCKWIRE.

      4. Install the remaining seven fuel nozzles together with their applicable brackets at the assembly positions that follow:

      1. Position 2 - Install the fuel nozzle, the bracket Fuel Nozzle And Support Assembly (73-13-41, 01-190) and three bolts.

      2. NOTE

        Refer to Step (SBE 73-0139) which gives the procedure to install the bracket Fuel Nozzle Supply Fuel Manifolds (73-11-41, 01-258) on top of bracket Fuel Nozzle And Support Assembly (73-13-41, 01-120).

        Position 3 - Install the fuel nozzle, the bracket Fuel Nozzle And Support Assembly (73-13-41, 01-120) and three bolts.

      3. Position 5 - Install the fuel nozzle, the bracket Fuel Nozzle And Support Assembly (73-13-41, 01-180) and three bolts.

      4. Position 11 - Install the fuel nozzle the bracket Fuel Nozzle And Support Assembly (73-13-41, 01-260) and three bolts.

      5. Position 14 - Install the fuel nozzle, the bracket Fuel Nozzle And Support Assembly (73-13-41, 01-340) and three bolts.

      6. Position 18 - Install the fuel nozzle, the bracket Fuel Nozzle And Support Assembly (73-13-41, 01-400) and three bolts.

      7. Position 19 - Install the fuel nozzle, the two brackets Fuel Nozzle And Support Assembly (73-13-41, 01-450 and Fuel Nozzle And Support Assembly 01-480) and three bolts.

      8. Torque all the bolts to 65 * lbf.in to 85 * lbf.in (7.3 Nm to 10 Nm) and safety with CoMat 02-141 LOCKWIRE.

    2. SUBTASK 72-00-40-420-354 Attach Support Bracket (01-880) to Air Deflector Bracket Assembly (01-480 (SBE 72-0191)

      SBE 72-0191: HP system module - Improved cooling air deflector for cabin air pressure regulating valve.

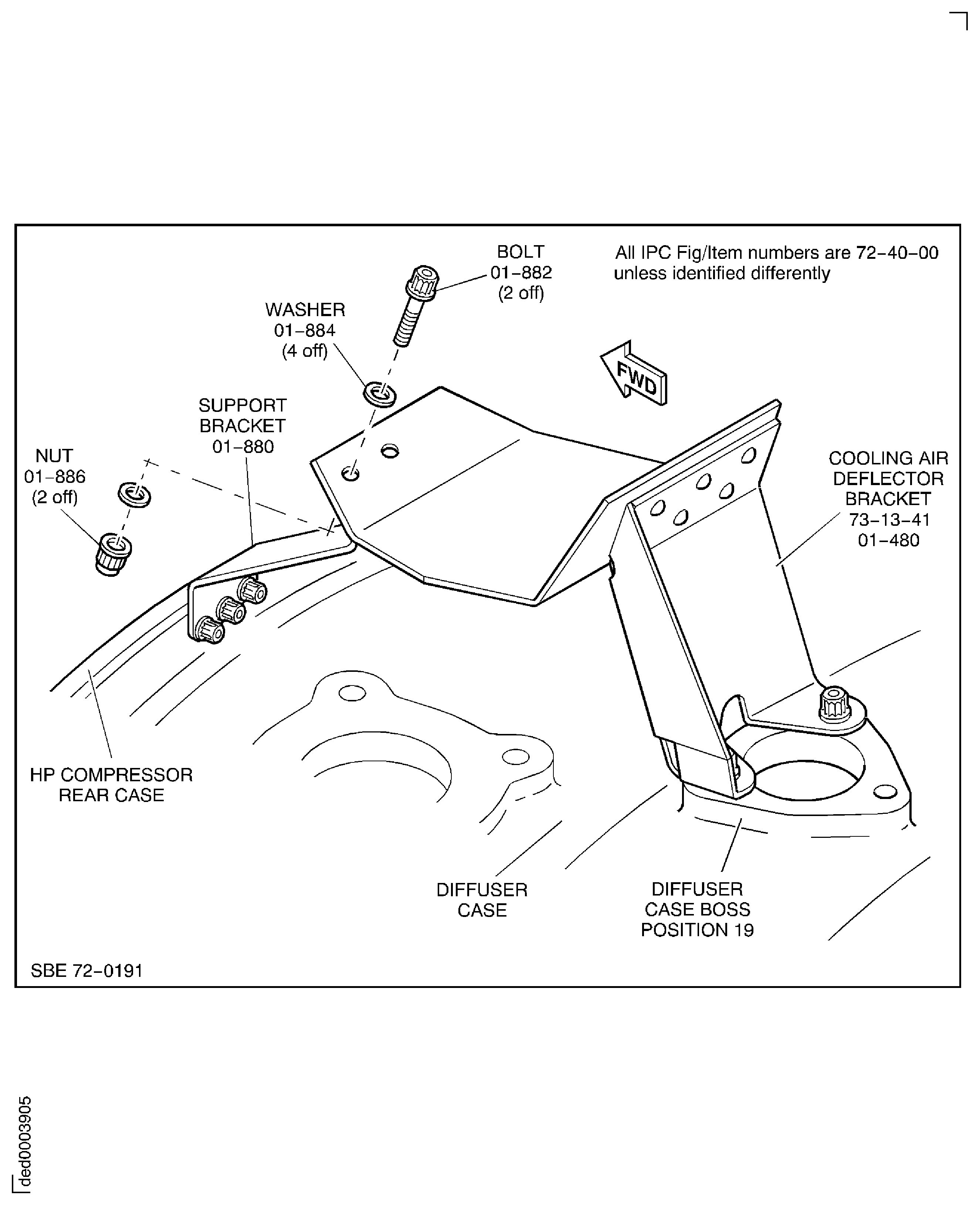

    1. Refer to Figure.

    2. NOTE

      The installation procedure for bracket HPC Module - Attaching Parts (72-40-00, 01-880) is given in TASK 72-40-00-430-002 (72-40-00 Assembly -002).

      Attach the support bracket HPC Module - Attaching Parts (72-40-00, 01-880) to the bracket Fuel Nozzle And Support Assembly (73-13-41, 01-480) with the two bolts HPC Module - Attaching Parts (72-40-00, 01-882), four washers HPC Module - Attaching Parts (72-40-00, 01-884) and the two nuts HPC Module - Attaching Parts (72-40-00, 01-886). Torque the two bolts to 36-45 lbf.in (4-5 Nm).

    3. SUBTASK 72-00-40-420-355 Install the Igniter Plugs

    1. Refer to Figure and Figure.

    2. Install the two threaded inserts Igniter Plug (74-21-41, 01-020) in the diffuser case until the bottom of the flange of the insert touches the diffuser case.

    3. With the IAE 1P16092 Igniter immersion gage 1 off; measure the distance E, from the top of the insert, to the point L on the outer combustion chamber nearest the fuel nozzle.

    4. Measure the distance D from the surface of the igniter plug that touches the insert, to the inner end of the igniter plug.

    5. Subtract distance E from distance D which equals initial immersion depth F.

    6. NOTE

      Refer to EIPC 74-21-41 Fig. 01 for the applicable range of spacers available.

      Use initial immersion depth F and, if required, one or two spacers Igniter Plug (74-21-41, 01-040) to get an immersion depth of 0.040 to 0.080 in. (1.02 to 2.03 mm). A maximum of two spacers can be used at each igniter location. The total thickness of the two spacers must not be more than 0.300 in. (7.62 mm).

    7. Remove the inserts if necessary and install the spacers and the inserts.

    8. Torque the insert to 600 to 700 * lbf.in (68 to 79 Nm). Safety the insert to the bolt on the adjacent fuel nozzle with CoMat 02-141 LOCKWIRE.

    9. CAUTION

      APPLY ANTI-SEIZE COMPOUND MODERATELY TO THE PLUG THREAD. YOU MUST NOT APPLY TOO MUCH COMPOUND, AS IT CAN GO IN TO THE ENGINE.

    10. Install the two igniter plugs and torque to 300 to 360 * lbf.in (34 to 41 Nm). Safety the igniter plug and the insert with CoMat 02-141 LOCKWIRE.

    4. SUBTASK 72-00-40-420-356 Install the P3/T3 Sensor

    1. Refer to Figure.

    2. Install the gasket ENGINE FUEL AND CONTROL-P3/T3 SENSOR (73-22-15, 01-010) on to the diffuser case and install the P3/T3 sensor ENGINE FUEL AND CONTROL-P3/T3 SENSOR (73-22-15, 01-030) with the tube connection to the left.

    3. Install the three bolts ENGINE FUEL AND CONTROL-P3/T3 SENSOR (73-22-15, 01-050) and torque to 85 to 105 lbf.in (10 to 12 Nm).

    5. SUBTASK 72-00-40-420-357 Install the Fuel Distribution Valve

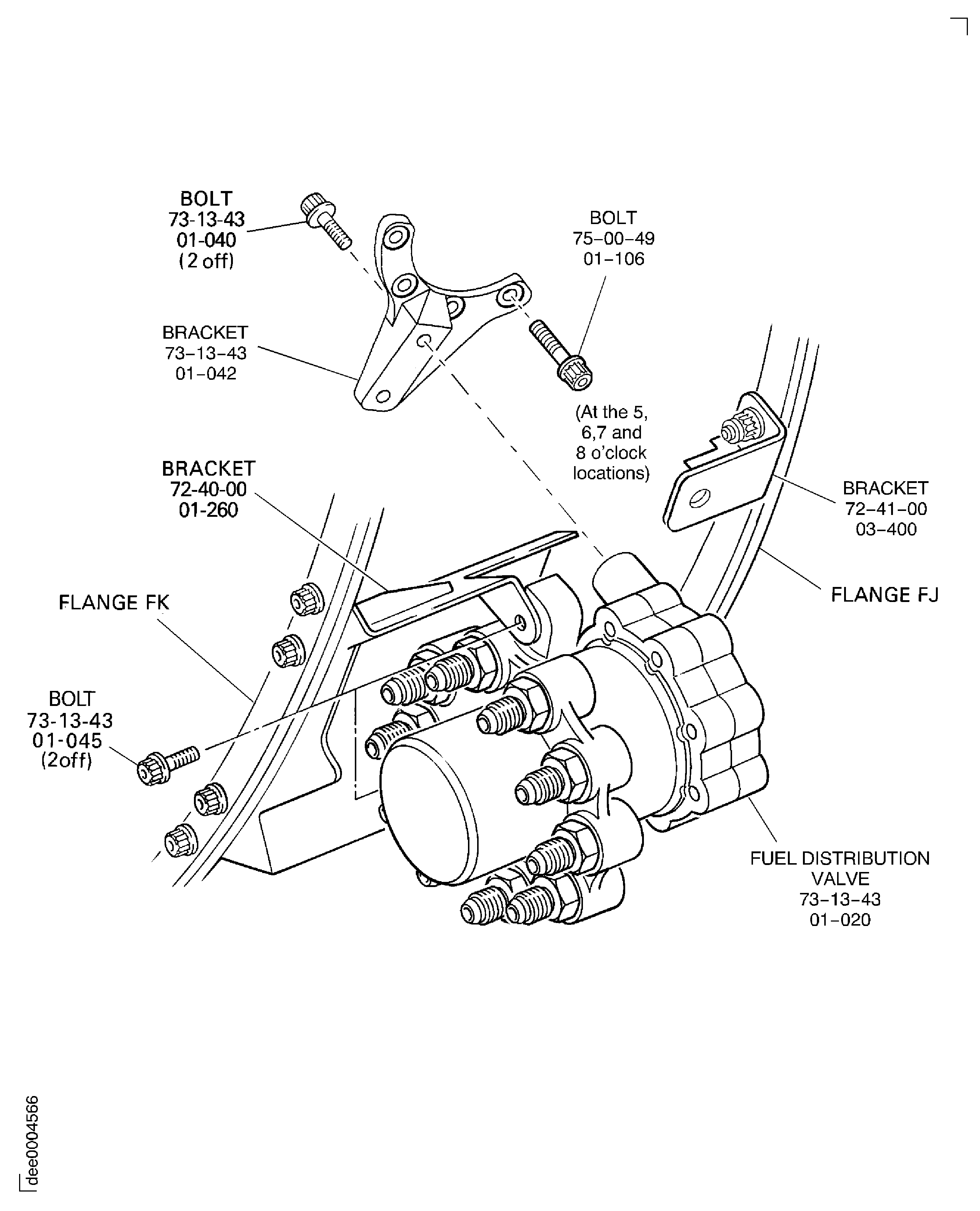

    1. Refer to Figure.

    2. Attach the fuel distribution valve to the bracket HPC Module - Attaching Parts (72-40-00, 01-260) with the two bolts ENGINE FUEL AND CONTROL-FUEL DISTRIBUTION VALVE (73-13-43, 01-045). Torque the bolts to 180 to 200 lbf.in (20 to 24 Nm).

    3. NOTE

      Pre SBE 79-0088: Refer to TASK 72-00-40-420-005-B00 (72-00-40, INSTALLATION-008, CONFIG-002 SUBTASK 72-00-40-420-220 for installation of upper part of bracket.

      NOTE

      SBE 79-0088: Refer to TASK 72-00-40-420-005-C00 (72-00-40, INSTALLATION-008, CONFIG-003 SUBTASK 72-00-40-420-416 for installation of upper part of bracket.

      Attach the fuel distribution valve support bracket ENGINE FUEL AND CONTROL-FUEL DISTRIBUTION VALVE (73-13-43, 01-042) with the two bolts ENGINE FUEL AND CONTROL-FUEL DISTRIBUTION VALVE (73-13-43, 01-040) to the fuel distribution valve. Torque the bolts to 180 to 200 lbf.in (20 to 24 Nm).

    6. SUBTASK 72-00-40-420-358-A00 Install the Stage 10 to HPT Air Valve (Pre SBE 75-0081)

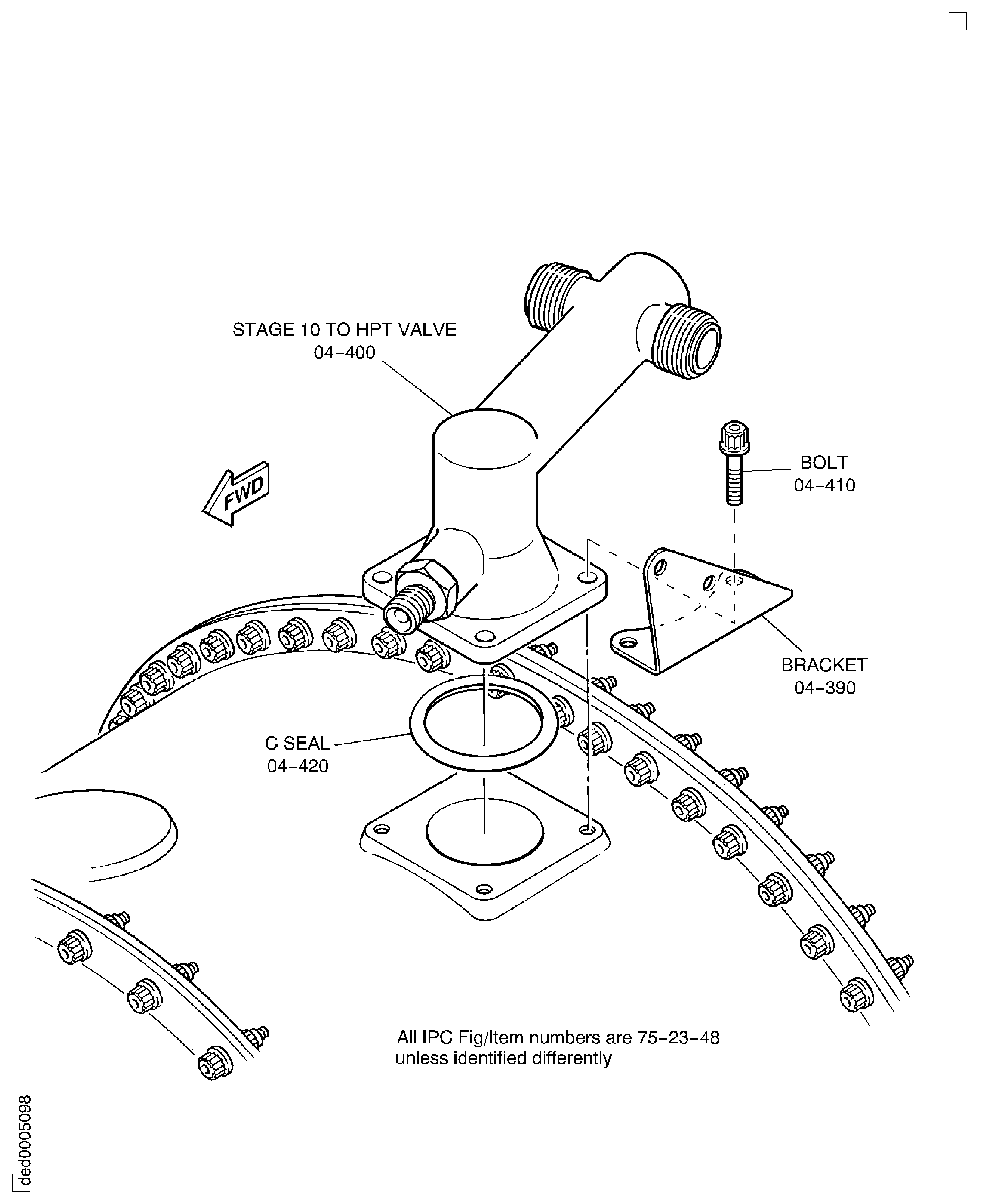

    1. Refer to Figure.

    2. Install the C seal AIR-STAGE 10 TO HPT AIR VALVE (75-23-51, 01-120) in the recess in the stage 10 to HPT air valve AIR-STAGE 10 TO HPT AIR VALVE (75-23-51, 01-100).

    3. Attach the stage 10 to HPT air valve to the HP compressor case with the four bolts AIR-STAGE 10 TO HPT AIR VALVE (75-23-51, 01-110), together with the bracket AIR-STAGE 10 TO HPT AIR VALVE (75-23-51, 01-010). Torque the bolts to 180 to 220 lbf.in (20 to 25 Nm).

    7. SUBTASK 72-00-40-420-358-B00 Install the Stage 10 to HPT Adaptor (SBE 75-0081)

      SBE 75-0081: Deletion of HPC stage 10 make-up air valve and associated hardware

    1. Refer to Figure.

    2. Install the C seal Turbine Cooling Air (TCA) Controlled Air Tubes (75-23-48, 04-420) in the recess in the stage 10 to HPT adaptor Turbine Cooling Air (TCA) Controlled Air Tubes (75-23-48, 04-400).

    3. Attach the stage 10 to HPT adaptor to the HP compressor case with the four bolts Turbine Cooling Air (TCA) Controlled Air Tubes (75-23-48, 04-410), together with the bracket Turbine Cooling Air (TCA) Controlled Air Tubes (75-23-48, 04-390). Torque the bolts to 180 to 220 lbf.in (20 to 25 Nm).

    8. SUBTASK 72-00-40-420-360 Install the Air Off-Take Ducts (Pre SBE 79-0088 and SBE 79-0088)

    1. Refer to Figure and Figure.

      2. Install the cabin air off-take duct Engine Air Off-Take Air Ducts (75-00-49, 01-700).

      1. NOTE

        One of the bolt holes is offset to permit correct alignment.

        Put the duct in position on the HP compressor case at approximately the 6 o'clock position and align the bolt holes.

      2. Install the 12 bolts Engine Air Off-Take Air Ducts (75-00-49, 01-702), together with the two brackets Engine Air Off-Take Air Ducts (75-00-49, 01-670) and Engine Air Off-Take Air Ducts (75-00-49, 01-680). Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).

      3. Install the stage 10 air off-take duct Engine Air Off-Take Air Ducts (75-00-49, 01-550).

      1. NOTE

        One of the bolt holes is offset to permit correct alignment.

        Put the duct in position on the HP compressor case at the 3 o'clock position and align the bolt holes.

      2. Install the 12 bolts Engine Air Off-Take Air Ducts (75-00-49, 01-552) together with the bracket Engine Air Off-Take Air Ducts (75-00-49, 01-545). Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).

    9. SUBTASK 72-00-40-420-361 Install the Stage 10 Bleed Valve, the Seal Assembly and the Silencer

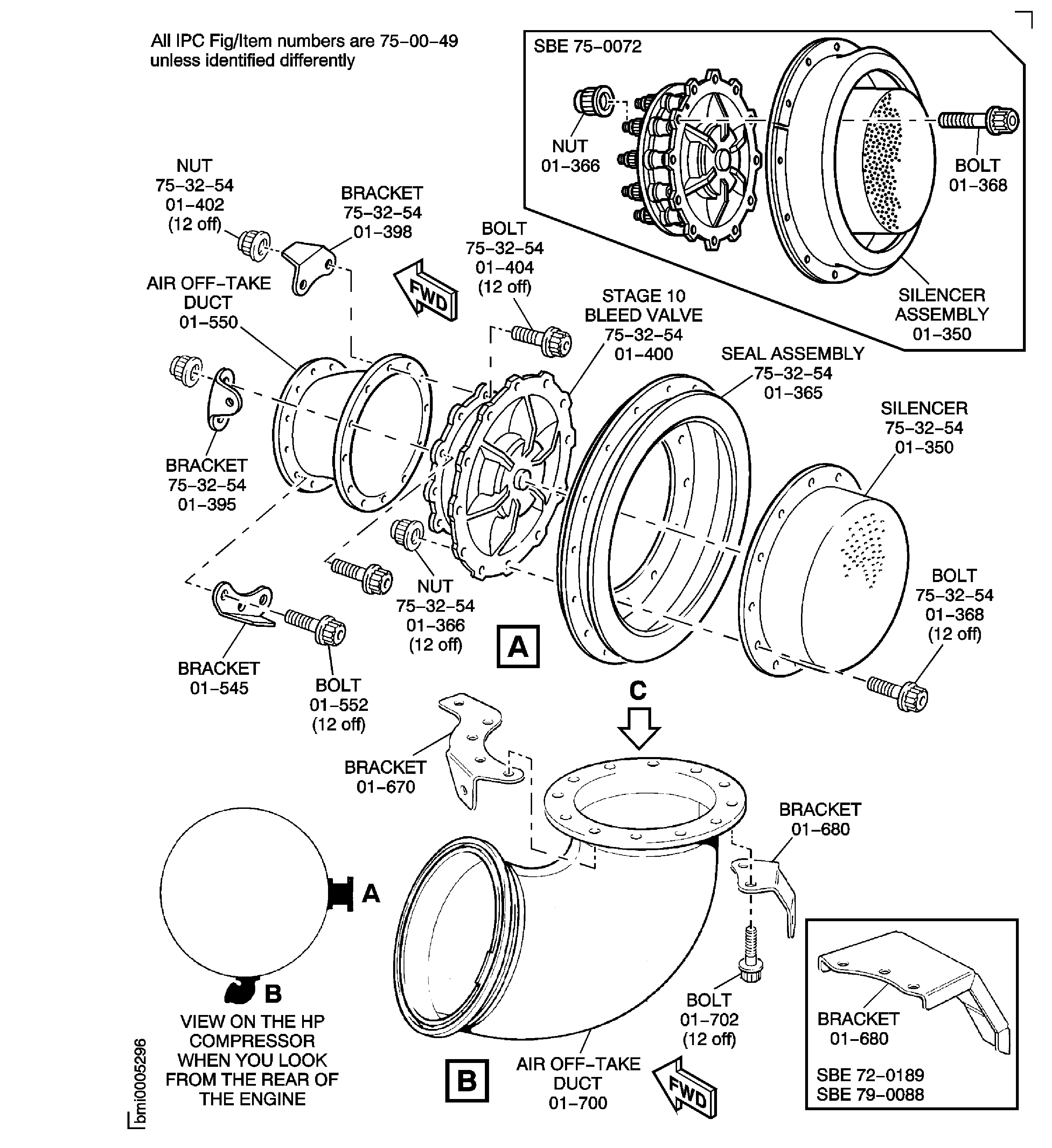

    1. Refer to Figure.

    2. Put the bleed valve HPC Stage 10 Bleed Valve (75-32-54, 01-400) in position on the air off-take duct Engine Air Off-Take Air Ducts (75-00-49, 01-550) and align the bolt holes. Make sure the bleed valve actuation connection is at the 12 o'clock position.

    3. Install the 12 bolts HPC Stage 10 Bleed Valve (75-32-54, 01-404), the two brackets HPC Stage 10 Bleed Valve (75-32-54, 01-395 and HPC Stage 10 Bleed Valve 01-398) and the 12 nuts HPC Stage 10 Bleed Valve (75-32-54, 01-402). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).

    4. Attach the silencer HPC Stage 10 Bleed Valve (75-32-54, 01-350) and the seal assembly HPC Stage 10 Bleed Valve (75-32-54, 01-365) to the bleed valve with the 12 bolts HPC Stage 10 Bleed Valve (75-32-54, 01-368) and the nuts HPC Stage 10 Bleed Valve (75-32-54, 01-366). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).

    10. SUBTASK 72-00-40-420-362 Install the Tube Raceway

    1. Refer to Figure.

      2. Install the raceway Fuel System Air Tubes (73-22-49, 05-900).

      1. Put the raceway in position.

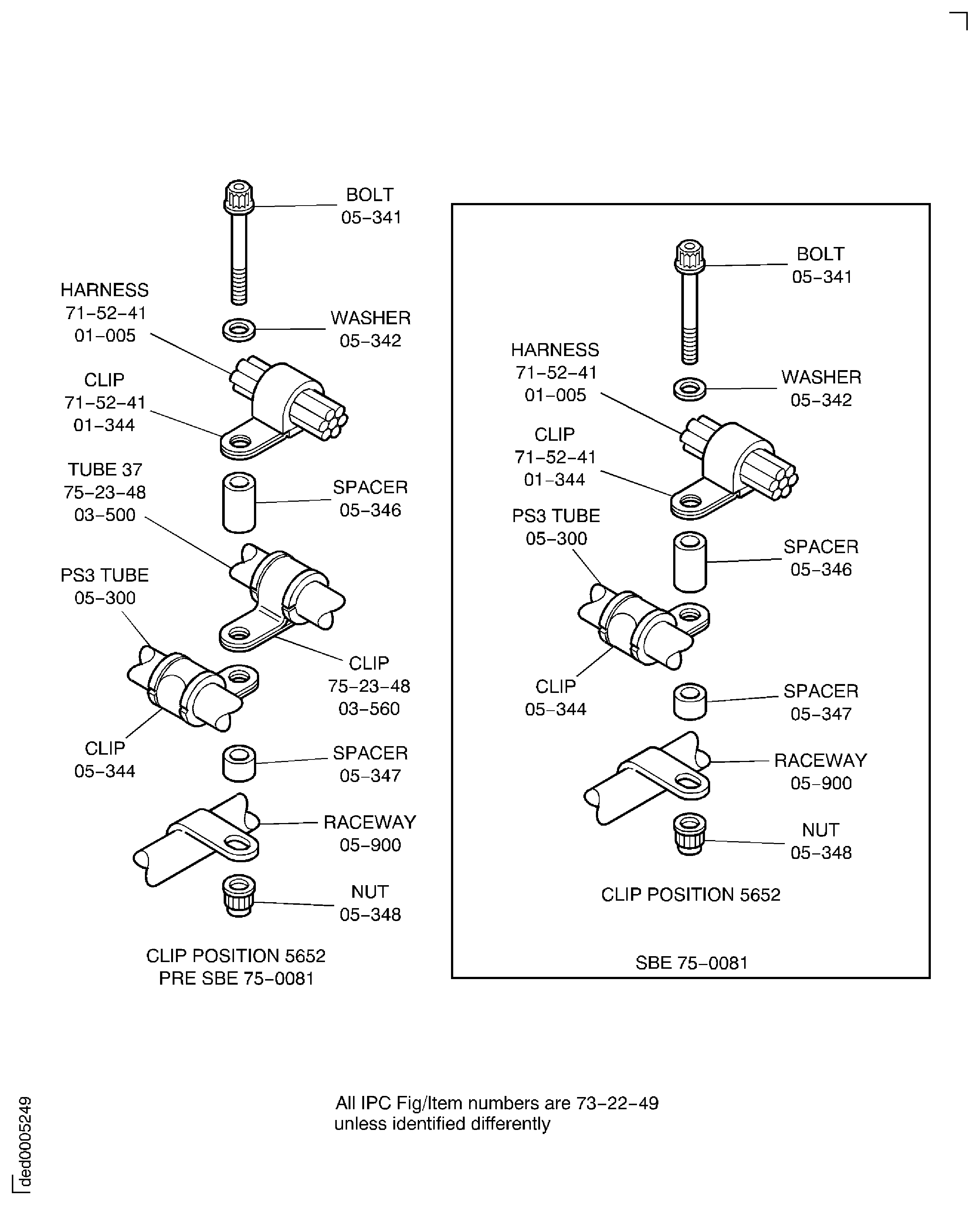

      2. Install the clip, the washer, the bolt and the clipnut at the clip position 5657. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

    11. SUBTASK 72-00-40-420-363-A00 Install the Fuel Nozzle Manifolds - Tubes 77 thru 80 (Pre SBE 73-0147)

      2. Install the tubes 77 thru 80 Fuel Nozzle Supply Fuel Manifolds (73-11-41, 03-060 , 03-160, 03-260 and 03-360).

      1. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41, 03-001) preformed packing 24 off, with CoMat 10-060 LIQUID PARAFFIN or CoMat 10-038 PETROLEUM JELLY and install two on to each of the 12 transfer tubes Fuel Nozzle Supply Fuel Manifolds (73-11-41, 03-020).

      2. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41, 03-040) gasket 4 off, with CoMat 10-038 PETROLEUM JELLY and install them on to the fuel distribution valve at the positions 6, 7, 8 and 9.

      3. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41, 03-050) gasket 8 off, with CoMat 10-038 PETROLEUM JELLY and install them on the fuel nozzles, numbers 11 thru 18.

      4. Install one transfer tube in to each of the three ends of the tubes 77 thru 80.

      5. Attach the tube 77 to the fuel distribution valve at the position 6 and the fuel nozzles 11 and 12.

      6. Attach the tube 78 to the fuel distribution valve at the position 7 and the fuel nozzles 13 and 14.

      7. Attach the tube 79 to the fuel distribution valve at the position 8 and the fuel nozzles 15 and 16.

      8. Attach the tube 80 to the fuel distribution valve at the position 9 and the fuel nozzles 17 and 18.

      9. NOTE

        Pre SBE 79-0088: The installation of tube 80 is completed during installation of the cabin air sense tubes (36-21-49). Refer to TASK 72-00-40-420-005-B00 (INSTALLATION-008 CONFIG-002) SUBTASK 72-00-40-420-228-A00, SUBTASK 72-00-40-420-228-B00 or SUBTASK 72-00-40-420-228-C00.

        NOTE

        SBE 79-0088: The installation of tube 80 is completed during installation of the cabin air sense tubes (36-21-49). Refer to TASK 72-00-40-420-005-C00 (INSTALLATION-008 CONFIG-003) SUBTASK 72-00-40-420-424-A00, SUBTASK 72-00-40-420-424-B00 or SUBTASK 72-00-40-420-424-C00.

        Install the clamps, bolts and nuts at the support assemblies D, E, F, G, H, J, I, K, L and M. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).

      10. CAUTION

        WHEN YOU USE THE IAE 1P16139 Wrench 1 off , THE CORRECT TORQUE WILL HAVE TO BE CALCULATED USING THE FORMULA IN THE STANDARD PRACTICES MANUAL (TASK 70-41-01-400-501).

        CAUTION

        MAKE SURE THAT YOU DO THE PROCEDURE THAT FOLLOWS: TO CORRECTLY TORQUE THE FUEL MANIFOLD COUPLING NUTS. INCORRECT TORQUE COULD RESULT IN DAMAGE TO THE ENGINE PARTS.

        Torque the tube nuts at the fuel distribution valve with the IAE 1P16139 Wrench 1 off to between 85 and 95* lbf.in (9.604 and 10.734 Nm).

      11. Do Step again until all the tube nuts are at the correct torque. Do not torque the tube nuts more than four times. If the tube nuts can not be torqued to the correct value then replace the fuel manifold or seals.

      12. Torque the tube nuts at the fuel nozzles to 205 to 225 * lbf.in (23 to 25 Nm).

      13. Do Step again until all the tube nuts are at the correct torque. Do not torque the tube nuts more than four times. If the tube nuts can not be torqued to the correct value then replace the fuel manifold or seals.

      14. Safety the tube nuts with CoMat 02-126 LOCKWIRE.

    12. SUBTASK 72-00-40-420-363-B00 Install the Fuel Nozzle Manifolds - Tubes 77 thru 80 (SBE 73-0147)

      SBE 73-0147: Replace the Fuel Manifolds

      2. Install the tubes 77 thru 80 Fuel Nozzle Supply Fuel Manifolds (73-11-41, 03-060 , 03-160, 03-260 and 03-360).

      1. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41, 03-001) preformed packing 24 off, with CoMat 10-060 LIQUID PARAFFIN or CoMat 10-038 PETROLEUM JELLY and install two on to each of the 12 transfer tubes Fuel Nozzle Supply Fuel Manifolds (73-11-41, 03-020).

      2. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41, 03-040) gasket 4 off, with CoMat 10-038 PETROLEUM JELLY and install them on to the fuel distribution valve at the positions 6, 7, 8 and 9.

      3. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41,03-050) gasket 8 off, with CoMat 10-038 PETROLEUM JELLY and install them on the fuel nozzles, numbers 11 thru 18.

      4. Install one transfer tube in to each of the three ends of the tubes 77 thru 80.

      5. Attach the tube 77 to the fuel distribution valve at the position 6 and the fuel nozzles 11 and 12.

      6. Attach the tube 78 to the fuel distribution valve at the position 7 and the fuel nozzles 13 and 14.

      7. Attach the tube 79 to the fuel distribution valve at the position 8 and the fuel nozzles 15 and 16.

      8. Attach the tube 80 to the fuel distribution valve at the position 9 and the fuel nozzles 17 and 18.

      9. NOTE

        Pre SBE 79-0088: The installation of tube 80 is completed during installation of the cabin air sense tubes (36-21-49). Refer to TASK 72-00-40-420-005-B00 (INSTALLATION-008 CONFIG-002) SUBTASK 72-00-40-420-228-A00, SUBTASK 72-00-40-420-228-B00 or SUBTASK 72-00-40-420-228-C00.

        NOTE

        SBE 79-0088: The installation of tube 80 is completed during installation of the cabin air sense tubes (36-21-49). Refer to TASK 72-00-40-420-005-C00 (INSTALLATION-008 CONFIG-003)SUBTASK 72-00-40-420-424-A00, SUBTASK 72-00-40-420-424-B00 or SUBTASK 72-00-40-420-424-C00.

        Install the clamps, bolts and nuts at the support assemblies D, E, F, G, H, J, I, K, L and M. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).

      10. CAUTION

        WHEN YOU USE THE IAE 1P16139 Wrench 1 OFF, THE CORRECT TORQUE WILL HAVE TO BE CALCULATED USING THE FORMULA IN THE STANDARD PRACTICES MANUAL (TASK 70-41-01-400-501).

        CAUTION

        MAKE SURE THAT YOU DO THE PROCEDURE THAT FOLLOWS: TO CORRECTLY TORQUE THE FUEL MANIFOLD COUPLING NUTS. INCORRECT TORQUE COULD RESULT IN DAMAGE TO THE ENGINE PARTS.

        Torque the tube nuts at the fuel distribution valve with the IAE 1P16139 Wrench to between 85 and 95* lbf.in (9.604 and 10.734 Nm).

      11. Do Step again until all the tube nuts are at the correct torque. Do not torque the tube nuts more than four times. If the tube nuts can not be torqued to the correct value then replace the fuel manifold or seals.

      12. Torque the tube nuts at the fuel nozzles to 205 to 225 * lbf.in (23 to 25 Nm).

      13. Do Step again until all the tube nuts are at the correct torque. Do not torque the tube nuts more than four times. If the tube nuts can not be torqued to the correct value then replace the fuel manifold or seals.

      14. Safety the tube nuts with CoMat 02-126 LOCKWIRE.

    13. SUBTASK 72-00-40-420-365-A00 Install the Fuel Nozzle Manifolds - Tubes 74, 75 and 76 (Pre SBE 73-0139)

    1. Refer to Figure, Figure, Figure and Figure.

      2. Install the tubes 74, 75 and 76 Fuel Nozzle Supply Fuel Manifolds (73-11-41, 01-260 , Fuel Nozzle Supply Fuel Manifolds 01-160 and Fuel Nozzle Supply Fuel Manifolds 01-060).

      1. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41, 01-010) preformed packing 18 off, with CoMat 10-060 LIQUID PARAFFIN or CoMat 10-038 PETROLEUM JELLY and install two on to each of the nine transfer tubes Fuel Nozzle Supply Fuel Manifolds (73-11-41, 01-020).

      2. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41, 01-040) gasket 3 off, with CoMat 10-038 PETROLEUM JELLY and install them on to the fuel distribution valve at the positions 1, 2 and 10.

      3. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41, 01-050) gasket 6 off, with CoMat 10-038 PETROLEUM JELLY and install them on to the fuel nozzles Numbers 1 thru 4, 19 and 20.

      4. Install one transfer tube in to each of the three ends of the tubes 1, 2 and 10.

      5. Attach the tube 74 to the fuel distribution valve at the position 2 and the fuel nozzles 3 and 4.

      6. Attach the tube 75 to the fuel distribution valve at the position 1 and the fuel nozzles 1 and 2.

      7. Attach the tube 76 to the fuel distribution valve at the position 10 and the fuel nozzles 19 and 20.

      8. Install the clips, the bolts and the nuts at the support assemblies A, B and C. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).

      9. CAUTION

        WHEN YOU USE THE IAE 1P16139 Wrench 1 OFF, THE CORRECT TORQUE WILL HAVE TO BE CALCULATED USING THE FORMULA IN THE STANDARD PRACTICES MANUAL (TASK 70-41-01-400-501).

        CAUTION

        MAKE SURE THAT YOU DO THE PROCEDURE THAT FOLLOWS: TO CORRECTLY TORQUE THE FUEL MANIFOLD COUPLING NUTS. INCORRECT TORQUE COULD RESULT IN DAMAGE TO THE ENGINE PARTS.

        Torque the tube nuts at the fuel distribution valve with the IAE 1P16139 Wrench to between 85 and 95* lbf.in (9.604 and 10.734 Nm).

      10. Do Step again until all the tube nuts are at the correct torque. Do not torque the tube nuts more than four times. If the tube nuts can not be torqued to the correct value then replace the fuel manifold or seals.

      11. Torque the tube nuts at the fuel nozzles to 205 to 225 * lbf.in (23 to 25 Nm).

      12. Do Step again until all the tube nuts are at the correct torque. Do not torque the tube nuts more than four times. If the tube nuts can not be torqued to the correct value then replace the fuel manifold or seals.

      13. Safety the tube nuts with CoMat 02-126 LOCKWIRE.

    14. SUBTASK 72-00-40-420-365-B00 Install the Fuel Nozzle Manifolds - Tubes 74, 75 and 76 (SBE 73-0139)

      SBE 73-0139: Fuel and Control - Replace a fuel nozzle supply manifold assembly and the related attaching parts

    1. Refer to Figure, Figure, Figure, Figure and Figure

      2. Install the tubes 74, 75 and 76 Fuel Nozzle Supply Fuel Manifolds (73-11-41, 01-260 ,Fuel Nozzle Supply Fuel Manifolds 01-160 and Fuel Nozzle Supply Fuel Manifolds 01-060).

      1. Refer to SUBTASK 72-00-40-420-071 for the procedure to install bracket Fuel Nozzle And Support Assembly (73-13-41, 01-120) to fuel nozzle assembly position 3.

      2. Install the bracket Fuel Nozzle Supply Fuel Manifolds (73-11-41, 01-258) at the number 3 fuel nozzle with the three bolts Fuel Nozzle And Support Assembly (73-13-41, 01-040). Locate bracket Fuel Nozzle Supply Fuel Manifolds (73-11-41, 01-258) on top of bracket Fuel Nozzle And Support Assembly (73-13-41, 01-120).

      3. Torque the three bolts Fuel Nozzle And Support Assembly (73-13-41, 01-040) to 65 to 85 * lbf.in (7.3 to 10 Nm) and safety with CoMat 02-141 LOCKWIRE.

      4. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41, 01-010) preformed packing 18 off, with CoMat 10-060 LIQUID PARAFFIN or CoMat 10-038 PETROLEUM JELLY and install two on to each of the nine transfer tubes Fuel Nozzle Supply Fuel Manifolds (73-11-41, 01-020).

      5. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41, 01-040) gasket 3 off, with CoMat 10-038 PETROLEUM JELLY and install them on to the fuel distribution valve at the positions 1, 2 and 10.

      6. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41, 01-050) gasket 6 off, with CoMat 10-038 PETROLEUM JELLY and install them on to the fuel nozzles Numbers 1 thru 4, 19 and 20.

      7. Install one transfer tube in to each of the three ends of the tubes 1, 2 and 10.

      8. Attach the tube 74 to the fuel distribution valve at the position 2 and the fuel nozzles 3 and 4.

      9. Attach the tube 75 to the fuel distribution valve at the position 1 and the fuel nozzles 1 and 2.

      10. Attach the tube 76 to the fuel distribution valve at the position 10 and the fuel nozzles 19 and 20.

      11. Install the clips, the bolts and the nuts at the support assemblies A, B and C, refer to Figure and Figure. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).

      12. CAUTION

        WHEN YOU USE THE IAE 1P16139 Wrench 1 OFF, THE CORRECT TORQUE WILL HAVE TO BE CALCULATED USING THE FORMULA IN THE STANDARD PRACTICES MANUAL (TASK 70-41-01-400-501).

        CAUTION

        MAKE SURE THAT YOU DO THE PROCEDURE THAT FOLLOWS: TO CORRECTLY TORQUE THE FUEL MANIFOLD COUPLING NUTS. INCORRECT TORQUE COULD RESULT IN DAMAGE TO THE ENGINE PARTS.

        Torque the tube nuts at the fuel distribution valve with the IAE 1P16139 Wrench 1 off to between 85 and 95* lbf.in (9.604 and 10.734 Nm).

      13. Do Step again until all the tube nuts are at the correct torque. Do not torque the tube nuts more than four times. If the tube nuts can not be torqued to the correct value then replace the fuel manifold or seals.

      14. Torque the tube nuts at the fuel nozzles to 205 to 225 * lbf.in (23 to 25 Nm).

      15. Do Step again until all the tube nuts are at the correct torque. Do not torque the tube nuts more than four times. If the tube nuts can not be torqued to the correct value then replace the fuel manifold or seals.

      16. Safety the tube nuts with CoMat 02-126 LOCKWIRE.

    15. SUBTASK 72-00-40-420-367 Install the Fuel Nozzle Manifolds - Tubes 71, 72 and 73

    1. Refer to Figure, Figure, Figure and Figure

      2. Install the tubes 71, 72 and 73 Fuel Nozzle Supply Fuel Manifolds (73-11-41, 02-160 ,Fuel Nozzle Supply Fuel Manifolds 02-260 and Fuel Nozzle Supply Fuel Manifolds 02-060).

      1. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41, 02-001) preformed packing 18 off, with CoMat 10-060 LIQUID PARAFFIN or CoMat 10-038 PETROLEUM JELLY and install two on to each of the nine transfer tubes Fuel Nozzle Supply Fuel Manifolds (73-11-41, 02-020).

      2. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41, 02-040) gasket 3 off, with CoMat 10-038 PETROLEUM JELLY and install them on to the fuel distribution valve at the positions 3, 4 and 5.

      3. Lightly lubricate the new Fuel Nozzle Supply Fuel Manifolds (73-11-41, 02-050) gasket 6 off, with CoMat 10-038 PETROLEUM JELLY and install them on to the fuel nozzles Numbers 5 thru 10.

      4. Install one transfer tube in to each of the three ends of the tubes 71, 72 and 73.

      5. Attach the tube 71 to the fuel distribution valve at the position 4 and the fuel nozzles 7 and 8.

      6. Attach the tube 72 to the fuel distribution valve at the position 5 and the fuel nozzles 9 and 10.

      7. Attach the tube 73 to the fuel distribution valve at the position 3 and the fuel nozzles 5 and 6.

      8. CAUTION

        WHEN YOU USE THE IAE 1P16139 Wrench 1 OFF, THE CORRECT TORQUE WILL HAVE TO BE CALCULATED USING THE FORMULA IN THE STANDARD PRACTICES MANUAL (TASK 70-41-01-400-501).

        CAUTION

        MAKE SURE THAT YOU DO THE PROCEDURE THAT FOLLOWS: TO CORRECTLY TORQUE THE FUEL MANIFOLD COUPLING NUTS. INCORRECT TORQUE COULD RESULT IN DAMAGE TO THE ENGINE PARTS.

        Torque the tube nuts at the fuel distribution valve with the IAE 1P16139 Wrench to between 85 and 95* lbf.in (9.604 and 10.734 Nm).

      9. Do Step again until all the tube nuts are at the correct torque. Do not torque the tube nuts more than four times. If the tube nuts can not be torqued to the correct value then replace the fuel manifold or seals.

      10. Torque the tube nuts at the fuel nozzles to 205 to 225 * lbf.in (23 to 25 Nm).

      11. Do Step again until all the tube nuts are at the correct torque. Do not torque the nuts more than four times. If the tube nuts can not be torqued to the correct value then replace the fuel manifold or seals.

      12. Safety the tube nuts with CoMat 02-126 LOCKWIRE.

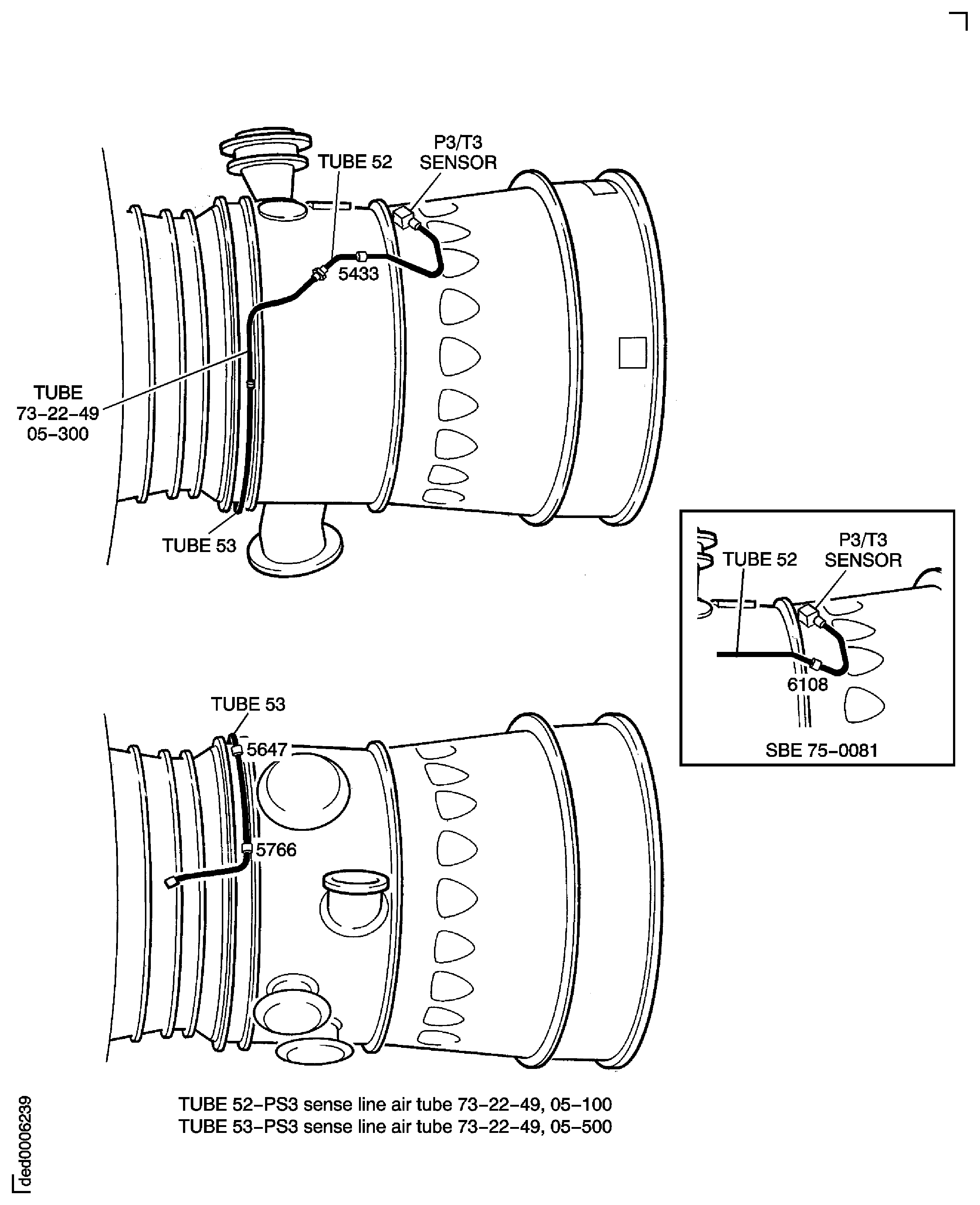

    16. SUBTASK 72-00-40-420-369 Install the PS3 Sensor Line Air Tubes (52 and 53) and PS3 Sense Line Tube (05-300) (Pre SBE 75-0081 and SBE 75-0081)

      SBE 75-0081: Deletion of HPC stage 10 make-up air valve and associated hardware

    1. Refer to Figure.

      2. Install the tube 52 Fuel System Air Tubes (73-22-49, 05-100).

      1. Attach the tube 52 to the P3/T3 sensor.

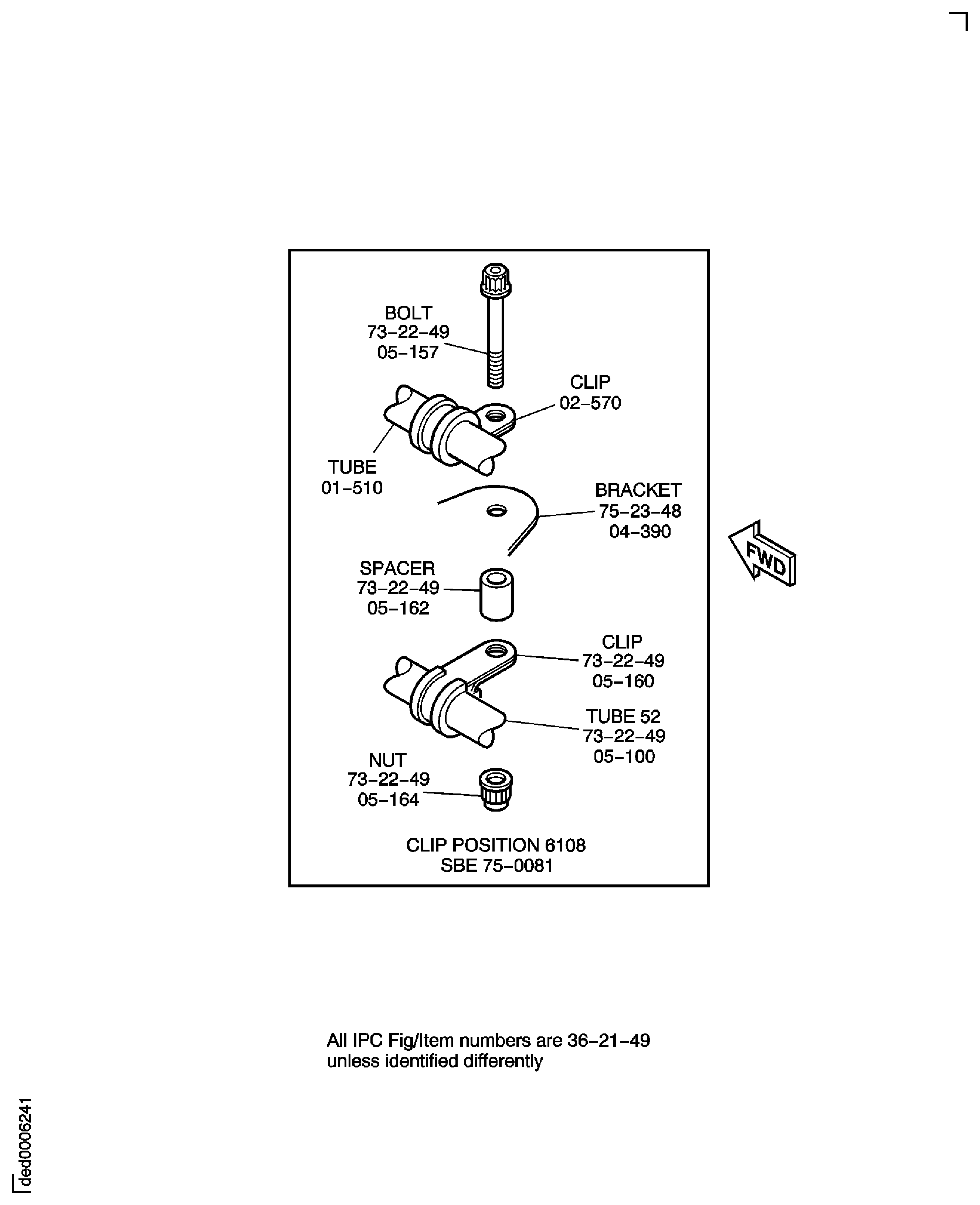

      2. Pre SBE 75-0081: Install the clip, the clipnut, the washer and the bolt at the clip position 5433. Refer to Figure.

      3. SBE 75-0081: Install the clip, the nut, the spacer and the bolt at the clip position 6108. Refer to Figure.

      4. Torque the tube nut in Step to 159 to 177 lbf.in (18 to 20 Nm). Safety with CoMat 02-126 LOCKWIRE.

      5. Torque the bolts in Step and Step to 36 to 45 lbf.in (4 to 5 Nm).

      3. Install tube 53 Fuel System Air Tubes (73-22-49, 05-500).

      1. Attach the PS3 tube Fuel System Air Tubes (73-22-49, 05-300) to the tube 52.

      2. Attach the tube 53 to the tube 52.

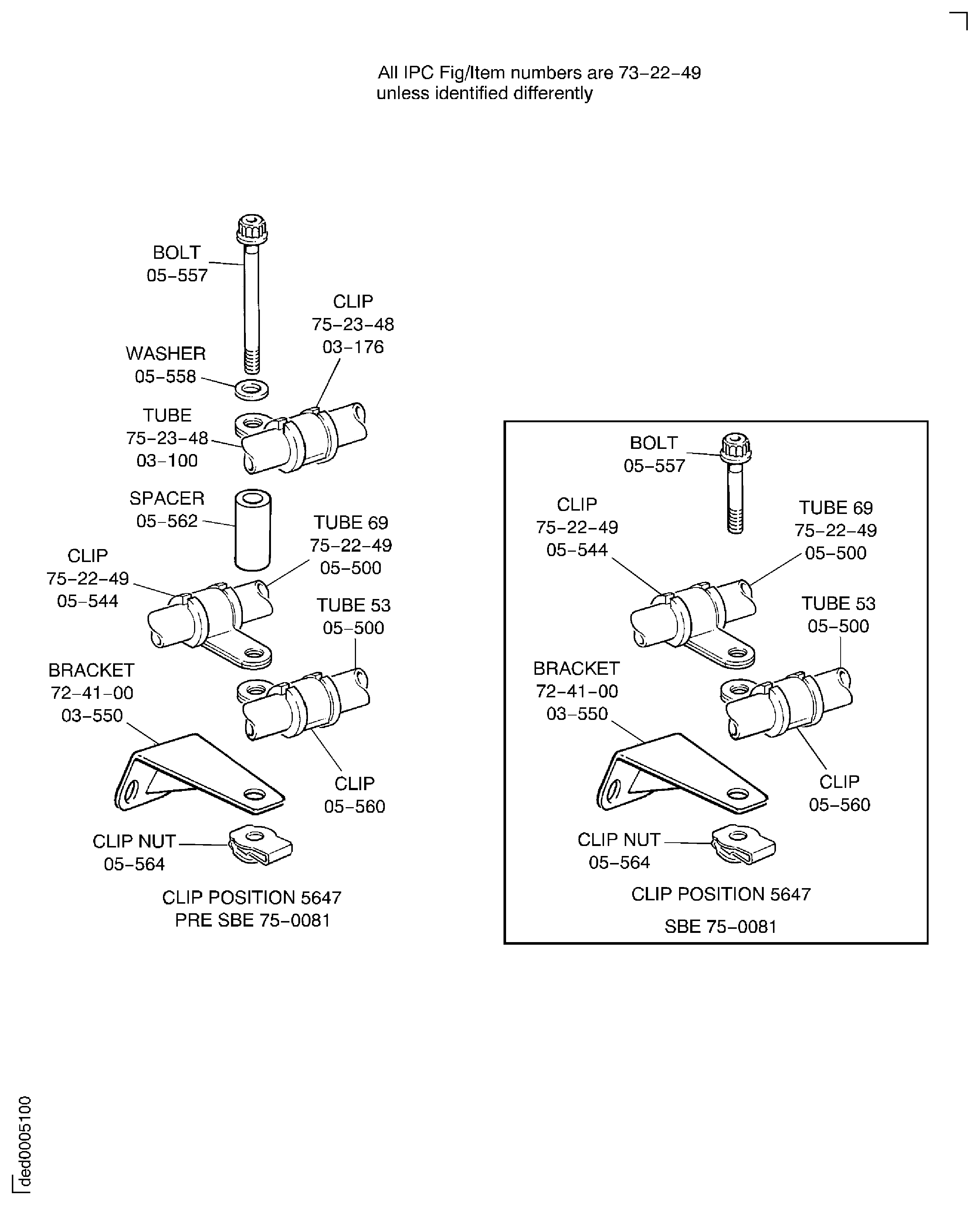

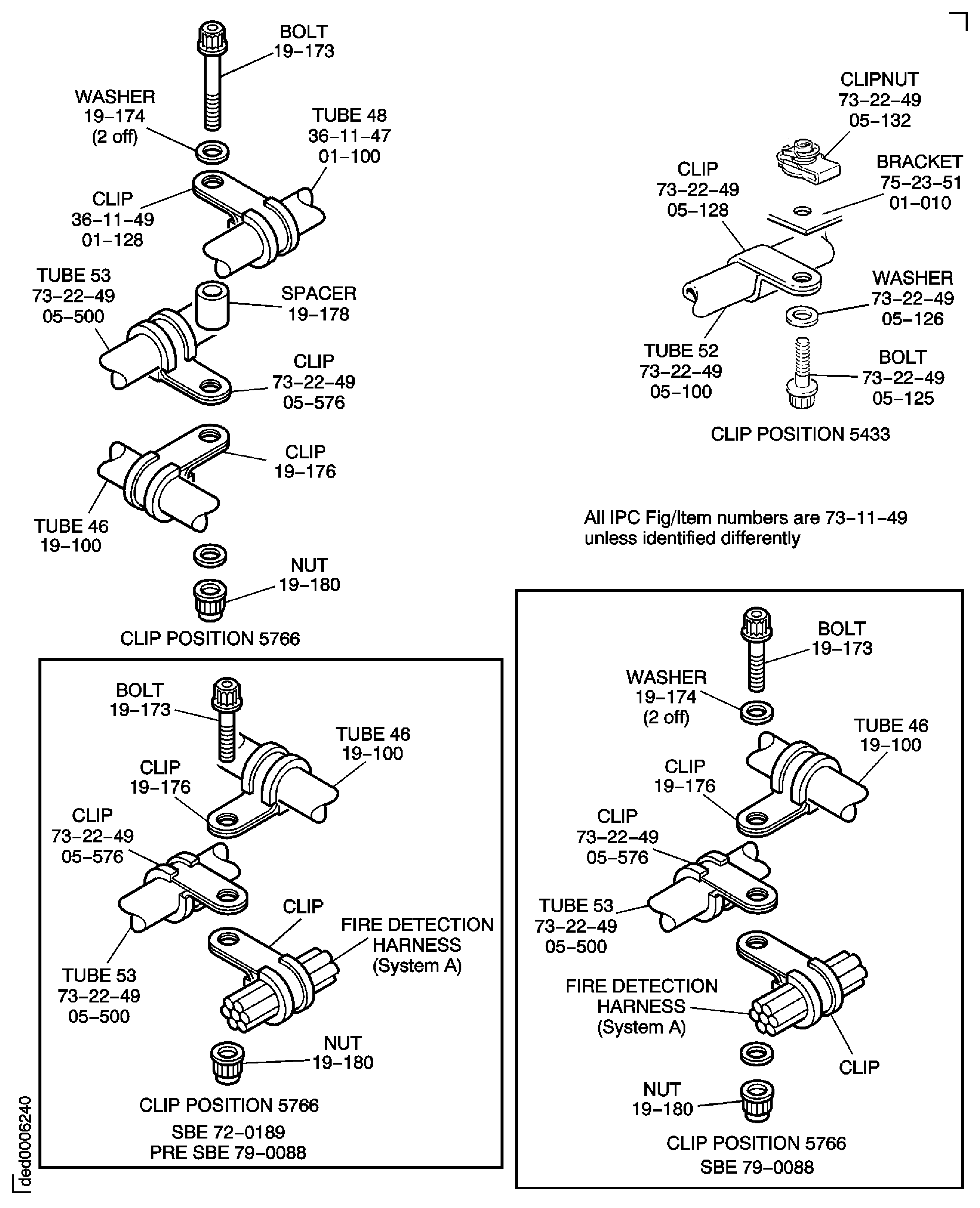

      3. Temporarily install the attaching parts at clip position 5766. Refer to Figure. The installation of this clip position is completed during installation of the fire detection harness.

      4. Temporarily install the attaching parts at clip position 5647, refer to Figure and Figure. The installetion of this clip position is completed during installation of tube 68.

      5. NOTE

        Pre SBE 79-0088: The installetion of tube 53 is completed during TASK 72-00-40-420-006-B00 (72-00-40 Instalation-009, CONFIG-002).

        NOTE

        SBE 79-0088: The installetion of tube 53 is completed during TASK 72-00-40-420-006-C00 (72-00-40 Instalation-009, CONFIG-003).

        Temporarily attach the tube 53 to the tube 138 at the bifurcation panel.

      6. Torque the tube nuts in Step and Step to 159 to 177 lbf.in (18 to 20 Nm). Safety the CoMat 02-126 LOCKWIRE.

    17. SUBTASK 72-00-40-420-373 Install the No. 4 Bearing Scavenge Air Tubes (38 and 69) (Pre SBE 75-0081, Pre SBE 72-0189, Pre SBE 79-0088, SBE 75-0081, SBE 72-0189 and SBE 79-0088)

      SBE 75-0081: Deletion of HPC stage 10 make-up air valve and associated hardware

      SBE 72-0189: Core engine tubes - Tube assemblies coupled to bifurcation panel re run to clear cowl door hold open rods

      SBE 79-0088: Oil - Scavenge oil tubes - Re-route of No.4 bearing scavenge tube

      1. Install the tube 38 Bearing Compartment Cooling And Sealing Air Tubes (75-22-49, 05-100). Refer to Figure and Figure.

      1. Attach the tube 38 to the stage 10 to HPT air valve.

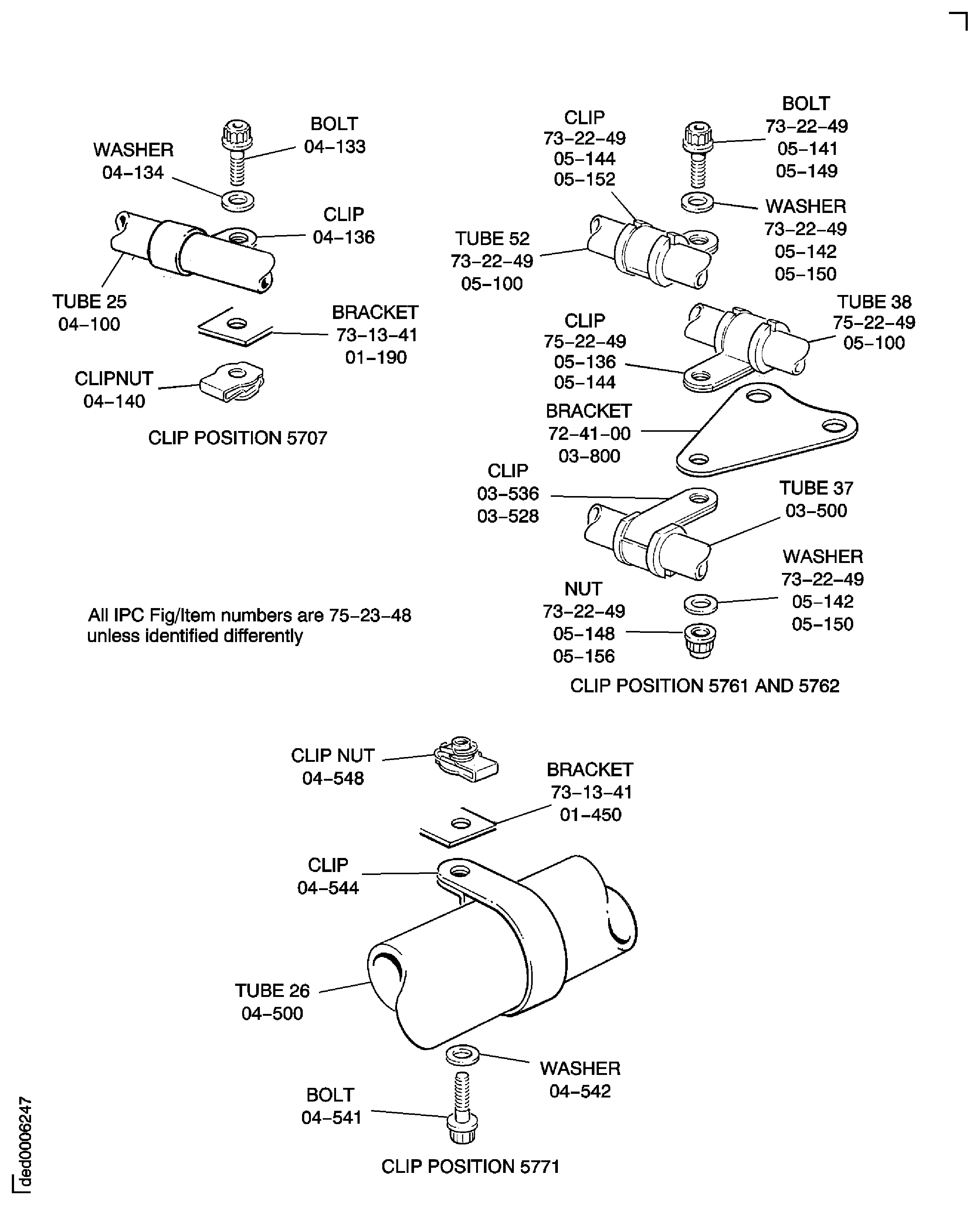

      2. Install the clip, the washer, the bolt and the nut at the clip position 5655 to attach tube 38 to the raceway Fuel System Air Tubes (73-22-49, 05-900). Torque the nut to 36 to 45 lbf.in (4 to 5 Nm).

      3. Install the clip, the bolt, the washer, the spacer and the nut to attach tube 38 to the bracket HPC Assembly (72-41-00, 03-790) at the clip position 5432. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

      4. SBE 75-0081: Install the clip, the washer, the bolt and the nut at the clip position 6065 to attach tube 38 to the bracket HPC Assembly (72-41-00, 03-840). Refer to Figure. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

      5. Torque the tube nut in Step to 204 to 221 lbf.in (23 to 25 Nm). Safety with CoMat 02-126 LOCKWIRE.

      2. Install the tube 69 Bearing Compartment Cooling And Sealing Air Tubes (75-22-49, 05-500).

      1. Attach the tube 69 to the tube 38.

      2. NOTE

        The installation of clip position 5653 is completed in TASK 72-00-40-420-006-B00.

        Pre SBE 72-0189: Assemble the clips, the spacer, the washer, the bolt and the nut at the clip position 5653. Tighten but do not apply the full torque loading.

      3. Assemble the clips, the spacers, the washers, the bolts and the nuts at the clip positions 5647, 5648 and 5668. Refer to Figure and Figure. Tighten but do not apply the full torque loading.

      4. Pre SBE 72-0189: Assemble the clips, the spacers, the washers, the bolts and the nuts at the clip positions 5767 and 5654. Refer to Figure. Tighten but do not apply the full torque loading.

      5. SBE 79-0088: Assemble the clips, the spacers, the washers, the bolts and the nuts at the clip positions 6101 and 6099. Refer to Figure. Tighten but do not apply the full torque loading.

      6. Torque the tube nut in Step to 204 to 221 lbf.in (23 to 25 Nm). Safety with CoMat 02-126 LOCKWIRE.

    18. SUBTASK 72-00-40-420-427 Install the HP Turbine Stage 2 Control Air Tubes (25 and 26)

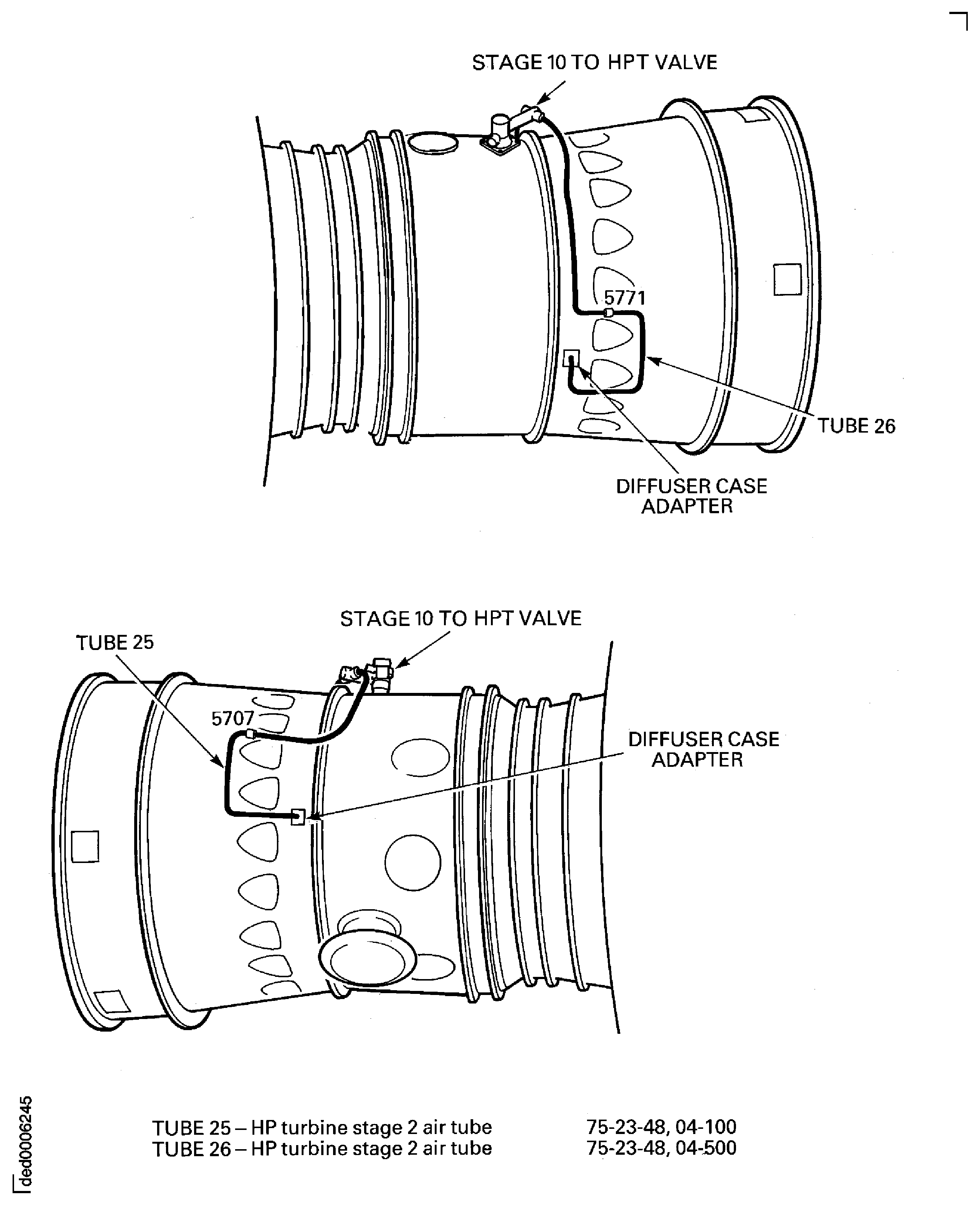

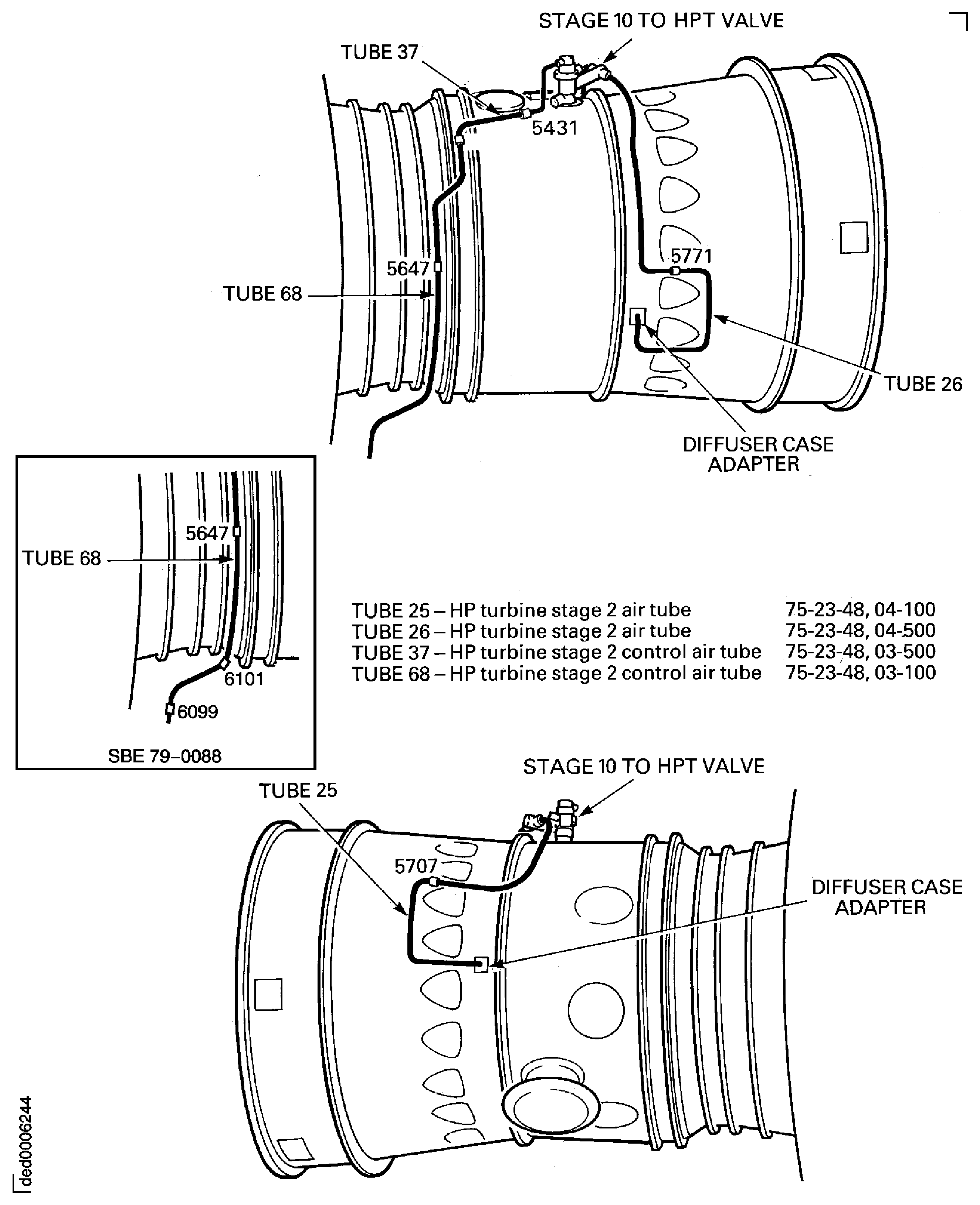

    1. Refer to Figure, Figure and Figure.

      2. Install the tube 25 Turbine Cooling Air (TCA) Controlled Air Tubes (75-23-48, 04-100).

      1. Attach the tube 25 to the diffuser case adapter and the stage 10 to HPT air valve.

      2. Install the clip, the clipnut, the washer and the bolt at the clip position 5707. Refer to Figure. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

      3. Use IAE 1R18003 Wrench 1 off to torque the tube nut at the stage 10 to HPT turbine air valve to 566 to 611 lbf.in (64 to 69 Nm).

      4. Use IAE 1R18001 Wrench 1 off to torque the tube nut on the diffuser case adapter to 398 to 434 lbf.in (45 to 49 Nm).

      5. Safety the tube nuts with CoMat 02-126 LOCKWIRE.

      3. Install the tube 26 Turbine Cooling Air (TCA) Controlled Air Tubes (75-23-48, 04-500).

      1. Attach the tube 26 to the diffuser case adapter and the stage 10 to HPT air valve.

      2. Install the clip, the clipnut, the washer and the bolt at the clip position 5771. Refer to Figure. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

      3. Use IAE 1R18003 Wrench 1 off to torque the tube nut at the stage 10 to HPT air valve to 566 to 611 lbf.in (64 to 69 Nm).

      4. Use IAE 1R18001 Wrench 1 off to torque the tube nut on the diffuser case adapter to 398 to 434 lbf.in (45 to 49 Nm).

      5. Safety the tube nuts with CoMat 02-126 LOCKWIRE.

    19. SUBTASK 72-00-40-420-413 Install the HP Turbine Stage 2 Control Air Tubes (37 and 68) (Pre SBE 75-0081, Pre SBE 79-0088 and SBE 79-0088)

      SBE 79-0088: Oil - Scavenge oil tubes - Re-route of No.4 bearing scavenge tube

    1. Refer to Figure.

      2. Install the tube 37 Turbine Cooling Air (TCA) Controlled Air Tubes (75-23-48, 03-500).

      1. Attach the tube 37 to the stage 10 to HPT air valve.

      2. Install the clip, the clipnut, the washer and the bolt at the clip position 5431. Refer to Figure. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

      3. Install the clips, the washer, the bolt and the nut at the clip position 6065 to attach tube 37 and tube 38 to the bracket HPC Assembly (72-41-00, 03-840). Refer to Figure. Torque the nut to 36 to 45 lbf.in (4 to 5 Nm).

      4. Torque the tube nut in Step to 159 to 177 lbf.in (18 to 20 Nm). Safety with CoMat 02-126 LOCKWIRE.

      3. Install the tube 68 Turbine Cooling Air (TCA) Controlled Air Tubes (75-23-48, 03-100).

      1. Attach the tube 68 to the tube 37.

      2. Install the clips, the clipnut, the spacer and the bolt at the clip position 5647. Refer to Figure and Figure. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

      3. NOTE

        Pre SBE 79-0088: The installation of this clipping point is completed during TASK 72-00-40-420-006-B00 (INSTALLATION-009, CONFIG-002).

        NOTE

        SBE 79-0088: The installation of this clipping point is completed during TASK 72-00-40-420-006-C00 (INSTALLATION-009, CONFIG-003).

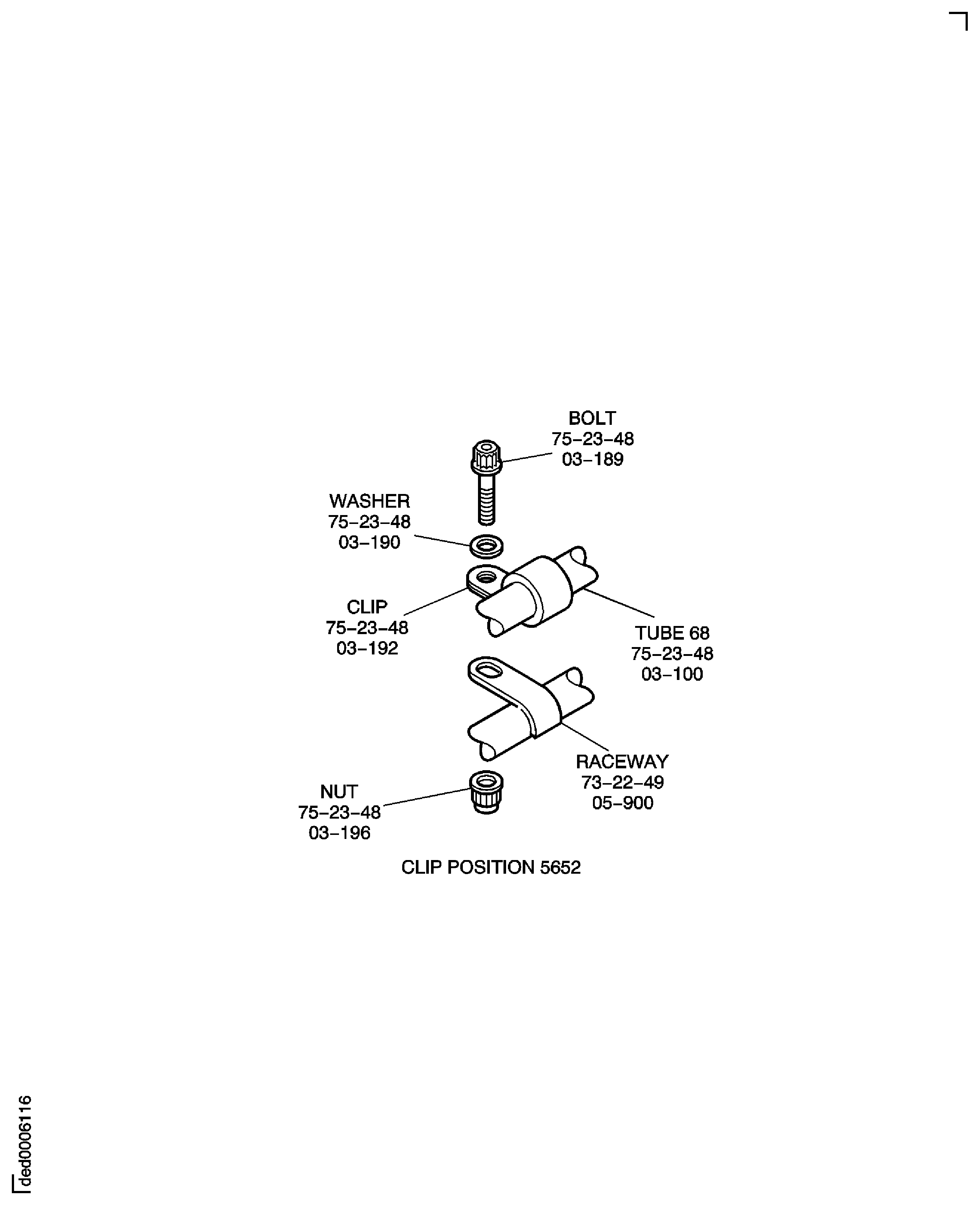

        Temporarily Install the attaching parts at the clip position 5652.

      4. SBE 79-0088: Install the clips, the washers, the bolts and the nuts at the clip positions 6099 and 6101. Refer to Figure. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).

      5. Torque the tube nut in Step to 159 to 177 lbf.in (18 to 20 Nm). Safety with CoMat 02-126 LOCKWIRE.

    20. SUBTASK 72-00-40-420-382 Install the HP Compressor Bleed Valve Air Tube (16), the Oil Scavenge Tubes (20 and 55) and the P.49/EEC Tube (56) (Pre SBE 75-0049, Pre SBE 72-0189, Pre SBE 79-0088, SBE 75-0049, SBE 72-0189 and SBE 79-0088)

      SBE 75-0049: Air - Bearing compartment cooling HPC air bleed tubes - Additional clipping for core tubes - Servo air to handling bleed solenoid valves

      SBE 72-0189: Core engine tubes - Tube assemblies coupled to bifurcation panel re run to clear cowl door hold open rods

      SBE 79-0088: Oil - Scavenge oil tubes - Re-route of No.4 bearing scavenge tube

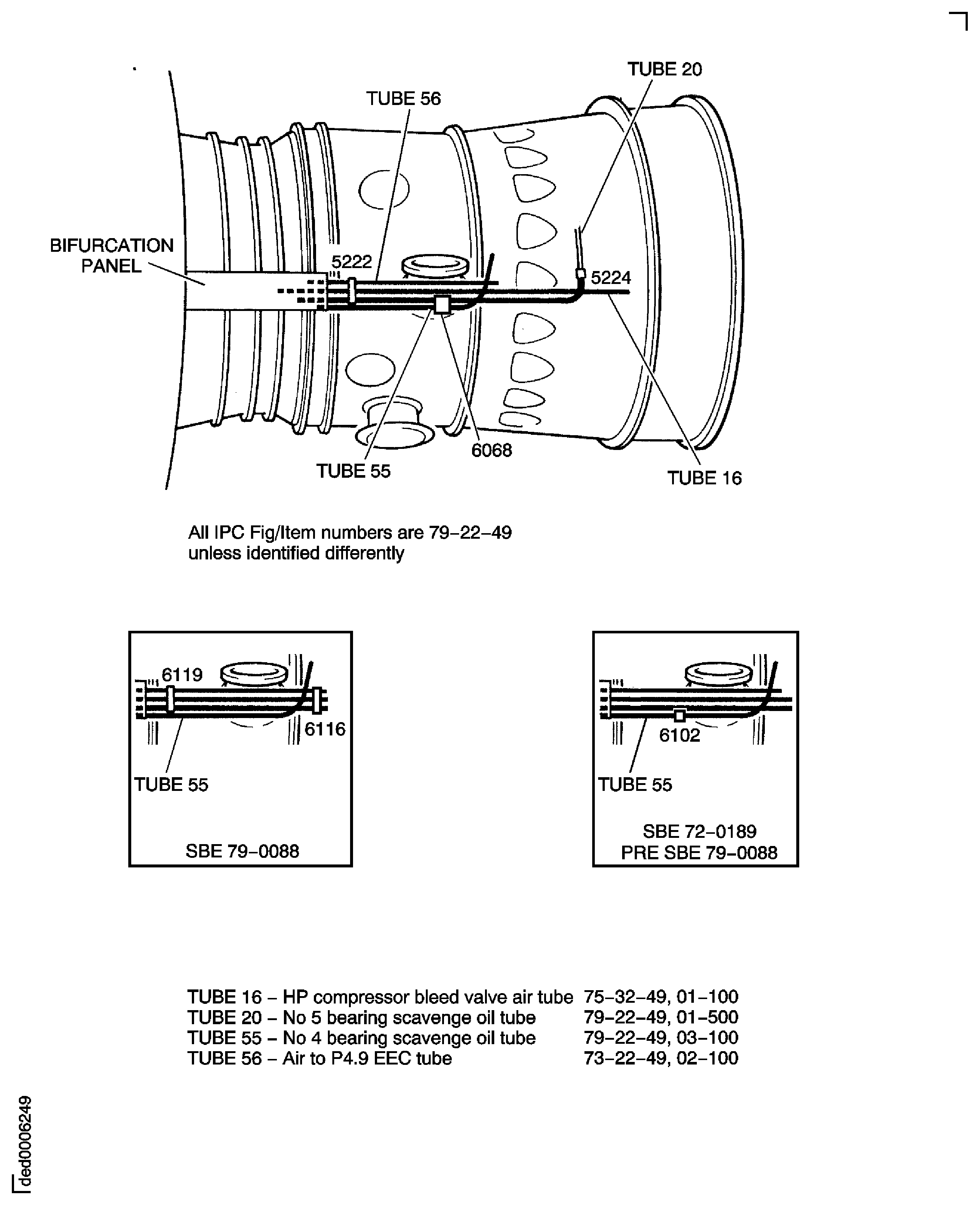

    1. Refer to Figure.

    2. NOTE

      The tube nut will be torque tightened when the tube is connected at the bifurcation panel.

      Attach the tube 55 OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 03-100) to the diffuser case adapter. Hand tighten the tube nut but do not torque tighten at this time.

      3. Install the tubes 16, 20 and 56.

      1. Put the tube 20 Engine Scavenge Oil Tubes (79-22-49, 01-500) in to position for installation procedures.

      2. Pre SBE 75-0049: Install the clip, the clipnut, the washer and the bolt at the clip position 5224. Refer to Figure. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

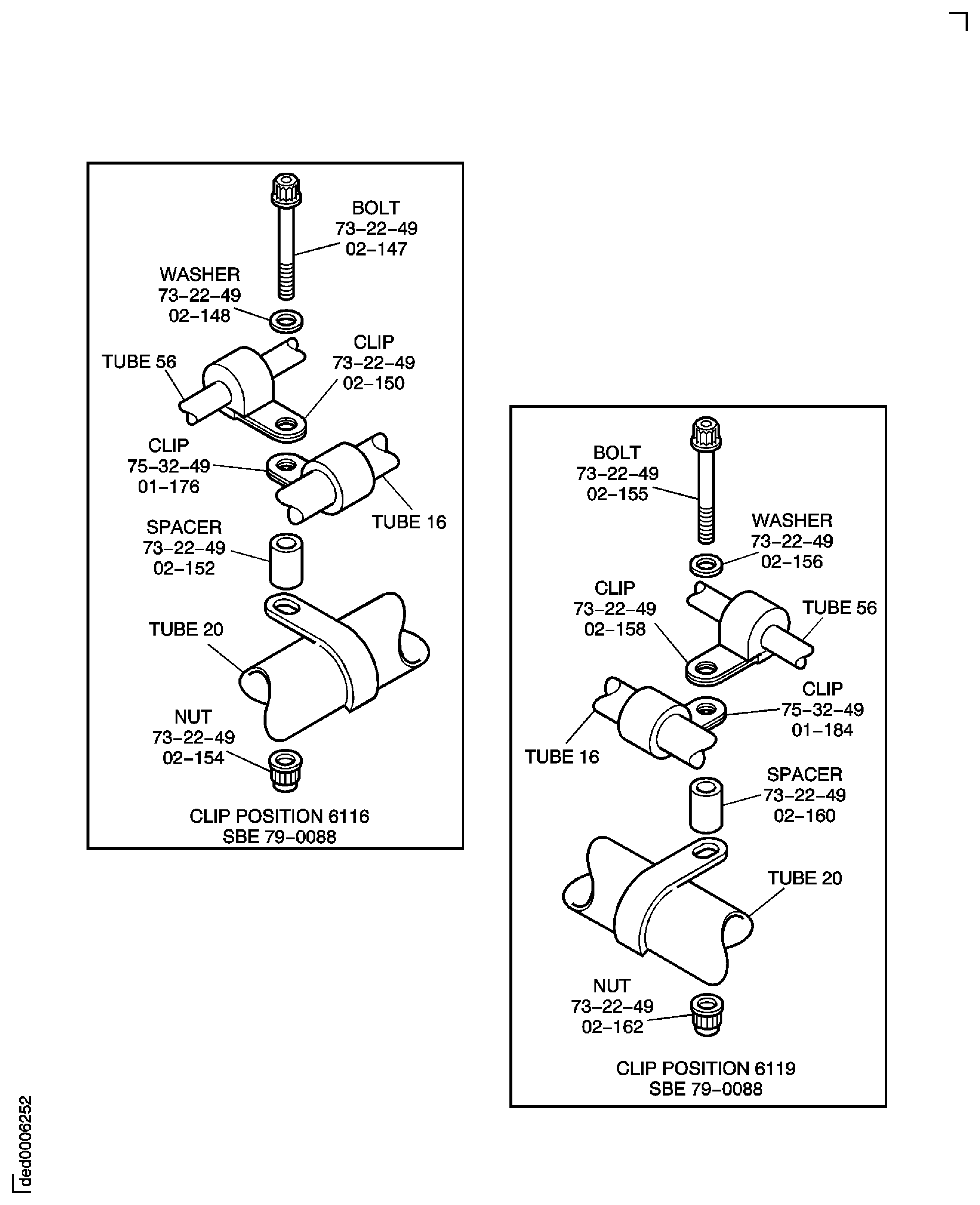

      3. SBE 75-0049 and SBE 79-0088: Temporarily attach tube 20 to clip position 5224. Refer to Figure. This clip position is torque tightened during the installation of tube 11. Refer to TASK 72-00-40-420-007-B00 (INSTALLATION-010, CONFIG-002).

      4. Put the tube 16 HPC Bleed Control Air Tubes (75-32-49, 01-100) in to position.

      5. Put the tube 56 Fuel System Air Tubes (73-22-49, 02-100) in to position.

      6. SBE 72-0189 and Pre SBE 79-0088: Assemble the clip, the spacer, the bolt and the clipnut at the clip position 6102. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

      7. SBE 79-0088: Assemble the clips, the spacers, the washers, the bolts and the nuts at the clip positions 6116 and 6119. Refer to Figure. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).

      8. Put the harness Fire Detection (System A) And Core Services Harness (71-52-41, 01-005) in to position.

      9. NOTE

        The installation of clip position 5222 is completed in TASK 72-00-40-420-006-B00 (INSTALLATION-009, CONFIG-002) during installation of the fire detection harness, system A Fire Detection (System A) And Core Services Harness (71-52-41, 01-005).

        Pre SBE 79-0088: Assemble the clips, the spacers, the bolt and the nut at the clip position 5222. Refer to Figure. Tighten but do not fully torque the nut.

    21. SUBTASK 72-00-40-420-384-A00 Install the Air Deflector Bracket (Pre SBE 72-0329 and Pre SBE 71-0162)

    1. Refer to Figure.

      2. Attach the air deflector bracket EEC Link Core Harness (71-52-44, 05-950) to the bracket HPC Module - Attaching Parts (72-40-00, 01-075) with the two clip nuts EEC Link Core Harness (71-52-44, 05-954) and the two bolts EEC Link Core Harness (71-52-44, 05-952).

      1. Connect the electrical connector 4025KS-A to the stage 10 to HPT air valve, refer to Step.

      2. Adjust the position of the deflector bracket so it is in the middle of the space between the electrical connector 4025KS-A and the castellated nut of tube 25 Turbine Cooling Air (TCA) Controlled Air Tubes (75-23-48, 04-100).

      3. Torque the bolts EEC Link Core Harness (71-52-44, 05-952) to 36 to 45 lbf.in (4 to 5 Nm).

    22. SUBTASK 72-00-40-420-384-B00 Install the Air Deflector Bracket (SBE 72-0329 and SBE 71-0162)

      SBE 72-0329: HP system - Introduction of revised brackets to provide increased clearance with fuel manifolds.

      SBE 71-0162: Power Plant - EEC link harness core - Improved stage 10 on/off valve cooling air deflector for electrical connector

    1. Refer to Figure

      2. Attach the air deflector bracket EEC Link Core Harness (71-52-44, 05-950) to the bracket HPC Module - Attaching Parts (72-40-00, 01-075) with the two nuts EEC Link Core Harness (71-52-44, 05-954) and the two bolts EEC Link Core Harness (71-52-44, 05-952). Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm).

      1. Connect the electrical connector 4025KS-A to the stage 10 to HPT air valve, refer to Step.

      2. Adjust the position of the deflector bracket so it is in the middle of the space between the electrical connector 4025KS-A and the castellated nut of tube 25 Turbine Cooling Air (TCA) Controlled Air Tubes (75-23-48, 04-100).

      3. Torque the bolts EEC Link Core Harness (71-52-44, 05-952) to 36 to 45 lbf.in (4 to 5 Nm).

    23. SUBTASK 72-00-40-420-386 Electrical Harness Installation Procedure

    1. Refer to Figure.

    2. During the installation procedure make sure the harnesses are held temporarily along their different lengths. Always install the datum clip positions when you install each electrical connector. This will give correct installation of the different harnesses, prevent too much strain on the electrical connectors and give the necessary drip loops. The drip loop makes sure moisture of fluids do not go in to the electrical connector.

    3. Because of the differences between the harness diameters, the specified clip could be too large or too small. You can use a clip from a range of six clips that have the same part numbers. If the harness diameter is between two of the clips in the range, use the larger clip. When you do this use CoMat 02-148 ADHESIVE TAPE (ELECTRICAL) to increase the harness diameter.

    24. SUBTASK 72-00-40-420-387-A00 Install the Engine Control Link Harness (Pre SBE 71-0120 and Pre SBE 71-0162)

    1. Refer to Figure and Figure.

    2. Put the Engine Control Link Harness EEC Link Core Harness (71-52-44, 01-005) into position.

    3. Install the clips, the bolt, the washer and the nut at the clip position 5788. Torque the nut to 36 to 45 lbf.in (4 to 5 Nm).

    4. Install the clip, the bolt, the washer, and the clipnut at the clip position 5790. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

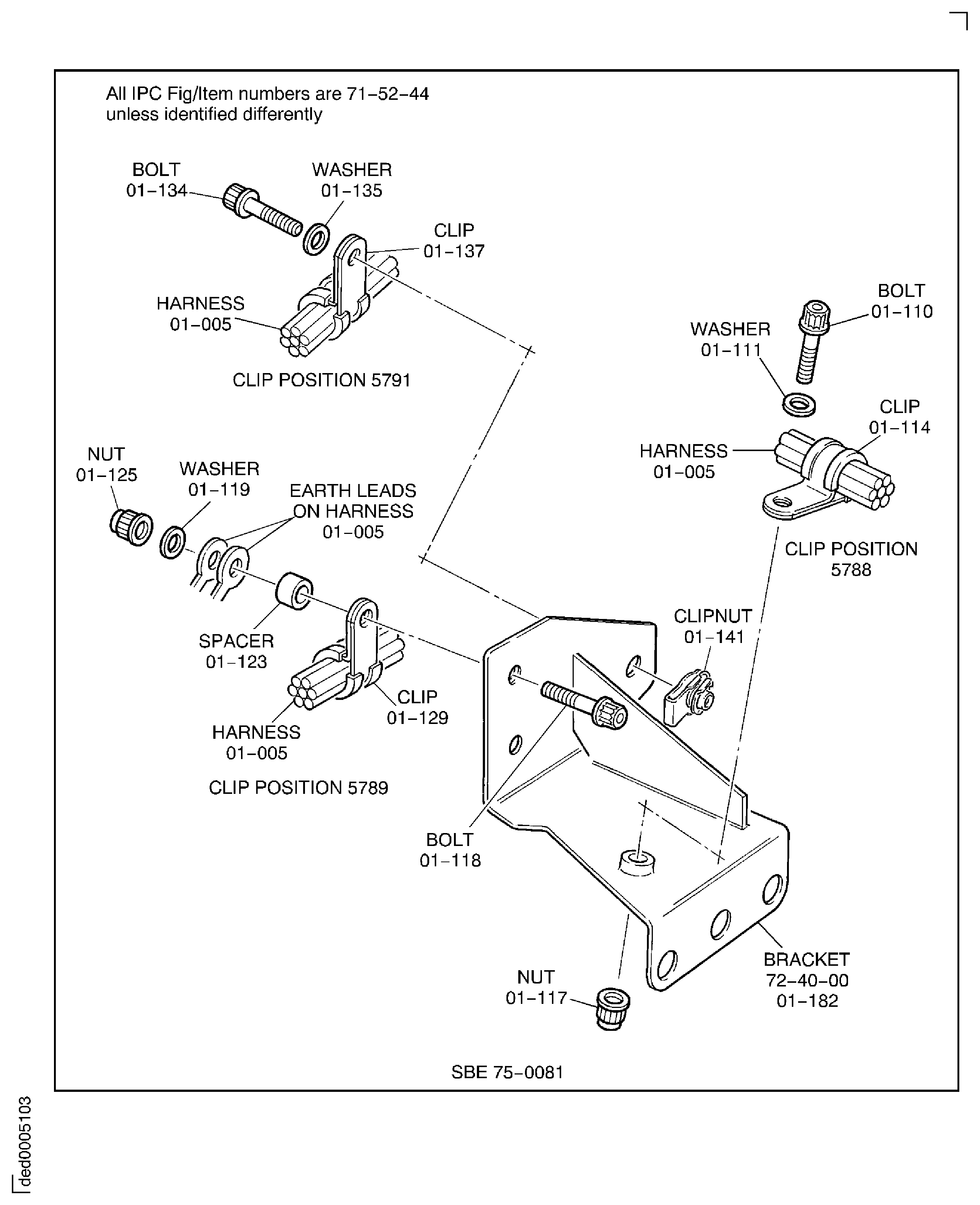

    5. Install the clip, the bolt, the washer and the clipnut (together with the two leads) at the datum clip position 5789. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

    6. Install the clip, the bolt, the washer and the clipnut at the clip position 5791. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

      7. Connect the electrical receptacle 4006VC to the bracket HPC Assembly (72-41-00, 03-240).

      1. Install the electrical receptacle in to the bracket.

      2. Install the four screws EEC Link Core Harness (71-52-44, 01-022) and the four assembled washer nuts EEC Link Core Harness (71-52-44, 01-020). Torque the assembled washer nut to 6 to 8 lbf.in (0.68 to 0.9 Nm).

    8. Connect the electrical connector 4025KS-A to the stage 10 to HPT air valve and torque to 12 * lbf.in (1.4 Nm).

      9. Connect the four leads to the four terminals on the P3/T3 diffuser case probe.

      1. Connect the two leads 4024KS-A to their correct terminals.

      2. Connect the two leads 4024KS-B to their correct terminals.

      3. Install the two nuts EEC Link Core Harness (71-52-44, 01-025) on to the smaller (Chromel) terminals. Torque the nuts to 8 to 12 * lbf.in (0.9 to 1.36 Nm).

      4. Install the two nuts EEC Link Core Harness (71-52-44, 01-027) on to the larger (Alumel) terminals. Torque the nuts to 10 to 15 * lbf.in (1.13 to 1.69 Nm).

    25. SUBTASK 72-00-40-420-387-B00 Install the Engine Control Link Harness (SBE 71-0120 and SBE 71-0162)

      SBE 71-0120: Power Plant - Reroute the core harness to ensure adequate clearance between the harness the various tubes

      SBE 71-0162: Power Plant - EEC link harness core - Improved stage 10 on/off valve cooling air deflector for electrical connector

    1. Refer to Figure, Figure, Figure, Fig. 72-00-40-990-349-002 and Fig. 72-00-40-990-349-003.

    2. Put the Engine Control Link Harness EEC Link Core Harness (71-52-44, 01-005) into position.

    3. Install the clips, the bolt, the washer and the nut at the clip position 5788. Torque the nut to 36 to 45 lbf.in (4 to 5 Nm).

    4. Install the clips, the bolt, the washers, the spacer and the nut (together with the two leads) at the datum clip position 5789. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

    5. Install the clip, the bolt, the washer and the clipnut at the clip position 5791. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

      6. Connect the electrical receptacle 4006VC to the bracket HPC Assembly (72-41-00, 03-240).

      1. Install the electrical receptacle in to the bracket.

      2. Install the four screws EEC Link Core Harness (71-52-44, 01-022) and the four assembled washer nuts EEC Link Core Harness (71-52-44, 01-020). Torque the assembled washer nut to 6 to 8 lbf.in (0.68 to 0.9 Nm).

      7. Connect the electrical connector 4025KS-A to the stage 10 to HPT air valve and torque to 12 * lbf.in (1.4 Nm).

      1. Make sure the electrical connector and elbow do not touch the air deflector bracket EEC Link Core Harness (71-52-44, 05-950), refer to Figure and Fig. 72-00-40-990-349-002. Do the procedure in the next step if the connector or elbow touch the bracket.

      2. Adjust the backshell one tooth (22.5 degrees) in a counter clockwise direction to give additional clearance between the connector and the bracket, refer to Fig. 72-00-40-990-349-003.

      8. Connect the four leads to the four terminals on the P3/T3 diffuser case probe.

      1. Connect the two leads 4024KS-A to their correct terminals.

      2. Connect the two leads 4024KS-B to their correct terminals.

      3. Install the two nuts EEC Link Core Harness (71-52-44, 01-025) on to the smaller (Chromel) terminals. Torque the nuts to 8 to 12 * lbf.in (0.9 to 1.36 Nm).

      4. Install the two nuts EEC Link Core Harness (71-52-44, 01-027) on to the larger (Alumel) terminals. Torque the nuts to 10 to 15 * lbf.in (1.13 to 1.69 Nm).

    26. SUBTASK 72-00-40-420-387-C00 Install the Engine Control Link Harness (SBE 75-0081)

      SBE 75-0081: Deletion of HPC stage 10 make-up air valve and associated hardware

    1. Refer to Figure and Figure.

    2. Put the Engine Control Link Harness EEC Link Core Harness (71-52-44, 01-005) into position.

    3. Install the clip, the bolt, the washer and the nut at the clip position 5788. Torque the nut to 36 to 45 lbf.in (4 to 5 Nm).

    4. Install the clip, the bolt, the washer, the spacer and the nut (together with the lead) at the datum clip position 5789. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

    5. Install the clip, the bolt, the washer and the clipnut at the clip position 5791. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

      6. Connect the electrical receptacle 4006VC to the bracket HPC Assembly (72-41-00, 03-240).

      1. Install the electrical receptacle in to the bracket.

      2. Install the four screws EEC Link Core Harness (71-52-44, 01-022) and the four assembled washer nuts EEC Link Core Harness (71-52-44, 01-020). Torque the assembled washer nut to 6 to 8 lbf.in (0.68 to 0.9 Nm).

      7. Connect the four leads to the four terminals on the P3/T3 diffuser case probe.

      1. Connect the two leads 4024KS-A to their correct terminals.

      2. Connect the two leads 4024KS-B to their correct terminals.

      3. Install the two nuts EEC Link Core Harness (71-52-44, 01-025) on to the smaller (Chromel) terminals. Torque the nuts to 8 to 12 * lbf.in (0.9 to 1.36 Nm).

      4. Install the two nuts EEC Link Core Harness (71-52-44, 01-027) on to the larger (Alumel) terminals. Torque the nuts to 10 to 15 * lbf.in (1.13 to 1.69 Nm).

    27. SUBTASK 72-00-40-420-390 Install the Thermal Anti-Icing Ducts

    1. Refer to Figure.

    2. Attach the duct assembly Anti-Ice Ducts (30-21-49, 01-050) and the bracket Anti-Ice Ducts (30-21-49, 01-045) to the HP compressor case with the eight bolts Anti-Ice Ducts (30-21-49, 01-060). Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).

      3. Install the duct Anti-Ice Ducts (30-21-49, 01-010).

      1. Install the seal Anti-Ice Ducts (30-21-49, 01-040).

      2. Attach the duct to the duct assembly with the coupling Anti-Ice Ducts (30-21-49, 01-030). Torque the coupling nut to 45 to 55 * lbf.in (5.1 to 6.2 Nm).

    4. Install the clip, the clipnut, the washer and the bolt at the datum clip position 5739. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

    28. SUBTASK 72-00-40-220-145 Measure the Harness Clearances and Examine the Harness Routing

      1. Measure the clearance between all the different harnesses and the engine parts:

      1. The general clearance must be a minimum of 0.250 in. (6.35 mm).

      2. To check the clearance, push the harness with a light pressure of the thumb then release. The harness must spring back and give the minimum clearance. The harness must not move through the adjacent clips (refer to SUBTASK 72-00-40-420-131).

      3. The harness can touch the smooth parts of brackets if the harness is clipped to them. The harness must be held so there is no movement between the harness and the bracket.

    2. Adjust the harnesses (if necessary) to get the minimum clearance and torque the clip position nut or bolt to 36 to 45 lbf.in (4 to 5 Nm).

    29. SUBTASK 72-00-40-210-078 Visually Inspect the Electrical Backshells and Cable Clamps

    1. Refer to Figure.

    2. Make sure that all the applicable connectors, backshells and cable clamps are secure.

    3. Make sure that all the applicable backshells and cable clamps are safetied with CoMat 02-126 LOCKWIRE. Refer to SPM TASK 70-42-05-400-501.

    30. Figure: Install the Fuel Nozzles

    Sheet 1

    Legend
    Install the Fuel Nozzles

    Sheet 1

    Close

    Figure: Install the Fuel Nozzles

    Sheet 2

    Legend
    Install the Fuel Nozzles

    Sheet 2

    Close

    Figure: SBE 72-0191 : Install the Fuel Nozzles

    Sheet 3

    Legend
    SBE 72-0191 : Install the Fuel Nozzles

    Sheet 3

    Close

    Figure: Install the Igniter Plugs

    Sheet 1

    Legend
    Install the Igniter Plugs

    Sheet 1

    Close

    Figure: Install the Igniter Plugs

    Sheet 2

    Legend
    Install the Igniter Plugs

    Sheet 2

    Close

    Figure: Install the P3/T3 Ssensor

    Install the P3/T3 Ssensor

    Figure: Install the Fuel Distribution Valve

    Install the Fuel Distribution Valve

    Figure: Pre SBE 75-0081: Install the Stage 10 to HPT Air Valve

    Sheet 1

    Legend
    Pre SBE 75-0081: Install the Stage 10 to HPT Air Valve

    Sheet 1

    Close

    Figure: SBE 75-0081: Install the Stage 10 to HPT Air Valve

    Sheet 2

    Legend
    SBE 75-0081: Install the Stage 10 to HPT Air Valve

    Sheet 2

    Close

    Figure: Install the HP Compressor Stage 10 Air Off-Take Ducts and the Bleed Valve Assemblies

    Sheet 1

    Legend
    Install the HP Compressor Stage 10 Air Off-Take Ducts and the Bleed Valve Assemblies

    Sheet 1

    Close

    Figure: Pre SBE 79-0088 and SBE 79-0088: Install the HP Compressor Stage 10 Air Off-Take Ducts

    Sheet 2

    Legend
    Pre SBE 79-0088 and SBE 79-0088: Install the HP Compressor Stage 10 Air Off-Take Ducts

    Sheet 2

    Close

    Figure: Install the Tube Raceway

    Install the Tube Raceway

    Figure: Pre SBE 73-0139 and Pre SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 1

    Legend
    Pre SBE 73-0139 and Pre SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 1

    Close

    Figure: SBE 73-0139 and Pre SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 2

    Legend
    SBE 73-0139 and Pre SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 2

    Close

    Figure: Pre SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 3

    Legend
    Pre SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 3

    Close

    Figure: Pre SBE 73-0139: Install the Fuel Nozzle Manifolds

    Sheet 4

    Legend
    Pre SBE 73-0139: Install the Fuel Nozzle Manifolds

    Sheet 4

    Close

    Figure: Pre SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 5

    Legend
    Pre SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 5

    Close

    Figure: Pre SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 6

    Legend
    Pre SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 6

    Close

    Figure: SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 7

    Legend
    SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 7

    Close

    Figure: SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 8

    Legend
    SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 8

    Close

    Figure: SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 9

    Legend
    SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 9

    Close

    Figure: SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 10

    Legend
    SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 10

    Close

    Figure: SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 11

    Legend
    SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 11

    Close

    Figure: SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 12

    Legend
    SBE 73-0147: Install the Fuel Nozzle Manifolds

    Sheet 12

    Close

    Figure: Install the PS3 Sensor Line Air Tubes

    Sheet 1

    Legend
    Install the PS3 Sensor Line Air Tubes

    Sheet 1

    Close

    Figure: Install the PS3 Sensor Line Air Tubes

    Sheet 2

    Legend
    Install the PS3 Sensor Line Air Tubes

    Sheet 2

    Close

    Figure: SBE 75-0081: Install the PS3 Sensor Line Air Tubes

    Sheet 3

    Legend
    SBE 75-0081: Install the PS3 Sensor Line Air Tubes

    Sheet 3

    Close

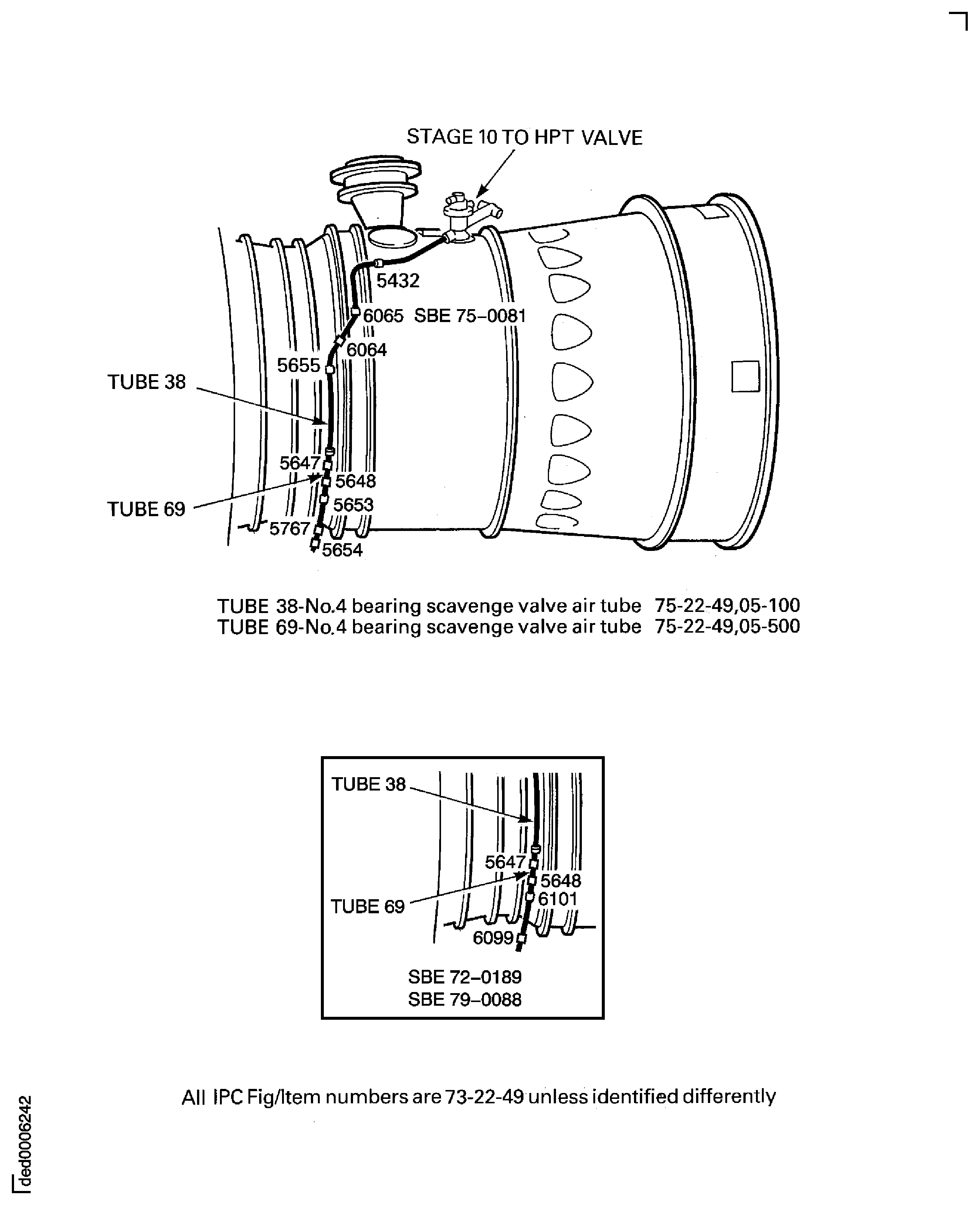

    Figure: Install the No.4 Bearing Scavenge Air Tubes (38 and 69)

    Sheet 1

    Legend
    Install the No.4 Bearing Scavenge Air Tubes (38 and 69)

    Sheet 1

    Close

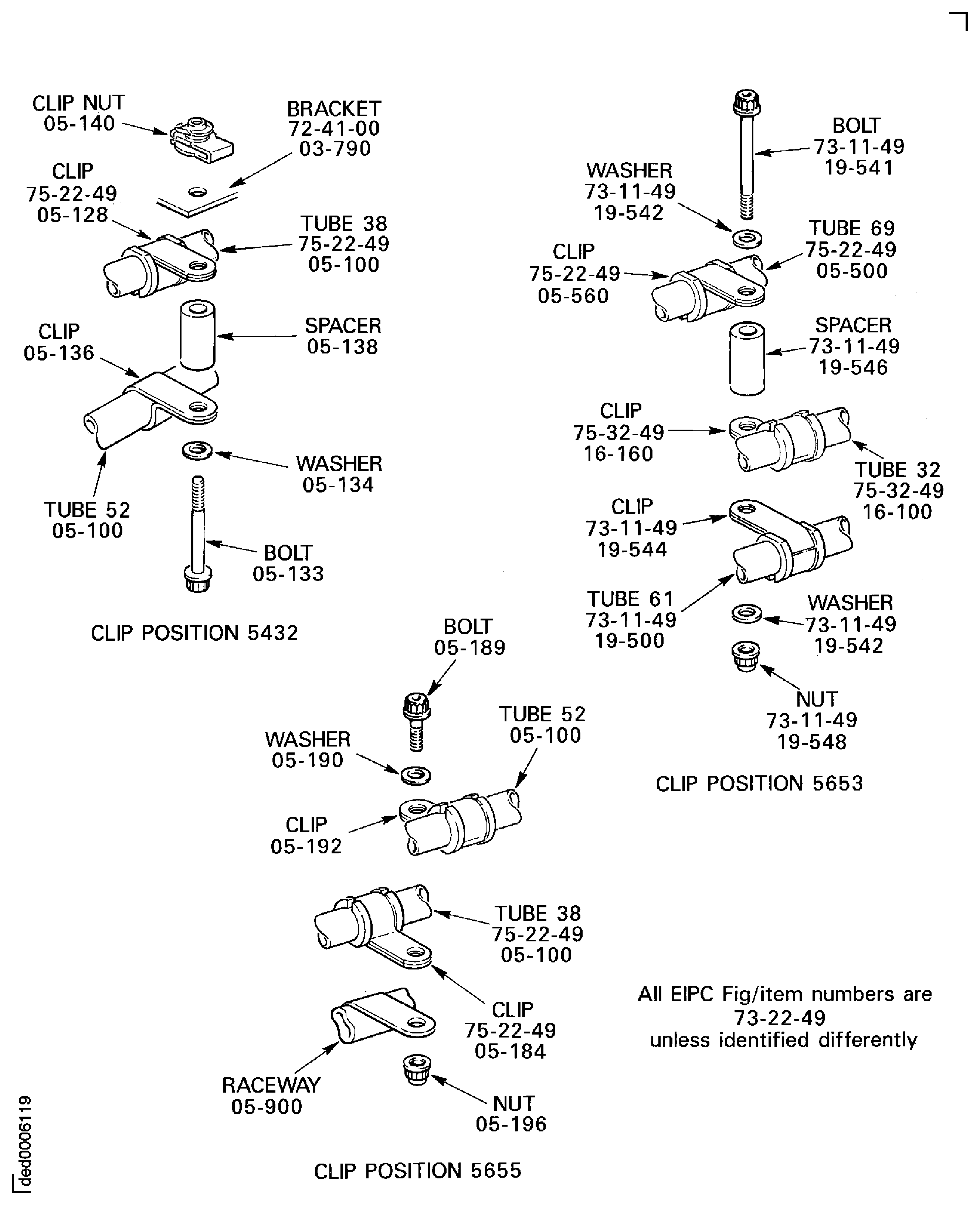

    Figure: Install the No.4 Bearing Scavenge Air Tubes (38 and 69)

    Sheet 2

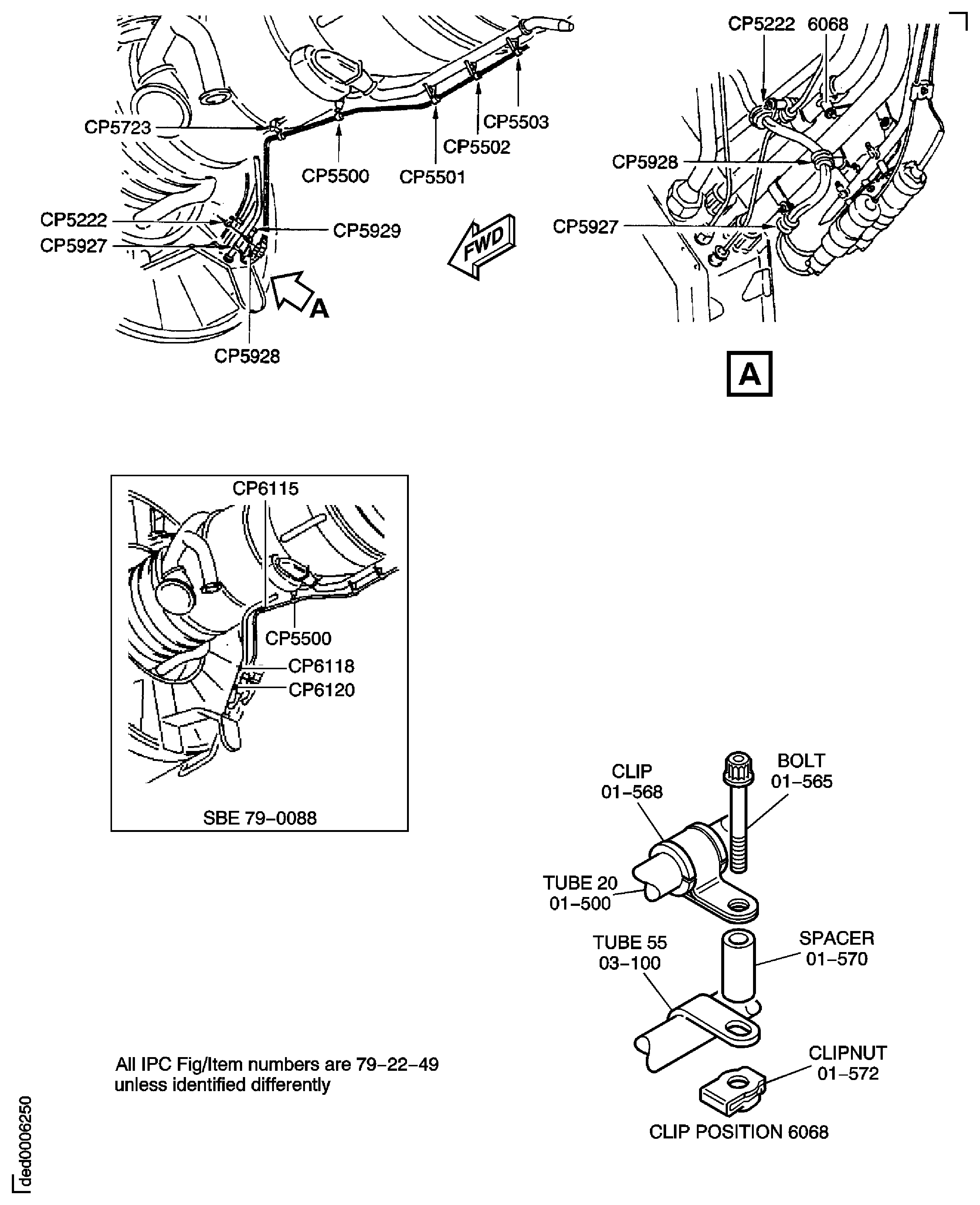

    Legend
    Install the No.4 Bearing Scavenge Air Tubes (38 and 69)

    Sheet 2

    Close

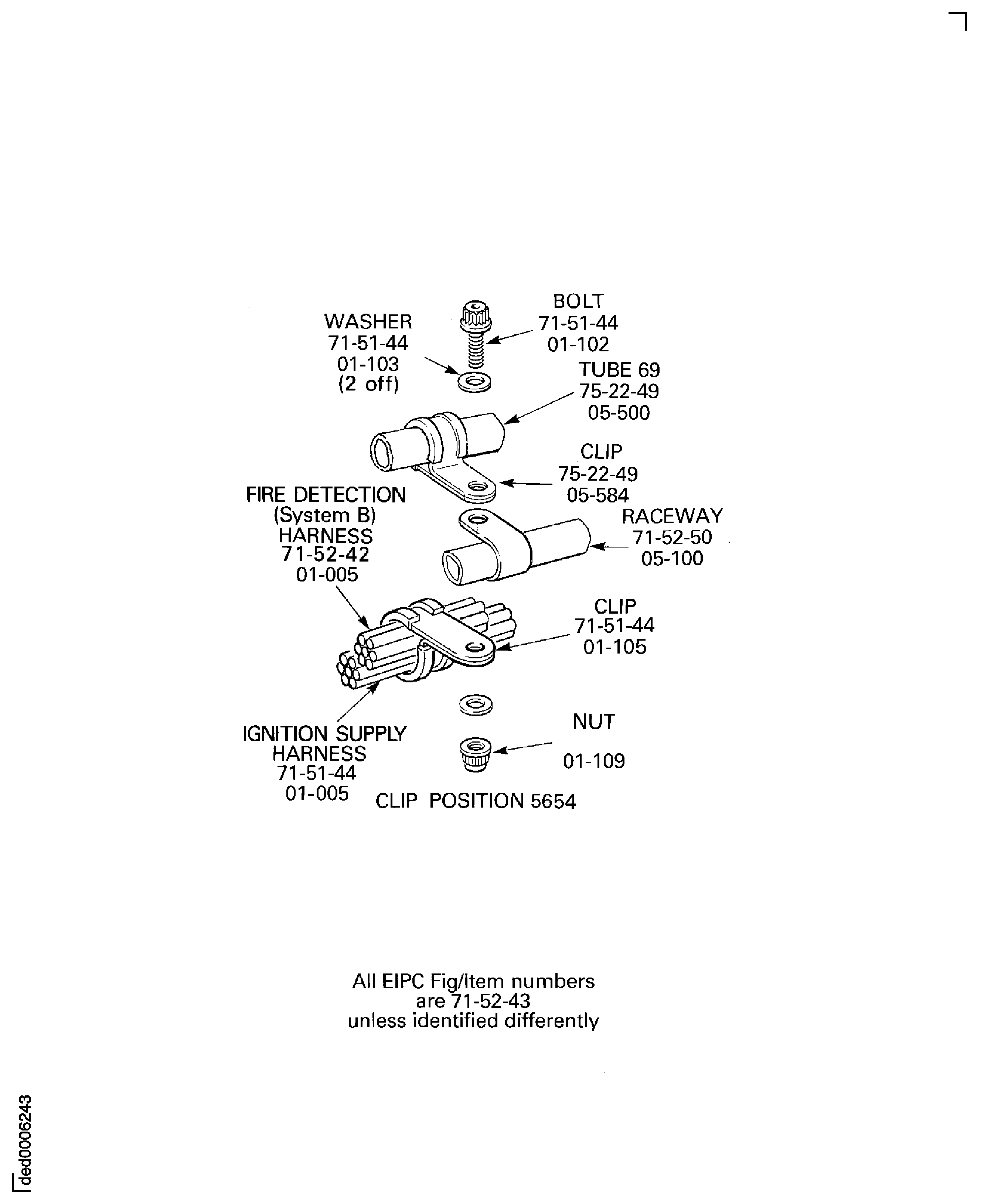

    Figure: Install the No.4 Bearing Scavenge Air Tubes (38 and 69)

    Sheet 3

    Legend
    Install the No.4 Bearing Scavenge Air Tubes (38 and 69)

    Sheet 3

    Close

    Figure: Pre SBE 75-0081: Install the HP Turbine Stage 2 Control Air Tubes (25, 26, 37 and 68)

    Sheet 1

    Legend
    Pre SBE 75-0081: Install the HP Turbine Stage 2 Control Air Tubes (25, 26, 37 and 68)

    Sheet 1

    Close

    Figure: SBE 75-0081: Install the HP Turbine Stage 2 Control Air Tubes (25 and 26)

    Sheet 2

    Legend
    SBE 75-0081: Install the HP Turbine Stage 2 Control Air Tubes (25 and 26)

    Sheet 2

    Close

    Figure: Install the HP Turbine Stage 2 Control Air Tubes

    Sheet 3

    Legend
    Install the HP Turbine Stage 2 Control Air Tubes

    Sheet 3

    Close

    Figure: Install the HP Turbine Stage 2 Control Air Tubes

    Sheet 4

    Legend
    Install the HP Turbine Stage 2 Control Air Tubes

    Sheet 4

    Close

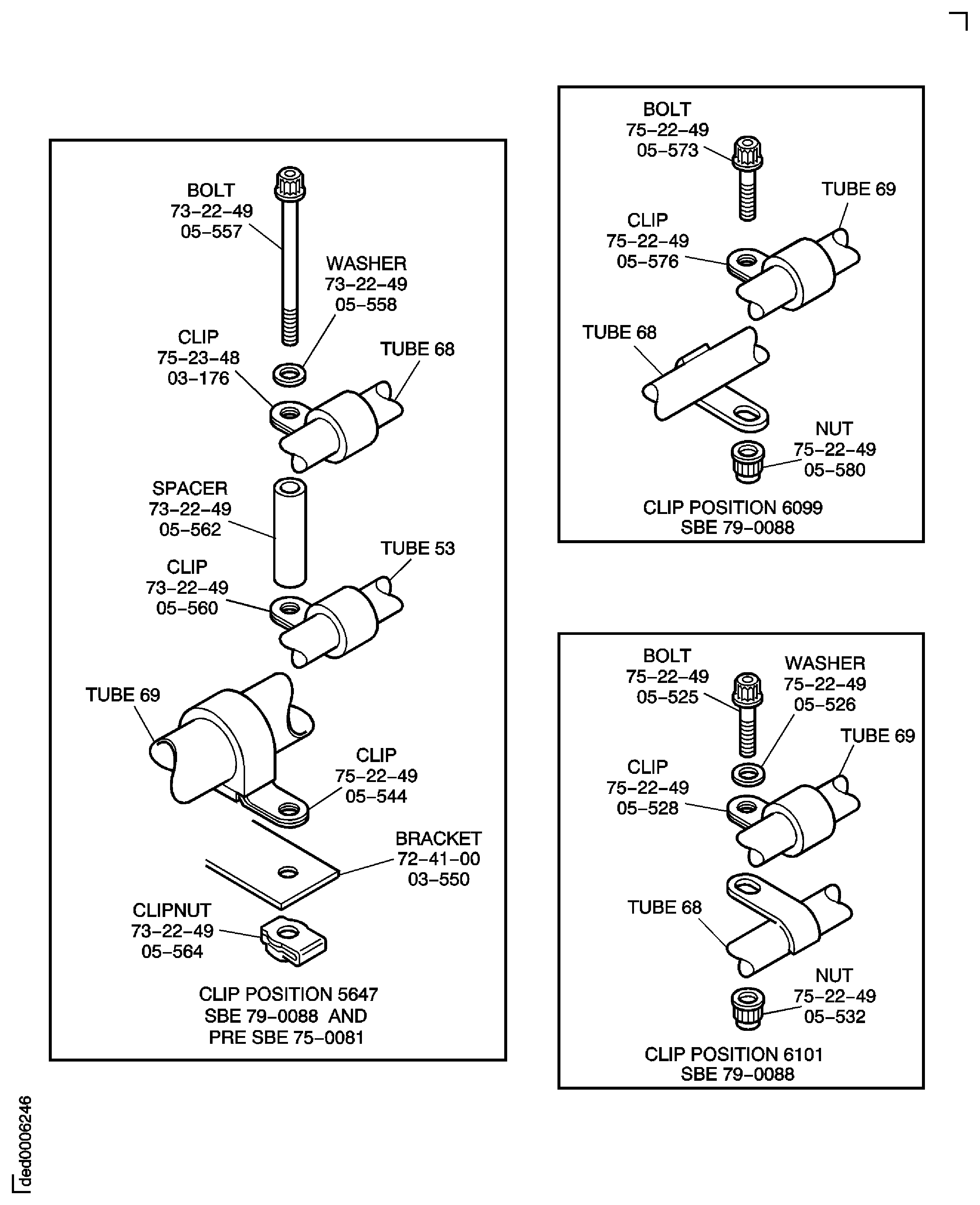

    Figure: Install the HP Turbine Stage 2 Control Air Tubes

    Sheet 5

    Legend
    Install the HP Turbine Stage 2 Control Air Tubes

    Sheet 5

    Close

    Figure: Install the HP Turbine Stage 2 Control Air Tubes

    Sheet 6

    Legend
    Install the HP Turbine Stage 2 Control Air Tubes

    Sheet 6

    Close

    Figure: Install the HP Turbine Stage 2 Control Air Tubes

    Sheet 7

    Legend
    Install the HP Turbine Stage 2 Control Air Tubes

    Sheet 7

    Close

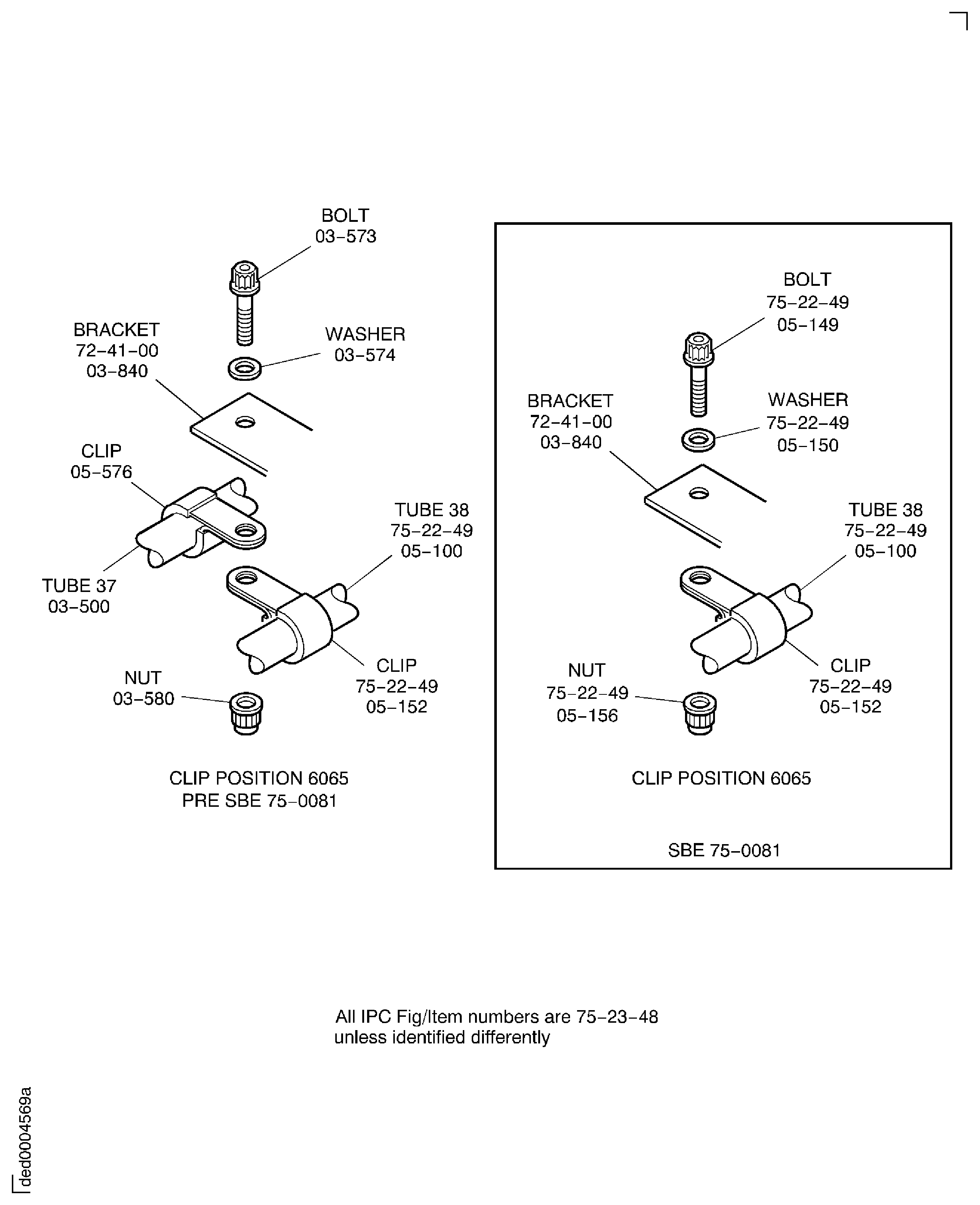

    Figure: Install the HP Turbine Stage 2 Control Air Tubes

    Sheet 8

    Legend
    Install the HP Turbine Stage 2 Control Air Tubes

    Sheet 8

    Close

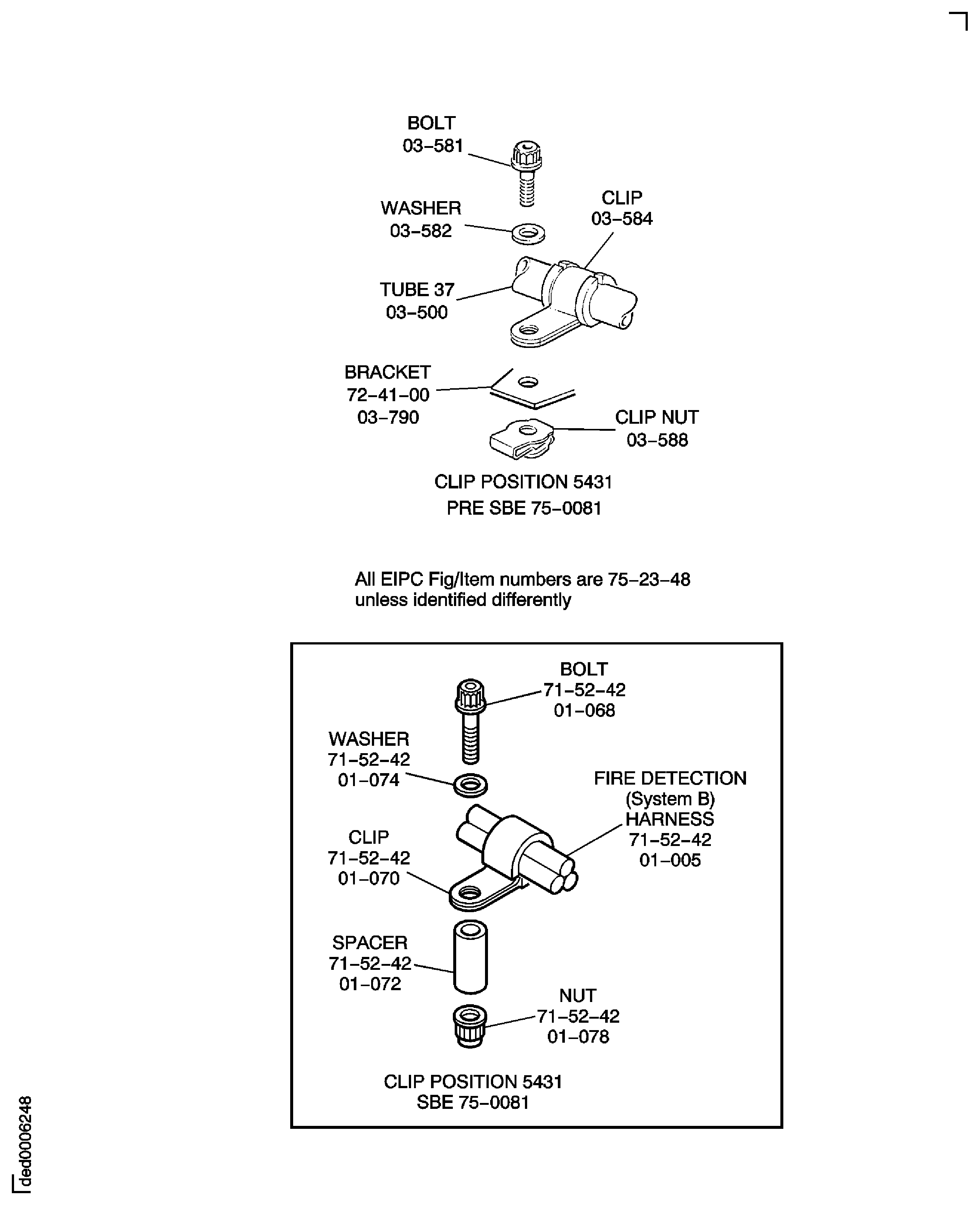

    Figure: Install the HP Turbine Stage 2 Control Air Tubes

    Sheet 9

    Legend
    Install the HP Turbine Stage 2 Control Air Tubes

    Sheet 9

    Close

    Figure: Install the Tubes 16, 20, 55 and 56

    Sheet 1

    Legend
    Install the Tubes 16, 20, 55 and 56

    Sheet 1

    Close

    Figure: Install the Tubes 16, 20, 55 and 56

    Sheet 2

    Legend
    Install the Tubes 16, 20, 55 and 56

    Sheet 2

    Close

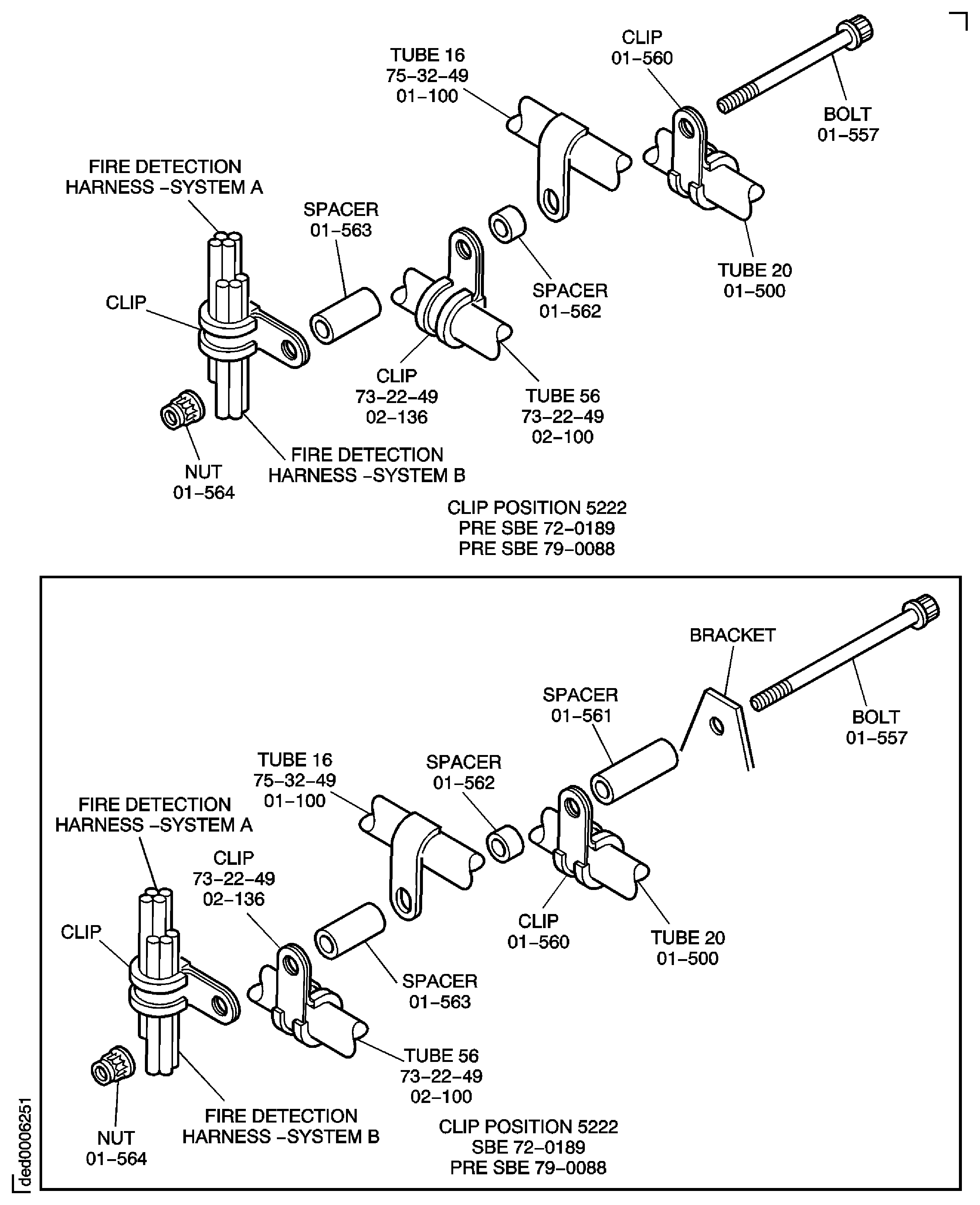

    Figure: Install the Tubes 16, 20, 55 and 56

    Sheet 3

    Legend
    Install the Tubes 16, 20, 55 and 56

    Sheet 3

    Close

    Figure: Install the Tubes 16, 20, 55 and 56

    Sheet 4

    Legend
    Install the Tubes 16, 20, 55 and 56

    Sheet 4

    Close

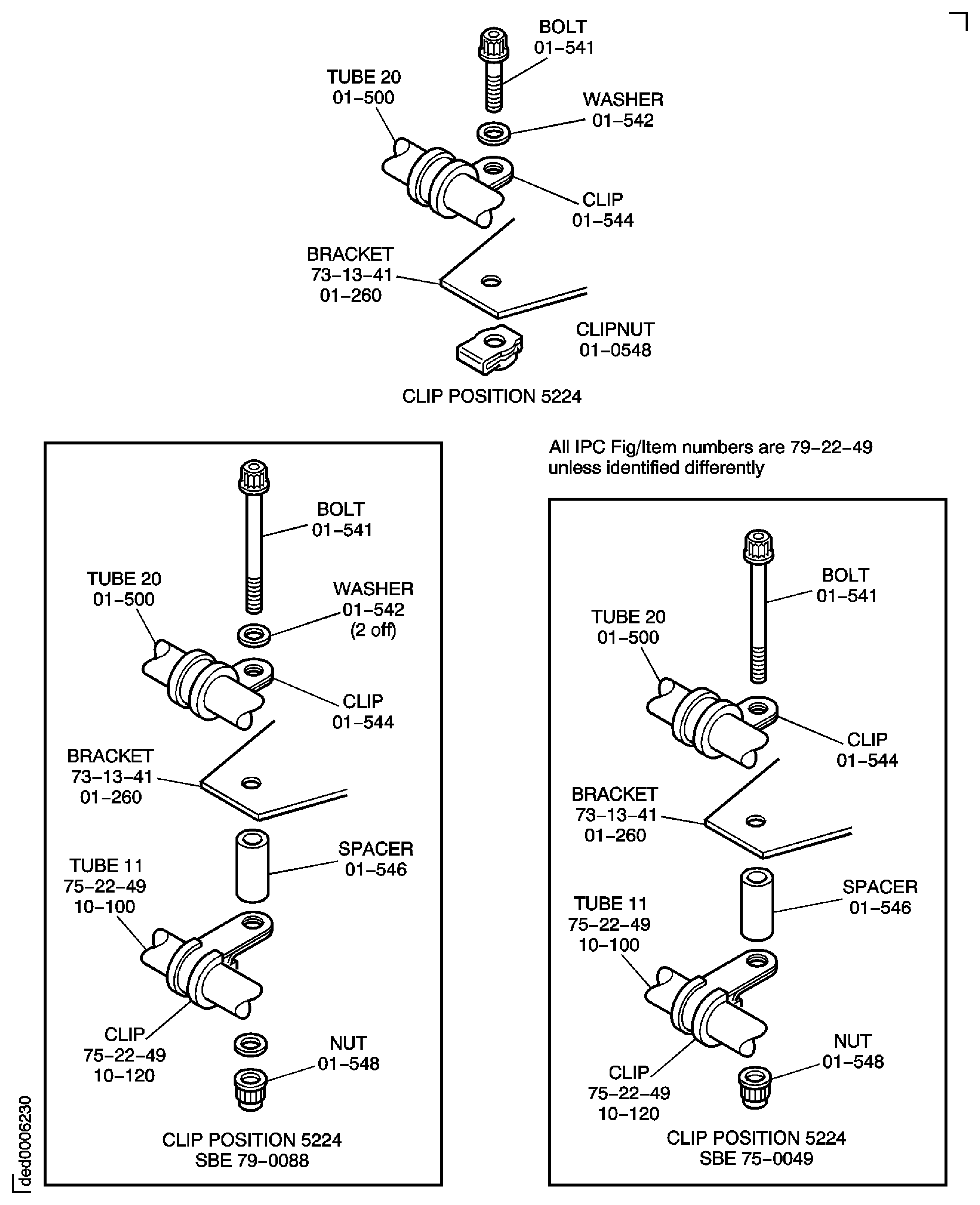

    Figure: Install the Tubes 16, 20, 55 and 56

    Sheet 5

    Legend
    Install the Tubes 16, 20, 55 and 56

    Sheet 5

    Close

    Figure: Install the Air Deflector Bracket

    Sheet 1

    Legend
    Install the Air Deflector Bracket

    Sheet 1

    Close

    Figure: Install the Air Deflector Bracket

    Sheet 2

    Legend
    Install the Air Deflector Bracket

    Sheet 2

    Close

    Figure: Electrical Harness Installation

    Electrical Harness Installation

    Figure: Install the Engine Control Link Harness

    Sheet 1

    Legend
    Install the Engine Control Link Harness

    Sheet 1

    Close

    Figure: Install the Engine Control Link Harness

    Sheet 2

    Legend
    Install the Engine Control Link Harness

    Sheet 2

    Close

    Figure: SBE 71-0120: Install the Engine Control Link Harness

    Sheet 3

    Legend
    SBE 71-0120: Install the Engine Control Link Harness

    Sheet 3

    Close

    Figure: SBE 75-0081: Install the Engine Control Link Harness

    Sheet 4

    Legend
    SBE 75-0081: Install the Engine Control Link Harness

    Sheet 4

    Close

    Figure: Install the Thermal Anti-Icing Duct

    Install the Thermal Anti-Icing Duct

    Figure: SBE 73-0139: Install the Fuel Nozzle Manifolds

    Sheet 1

    Legend
    SBE 73-0139: Install the Fuel Nozzle Manifolds

    Sheet 1

    Close

    Figure: SBE 73-0139: Install the Fuel Nozzle Manifolds

    Sheet 2

    Legend
    SBE 73-0139: Install the Fuel Nozzle Manifolds

    Sheet 2

    Close

    Figure: SBE 71-0162 Pre SBE 75-0081: Connect the Electrical Connector 4025KS-A to the Stage 10 to HPT Air Valve

    Sheet 1

    Legend
    SBE 71-0162 Pre SBE 75-0081: Connect the Electrical Connector 4025KS-A to the Stage 10 to HPT Air Valve

    Sheet 1

    Close

    Figure: SBE 71-0162 Pre SBE 75-0081: Connect the electrical connector 4025KS-A to the stage 10 to HPT air valve

    Sheet 2

    Legend
    SBE 71-0162 Pre SBE 75-0081: Connect the electrical connector 4025KS-A to the stage 10 to HPT air valve

    Sheet 2

    Close

    Figure: SBE 71-0162 Pre SBE 75-0081: Connect the Electrical Connector 4025KS-A to the Stage 10 to HPT Air Valve

    Sheet 3

    Legend
    SBE 71-0162 Pre SBE 75-0081: Connect the Electrical Connector 4025KS-A to the Stage 10 to HPT Air Valve

    Sheet 3

    Close

    Figure: Visually Inspect the Backshells and Cable Clamps

    Visually Inspect the Backshells and Cable Clamps

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised torque limits. (19VC436)

Link not Found
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:24269
Enterprise Name:SCHAEFER MACHINE CO., INC.
BU Name:SCHAEFER MACHINE CO., INC.
Street:200 COMMERCIAL DRIVE
City:DEEP RIVER
State:CT
Zip Code:06417
Country:USA
Phone Number:1-860-526-4000
Fax Number:1-860-526-4654
Internet:www.schaeferco.com
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:X333X
Enterprise Name:REFER TO V2500 SB ENG-79-0108
Link not Found
Link not Found
Manufacturer Code:24269
Supply Number:CoMat 01-573
Type:sp01
Supply Short Name:CoMat 01-573 WAX BLEND, PARAFFIN
Supply Name:CoMat 01-573 WAX BLEND, PARAFFIN
Specification Groups:
Doc NumberType
PMC 9462 (PW REF)CW-5
PMC 9462 (PW REF)WB17 ADHESIVE WAX
Suppliers:
ManufacturerRemarks
24269
Manufacturer Code:K6835
Supply Number:CoMat 02-126
Type:sp01
Supply Short Name:CoMat 02-126 LOCKWIRE
Supply Name:CoMat 02-126 LOCKWIRE
Specification Groups:
Doc NumberType
DTD 189A, 0.028 TO 0.032 IN DIA
Suppliers:
ManufacturerRemarks
K6835
KB362
LOCAL
U06C8
Manufacturer Code:LOCAL
Supply Number:CoMat 02-141
Type:sp01
Supply Short Name:CoMat 02-141 LOCKWIRE
Supply Name:CoMat 02-141 LOCKWIRE
Specification Groups:
Doc NumberType
AS3214-02 (0.8 mm)AMS 5689
Suppliers:
ManufacturerRemarks
LOCAL
81343
IE508
58401
Manufacturer Code:LOCAL
Supply Number:CoMat 02-148
Type:sp01
Supply Short Name:CoMat 02-148 ADHESIVE TAPE (ELECTRICAL)
Supply Name:CoMat 02-148 ADHESIVE TAPE (ELECTRICAL)
Specification Groups:
Doc NumberType
OMAT: 296SCOTCH NO. 69 (WHITE)
Suppliers:
ManufacturerRemarks
LOCAL
76381
94960
K0993
K6835
Manufacturer Code:LOCAL
Supply Number:CoMat 02-274
Type:sp01
Supply Short Name:CoMat 02-274 SAFETY CABLE KIT
Supply Name:CoMat 02-274 SAFETY CABLE KIT
Specification Groups:
Doc NumberType
SAE AS3510-0218K (DIA 0,032 IN LENGTH 18IN)
Suppliers:
ManufacturerRemarks
LOCAL
11851
U0419
70958
H7503
SA221
V384V
Manufacturer Code:X111X
Supply Number:CoMat 02-275
Type:sp01
Supply Short Name:CoMat 02-275 SAFETY CABLE KIT
Supply Name:CoMat 02-275 SAFETY CABLE KIT
Specification Groups:
Doc NumberType
Deleted. Use CoMat 02-274.
Suppliers:
ManufacturerRemarks
X111X
Manufacturer Code:00BB6
Supply Number:CoMat 07-038
Type:sp01
Supply Short Name:CoMat 07-038 AIR DRYING ENAMEL
Supply Name:CoMat 07-038 AIR DRYING ENAMEL
Specification Groups:
Doc NumberType
OMAT:7/22B (RR REF)IP9138 R1
JCR-029 (JAEC REF)
Suppliers:
ManufacturerRemarks
00BB6
K3504
Manufacturer Code:70079
Supply Number:CoMat 10-003
Type:sp01
Supply Short Name:CoMat 10-003 COLLOIDAL GRAPHITE DRY FILM LUBRICANT
Supply Name:CoMat 10-003 COLLOIDAL GRAPHITE DRY FILM LUBRICANT
Specification Groups:
Doc NumberType
OMAT: 497 (RR REF)DAG 580
JCR-206 (JAEC REF)DAG 580
Suppliers:
ManufacturerRemarks
70079
H3221
K6835
LOCAL
50833
U5F65
Manufacturer Code:K6835
Supply Number:CoMat 10-038
Type:sp01
Supply Short Name:CoMat 10-038 PETROLEUM JELLY
Supply Name:CoMat 10-038 PETROLEUM JELLY
Specification Groups:
Doc NumberType
SILKOLENE 775 CERTIFIED TO DEF STAN 91-38 GRADE PX-7 OR TO NATO S-743
Suppliers:
ManufacturerRemarks
K6835
U1757
Manufacturer Code:LOCAL
Supply Number:CoMat 10-060
Type:sp01
Supply Short Name:CoMat 10-060 LIQUID PARAFFIN
Supply Name:CoMat 10-060 LIQUID PARAFFIN
Specification Groups:
Doc NumberType
OMAT:CoMat 1020BP TECHNICAL WHITE OIL
Suppliers:
ManufacturerRemarks
LOCAL
Manufacturer Code:X333X
Supply Number:CoMat 10-077
Type:sp01
Supply Short Name:CoMat 10-077 APPROVED ENGINE OILS
Supply Name:CoMat 10-077 APPROVED ENGINE OILS
Specification Groups:
Doc NumberType
For V2500-A1/A5/D5 models - Refer to V2500 Service Bulletin ENG-79-0108
For V2500-E5 model - Refer to Service Bulletin E5-79-0001
Suppliers:
ManufacturerRemarks
X333X
Manufacturer Code:LOCAL
Supply Number:DELETED
Type:sp01
Supply Short Name:DELETED
Supply Name:DELETED
Specification Groups:
Doc NumberType
DELETED
Suppliers:
ManufacturerRemarks
LOCAL
Manufacturer Code:0AM53
Tool Number:IAE 1P16092
Tool Name:IAE 1P16092 Igniter immersion gage
Manufacturer Code:0AM53
Tool Number:IAE 1P16139
Tool Name:IAE 1P16139 Wrench
Manufacturer Code:0AM53
Tool Number:IAE 1R18001
Tool Name:IAE 1R18001 Wrench
Manufacturer Code:0AM53
Tool Number:IAE 1R18003
Tool Name:IAE 1R18003 Wrench
