DMC:V2500-A1-72-41-3000-03A-710A-B|Issue No:004|Issue Date:2019-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-41-30-440-004-A00 HPC Front Case And Vane Assembly - Install The Stage 3 Variable Stator Vanes, Assembly-004

General

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

All of the temporary marks made in this procedure must be removed after completion of this task.

For standard torque data and procedures, refer to SPM TASK 70-41-01-400-501 and SPM TASK 70-41-02-400-501.

Special torque data and assembly tolerances are included in the procedure.

Lubricate all threads and touch faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.

To identify, lubricate and install seal rings, refer to SPM TASK 70-44-01-400-501.

After assembly apply CoMat 07-038 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and parts used to attach. Use the correct colour of the air drying enamel. Refer to SPM TASK 70-63-02-380-501.

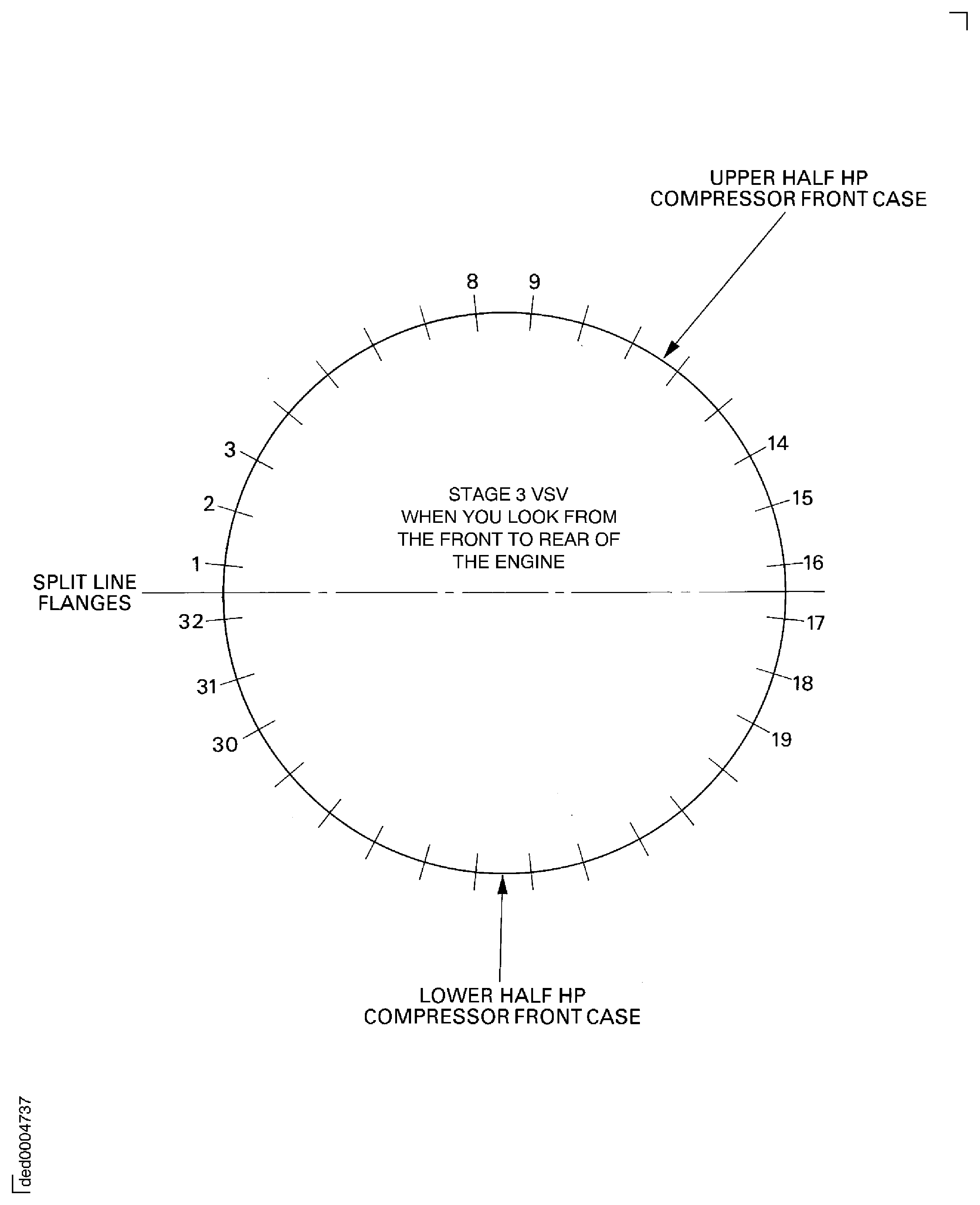

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

Pre SBE 72-0027: Refer to Figure for a sectional view of the HP compressor front case.

SBE 72-0027: Refer to Figure for a sectional view of the HP compressor front cases.

The Fits and Clearances, NEW PART DIMENSIONS and REJECT IF MORE THAN columns will be used by most operators. This permits the full use of the maximum wear allowance and a reduction in the number of parts which are rejected, is possible.

As long as REJECT IF MORE THAN columns do not include reject values, NEW PART DIMENSIONS do not have to be measured before assembly, as there are no reject-if criteria. Values are only valid for new parts, not for worn parts.

The column WORN PART DIMENSION (Non-select) is included for operators who want to have full interchangeability. If this column is used an increase in the number of parts which are rejected is possible.

After the part has been in service for some time the REJECT IF MORE THAN and WORN PART DIMENSIONS could be changed. The operator must tell IAE and if agreed the manual will be changed.

The abbreviation Intf shows an interference or tight fit. This causes REJECT IF MORE THAN to become REJECT IF LESS THAN.

The abbreviation clear shows a clearance fit.

This TASK gives the procedure to install the stage 3 variable stator vanes (VSV). The subsequent TASKS give the procedure to assemble the HP compressor front cases.

Install the Stage 3 to 6 Rotor Path Rings Pre SBE 72-0027 by TASK 72-41-30-440-001-A00 (ASSEMBLY-001).

Install the Stage 5 and 6 Rotor Path Rings by SBE 72-0027 by TASK 72-41-30-440-001-B00 (ASSEMBLY-001).

Measure and then machine the Stage 6 VSV and the Stage 3 to 6 Rotor Path Linings by TASK 72-41-30-440-002-A00 (ASSEMBLY-002).

Install the VIGV by TASK 72-41-30-440-003-A00 (ASSEMBLY-003).

Install the Stage 4 VSV by TASK 72-41-30-440-005-A00 (ASSEMBLY-005).

Install the Stage 5 VSV by TASK 72-41-30-440-006-A00 (ASSEMBLY-006).

Install the Stage 6 VSV by TASK 72-41-30-440-007-A00 (ASSEMBLY-007).

Install the VIGV and the Stage 3 to 6 Connector Assemblies by TASK 72-41-30-440-008-A00 (ASSEMBLY-008).

Measure the HP Compressor Front Cases by TASK 72-41-30-440-009-A00 (ASSEMBLY-009).

Disassemble the HP Compressor Front Cases by TASK 72-41-30-440-010-A00 (ASSEMBLY-010).

Check and Set VSV System with Optimised Build and Setting Clearances - SBE 72-0402 by TASK 72-41-30-440-011-A00 (ASSEMBLY-011).

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

Name	Manufacturer	Part Number / Identification	Quantity
IAE 1R18258 Bushing assembly tool	0AM53	IAE 1R18258	1
IAE 1R18259 Bushing assembly tool	0AM53	IAE 1R18259	1
IAE 1R18271 Air plug gage	0AM53	IAE 1R18271	1
IAE 1R18272 Setting ring	0AM53	IAE 1R18272	1
IAE 1R18273 Setting ring	0AM53	IAE 1R18273	1
IAE 1R18280 Air gage unit	0AM53	IAE 1R18280	1
IAE 1R18423 Rigging pin	0AM53	IAE 1R18423	6
IAE 1R18893 Riggingpin	0AM53	IAE 1R18893	6
IAE 1R18495 Seal fitting tool	0AM53	IAE 1R18495	1
IAE 1R18583 Pusher installation tool	0AM53	IAE 1R18583
IAE 1R18574 Bushing assembly tool assembly	0AM53	IAE 1R18574
IAE 1R18573 Cylinder, hydraulic	0AM53	IAE 1R18573
IAE 1R18584 Pusher installation tool	0AM53	IAE 1R18584
IAE 1R18575 Bushing assembly tool	0AM53	IAE 1R18575

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification
CoMat 02-363 MARKING PEN	LOCAL	CoMat 02-363
CoMat 04-007 SILICONE GREASE	LOCAL	CoMat 04-007
CoMat 07-038 AIR DRYING ENAMEL	k3504	CoMat 07-038
CoMat 10-077 APPROVED ENGINE OILS	X333X	CoMat 10-077
CoMat 10-108 HIGH PERFORMANCE PENETRATING LUBRICANT WITH TEFLON (R)	LOCAL	CoMat 10-108

Spares

Name	Manufacturer	Part Number / Identification	Quantity	Remark
O-ring seal		O-ring seal	30

Safety Requirements

NONE

Procedure

SUBTASK 72-41-30-220-072 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1212

Refer to Figure.

Reference dimensions at location 1212. If required use the data written as a note in TASK 72-41-32-200-000 and TASK 72-41-31-200-000.

Table 1. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1212
Stage 3 VSV ENGINE-HP COMPRESSOR VARIABLE VANES (72-41-32, 02-500 And 02-600)
Location In The Stage 3 Outer Pivot Bush ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-261 Or 01-270)
Stage 3 VSV Spindle Diameter	0.6259
	0.6280	0.0018
Stage 3 Outer Pivot Bush Bore	0.6299	0.005
	0.6309
NOTE Refer To Step Or Step For The Installation Of An Alternative Bush.

Table 2. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1212
Stage 3 VSV ENGINE-HP COMPRESSOR VARIABLE VANES (72-41-32, 02-500 And 02-600)
Location In The Stage 3 Outer Pivot Bush ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-261 Or 01-270)
Stage 3 VSV Spindle Diameter	15.900
	15.952	0.048
Stage 3 Outer Pivot Bush Bore	16.000	0.127
	16.027
NOTE Refer To Step Or Step For The Installation Of An Alternative Bush.

SUBTASK 72-41-30-220-073 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1216

Refer to Figure.

Reference dimensions at location 1216. If required use the data written as a note in TASK 72-41-33-200-000.

Table 3. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1216
Stage 3 Half Shroud ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS(72-41-33, 02-200)
Location In The Half Bush ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-190)
Stage 3 Half Shroud Location Diameter	0.3543
	0.3551	0.0000
Half Bush Outer Diameter	0.3551	Intf
	0.3561	0.0018

Table 4. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1216
Stage 3 Half Shroud ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-200)
Location In The Half Bush ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-190)
Stage 3 Half Shroud Location Diameter	9.000
	9.022	0.000
Half Bush Outer Diameter	9.022	Intf
	9.047	0.047

SUBTASK 72-41-30-220-074 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1217

Refer to Figure.

Reference dimensions at location 1217. If required use the data written as a note in TASK 72-41-32-200-000 and TASK 72-41-33-200-000.

Table 5. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1217
Stage 3 VSV ENGINE-HP COMPRESSOR VARIABLE VANES (72-41-32, 02-500 And 02-600)
Location In The Half Bush ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-190)
Stage 3 VSV Inner Spindle Diameter	0.2709
	0.2730	0.0025
Half Bush Inner Bore	0.2756	0.0035
	0.2765

Table 6. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1217
Stage 3 VSV ENGINE-HP COMPRESSOR VARIABLE VANES (72-41-32, 02-500 And 02-600)
Location In The Half Bush ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-190)
Stage 3 VSV Inner Spindle Diameter	6.881
	6.933	0.067
Half Bush Inner Bore	7.000	0.141
	7.022

SUBTASK 72-41-30-220-075 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1218

Refer to Figure.

Reference dimensions at location 1218. If required use the data written as a note in TASK 72-41-32-200-000 and TASK 72-41-33-200-000.

Table 7. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1218
Stage 3 VSV ENGINE-HP COMPRESSOR VARIABLE VANES (72-41-32, 02-500 And 02-600)
Location In The Half Bush ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-190)
Stage 3 VSV Inner Spindle Length	5.4989	Intf
	5.5150	0.0106
Half Bush Outer Length	5.5044	Clear
	5.5132	0.0143

Table 8. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1218
Stage 3 VSV ENGINE-HP COMPRESSOR VARIABLE VANES (72-41-32, 02-500 And 02-600)
Location In The Half Bush ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-190)
Stage 3 VSV Inner Spindle Length	139.6730	Intf
	140.0830	0.2705
Half Bush Outer Length	139.8125	Clear
	140.0375	0.3645

SUBTASK 72-41-30-220-076 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1219

Refer to Figure.

Reference dimensions at location 1219. If required use the data written as a note in TASK 72-41-33-200-000.

Table 9. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1219
Stage 3 Half Shroud ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-200)
Location At The Half Bush ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-190)
Stage 3 Half Inner Shroud Length	5.5755
	5.5775	0.00009
Half Bush Inner Length	5.5536	0.02390
	5.5754

Table 10. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1219
Stage 3 Half Shroud ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-200)
Location At The Half Bush ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-190)
Stage 3 Half Inner Shroud Length	141.6200
	141.6700	0.0025
Half Bush Inner Length	141.0625	0.6075
	141.6175

SUBTASK 72-41-30-220-077 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1220

Refer to Figure.

Reference dimensions at location 1220. If required use the data written as a note in TASK 72-41-32-200-000 and TASK 72-41-33-200-000.

Table 11. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1220
Stage 3 VSV ENGINE-HP COMPRESSOR VARIABLE VANES (72-41-32, 02-500 And 02-600)
Location At The Half Bush ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-190)
Stage 3 VSV Inner Spindle Length	6.2329	Intf
	6.2451	0.0068
Half Bush Outer Length	6.2346	Clear
	6.2397	0.0104

Table 12. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1220
Stage 3 VSV ENGINE-HP COMPRESSOR VARIABLE VANES (72-41-32, 02-500 And 02-600)
Location At The Half Bush ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-190)
Stage 2 VSV Inner Spindle Length	158.316	Intf
	158.626	0.174
Half Bush Outer Length	158.360	Clear
	158.490	0.266

SUBTASK 72-41-30-220-078 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1255

Refer to Figure.

Reference dimensions at location 1255. If required use the data written as a note in TASK 72-41-33-200-000.

Table 13. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1255
Stage 3 Half Shroud ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-200)
Location At The Grooved Headless Pin ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-222)
Stage 3 Half Shroud Location Pin Hole Bore	0.1996
	0.2007	0.0018
Grooved Headless Pin Diameter	0.1973	0.0034
	0.1977

Table 14. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1255
Stage 3 Half Shroud ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-200)
Location At The Grooved Headless Pin ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-222)
Stage 3 Half Shroud Location Pin Hole Bore	5.070
	5.100	0.046
Grooved Headless Pin Diameter	5.012	0.088
	5.024

SUBTASK 72-41-30-220-102 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1311

Refer to Figure.

Reference dimensions at location 1311. If required use the data written as a note in TASK 72-41-34-200-000.

Table 15. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1311
Stage 3 VSV Lever ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-100 And 03-140)
Location In The Bush ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-460 And 03-560)
Stage 3 VSV Lever Pin Diameter	0.2353
	0.2358	0.0004
Bush Bore	0.2362	0.0016
	0.2369

Table 16. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1311
Stage 3 VSV Lever ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-100 And 03-140)
Location In The Bush ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-460 And 03-560)
Stage 3 VSV Lever Pin Diameter	5.978
	5.990	0.01
Bush Bore	6.000	0.04
	6.018

SUBTASK 72-41-30-220-141 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1264

Refer to Figure.

Reference dimensions at Location 1264. If required use the data written as a note in TASK 72-41-31-200-000 and TASK 72-41-30-440-004-B00.

Table 17. Fits and Clearances (all dimensions in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1264
Stage 3 Inner Bush ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-261 Or 01-270)
Location With The Sealing WasherENGINE-HP COMPRESSOR FRONT CASES AND VANES (72-41-30, 01-150)
Inner Bush Flange Thickness	0.055
	0.058	0.003
Sealing Washer Thickness	0.049	0.009
	0.052
NOTE Refer To Step Or Step For The Installation Of An Alternative Bush.

Table 18. Fits and Clearances (all dimensions in millimetres)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1264
Stage 3 Inner Bush ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-261 Or 01-270)
Location With The Sealing Washer ENGINE-HP COMPRESSOR FRONT CASES AND VANES (72-41-30, 01-150)
Inner Bush Flange Thickness	1.387
	1.463	0.077
Sealing Washer Thickness	1.250	0.213
	1.310
NOTE Refer To Step Or Step For The Installation Of An Alternative Bush.

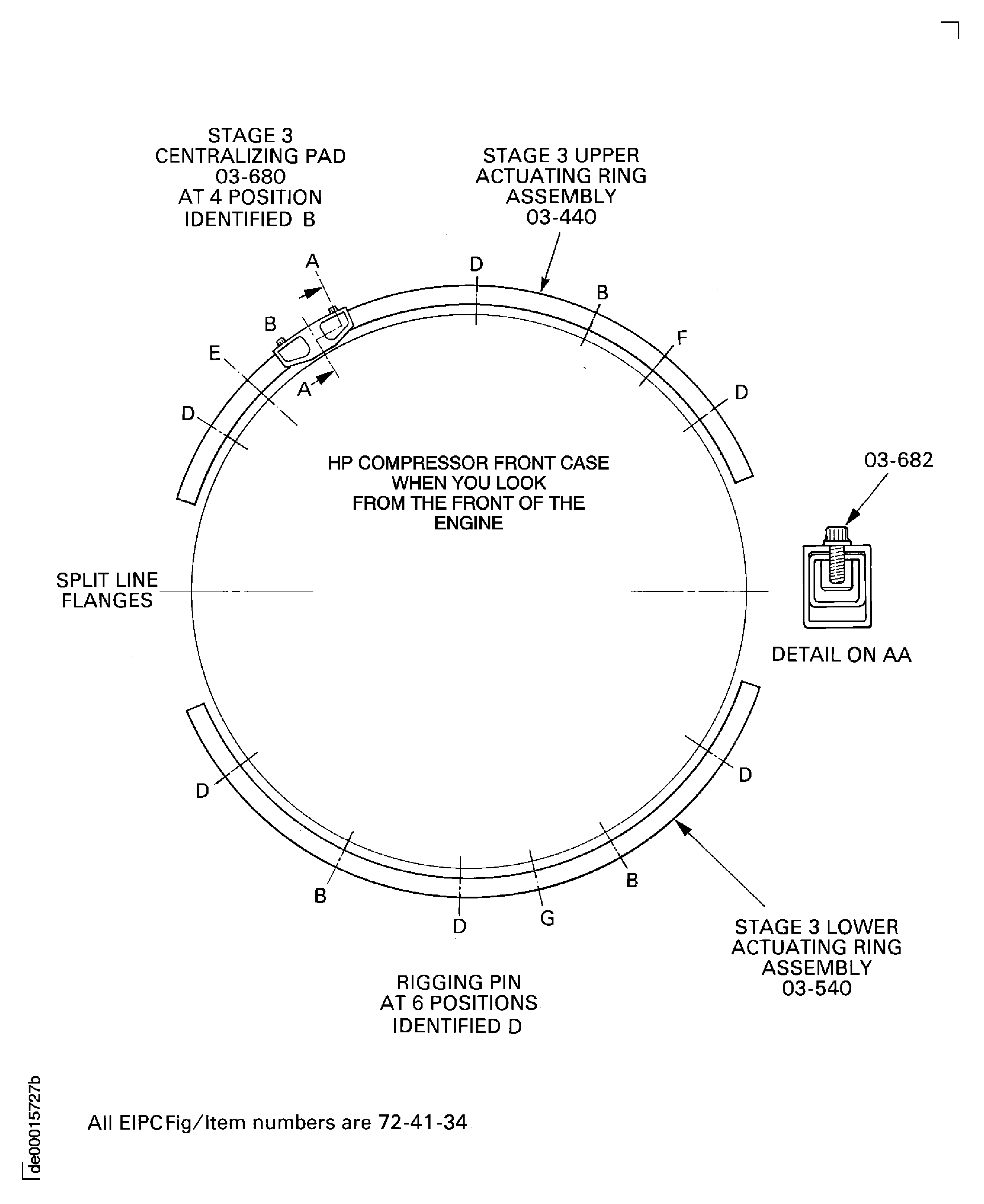

1. Refer to Figure and Figure.
2. 1. Put the two stage 3 centralizing pads into position in the stage 3 upper actuating ring.
  2. Install the four bolts ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-682) to attach the two stage 3 centralizing pads to the stage 3 upper actuating ring.
  3. Tighten the bolts.
3. 1. Install the two stage 3 centralizing pads on to the stage 3 lower actuating ring as given in Step to Step.
4. 1. Put the bracket ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-770) into position on the stage 3 upper actuating ring. Refer to the detail at E.
  2. Install the two hollow dowels ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-776) and the two bolts ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-772) to attach the bracket to the stage 3 upper actuating ring.
  3. Torque the two bolts to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm).
  4. Put the bracket ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-760) into position on the stage 3 upper actuating ring. Refer to the detail at F.
  5. Install the two hollow dowels ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-766) and the two bolts ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-762) to attach the bracket to the stage 3 upper actuating ring.
  6. Torque the two bolts to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm).
  7. Put the bracket ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-780) into position on the stage 3 lower actuating ring. Refer to the detail at G.
  8. Install the two hollow dowels ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-786) and the two bolts ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-782) to attach the bracket to the stage 3 lower actuating ring.
  9. Torque the two bolts to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm).
1. Refer to Figure and Figure.
2. SBE 72-0084: HP Compressor VSV's - reduced number of rigging pin brackets
  SBE 72-0385or SBE 72-0416: Introduction of revised actuating rings with increased dowel locations.
3. 1. Put the two stage 3 centralizing pads in position in the stage 3 upper actuating ring.
  2. Install the four bolts ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-682) to attach the two stage 3 centralizing pads to the upper actuating ring.
  3. Tighten the bolts.
4. 1. Install the two stage 3 centralizing pads on the stage 3 lower actuating ring as given in Step to Step.
5. 1. Put the bracket ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-770) in position on the stage 3 upper actuating ring. Refer to detail at E.
  2. Install the two hollow dowels ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-776) and the two bolts ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-772) to attach the bracket to the stage 3 upper actuating ring.
  3. Torque the two bolts to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm).
1. Refer to Figure, Figure and Figure.
2. 1. Connect the IAE 1R18271 Air plug gage 1 off to the IAE 1R18280 Air gage unit 1 off. Connect an air supply to the air gage unit.
  2. Open the air supply valve, part of the air gage unit. Make sure the needle on the air supply gage reads between the two red lines.
  3. Set the needles A and B to the two 20 positions on the air gage unit main gage. Use the needle adjusters to set the needles to the required value.
  4. Install IAE 1R18272 Setting ring 1 off on to the air plug gage. Refer to Figure. The two air jets, on the air plug gage, must be approximately in the center of the setting ring bore.
  5. Align the needle C, on the air gage unit gage, to the same value as the needles A or B. Use the flow adjuster to align the needle C.
  6. Remove the setting ring from the air plug gage.
  7. Install IAE 1R18273 Setting ring 1 off on to the air plug gage. The two air jets, on the air plug gage, must be approximately in the center of the setting ring bore.
  8. Align the needle C, on the air gage unit gage, to the same value as the needles A or B. Use the flow adjuster to align the needle C.
  9. Remove the setting ring from the air plug gage.
3. 1. Install the air plug gage into the stage 3 VSV outer bush location bore at the No. 1 position. Set the two air jets at approximately the center of the bush location bore.
  2. Make a record of the value shown on the air gage unit gage.
  3. Push the air plug gage into the inner bush location bore. Set the two air jets at approximately the center of the inner bush location bore.
  4. Make a record of the value shown on the air gage unit gage.
  5. Do Step to Step at the remaining 31 bush location bores.
    NOTE
    Each location bore must be measured at the same angle to the case center line.
1. Refer to Figure, Figure, Figure, Figure, Figure and Figure.
2. SBE 70-0052: Engine - Additional source for variable stator vane spindle bushings
3. 1. From the values written down in Step use the correct size of bush.
    Pre SBE 70-0052: Bush installed at positions 8 and 9.
    Red segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-270).
    Yellow segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-271).
    Black segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-272).
    Pre SBE 70-0052: Bush installed at positions 1 thru 7 and 10 thru 32.
    Red segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-263).
    Yellow segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-261).
    Black segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-262).
    SBE 70-0052: Bush installed at positions 8 and 9.
    Red segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-270) or ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-275).
    Yellow segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-271) or ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-276).
    Black segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-272) or ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-277).
    SBE 70-0052: Bush installed at positions 1 thru 7 and 10 thru 32.
    Red segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-263) or ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-265).
    Yellow segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-261) or ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-266).
    Black segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-262) or ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-267).
  2. Use IAE 1R18259 Bushing assembly tool 1 off to install the bushes. Refer to detail A on Figure.
  3. Remove the ring, handle, spacer and nylon washer B from the tool pin.
  4. Install the pin with the nylon washer A in to the stage 3 VSV bush location at the No. 1 position. Make sure the nylon washer is correctly located on the HP compressor front case outer surface.
  5. Locate the bush that is to be installed on the pin on the inside of the HP compressor front case.
  6. Install the nylon washer B, spacer, ring and handle on to the pin. Turn the handle until the nylon washer B abuts the bush that is to be installed.
  7. Make sure the bush assembly tool is correctly located and is at 90 degrees to the location bore.
  8. Hold the dowel, then continue to turn the handle to install the bush. Do not let the dowel turn.
  9. When the bush is installed remove the bush assembly tool.
  10. Do Step to Step to install the remaining 31 inner bushes.
4. 1. Select the correct size of bush. Refer to Step.
  2. Use IAE 1R18258 Bushing assembly tool 1 off to install the bushes. Refer to detail B on Figure.
  3. Remove the ring, handle, spacer and nylon washer B from the tool pin.
  4. Locate the bush that is to be installed on to the nylon washer A.
  5. Install the pin, nylon washer A and the bush in to the stage 3 VSV location at the No. 1 position. Make sure the bush is correctly located.
  6. Install the nylon washer B, spacer, handle and ring removed in Step.
  7. Turn the handle until the nylon washer B touches the inner bush.
  8. Make sure the bush assembly tool is correctly located and is at 90 degrees to the location bore.
  9. Hold the dowel, then continue to turn the handle to install the bush. Do not let the dowel turn.
  10. When the bush is installed remove the bush assembly tool.
  11. Do Step to Step to install the remaining 31 outer bushes.
1. Refer to Figure, Figure, Figure, Figure, Figure and Figure.
2. SBE 70-0052: Engine - Additional source for variable stator vane spindle bushings.
3. 1. From the values written down in Step use the correct size of bush.
    Pre SBE 70-0052: Bush installed at positions 8 and 9.
    Red segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-270).
    Yellow segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-271).
    Black segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-272).
    Pre SBE 70-0052: Bush installed at positions 1 thru 7 and 10 thru 32.
    Red segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-263).
    Yellow segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-261).
    Black segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-262).
    SBE 70-0052: Bush installed at positions 8 and 9.
    Red segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-270) or ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-275).
    Yellow segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-271) or ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-276).
    Black segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-272) or ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-277).
    SBE 70-0052: Bush installed at positions 1 thru 7 and 10 thru 32.
    Red segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-263) or ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-265).
    Yellow segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-261) or ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-266).
    Black segment - ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-262) or ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-267).
  2. Install the IAE 1R18583 Pusher installation tool 1 off into the stage 3 VSV bush location at the No. 1 position. Make sure the pusher is correctly located on the HP compressor front case outer surface.
  3. Put the bush of the correct dimension on the pusher on the inside of the HP compressor front case.
  4. Install the IAE 1R18574 Bushing assembly tool assembly 1 off, on the pusher.
  5. Install the IAE 1R18573 Cylinder, hydraulic 1 off, on the pusher until the cylinder comes against the bush assembly tool.
  6. CAUTION
    YOU MUST MAKE SURE THE ASSEMBLY TOOL IS CORRECTLY LOCATED AT 90 DEGREES TO THE LOCATION BORE TO PREVENT DAMAGE TO THE HP COMPRESSOR CASE.
    Apply hydraulic pressure to the cylinder until the bush is pushed into the HP compressor front case.
  7. Release the hydraulic pressure and remove the assembly.
  8. Do Step to Step again to install the remaining 63 inner bushes.
4. 1. Select the correct size of bush. Refer to Step.
  2. Put the bush of the correct dimension on the IAE 1R18584 Pusher installation tool 1 off.
  3. Install the pusher into the stage 3 VSV location at the No. 1 position. Make sure the bush is correctly located.
  4. Install the IAE 1R18575 Bushing assembly tool on the pusher.
  5. Install the IAE 1R18573 Cylinder, hydraulic on the pusher until the cylinder comes against the bush assembly tool.
  6. CAUTION
    YOU MUST MAKE SURE THE ASSEMBLY TOOL IS CORRECTLY LOCATED AT 90 DEGREES TO THE LOCATION BORE TO PREVENT DAMAGE TO THE HP COMPRESSOR CASE.
    Apply hydraulic pressure to the cylinder until the bush is pushed into the HP compressor front case.
  7. Release the hydraulic pressure and remove the assembly tool.
  8. Do Step to Step again to install the remaining stage 3 VSV outer bushes.
1. Refer to Figure, Figure, Figure and Figure.
2. Pre SBE 72-0402: It is not necessary to lubricate the stage 3 locations with CoMat 10-108 HIGH PERFORMANCE PENETRATING LUBRICANT WITH TEFLON (R) during this SUBTASK.
3. SBE 72-0402: Lubricate the stage 3 locations during these assembly operations with CoMat 10-108 HIGH PERFORMANCE PENETRATING LUBRICANT WITH TEFLON (R) as specified in TASK 72-41-30-440-011-A00, SUBTASK 72-41-30-440-208.
4. Install the 32 sealing washers ENGINE-HP COMPRESSOR FRONT CASES AND VANES (72-41-30, 01-150) on to the inner bushes. Make sure the sealing washers are correctly located around the inner bush.
5. 1. Install IAE 1R18495 Seal fitting tool 1 off on to the spindle of one of the stage 3 stator vanes to be installed.
  2. Install a sealing ring on to the seal fitting tool.
  3. Move the sealing ring down the seal fitting tool until it is located in the seal groove.
  4. Install the remaining 29 sealing rings as given in Step to Step.
6. 1. Temporary mark vane sequence number on each vane before it is installed.
    NOTE
    Do not vibropeen.
    Use CoMat 02-363 MARKING PEN.
    Refer to SPM TASK 70-09-01-400-501.
  2. Install the 14 stage 3 stator vanes ENGINE-HP COMPRESSOR VARIABLE VANES (72-41-32, 02-500) and the two stage 3 stator vanes ENGINE-HP COMPRESSOR VARIABLE VANES (72-41-32, 02-600) into the bushes in the upper half HP compressor front case.
    NOTE
    The two stage 3 stator vanes ENGINE-HP COMPRESSOR VARIABLE VANES (72-41-32, 02-600) with the short spindles must be installed at the positions 8 and 9.
    There are no o-ring seals on the short spindled stage 3 stator vanes.
7. 1. Install the 16 stage 3 stator vanes ENGINE-HP COMPRESSOR VARIABLE VANES (72-41-32, 02-500) in the lower HP compressor half front case a given in Step and Step.
8. 1. Put two spacers ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-060) on to the spindle of each stage 3 stator vane.
  2. Install the 32 stage 3 actuating levers on to the spindles of the stage 3 stator vanes.
    The two actuating levers ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-140) go at the positions 8 and 9.
    The eight actuating levers ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-120) go at the positions 1,2,15,16,17,18,31 and 32.
    The 22 actuating levers ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-100) go at the positions 3 to 7, 10 to 14 and 19 to 30.
    NOTE
    The stage 3 actuating levers must be parallel with the casing centre line when you torque the nuts. This is the null position.
  3. Install the 32 slave nuts to attach the actuating levers to the stage 3 stator vanes. Torque the nuts to 85 lbfin to 105 lbfin (10.00 Nm to 12.00 Nm). The nuts that are used must have no run down torque.
  4. At each stage 3 VSV apply a load at the inner pivot point, to push the stator vane radially out.
  5. Measure and write down a record of the end float. Dimension A Figure. Measure between the actuating lever and the two installed spacers.
  6. Remove the 32 slave nuts and actuating levers from the stage 3 VSV.
    NOTE
    Temporarily mark the actuating levers with their position numbers. These must be the same as the numbers on the stage 3 stator vanes.
  7. Install the 32 slave nuts on to the stage 3 stator vane spindles. Tighten the nuts sufficiently to keep the two installed spacers on the stage 3 stator vane spindles.
1. Refer to Figure and Figure.
2. Pre SBE 72-0402 : It is not necessary to lubricate the stage 3 locations with CoMat 10-108 HIGH PERFORMANCE PENETRATING LUBRICANT WITH TEFLON (R) during this SUBTASK.
3. SBE 72-0402 : Lubricate the stage 3 locations during these assembly operations with CoMat 10-108 HIGH PERFORMANCE PENETRATING LUBRICANT WITH TEFLON (R) as specified in TASK 72-41-30-440-011-A00, SUBTASK 72-41-30-440-208.
4. 1. Put the stage 3 upper actuating ring ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-440) into position on the upper half HP compressor front case. Install three of IAE 1R18423 Rigging pin 6 off or IAE 1R18893 Riggingpin 6 off to attach the stage 3 upper actuating ring to the upper half HP compressor front case.
    NOTE
    Set the stage 3 upper actuating ring adjacent to the stage 3 stator vane at the positions 3 to 14.
  2. Remove the 12 slave nuts from the stage 3 stator vanes at the positions 3 to 14.
  3. Remove the two installed spacers from the spindles of the stator vanes at positions 3 to 14. Measure and write down the total thickness of the two spacers.
  4. Install two spacers ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-060 to ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES 03-076) on to the spindle of each stage 3 stator vanes at the position 3 to 14. The thickness of the spacers that are to be installed is equal to:
    The total thickness of the two spacers removed in Step plus the end float, written down in Step, minus 0.003 in. to 0.005 in. (0.08 mm to 0.13 mm).
    NOTE
    The two stage 3 actuating levers ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-140) are for the stage 3 stator vanes installed at the positions 8 and 9.
  5. Install the 10 stage 3 actuating levers ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-100) and the two stage 3 actuating levers ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-140) into the locations in the stage 3 stator vane upper actuating ring. Engage the stage 3 actuating levers on the stage 3 stator vane spindles.
  6. Install the 12 nuts ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 03-103 and ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES 03-143) to attach the stage 3 actuating levers to the stage 3 stator vanes.
  7. Remove the three rigging pins from the stage 3 upper actuating ring.
    NOTE
    The stage 3 actuating levers must be parallel with the casing centre line when you torque the nuts. This is the null position.
  8. Torque the nuts to 85 lbfin to 105 lbfin (10.00 Nm to 12.00 Nm) plus the run down torque.
  9. At each stage 3 stator vane apply a load at the inner pivot point, to push the stator vane radially out.
  10. Measure and write down the stage 3 stator vane end float. Make sure it is 0.003 in. to 0.005 in. (0.08 mm to 0.13 mm).
5. 1. Install the stage 3 lower actuating ring and the levers on to the lower half HP compressor front case at the stage 3 stator vane positions 19 to 30. Use the procedure given in Step to Step.
1. Refer to Figure.
2. SBE 72-0402: HP compressor variable vanes - inlet guide vane and stages 3 to 6 with optimised build and setting instructions.
  SBE 72-0422: HP compressor variable inner shrouds - Introduction of revised one piece bushes.
3. Pre SBE 72-0402 : It is not necessary to lubricate the stage 3 locations with CoMat 10-108 HIGH PERFORMANCE PENETRATING LUBRICANT WITH TEFLON (R) during this SUBTASK.
4. SBE 72-0402 : Lubricate the stage 3 locations during these assembly operations with CoMat 10-108 HIGH PERFORMANCE PENETRATING LUBRICANT WITH TEFLON (R) as specified in TASK 72-41-30-440-011-A00, SUBTASK 72-41-30-440-208.
5. 1. Pre SBE 72-0422: Apply a thin layer of CoMat 04-007 SILICONE GREASE on to the 32 half bushes ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-190) outer surface.
  2. SBE 72-0422: Apply a thin layer of CoMat 04-007 SILICONE GREASE on to the 16 bushes ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-190) outer surface.
  3. Pre SBE 72-0422: Install the 32 half bushes into one half of the stage 3 half shroud ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-200).
  4. SBE 72-0422: Install the 16 bushes onto the stage 3 stator vanes.
  5. Pre SBE 72-0422: Install the stage 3 half shroud, the half bushes and one half of the the stage 3 half seal ring ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-150) on to the stage 3 stator vanes at the inner pivot.
    NOTE
    Make sure the three locating pins are correctly engaged in the stage 3 half shroud.
  6. SBE 72-0422: Install the stage 3 half shroud and the stage 3 half shroud with integral seal ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-200) on to the stage 3 stator vanes at the inner pivot point.
    NOTE
    Make sure the three locating pins are correctly engaged in the stage 4 half shroud.
  7. Pre SBE 72-0422: Install the eight bolts ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-138), the 16 dee-headed washers ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-134) and the eight nuts ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-130). These attach the stage 3 half shroud, the half bushes and the stage 3 half seal ring to the stage 3 stator vanes.
  8. SBE 72-0422: Install the eight bolts ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-138), the 16 dee-headed washers ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-134) and the eight nuts ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS (72-41-33, 02-130). These attach the stage 3 half shroud, the bushes and the stage 3 half shroud with integral seal to the stage 3 stator vanes.
  9. Torque the nuts to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm).
6. 1. Install the stage 3 half shroud as given in Step to Step.

Sheet 1

Sheet 2

Sheet 1

Sheet 2

Sheet 1

Sheet 2

Sheet 3

Sheet 1

Sheet 2

Details of the air plug gage and setting ring

Sheet 1

Sheet 2

Install the seals on the stage 3 VSV spindles

Install the stage 3 variable stator vanes

Sheet 3

Locations for the stage 3 variable stator vanes

Measure the stage 3 stator vane end float

Requirements After Job Completion

Follow-On Conditions

NONE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	LOCAL
Enterprise Name:	LOCALLY SUPPLIED

Manufacturer Code:	X333X
Enterprise Name:	REFER TO V2500 SB ENG-79-0108

Manufacturer Code:	0AM53
Tool Number:	IAE 1R18258
Tool Name:	IAE 1R18258 Bushing assembly tool

TASK 72-41-30-440-004-A00 HPC Front Case And Vane Assembly - Install The Stage 3 Variable Stator Vanes, Assembly-004

Export Control

Copyright

Applicability

Common Information

TASK 72-41-30-440-004-A00 HPC Front Case And Vane Assembly - Install The Stage 3 Variable Stator Vanes, Assembly-004

General

NOTE

NOTE

Preliminary Requirements

Pre-Conditions

Support Equipment

Consumables, Materials and Expendables

Spares

Safety Requirements

Procedure

SUBTASK 72-41-30-220-072 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1212

NOTE

NOTE

SUBTASK 72-41-30-220-073 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1216

SUBTASK 72-41-30-220-074 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1217

SUBTASK 72-41-30-220-075 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1218

SUBTASK 72-41-30-220-076 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1219

SUBTASK 72-41-30-220-077 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1220

SUBTASK 72-41-30-220-078 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1255

SUBTASK 72-41-30-220-102 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1311

SUBTASK 72-41-30-220-141 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1264

NOTE

NOTE

SUBTASK 72-41-30-440-074-A00 Install the Stage 3 VSV Actuating Ring Centralizing Pads (Pre SBE 72-0084)

SUBTASK 72-41-30-440-074-B00 Install the Stage 3 VSV Actuating Ring Centralizing Pads (Pre SBE 72-0385or, SBE 72-0416, SBE 72-0385or, SBE 72-0416 and SBE 72-0084)

SUBTASK 72-41-30-220-144 Measure the Stage 3 VSV Spindle Bushes Location Bores

NOTE

SUBTASK 72-41-30-440-122-001 Install the Stage 3 VSV Spindle Bushes using IAE 1R18259 and IAE 18258 Bush Assembly Tools,and 1009) (Pre SBE 70-0052 and SBE 70-0052)

SUBTASK 72-41-30-440-122-002 Install the Stage 3 VSV Spindle Bushes using IAE 1R18583, IAE 1R18574, IAE 1R18584, IAE 1R18575 and IAE 1R18573 (Pre SBE 70-0052 and SBE 70-0052)

CAUTION

CAUTION

SUBTASK 72-41-30-440-075 Install the Stage 3 Variable Stator Vanes in the HP Compressor Front Case (Pre SBE 72-0402 and SBE 72-0402)

NOTE

NOTE

NOTE

NOTE

NOTE

NOTE

SUBTASK 72-41-30-440-076 Install the Stage 3 Variable Stator Vane Actuating Rings (Pre SBE 72-0402, SBE 72-0402, Pre SBE 72-0385or, SBE 72-0416, SBE 72-0385or and SBE 72-0416)

NOTE

NOTE

NOTE

NOTE

SUBTASK 72-41-30-440-077 Install the Stage 3 Variable Stator Vane Half Shroud,72-41-30-990-033-002 (Pre SBE 72-0402, SBE 72-0402, Pre SBE 72-0422 and SBE 72-0422)

NOTE

NOTE

Figure: Pre SBE 72-0027: View through the HP compressor front case

Sheet 1

Figure: SBE 72-0027: View through the HP compressor front case

Sheet 2

Figure: Locations for the fits and clearances

Sheet 1

Figure: Locations for the fits and clearances

Sheet 2

Figure: Install the stage 3 actuating ring centralizing pads and rigging pin brackets

Sheet 1

Figure: Pre SBE 72-0084: Install the stage 3 actuating ring centralizing pads and rigging pin brackets

Sheet 2

Figure: SBE 72-0084: Install the stage 3 actuating ring centralizing pads and rigging pin brackets

Sheet 3

Figure: Details of the air gage unit

Sheet 1

Figure: Details of the air gage unit

Sheet 2

Figure: Details of the air plug gage and setting ring

Details of the air plug gage and setting ring

Figure: Install the stage 3 VSV spindle bushes

Sheet 1

Figure: Install the stage 3 VSV spindle bushes

Sheet 2

Figure: Install the seals on the stage 3 VSV spindles

Install the seals on the stage 3 VSV spindles

Figure: Install the stage 3 variable stator vanes

Install the stage 3 variable stator vanes
