TASK 72-00-32-420-004-A00 LPC/Intermediate Case Module - Install The Electrical Harnesses, Installation-004

General

Refer to the TASKS which follow for the other related procedures.

TASK 72-00-32-420-001 (INSTALLATION-001) Install the LP compressor/intermediate case brackets and the bifurcation panel

TASK 72-00-32-420-002 (INSTALLATION-002) Install the LP compressor/intermediate case components

TASK 72-00-32-420-003 (INSTALLATION-003) Install the LP compressor/intermediate case tubes and the electrical harness raceways

TASK 72-00-32-420-005 (INSTALLATION-005) Install the pneumatic starter duct, the thermal anti-ice (TAI) duct, the hydraulic tubes, and the EEC cooling ducts to the LP compressor/intermediate case module

Fig./item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig./item numbers are used. For the Service Bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig./item number.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS approved engine oil, unless other lubricants are referred to in the procedure.

For the lockwire data and procedures refer to the SPM TASK 70-42-05-400-501.

SBE 70-0813

For safety cable data and procedures refer to SPM TASK 70-42-08-400-501.

Safety the threaded fasteners in the ATA Chapter/Section/Subject 71-51-41 and 73-22-49 as applicable with CoMat 02-274 SAFETY CABLE KIT or CoMat 02-275 SAFETY CABLE KIT.

To identify, lubricate and install the seal rings refer to the SPM TASK 70-44-00-400-501.

For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501, SPM TASK 70-41-01-400-501 and SPM TASK 70-41-02-400-501.

Special torque data and assembly tolerances are included in this procedure.

Special torque data is identified with the symbol * after the torque value.

Transportation covers/blanks must be removed immediately before the connection of the hoses to the components.

For the connection of electrical connectors, refer to the SPM TASK 70-43-01-400-501.

For the installation of open wire harnesses, refer to the SPM TASK 70-43-02-400-501.

NOTE

To identify the consumable materials refer to the PCI.

SBE 70-0813: Announcement of introduction of safety cable as a preferred method to lockwire.

Safety the threaded fasteners in this TASK with safety cable for the ATA Chapter/Section/Subject detailed in 2. General.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

Name	Manufacturer	Part Number / Identification	Quantity	Remark
IAE 1R19416 EEC harness wrench	0AM53	IAE 1R19416	1
IAE 1J12018 EEC harness wrench	0AM53	IAE 1J12018

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification
CoMat 01-002 SOLVENT, DELETED.	0AM53	CoMat 01-002
CoMat 02-126 LOCKWIRE	LOCAL	CoMat 02-126
CoMat 02-148 ADHESIVE TAPE (ELECTRICAL)	LOCAL	CoMat 02-148
CoMat 02-159 LACING TAPE	LOCAL	CoMat 02-159
CoMat 02-202 GLASS CLOTH TAPE, ADHESIVE	LOCAL	CoMat 02-202
CoMat 02-274 SAFETY CABLE KIT	LOCAL	CoMat 02-274
CoMat 02-275 SAFETY CABLE KIT	LOCAL	CoMat 02-275
CoMat 06-086 TIES	18992	CoMat 06-086
CoMat 10-077 APPROVED ENGINE OILS	LOCAL	CoMat 10-077
CoMat 10-039 ENGINE OIL	LOCAL	CoMat 10-039

Spares

Name	Manufacturer	Part Number / Identification	Quantity	Remark
Packing			1

Safety Requirements

NONE

Procedure

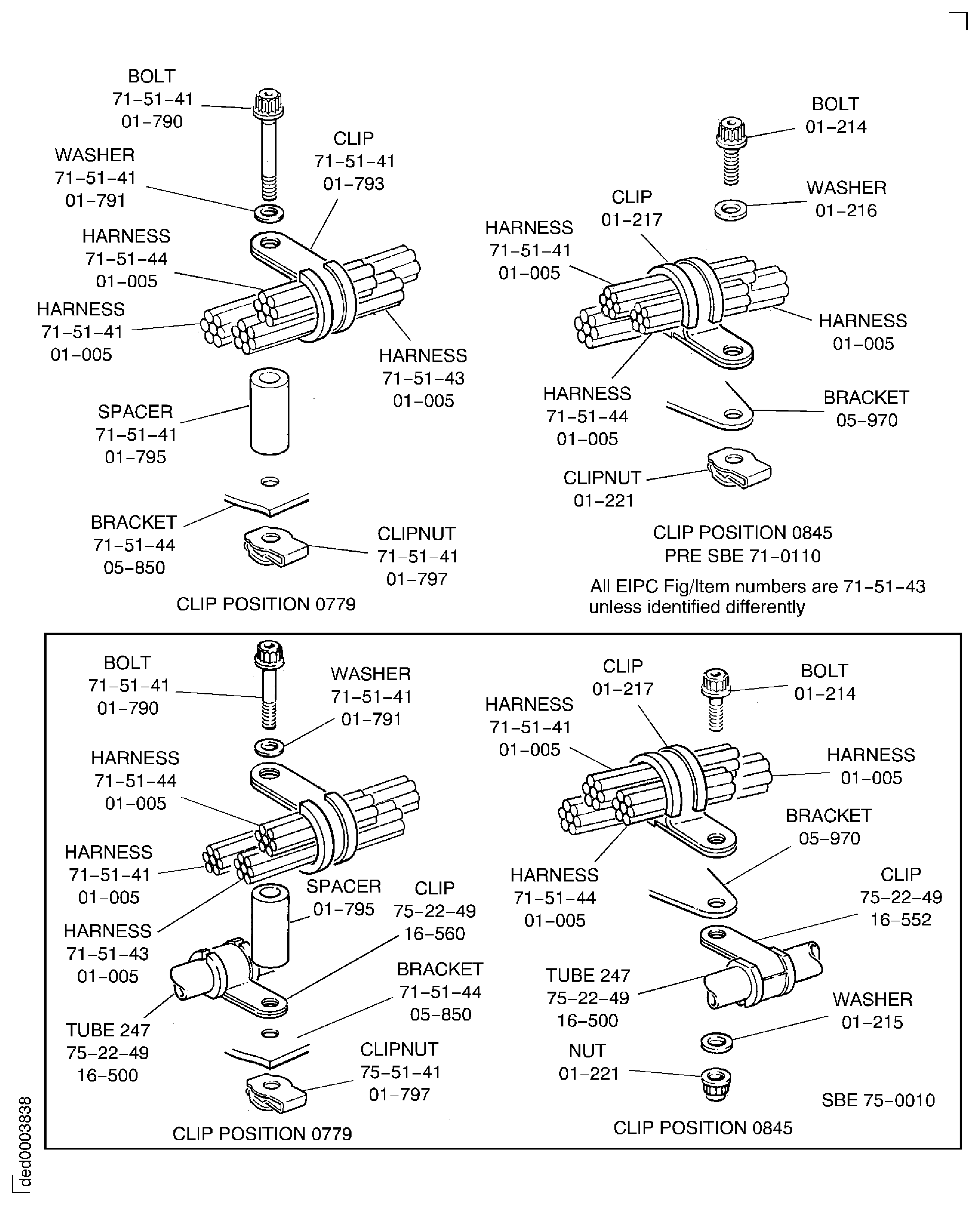

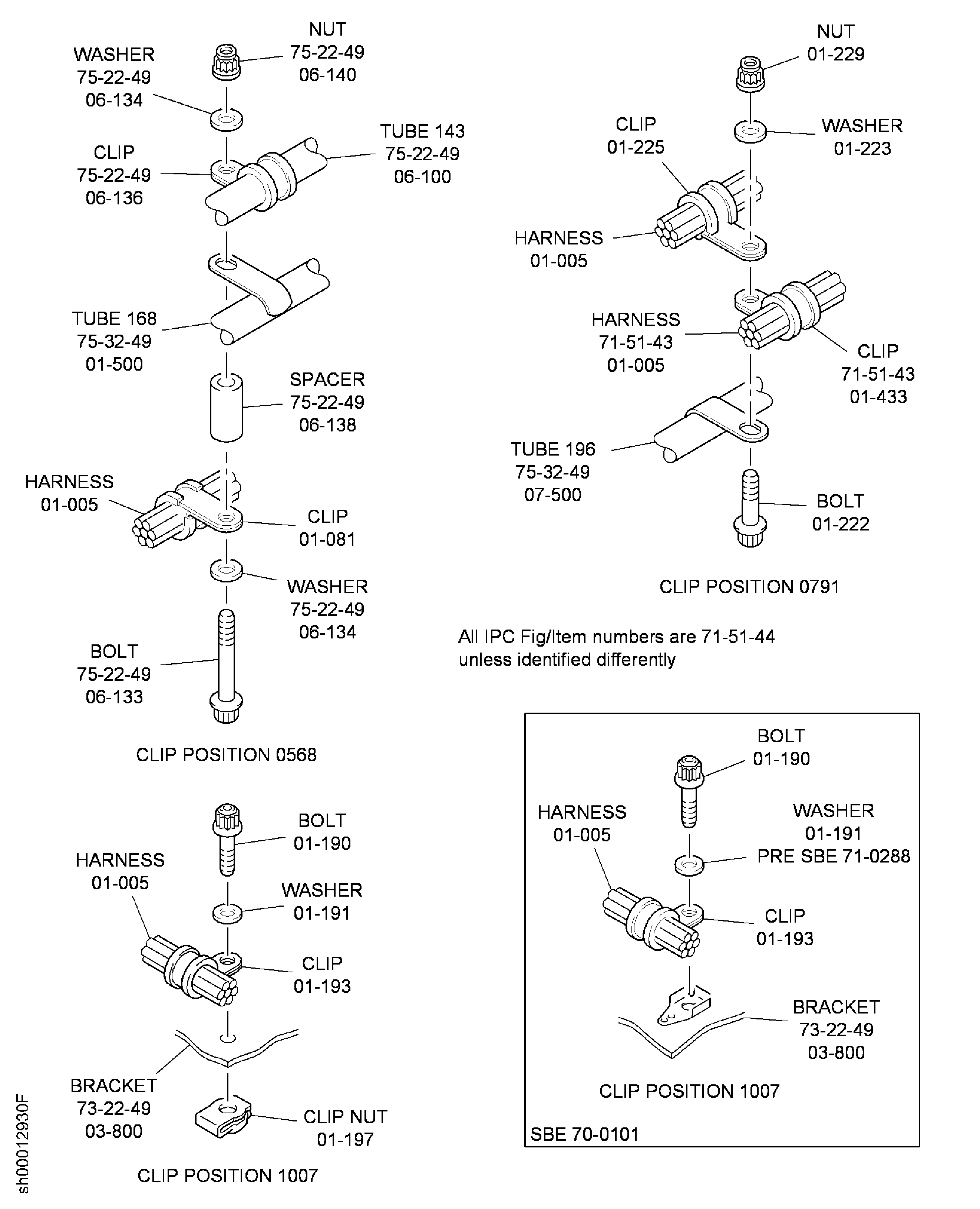

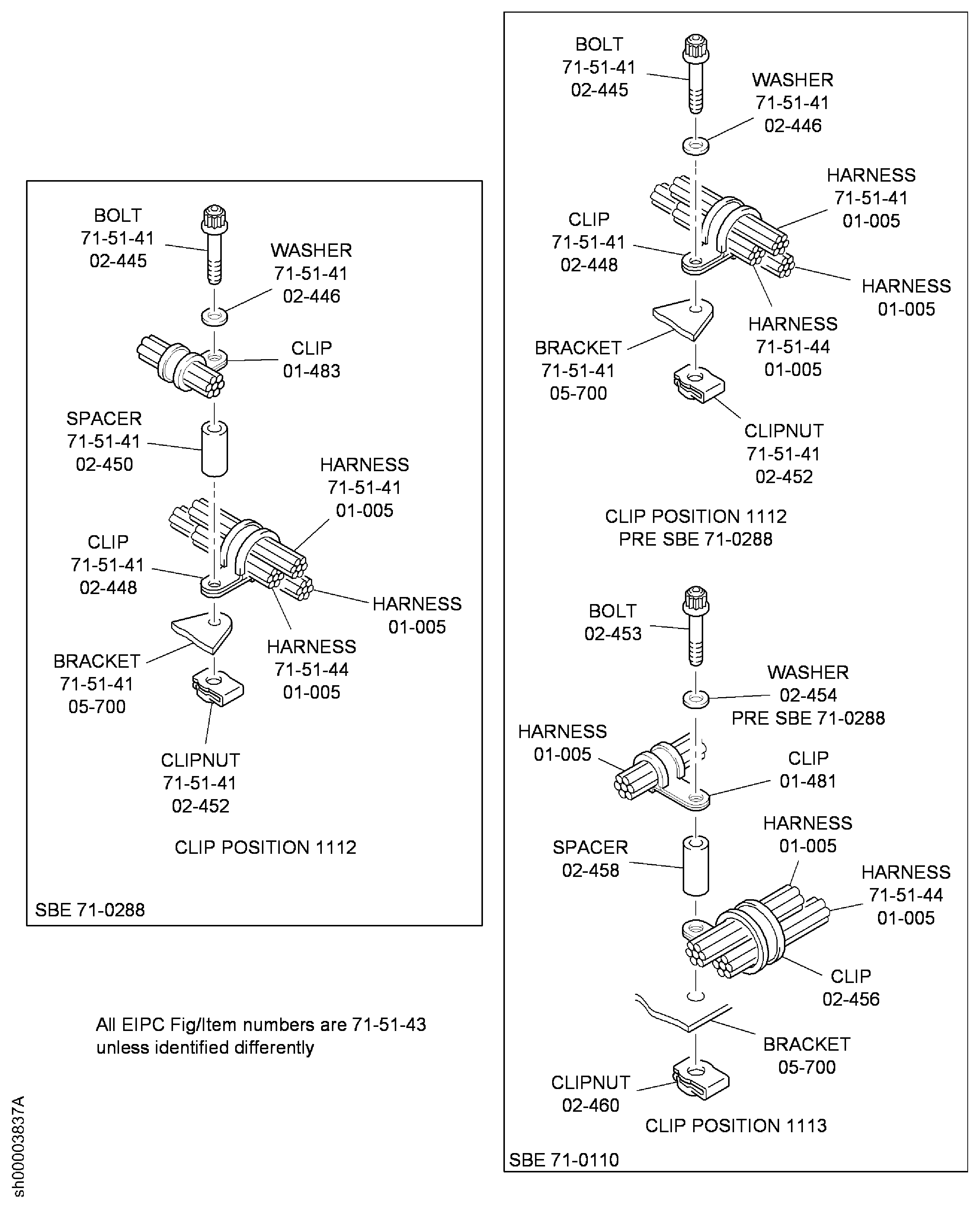

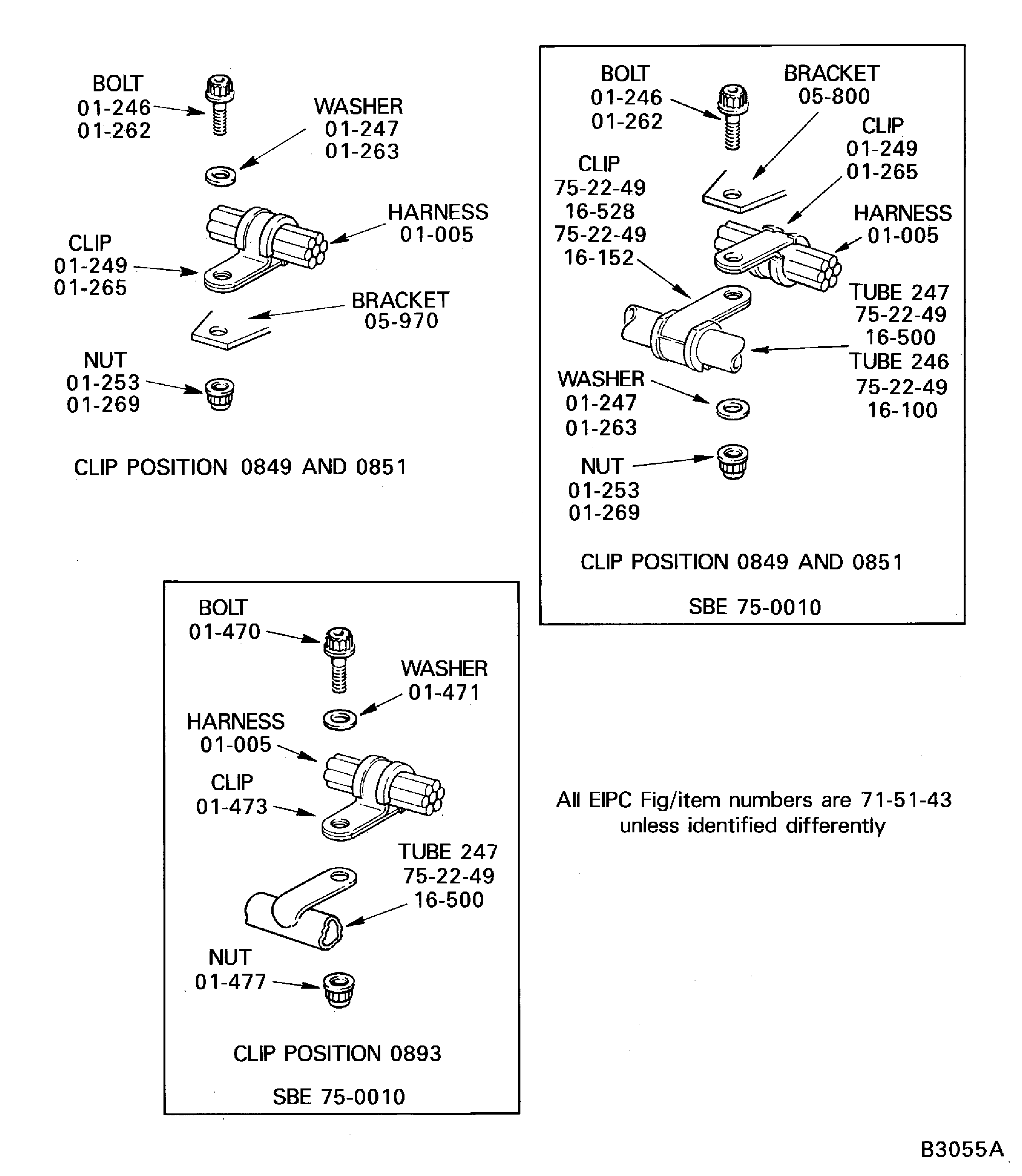

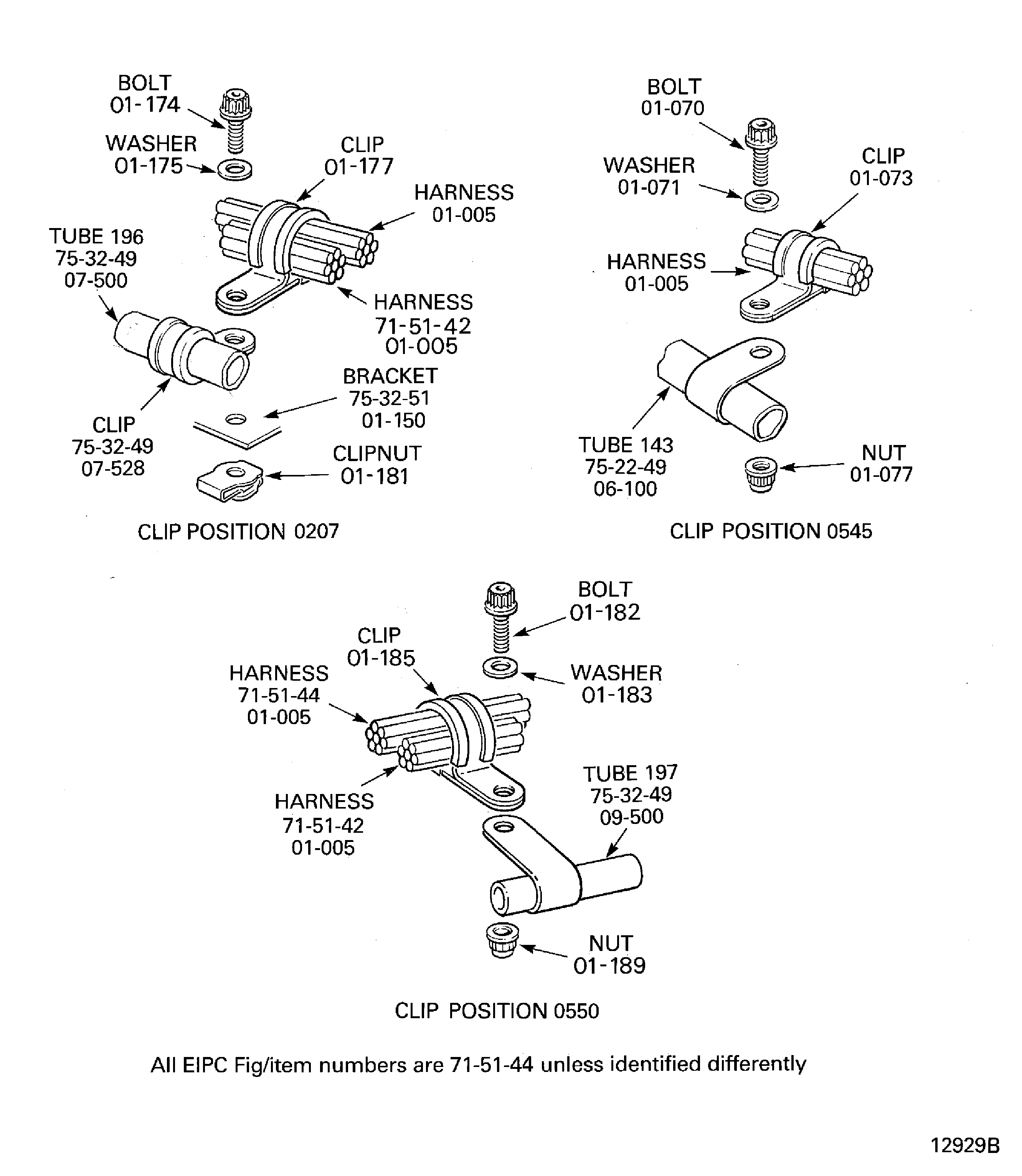

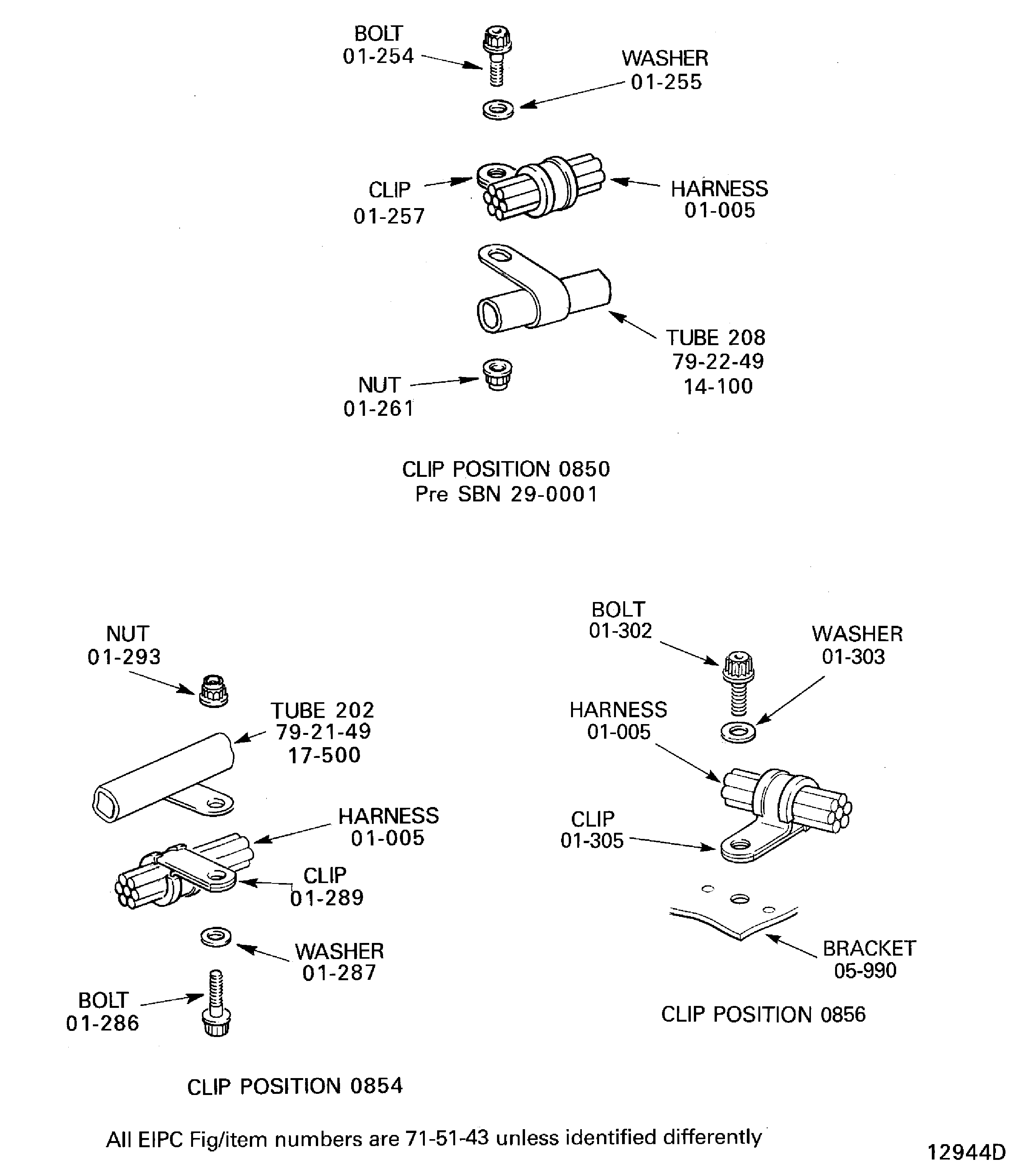

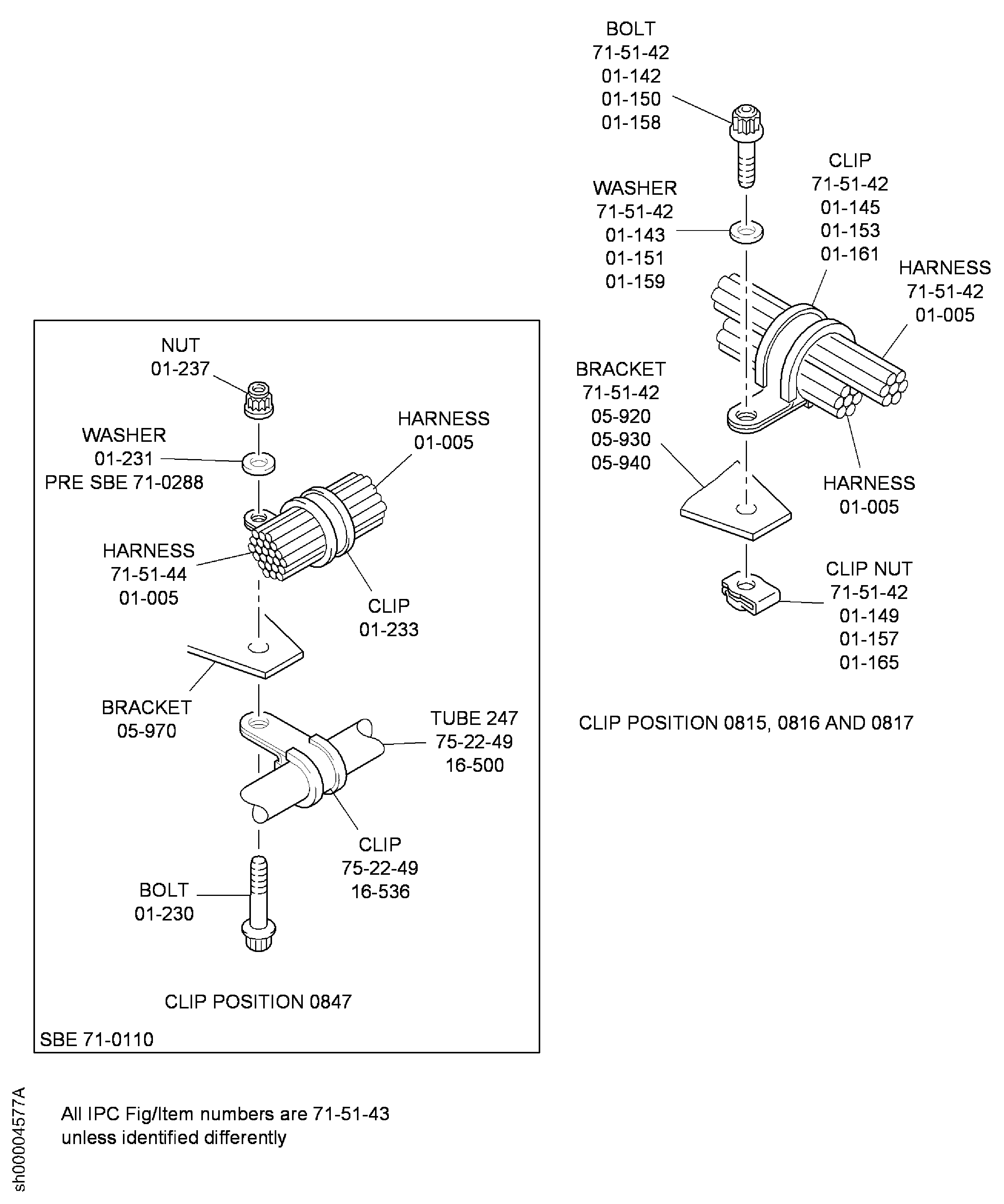

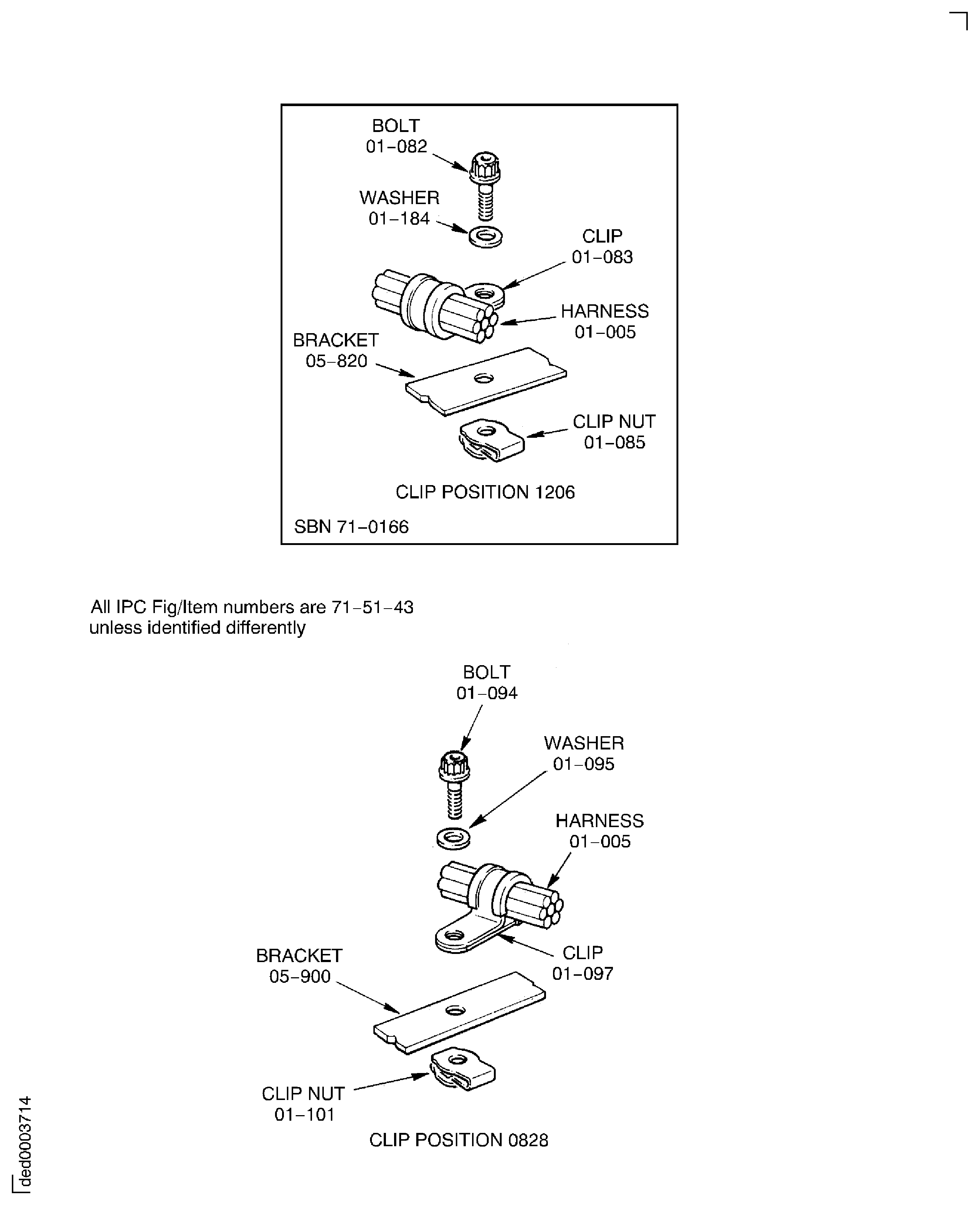

1. Refer to Figure.
2. During the installation procedure make sure the harnesses are held temporarily along their different lengths. Always install the datum clip positions when you install each electrical connector. This will give the correct installation of the different harnesses and prevent too much strain on the electrical connectors. It will also give the necessary drip loops (the drip loop makes sure moisture or fluids do not go into the electrical connector).
3. Refer to TASK 72-00-32-420-001 for the position on a raft or bracket of a particular clip position.
4. Because of the differences between the harness diameters, the specified clip could be too large or too small. You can use a clip from a range of six clips (that have the same part numbers) refer to the IPC (70-40-10). If the harness diameter is between two of the clips in the range, use the larger clip. When you do this use CoMat 02-148 ADHESIVE TAPE (ELECTRICAL) to increase the harness diameter.
5. Do not remove the special plastic caps from the electrical connectors and receptacles until immediately before they are installed. This will give protection from unwanted fluids or materials.
6. For the data on the electrical connectors refer to the SPM TASK 70-43-00-400-501 and the SPM TASK 70-43-01-400-501.
1. Refer to Figure, Figure and Figure.
2. Temporarily attach the IDG cable connector to a safe position on the LP compressor/intermediate case with CoMat 06-086 TIES.
3. Install the bolts, the washers, the clips and the nuts to attach the cables to the brackets at the clip positions 0883 to 0888. Do not tighten the nuts at this step.
4. WARNING
  WHEN YOU USE CoMat 01-002 SOLVENT, DELETED. YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.
  Clean the mating faces of the brackets ELECTRICAL POWER-IDG CABLES (24-21-43, 01-950), ELECTRICAL POWER-IDG CABLES (24-21-43, 01-952) and the clamp ELECTRICAL POWER-IDG CABLES (24-21-43, 01-030) with a clean lint free cloth made moist with CoMat 01-002 SOLVENT, DELETED..

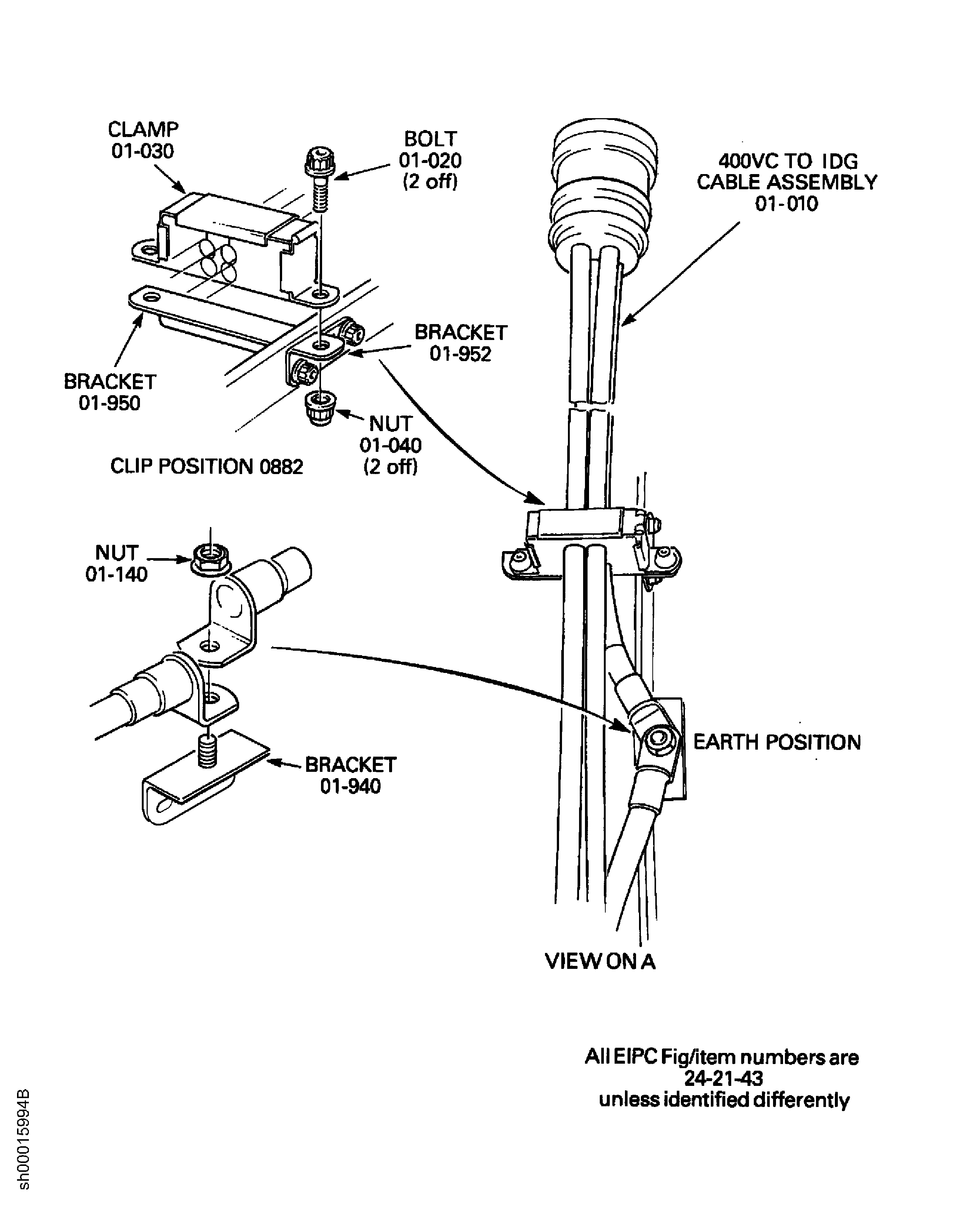

5. Install the clamp ELECTRICAL POWER-IDG CABLES (24-21-43, 01-030) on the cables. Attach the clamp to the brackets ELECTRICAL POWER-IDG CABLES (24-21-43, 01-950) and ELECTRICAL POWER-IDG CABLES (24-21-43, 01-952) with the two bolts and the two nuts ELECTRICAL POWER-IDG CABLES (24-21-43, 01-020) and ELECTRICAL POWER-IDG CABLES (24-21-43, 01-040) at the clip position 0882.
6. Clean the mating faces of the bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-940) and the cable terminals at the earth position with a clean lint free cloth made moist with CoMat 01-002 SOLVENT, DELETED..
7. Install the two cable terminals to the earth position on the bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-940). Install the nut ELECTRICAL POWER-IDG CABLES (24-21-43, 01-140) on the bracket. Refer to the view on A.
8. Remove the CoMat 06-086 TIES which hold the IDG cable connector.
9. Measure dimension B from the IDG cable connector to the clamp at the clip position 0882. Dimension B must be a minimum of 12.25 in. (311 mm) and a maximum of 12.52 in. (318 mm) for the cables T1 and T2. For the cables T3 and N, the minimum dimension B must be 11.8 in. (300 mm) and the maximum must be 12.07 in. (306 mm). Refer to the view on B.
10. Make sure there is not too much bend on the IDG Harness to cause too much force on the connector contacts.
11. 1. Loosen the nuts ELECTRICAL POWER-IDG CABLES (24-21-43, 01-945).
  2. Move bracket along slots to remove the bend on the harness.
  3. Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
12. Torque the nuts at the clip positions to 36 to 45 lbf.in (4 to 5 Nm).
13. Torque the nut ELECTRICAL POWER-IDG CABLES (24-21-43, 01-140) at the earth position to 110 lbf.in (12.4 Nm).
1. Refer to Figure, Figure, Figure and Figure.
2. 1. Lightly lubricate a new VIBRATION TRANSDUCER (77-32-15, 01-420) packing 1 off with CoMat 10-039 ENGINE OIL.
  2. Install the VIBRATION TRANSDUCER (77-32-15, 01-420) packing 1 off on the baseplate VIBRATION TRANSDUCER (77-32-15, 01-410).
  3. Install the three bolts VIBRATION TRANSDUCER (77-32-15, 01-400) through the transducer and the baseplate. Install the transducer assembly to the LP compressor/intermediate case. Torque the bolts to 35 to 44 lbf.in (3.9 to 4.9 Nm).
  4. Install the bolts, washers, the nut, the clipnut and the clips at the clip positions 0870 to 0875.
  5. Install the transducer bracket to the flange brackets ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-080) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-090) with the two bolts and the two nuts VIBRATION TRANSDUCER (77-32-15, 01-101) and VIBRATION TRANSDUCER (77-32-15, 01-104). Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
  6. Torque the bolts at the clip positions 0870 to 0874 and the nut at clip position 0875 to 36 to 45 lbf.in (4 to 5 Nm).

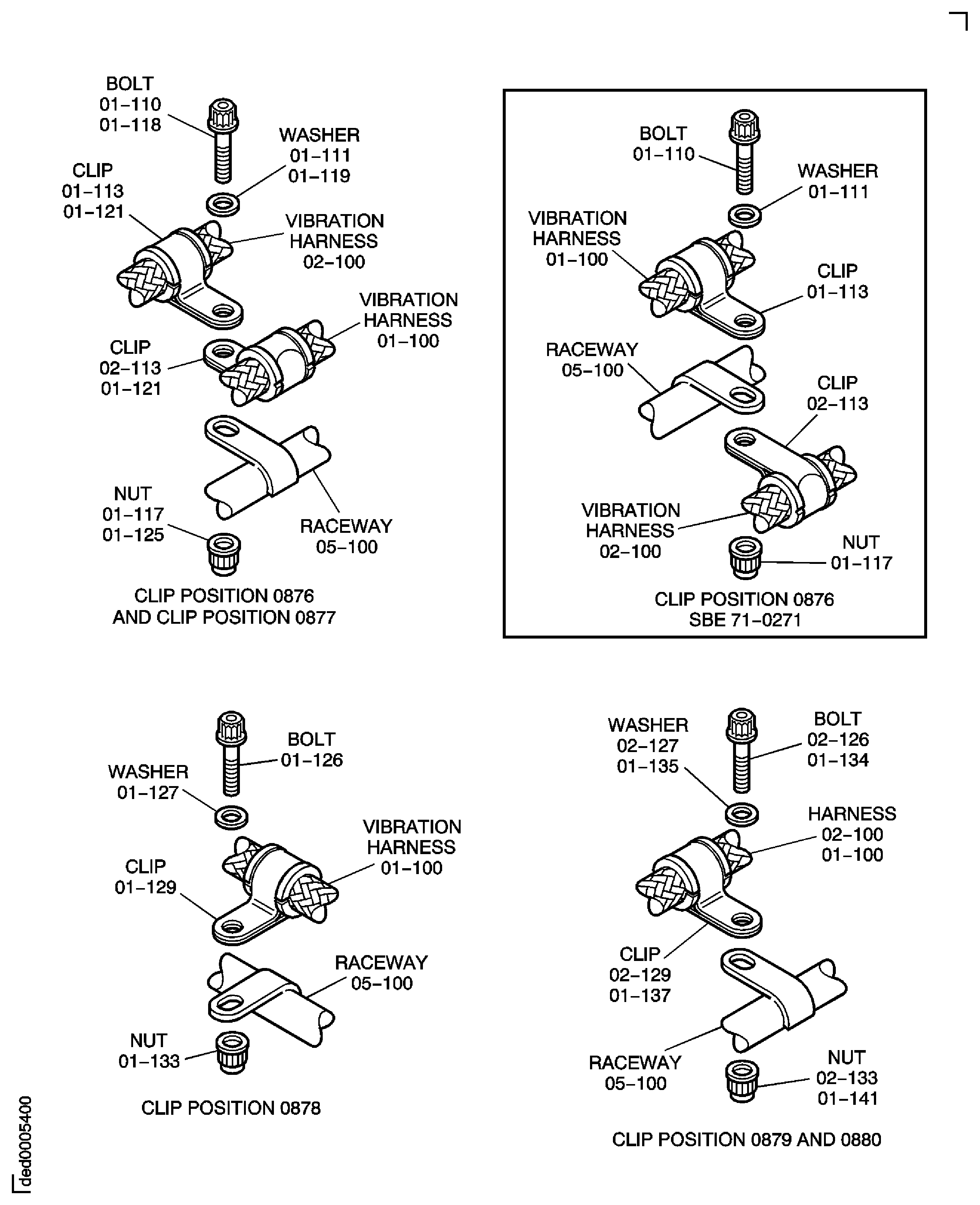

3. 1. Pre SBE 71-0271: Install the bolts, the washers, the nuts and the clips at the clip positions 0876 to 0880.
  2. SBE 71-0271: Install the bolts, the washers, the nuts and the clips at the clip positions 0876 to 0880 and 1210.
  3. Align the master keyways then connect and torque the electrical connectors P800 and P801 to J800 and J801 to 14 * lbf.in (1.6 Nm), refer to the view on C.
  4. Pre SBE 71-0271: Torque the nuts at the clip positions 0876 to 0880 to 36 to 45 lbf.in (4 to 5 Nm).
  5. SBE 71-0271: Torque the nuts at the clip positions 0876 to 0880 and 1210 to 36 to 45 lbf.in (4 to 5 Nm).
1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure and Figure.
2. 1. Identify the correct datum clip positions as follows:

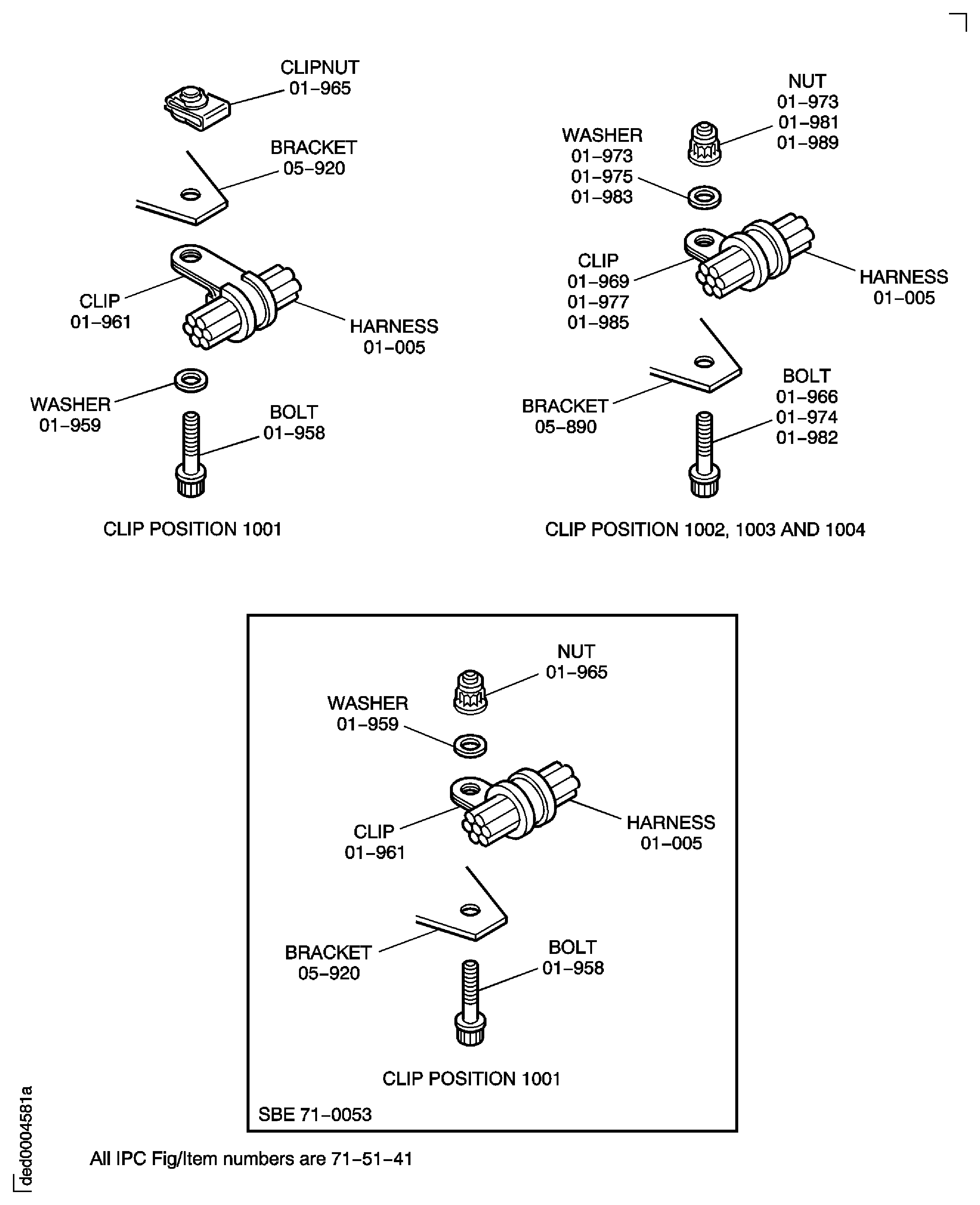

    0550, 0764, 0781, 0800, 0801, 0802, 0809, 0818, 0819, 0822, 0826, 0863, 0864, 0869, 1001 and 1075.
  2. Connect and torque the electrical connectors 4000KS-J1 and 4000KS-J7 to the EEC V2500-A5-73-22-34-01A-941A-DV2500-A5-73-22-34-01A-941A-D (73-22-34, 01-280) with the IAE 1J12018 EEC harness wrench EEC harness wrench 1 off to 32* lbf.in (3.6 Nm).
  3. Use CoMat 06-086 TIES and temporarily attach the harness to the applicable brackets at the clip positions that follow:
    Pre SBE 71-0019: 0550, 0764, 0781, 0800 to 0802, 0809, 0818 to 0823, 0826, 0867 to 0869, 0896, 0897, 1001 and 1075.
    SBE 71-0019 and Pre SBE 71-0070: 0550, 0764, 0781, 0800 to 0802, 0809, 0818 to 0823, 0826, 0867 to 0869, 0896, 0897, 1001 and 1075.
    SBE 71-0019 and SBE 71-0070: 0550, 0764, 0781, 0800 to 0802, 0809, 0818 to 0823, 0867 to 0869, 0896, 0897, 1001 and 1075.
  4. Use CoMat 06-086 TIES and temporarily attach the harness to the applicable tube lugs at clip positions 0550 and 0863 to 0866.
  5. Install the terminal module V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-560) to the hole No. 9 on the flange FB with bolt V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-240) and nut V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-260). Torque the nut to 85 to 105 lbf.in (10 to 12 Nm).
  6. NOTE
    Hole No. 1 is at 12.5 degrees from the engine top position on the flange FB when you look from the rear of the engine.
    Remove the temporary ties and install the applicable bolts, washers, nuts or clipnuts, spacers and clips at all clip positions.
  7. At the clip positions that have clipnuts/anchor nuts, torque the bolts to 36 to 45 lbf.in (4 to 5 Nm).
  8. At the remaining clip position, torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
  9. Make sure that no harness length has too much strain on it. If it is necessary, loosen the bolt or nut at the applicable clip position. Adjust the harness and torque the bolt or nut to that given in the step above.
1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure and Figure.

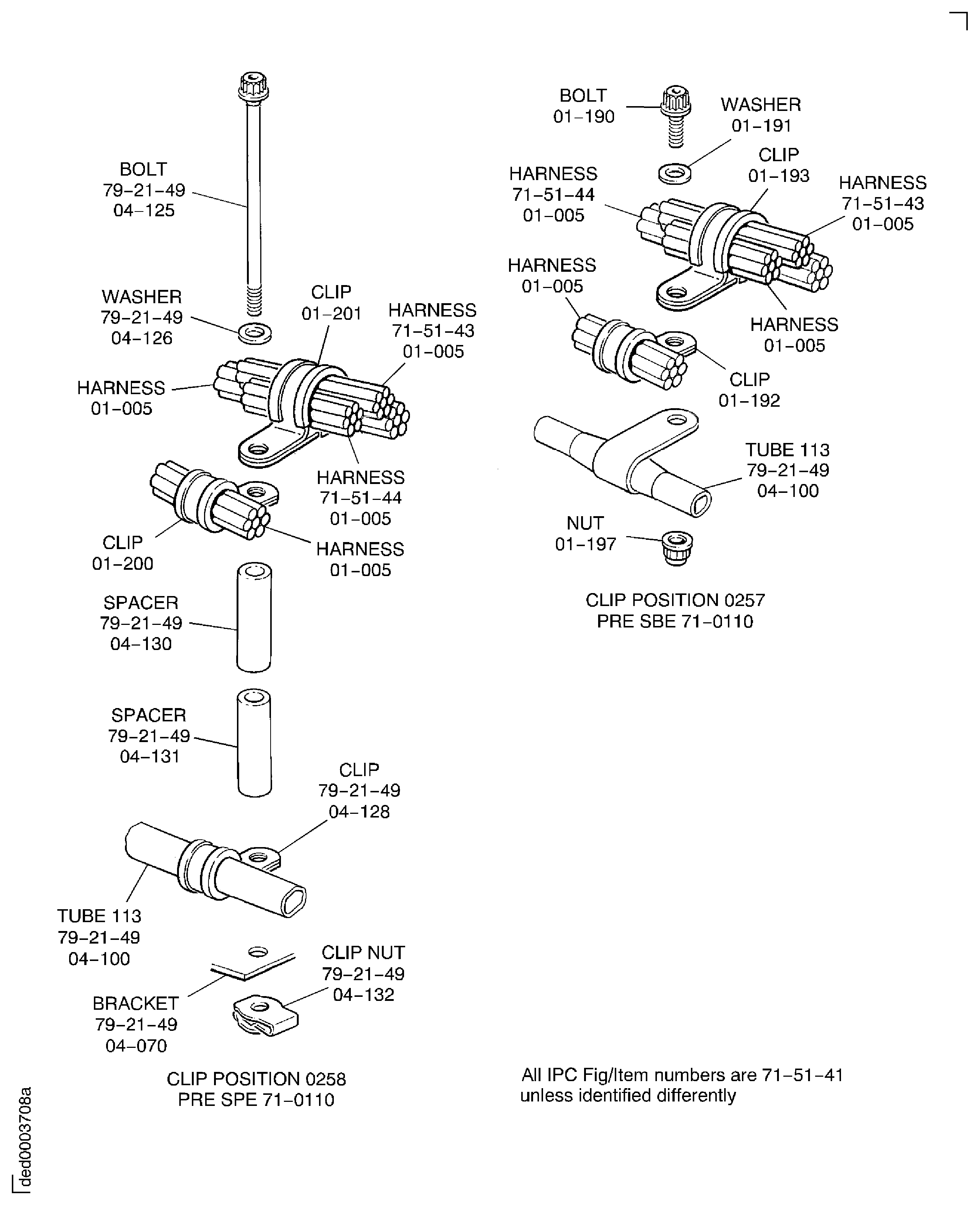

2. 1. Pre SBN 71-0166 and Pre SBE 71-0110: Identify the correct datum clip positions that follow: 0258, 0786, 0787, 0788, 0789, 0790, 0791, 0800, 0805, 0809, 0828, 0830 to 0834, 0841, 0848, 0850, 0852 to 0855, 0881, 0892, 0903 and 0922.
    Pre SBN 71-0166 and SBE 71-0110: Identify the correct datum clip positions that follow: 0258, 0787, 0788, 0789, 0790, 0791, 0800, 0805, 0809, 0828, 0830 to 0834, 0841, 0848, 0850, 0852 to 0855, 0881, 0892, 0903 and 0922.
    SBN 71-0166 and Pre SBE 71-0110: Identify the correct datum clip positions that follow: 0258, 0786, 0787, 0788, 0789, 0790, 0791, 0800, 0805, 0809, 0830 to 0834, 0841, 0848, 0850, 0852 to 0855, 0881, 0892, 0903 and 0922.
    SBN 71-0166 and SBE 71-0110: Identify the correct datum clip positions that follow: 0258, 0787, 0788, 0789, 0790, 0791, 0800, 0805, 0809, 0830 to 0834, 0841, 0848, 0850, 0852 to 0855, 0881, 0892, 0903 and 0922.
  2. Pre SBN 29-0001, Pre SBE 71-0070, Pre SBE 71-0097 and Pre SBE 75-0010: Identify the correct clip positions that follow: 0800 to 0803, 0805 to 0819, 0826 to 0835, 0791, 0773, 0881 0554, 0838 to 0841, 0892, 0847 to 0862, 0258 and 0903.
    SBN 29-0001, SBE 71-0070, SBE 71-0097 and SBE 75-0010: identify the correct clip positions that follow: 0800 to 0803, 0805 to 0819, 0898, 0827 to 0835, 0791, 0773, 0881, 0554, 0838 to 0841, 0892, 0893, 0847 to 0849, 0851 to 0862, 0258 and 0903.
    SBN 71-0166 and Pre SBE 79-0087: Identify the correct clip positions that follow: 0800, 0805, 0809, 0791, 1206, 0841, 0830 to 0834, 0881, 0852 to 0855, 0903, 0848, 0258 and 0892.
    SBE 71-0109 and Pre SBE 79-0087: Identify the correct datum clip position 0537.
    SBE 79-0087: Identify the correct datum clip position 1408.
  3. Install the datum clip positions 0805, 0809 and 0800.

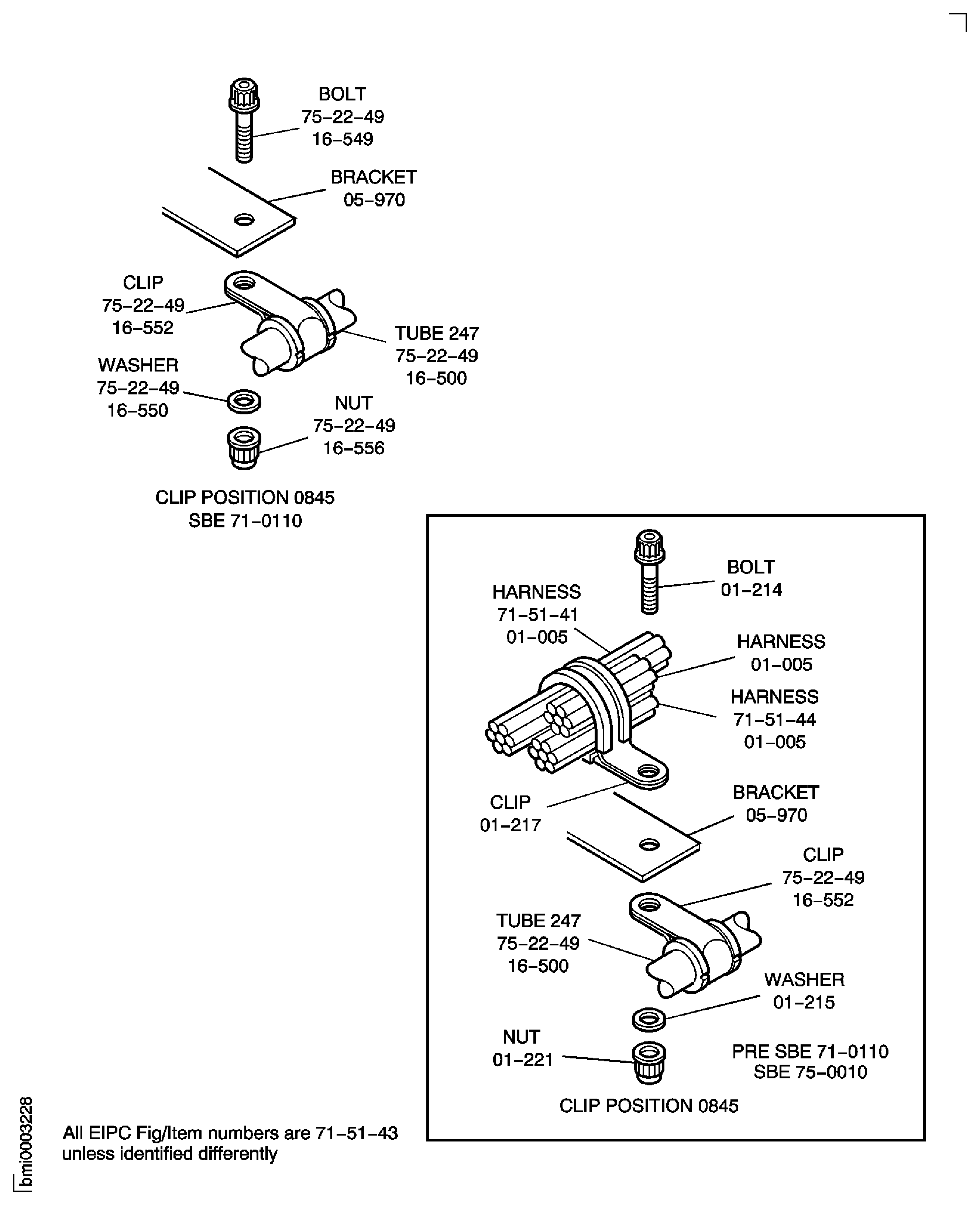

  4. Install the general services harness to the LP compressor/intermediate case, connect and torque the electrical connectors:
    4005EN-A to the No. 4 bearing pressure transducer OIL-NO.4 BEARING PRESSURE TRANSDUCER (79-33-16, 01-100) to 12 * lbf.in (1.4 Nm). Install the datum clip positions 0881 and 0841.
    4100KS-B to the relay box POWER PLANT-RELAY BOX (71-51-49, 01-100) to 18 * lbf.in (2.0 Nm). Temporarily attach the datum clip position 0791 to the tube lug with CoMat 06-086 TIES.

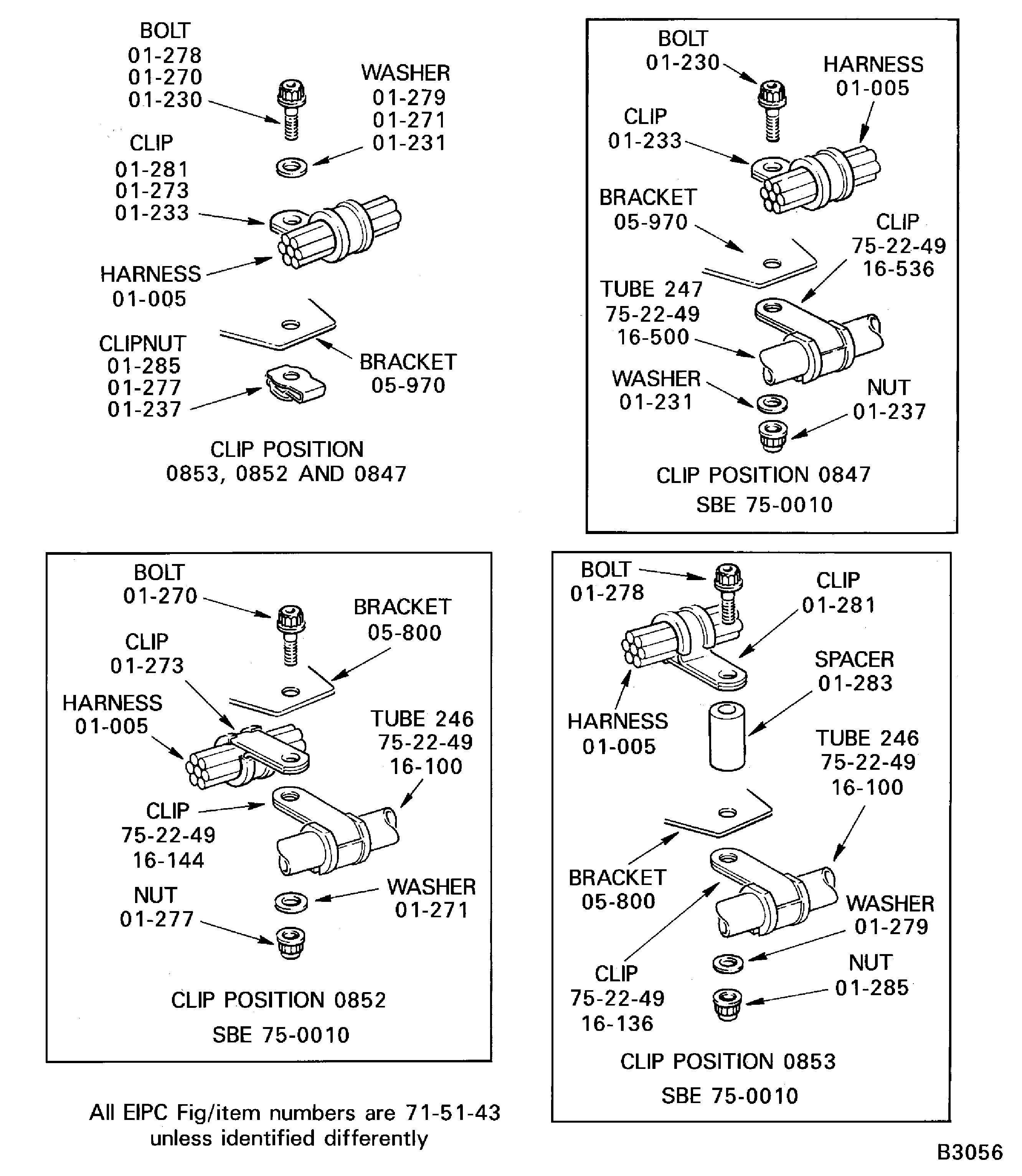

    4003EN-A to the oil pressure transmitter OIL-OIL PRESSURE TRANSMITTER (79-33-15, 01-010) to 18 * lbf.in (2.0 Nm). Install the datum clip positions 0852 and 0853.
    4000EN-A to the low oil pressure switch LOW OIL PRESSURE SWITCH(79-34-15, 01-010) to 14 * lbf.in (1.6 Nm). Install the datum clip position 0854.
    Pre SBN 29-0001: 1074GK-A to the hydraulic pressure switch HYDRAULIC POWER-HYDRAULIC PRESSURE SWITCH (29-11-17, 01-010) to 14 * lbf.in (1.6 Nm). Install the datum clip position 0850.
    SBN 29-0001: 1074GK-A to the hydraulic pressure switch HYDRAULIC POWER-HYDRAULIC PRESSURE SWITCH (29-11-17, 01-010) to 14 * lbf.in (1.6 Nm).
    4001EN-A to the scavenge filter differential pressure switch OIL-SCAVENGE FILTER DIFFERENTIAL PRESSURE SWITCH (79-35-16, 01-010) to 14 * lbf.in (1.6 Nm). Install the datum clip position 0903.
  5. Attach the terminals at GP1, GP2, GP3 and GP4 with the 24 bolts and the 24 washers ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 01-010 and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS 71-51-43, 01-011). Install four of the bolts/washers at the positions which are not used. Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm).
  6. Install the bolts, the washers, the clipnuts, the nut and the clips at the datum clip positions 0855, 0848, 0833 and 0831. Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm).

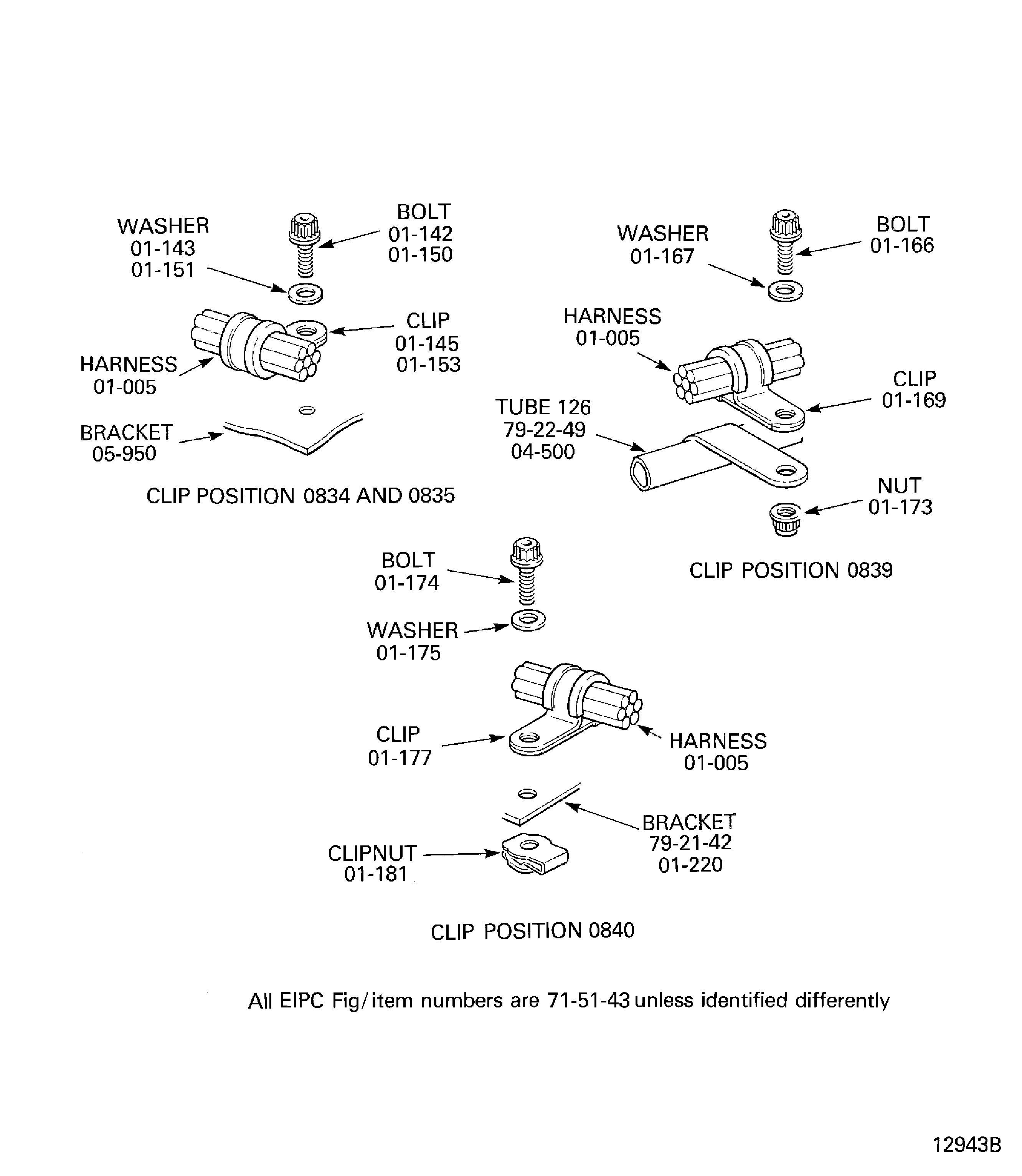

  7. Pre SBN 26-0005: Install the remaining datum clip positions 0828, 0830, 0832 and 0834.
    SBN 26-0005: Install the remaining datum clip positions 0830, 0832, 0834 and 1206.

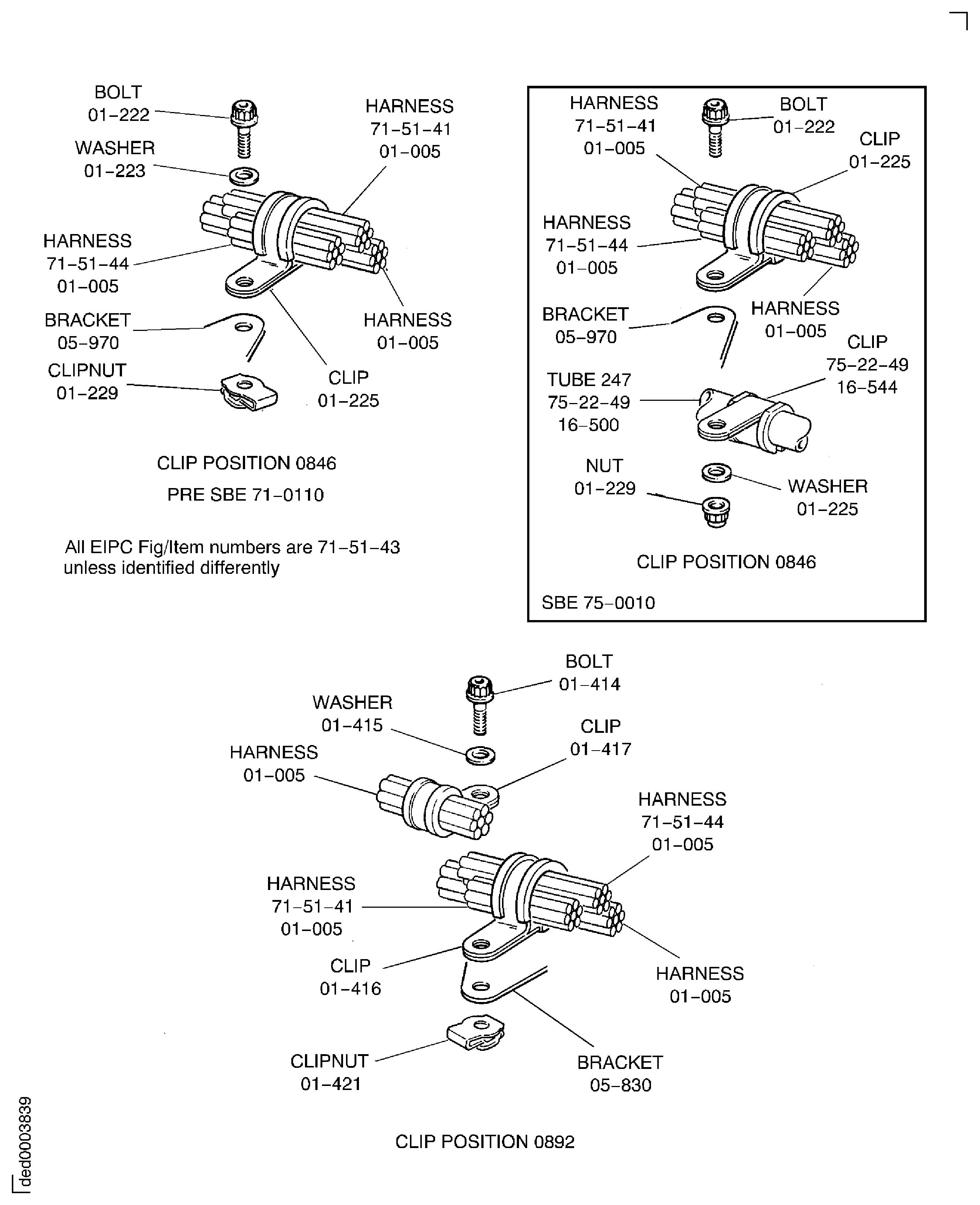

  8. Temporarily attach the datum clip positions 0892 and 0258 to the applicable brackets with CoMat 06-086 TIES.
  9. Install the bolts, the washers, the nuts, the clipnuts and the clips at the clip positions.
  10. Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm) in the anchor/clipnuts at the clip positions.
  11. At the remaining clip positions torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
3. 1. Refer to Step.
4. 1. Make sure that no harness length has too much strain on it. If it is necessary, loosen the bolt or nut at the applicable clip position. Adjust the harness and torque the bolt or the nut to that given in Step or Step.

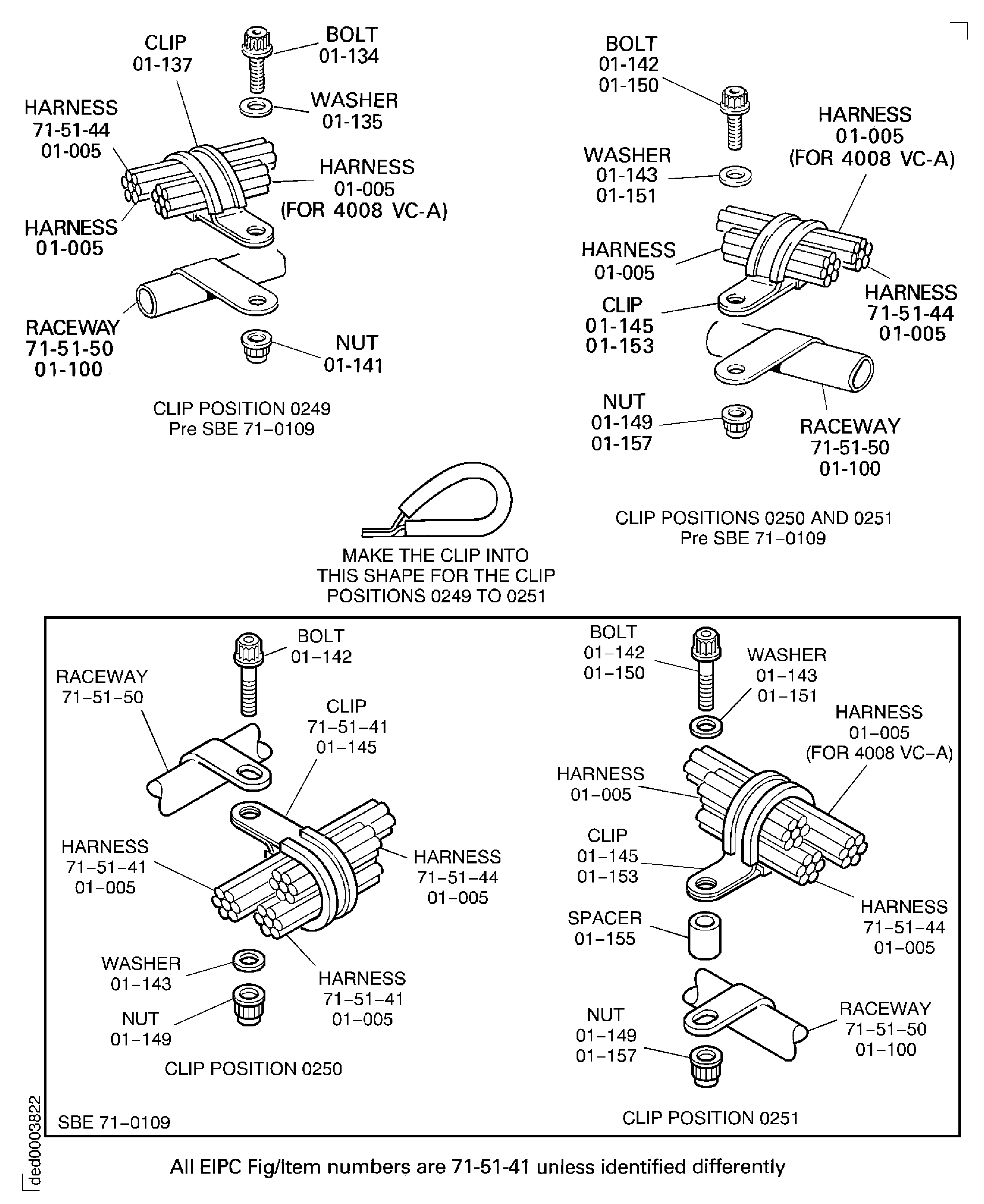

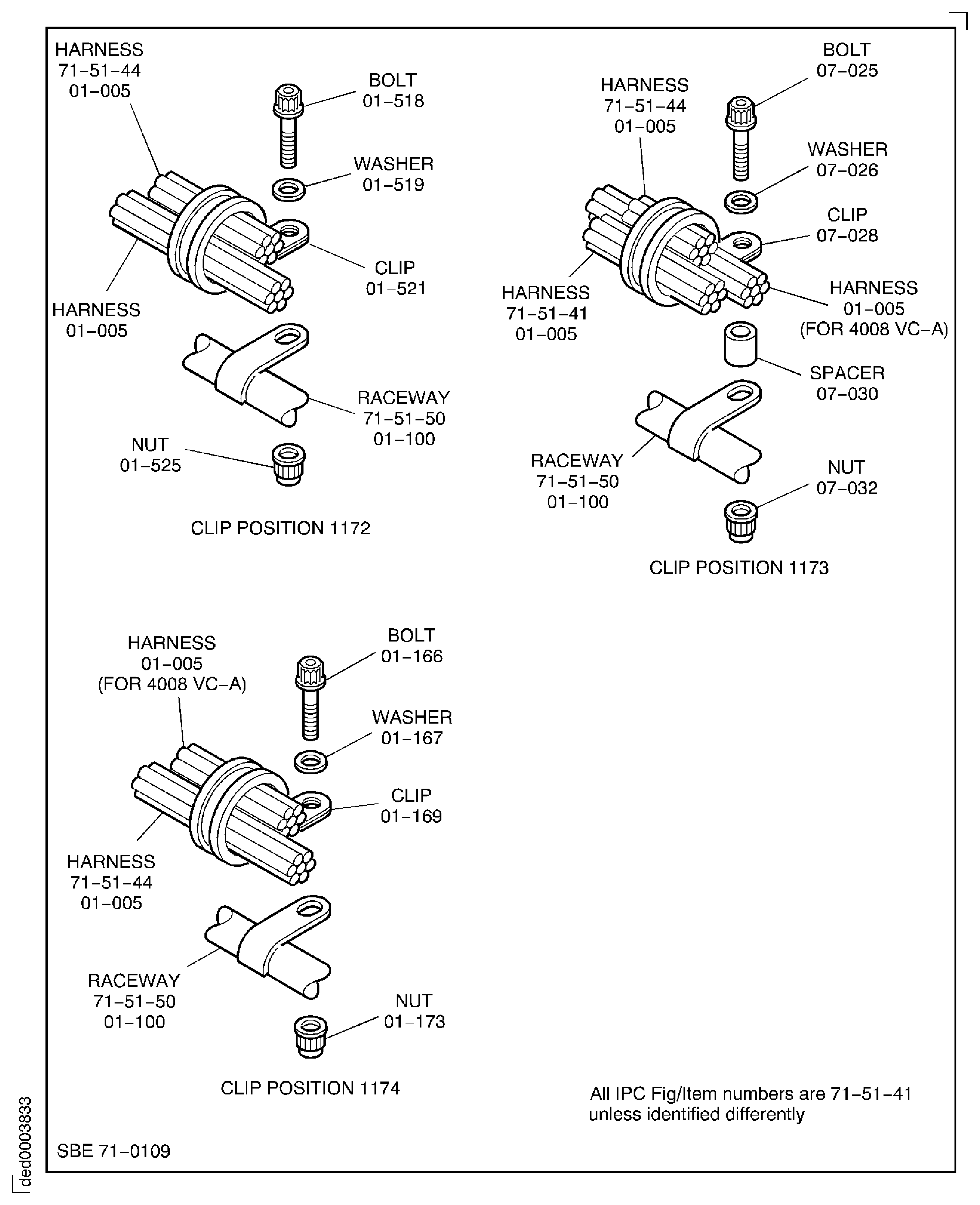

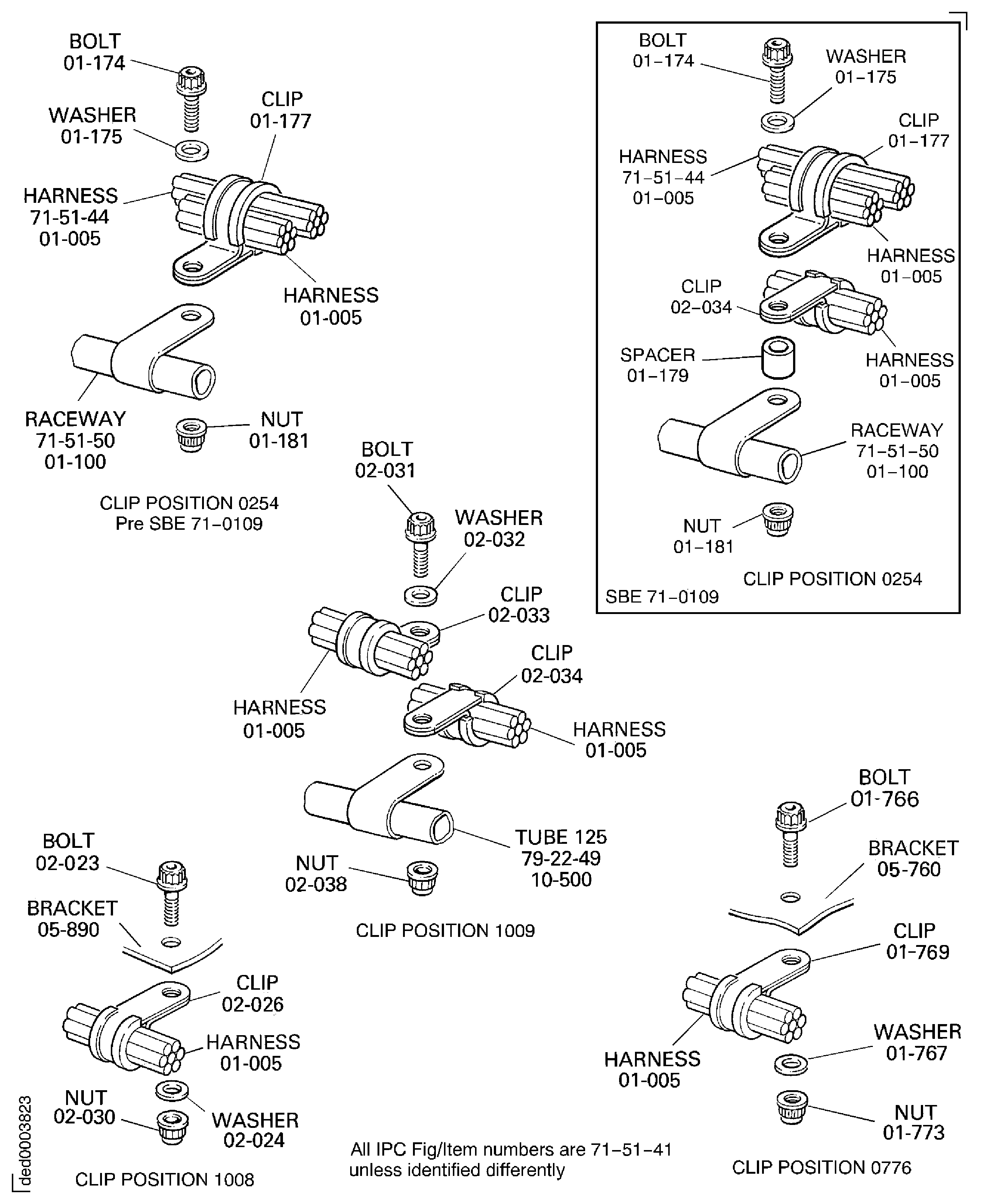

1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure and Figure.

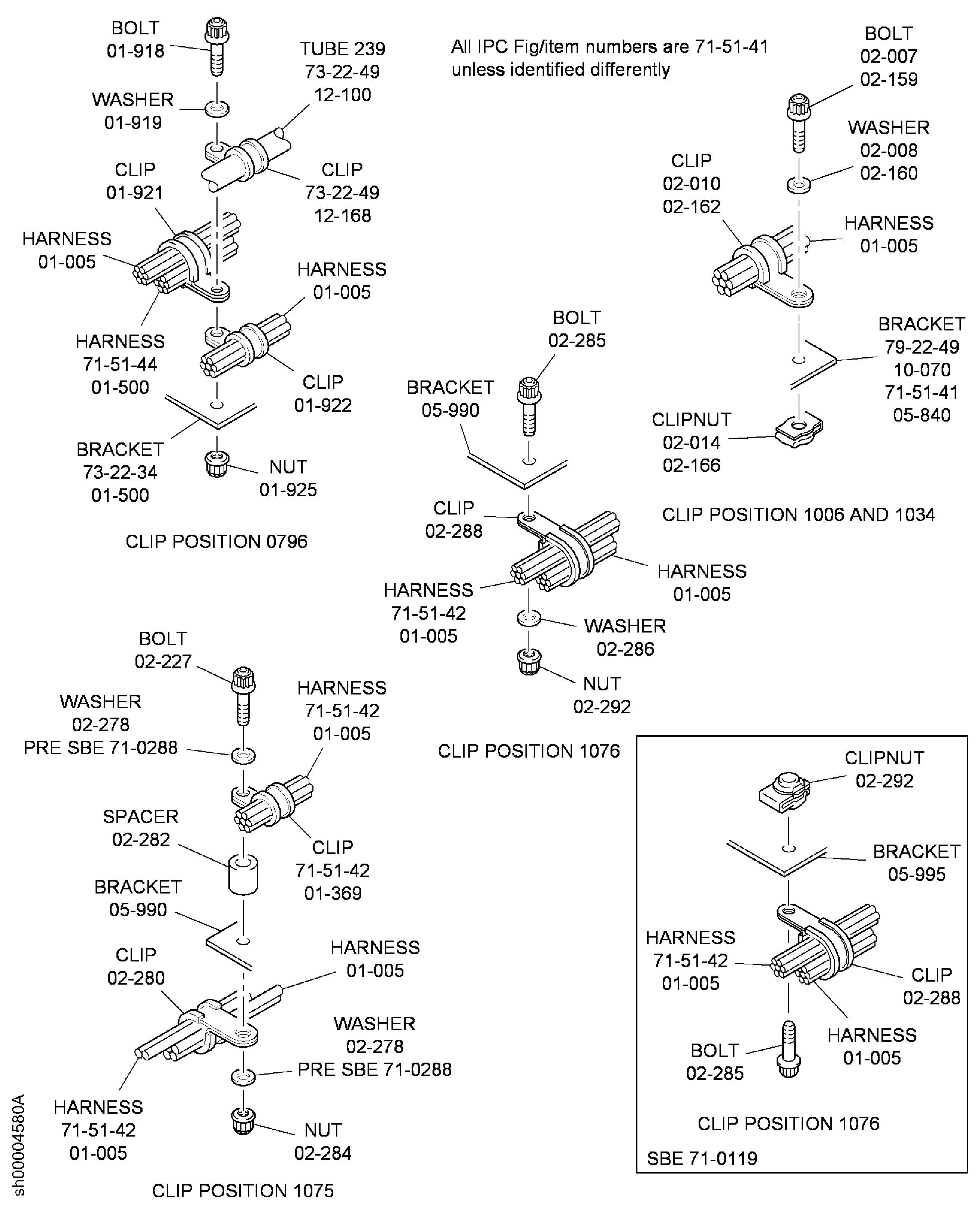

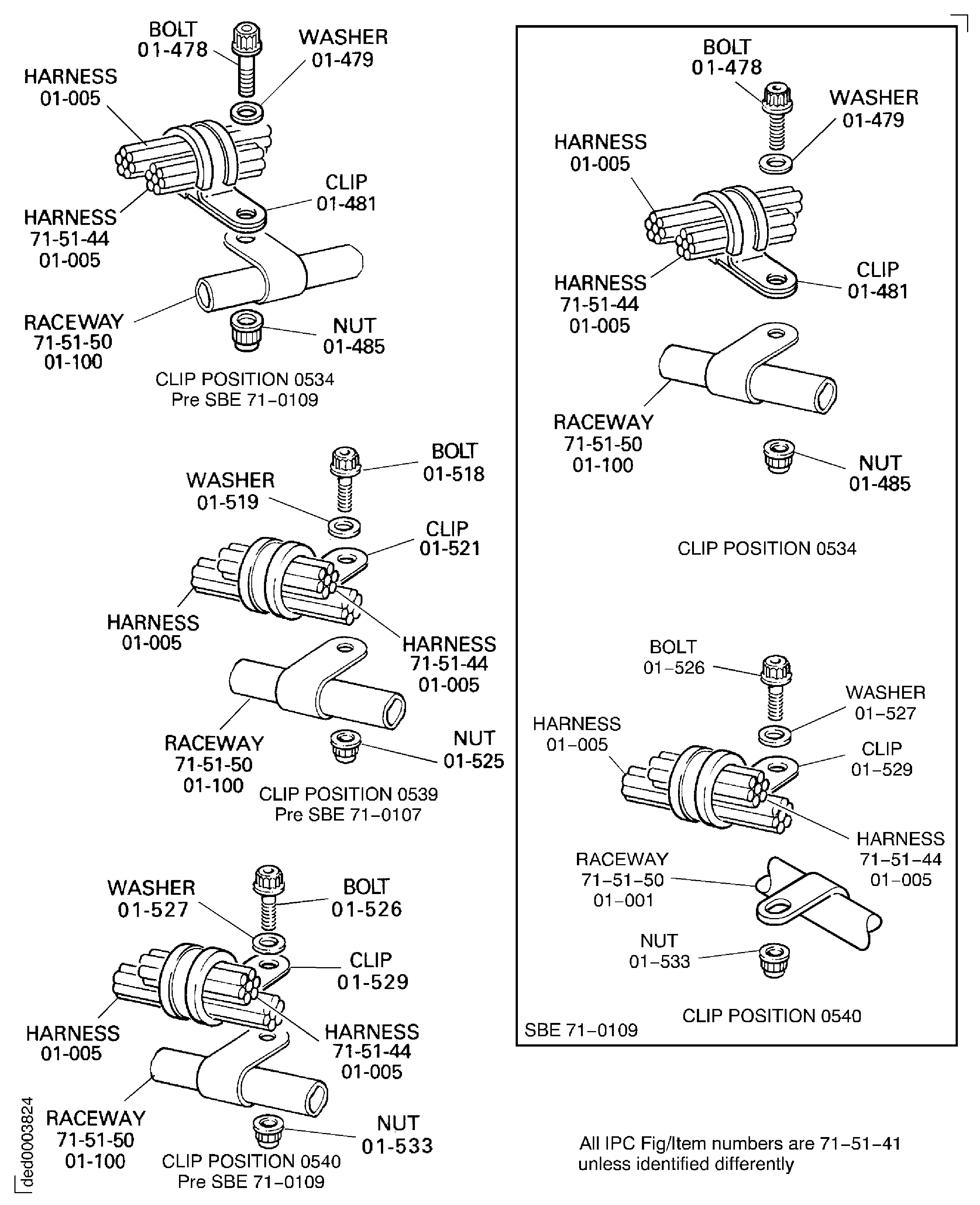

2. 1. Pre SBE 71-0107: Identify the correct datum clip positions 1075, 0783, 0761, 0764, 1015, 1021, 1022, 0539, 0529, 0792, 1009, 0544, 0256, 0325, 0753, 0295, 1032 and 0778.
  2. SBE 71-0107: Identify the correct datum clip positions 1075, 0783, 0761, 0764, 1015, 1021, 1022, 0540, 0529, 0792, 1009, 0544, 0256, 0325, 0753, 0295, 1032 and 0778.
  3. Pre SBE 73-0040: Identify the correct datum clip positions 1075, 0783, 0761, 0764, 1015, 1021, 1022, 0540, 0529, 0792, 1009, 0544, 0256, 0753, 0295, 1032 and 0778.
  4. Connect and torque the electrical connectors 4000KS-J2 to -J5 and 4000KS-J8 to -J11 to the EEC V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-280) with the IAE 1R19416 EEC harness wrench 1 off to 32* lbf.in (3.6 Nm).

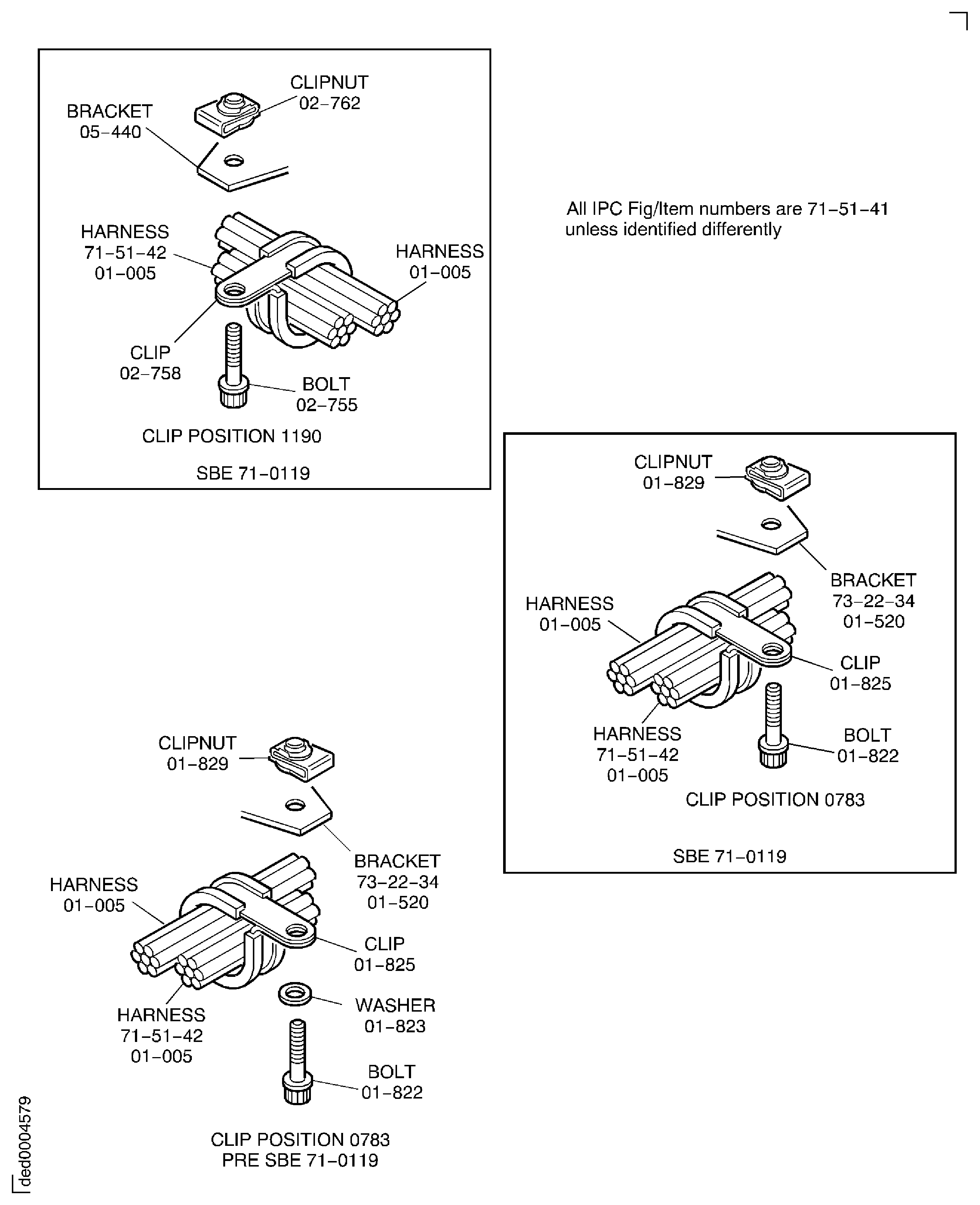

  5. Install the datum clip position 0783. Temporarily attach the harness at the datum clip position 0764 with CoMat 06-086 TIES.
  6. Install the electrical harness receptacle 4000VC, attached to the EEC harness POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-005), to the bracket POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 05-940) with the four bolts and the four assembled washer nuts POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-027) and POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-025). Make sure the master keyway is in the outboard direction. Refer to the detail on C. Install the datum clip position 0761.
  7. Torque the assembled washer nuts to 10 to 14 lbf.in (1.1 to 1.6 Nm).
  8. Pre SBE 71-0070: Connect the electrical connector 4000VC-A ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 01-005) to the harness receptacle 4000VC, align the master keyway. Torque the connector to 46 * lbf.in (5.2 Nm). Remove the temporary ties and install the datum clip positions 0764 and 0826.
    SBE 71-0070: Connect the electrical connector 4000VC-A ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 01-005) to the harness receptacle 4000VC, align the master keyway. Torque the connector to 46 * lbf.in (5.2 Nm). Remove the temporary ties and install the datum clip position 0764.
  9. Install the electrical harness receptacle 4001VC, attached to the EEC harness POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-005), to the bracket POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 06-560) with the four bolts and the four assembled washer nuts POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-022) and POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-020). Make sure the direction of the master keyway is at the top (in relation to the bracket). Refer to the detail on C. Remove the temporary ties and install the datum clip position 1075.
  10. Torque the assembled washer nuts to 10 to 14 lbf.in (1.1 to 1.6 Nm).
  11. Connect the electrical connector 4001VC-A ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 01-005) to the harness receptacle 4001VC, align the master keyway. Torque the connector to 46 * lbf.in (5.2 Nm).
  12. Remove the temporary ties and install the datum clip position 0819.
3. NOTE
  Refer to TASK 72-00-32-420-005 and TASK 72-00-60-420-003 for the procedure for clip positions 0529 and 0778.

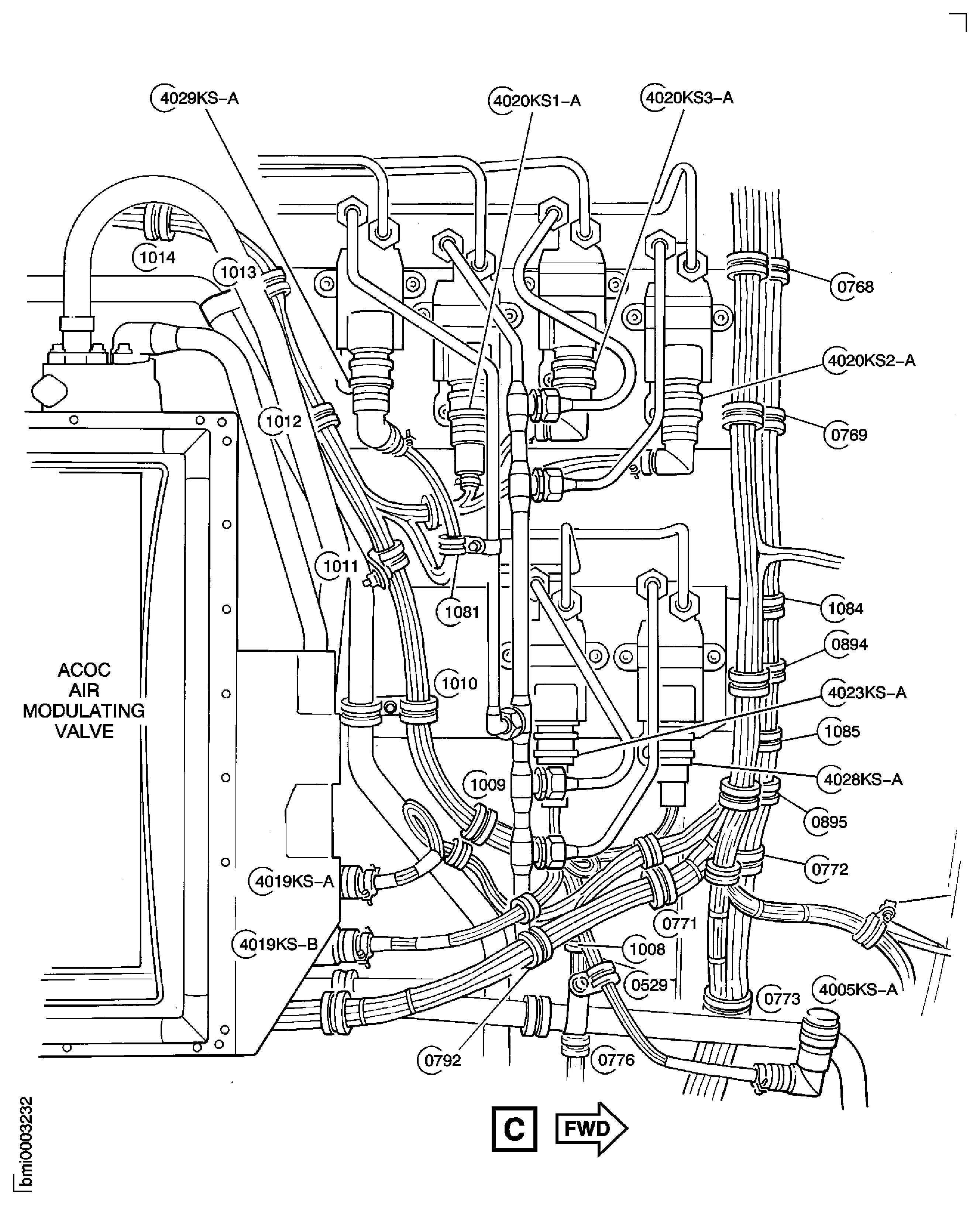

  Connect and torque the electrical connectors (Right side):
  4100KS-E and 4100KS-A to the relay box POWER PLANT-RELAY BOX (71-51-49, 01-100) to 21 * lbf.in (2,4Nm). Install the datum clip position 1015.
  4016KS-A to the ACOC oil temperature thermocouple OIL-ACOC OIL TEMPERATURE THERMOCOUPLE (79-32-15, 01-200) to 18 * lbf.in (2.0 Nm). Install the datum clip position 1022.
  4029KS-A to the HP stage 7 and 10 air solenoid valve STAGE 10 AIR SOLENOID VALVE (36-11-57, 01-100) to 18 * lbf.in (2.0 Nm).
  4020KS1-A to the HP compressor stage 7 solenoid valve (51.9 degrees) AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-100) to 18 * lbf.in (2.0 Nm). Install the datum clip position 1021.
  4020KS3-A to the HP compressor stage 7 solenoid valve (228 degrees) AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-100) to 18 * lbf.in (2.0 Nm).
  4020KS2-A to the HP compressor stage 7 solenoid valve (108.8 degrees) AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-100) to 18 * lbf.in (2.0 Nm).
  4028KS-A to the stage 10 air solenoid valve AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-100) to 18 * lbf.in (2.0 Nm).
  4023KS-A to the HP compressor stage 10 solenoid valve AIR-HPC STAGE 10 SOLENOID VALVE (75-32-53, 01-400) to 18 * lbf.in (2.0 Nm).
  Pre SBE 71-0107: 4019KS-A and 4019KS-B to the ACOC air modulating valve OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-100) to 18 * lbf.in (2.0 Nm). Install the datum clip positions 1009, 0792 and 0539. Temporarily attach the datum clip positions 0529 and 0778 with CoMat 06-086 TIES.
  SBE 71-0107: 4019KSA and 4019KS-B to the ACOC air modulating valve OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-100) to 18 * lbf.in (2.0 Nm). Install the datum clip positions 1009, 0792 and 0540. Temporarily attach the datum clip positions 0529 and 0778 with CoMat 06-086 TIES.
4. 1. Remove the two nuts and the two bolts which temporarily attach the tube 153 to the bifurcation panel.
  2. Route the harness from the right side of the engine and between the tubes 153 and 138. This is the bundle attached with the bundle for the electrical connector 4009VC-A.
  3. Put the electrical connector 4008VC-A (from the left side of the engine) between the tubes 153 and 138.

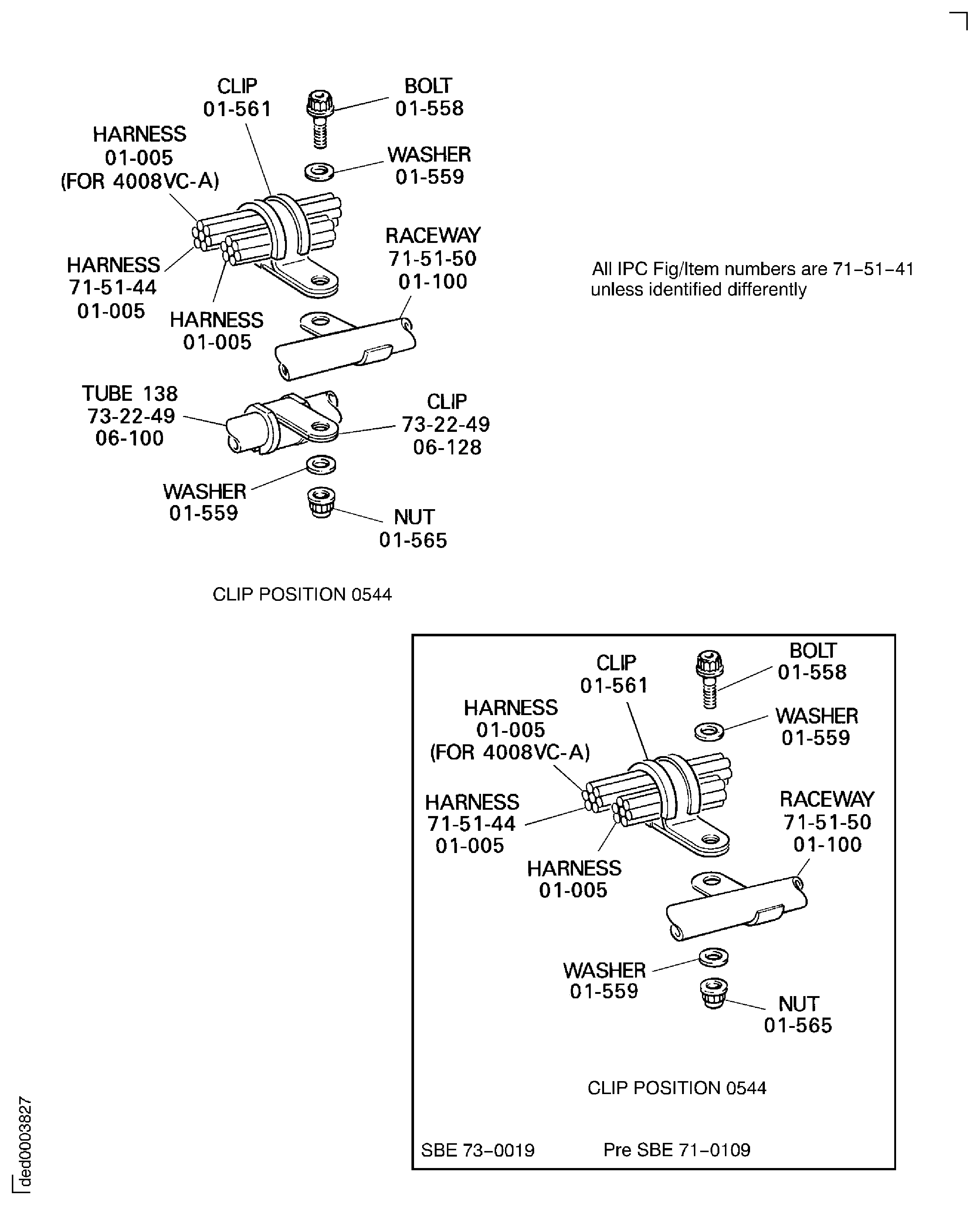

  4. Attach the bundles together at the datum clip positions 0544 and 0256.
  5. Install the bolt, the washer, the nut and the clip at the clip position 1078.
  6. Attach the tube 153 to bifurcation panel with the two bolts and the two nuts PNEUMATIC-TUBES-HP BLEED CONTROL AIR (36-11-47, 01-506) and PNEUMATIC-TUBES-HP BLEED CONTROL AIR (36-11-47, 01-502).
  7. Torque the tube 236 nut (attached to the tube 153) to 159 to 177 lbf.in (18 to 20 Nm). Safety the tube nut with CoMat 02-126 LOCKWIRE.
  8. Torque the two nuts PNEUMATIC-TUBES-HP BLEED CONTROL AIR (36-11-47, 01-502) to 85 to 105 lbf.in (10 to 12 Nm).
  9. Torque the nut at the clip position 1078 to 36 to 45 lbf.in (4 to 5 Nm).
5. Connect and torque the electrical connectors (Left side):
  4015KS-A to the IDG FCOC ELECTRICAL POWER-FUEL COOLED IDG OIL COOLER (24-21-42, 01-100) to 18 * lbf.in (2.0 Nm).
  Install the datum clip position 0325.
  4017KS-A to the fuel temperature thermocouple FUEL TEMPERATURE THERMOCOUPLE (73-35-15, 01-100) to 18 * lbf.in (2.0 Nm).
  4018KS-A to the fuel diverter and return valve FUEL DIVERTER AND RETURN VALVE (73-13-42, 01-100) to 20 * lbf.in (2.3 Nm). Install the datum clip position 0295.
  4018KS-B to the fuel diverter and return valve FUEL DIVERTER AND RETURN VALVE (73-13-42, 01-100) to 24 * lbf.in (2.7 Nm). Install the datum clip position 0753.
6. 1. Pre SBE 70-0088: Attach the EEC harness and the ignition supply harness ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS (71-51-44, 01-005) together with the POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-492) tape 1 off.
  2. SBE 70-0088: Attach the EEC harness and the ignition supply harness ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS (71-51-44, 01-005) together with the CoMat 02-202 GLASS CLOTH TAPE, ADHESIVE.
  3. Attach one end of the tape between the cables, in the center of the harness bundle at the clip positions 0538, 1064 and 0536, 0535. Use a sufficient length of the tape to reduce the diameter of the harnesses.
  4. Hold the split sleeves together at both positions around the harness and measure the diameter of the split sleeves. The diameter must not be more than 1.5 in (38 mm).
  5. WARNING
    WHEN YOU USE CoMat 01-002 SOLVENT, DELETED. YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.
    Clean the split sleeves POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-490) and POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-514), the bonded clip POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-489), POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-497), POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-513) and POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 02-224) earth fingers, the clip and the raceway lugs with CoMat 01-002 SOLVENT, DELETED.. Use a clean cloth made moist with the solvent.
  6. Install the split sleeve POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-490) around the harnesses. Make sure the CAUTION label on one of the split sleeves can be seen when the installation procedure is complete. Attach them with lacing tape as follows:
    Put one end of the braid lacing, minimum length 31.5 in (800 mm), through the harness cables. Put both ends of the lacing through the slot of the split sleeve. Refer to Figure, step 1.
    Wind the longest end of the lacing four times around the harness/sleeve assembly. Make sure the lacing is tight and does not go out of the slot. Refer to Figure, step 2.
    Make a clove hitch (at the bottom of the slot) with the longest end of the lacing. Refer to Figure, step 3.
    Pull both ends of the lacing tight. Make a reef knot. Refer to Figure, steps 4 and 5.
    Make one more hitch. Refer to Figure and Figure, steps 6 to 9.
    Attach the split sleeve at the other slot with the braid lacing, refer to Step to Step.
    Install the remaining split sleeve with two more pieces of braid lacing refer to Step to Step. Make the hitch at the top of the split sleeve. Refer to Figure, Figure and Figure, steps 1 to 10.
  7. Install the split sleeve POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-514) around the harnesses, refer to Step.
  8. Measure the diameter of the harnesses. The diameter must not be more than 1.5 in (38 mm).
    .
  9. Install the bonded clips around the harnesses.
  10. Install the bolts, the washers and the nuts at the clip positions 0538, 1064, 0535 and 0536. Torque the four nuts to 85 to 105 lbf.in (10 to 12 Nm).
7. 1. WARNING
    WHEN YOU USE CoMat 01-002 SOLVENT, DELETED. YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.
    NOTE
    The raceway bonding lug at clip position 1141 is adjacent to the lug for the clip position 0252.
    Remove the grease, the fingerprints and the unwanted material from the mating surfaces of the raceway BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-100) bonding lug, the fuel flow transmitter bonding lead with CoMat 01-002 SOLVENT, DELETED. . Use a clean lint free cloth moistened with the solvent.
  2. Clean the contact (washer) surfaces of the bolt, the nut and the two washers at clip position 1141.
  3. Install the bolt, washers, clip, bonding lead and nut to attach the EEC harness POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 01-005) and the Ignition Supply harness ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS (71-51-44, 01-005) to the raceway BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-100) at clip position 1141. Torque the nut to 36 to 45 lbf.in (4 to 5 Nm).
8. 1. NOTE
    Install the clip positions 0766 and 0767 during the procedure given in Step.
    Install the bolts, the washers, the spacers, the nuts or the clipnuts and the clips at the remaining clip positions.
  2. Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm) in the anchor nuts and the clipnuts.
  3. Torque the nuts at the remaining clip positions to 36 to 45 lbf.in (4 to 5 Nm).
  4. Make sure that no harness length has too much strain on it. If it is necessary loosen the bolt or nut at the applicable clip position. Adjust the harness and torque the bolt or the nut to 36 to 45 lbfin (4 to 5 Nm) or if applicable to 85 to 105 lbf.in (10 to 12 Nm), refer to Step.
  5. Attach the ignition supply harness to the EEC harness with CoMat 02-159 LACING TAPE, adjacent to the clip position 0568.
1. Refer to Figure, Figure, Figure, Figure, Figure and Figure.
2. 1. Identify the correct datum clip positions 0791, 0550 and 1007.
  2. Connect the electrical connectors 4100KS-D and 4100KS-C to the relay box POWER PLANT-RELAY BOX (71-51-49, 01-100). Torque the electrical connectors to 18 * lbf.in (2.0 Nm). Remove the temporary ties and install the datum clip position 0791.
3. 1. Attach the electrical harness receptacle 4002VC (attached to the ignition supply harness) to the bracket POWER PLANT-RELAY BOX (71-51-49, 01-330) with the four bolts and the four assembled washer nuts ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS (71-51-44, 01-022 and 01-020). Make sure the master keyway is in the outboard direction, refer to the detail on E. Remove the temporary ties and install the datum clip position 0550 and the clip position 0207.
  2. Attach the receptacle 4003VC to the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-800) with the four bolts and the four assembled washer nuts ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS (71-51-44, 01-027 and 01-025). Make sure the master keyway is in the outboard direction, refer to the detail on D. Install the datum clip position 1007.
  3. Torque the assembled washer nuts installed in Step and Step to 6 to 8 lbf.in (0.70 to 0.90 Nm).
4. 1. 4002VC-A and 4003VC-A ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 01-005) to the receptacles, align the master keyways. Refer to Figure and Figure. Torque the electrical connectors to 14 * lbf.in (1.6 Nm).
  2. Remove the temporary ties and install the datum clip position 0791. Refer to Figure.
5. 1. Route the harness with the EEC harness at the given clip positions. Refer to Step.
  2. Install the bolts, the washers, the spacer, the nuts and the clips at the clip positions 0545 and 0568 (at the bifurcation panel).
  3. Remove the retaining lockwire from the combined fume and fireseal. Assemble and install the assembly to the bifurcation panel with the four bolts, the four nuts and the two flame trap brackets ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS (71-51-44, 01-032 , ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS 01-030 and 01-034). Tighten the four nuts to 36 to 45 lbf.in (4 to 5 Nm).
  4. Remove the temporary ties and install the clip positions 0892 and 0258. Refer to Figure.
  5. Torque the bolts at the clip positions to 36 to 45 lbf.in (4 to 5 Nm).
  6. NOTE
    Refer to TASK 72-00-40-420-006 for the installation of the ignition supply harness to the core engine.
    Torque the nuts at the remaining clip positions to 36 to 45 lbf.in (4 to 5 Nm).
1. Refer to Figure.
2. Connect the hose 238 to the EEC union and the tube 239. Torque the hose nuts to 142 to 150 lbf.in (16 to 17 Nm).
3. Connect the hose 134 to the EEC union and the tube 135. Torque the hose nuts to 142 to 150 lbf.in (16 to 17 Nm).
4. Attach the tube 235 to the bracket POWER PLANT-RELAY BOX (71-51-49, 01-390) with the locknut ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 08-310). Connect the tube 142 to the tube 235. Torque the locknut to 70 to 80 * lbf.in (7.9 to 9.0 Nm).
5. Install the bolts, the washers, the clips and the nuts at the clip positions 0766 and 0767.
6. Connect the hose 133 to the EEC union and the tube 235. Torque the hose 133 nuts to 182 to 199 * lbf.in (20.5 to 22.5 Nm). Torque the tube 142 nut to 159 to 177 lbf.in (18 to 20 Nm).
7. Connect the hose 240 to the EEC union and the tube 241. Torque the hose nuts to 142 to 150 lbf.in (16 to 17 Nm).
8. Connect the hose 129 to the EEC union and the tube 159. Torque the hose nut at the EEC to 182 to 199 * lbf.in (20.5 to 22.5 Nm). Torque the hose nut at the tube 159 to 159 to 177 lbf.in (18 to 20 Nm).
9. SBE 71-0108 : Safety the hose 133 and the locknut ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 08-310) separately to the bracket POWER PLANT-RELAY BOX (71-51-49, 01-390) with CoMat 02-126 LOCKWIRE. Refer to the view on A and B, Figure.
10. Safety the tube/hose nuts with CoMat 02-126 LOCKWIRE.
11. Safety the hose 238 nut to the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-790) with CoMat 02-126 LOCKWIRE.
12. Torque the nuts at the clip positions 0766 and 0767 to 36 to 45 lbf.in (4 to 5 Nm).
1. Refer to Figure, Figure, Figure and Figure.
2. 1. Do a check on the clearance. Push the harness with a light pressure of the thumb then release. The harness must spring back and give the minimum clearance. If the pressure moves the harness through the adjacent clips, change the clip or adjust the harness thickness. Refer to Step.
  2. The general clearance must be a minimum of 0.250 in. (6.35 mm).
  3. A minimum clearance of 0.100 in. (2.5 mm) is necessary as follows:
    For a harness length which has Spirap protection around it. Each end of the Spirap must be held with a clip position.
    Pre SBE 71-0107 - Between the harness bundle breakout at the clip position 0539 and the raceway BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-100).
    SBE 71-0107 - Between the harness bundle breakout at the clip position 0540 and the raceway BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-100).
    Between the harness adjacent to the clip position 0753 and the tubes 114 and 170.
    Between the harness and the flange FC, adjacent to the clip position 0820.
    The harness length between the clip positions 1075 and 0897 and the flange FD.
  4. Make sure that the harness loop below the clip position 0257 is forward of a line taken from the rear of the clip. This will prevent a foul of the loop in the left side C-duct door. Attach the loop to the adjacent harness with CoMat 02-159 LACING TAPE to make the loop as small as possible.
  5. The harness can touch the smooth parts of brackets and rafts if the harness is clipped to them. Make sure the harness is held to prevent movement between the harness and the bracket or raft.
3. 1. Adjust the harness to get the minimum clearances. Refer to Step.
4. Torque the bolt or nut, as necessary, to the value given in the applicable installation SUBTASK for each of the harnesses.
5. 1. Make sure each harness wire bundle breakout curves smoothly from its primary harness. It must go to the component to which it attaches and not across the primary harness.
  2. If the primary harness and the wire bundle breakout touch each other you must attach them together. Both harness bundles must not move in relation to each other. Refer to Step.
6. 1. If one harness goes across or it is parallel with a different harness (and they can touch) you must attach them together. Each harness must not move in relation to each other. Refer to Step.
1. Attach the wire bundle breakout to the primary harness with CoMat 02-159 LACING TAPE to prevent movement of them in relation to each other.
2. Attach the parallel harnesses and those which go across each other together. If it is necessary wrap CoMat 02-148 ADHESIVE TAPE (ELECTRICAL) around the harness to prevent abrasion. Then attach the harnesses together with the lacing tape.
1. Refer to Figure.
2. Make sure that all the applicable connectors, backshells and cable clamps are secure.
3. Make sure that all the applicable backshells and cable clamps are safetied with CoMat 02-126 LOCKWIRE. Refer to the SPM TASK 70-42-05-400-501.
1. NOTE
  Use this procedure to safety the EEC harness backshells and cable clamps with safety cable.
  Refer to Figure.
2. Make sure that all the EEC harness connectors, backshells and cable clamps are secure.
3. Make sure that all the EEC harness backshells and cable clamps are safetied. Safety with CoMat 02-274 SAFETY CABLE KIT or with CoMat 02-275 SAFETY CABLE KIT. Refer to the SPM TASK 70-42-08-400-501.

Sheet 1

Sheet 2

Sheet 3

Sheet 1

Sheet 2

Sheet 3

Sheet 4

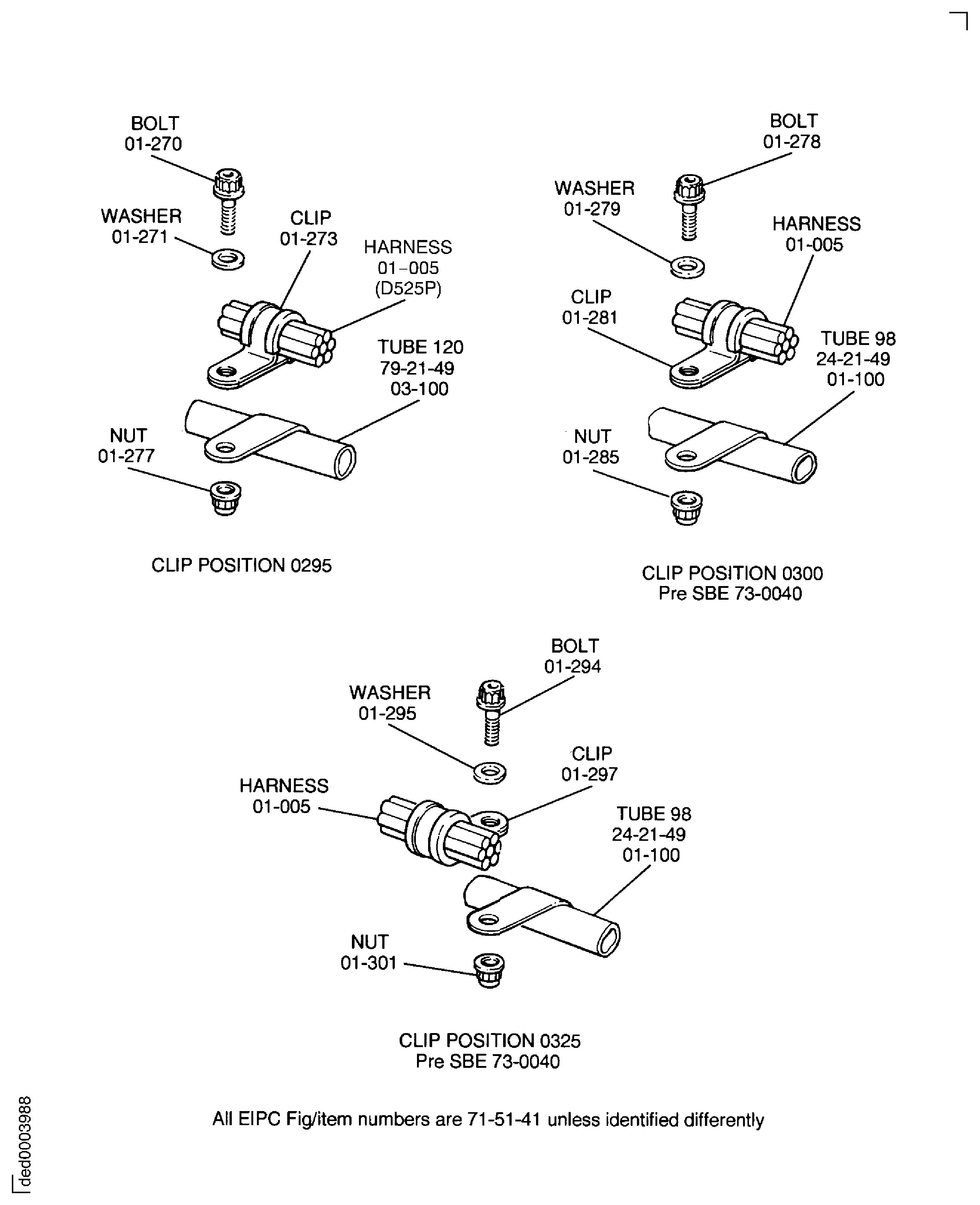

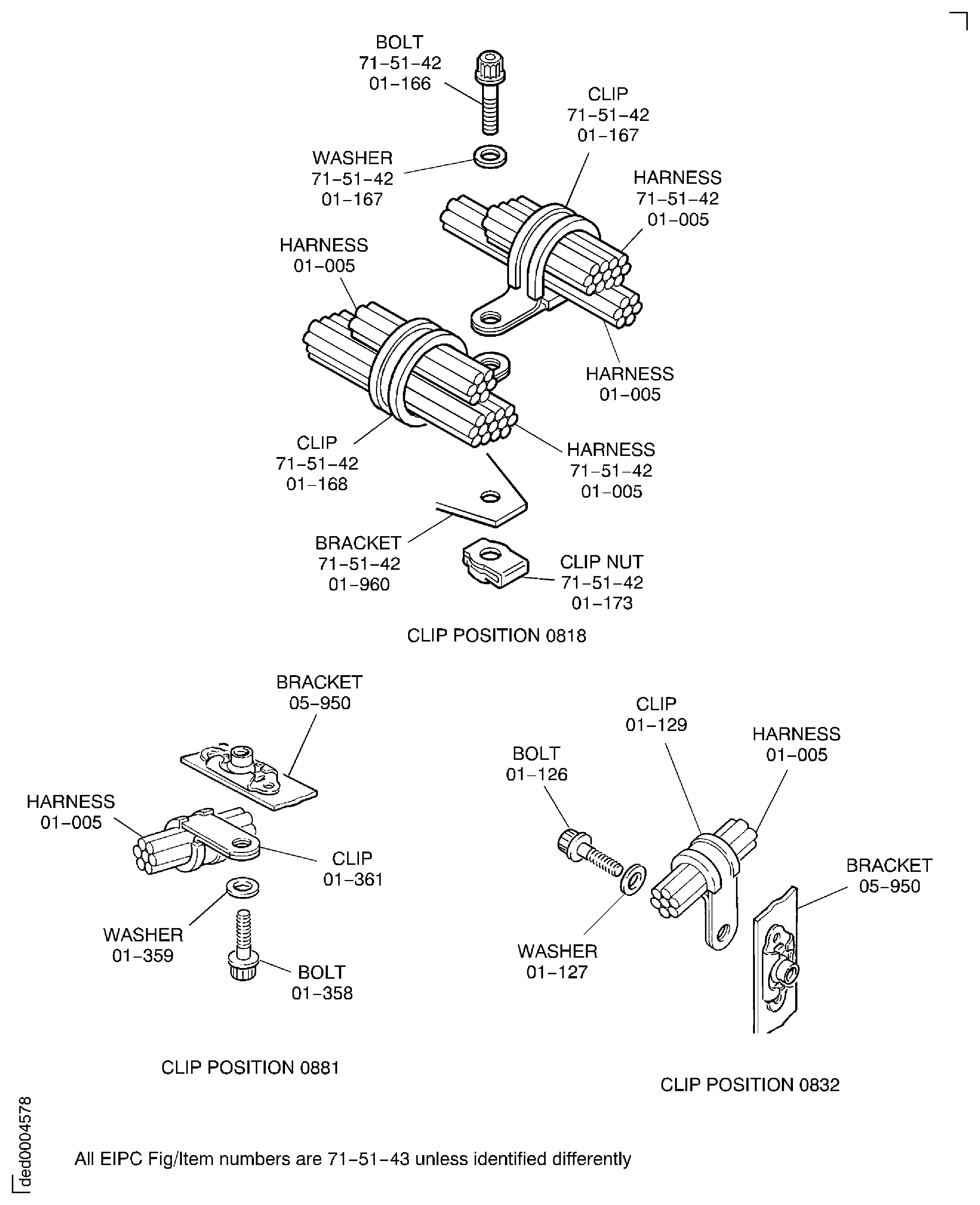

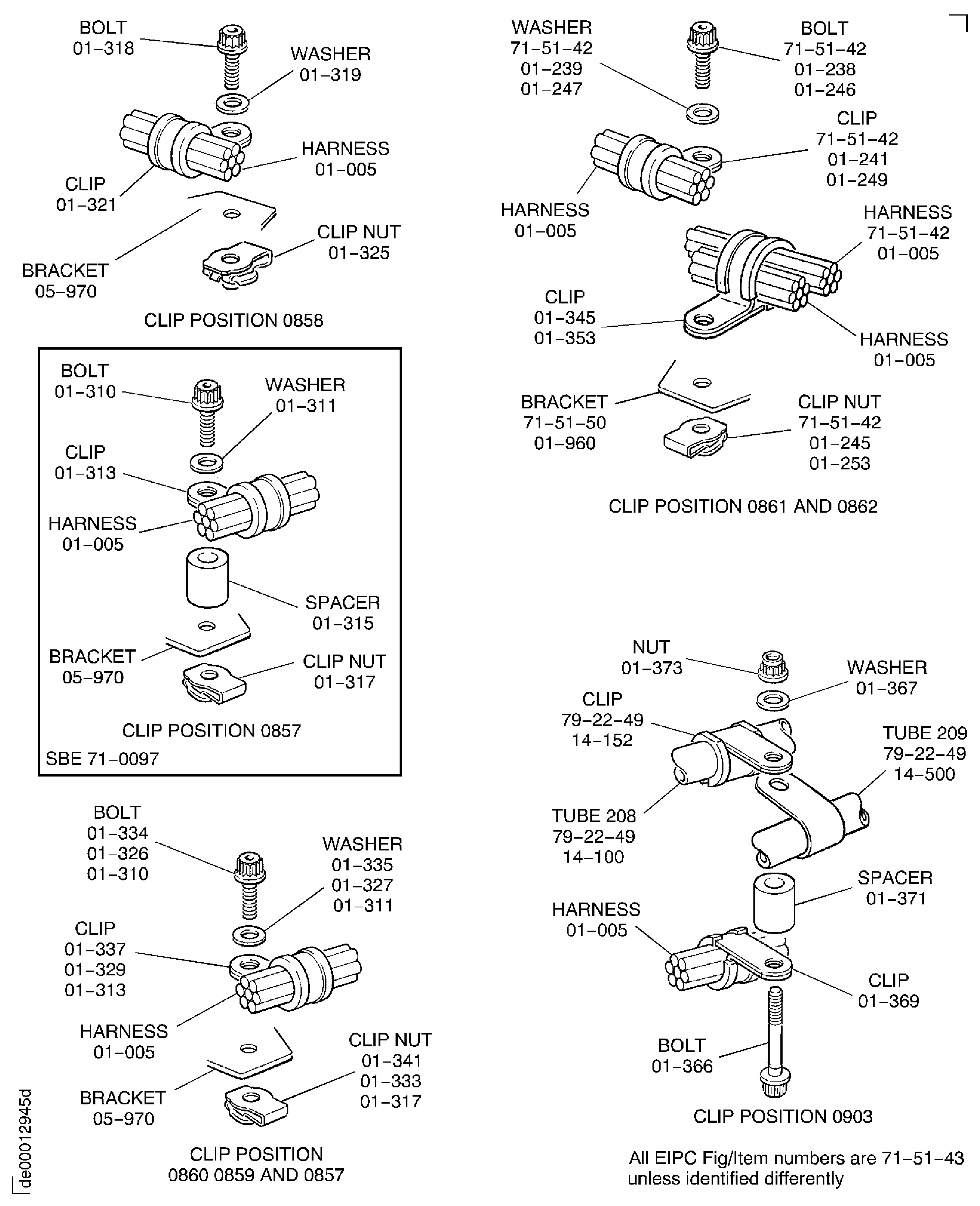

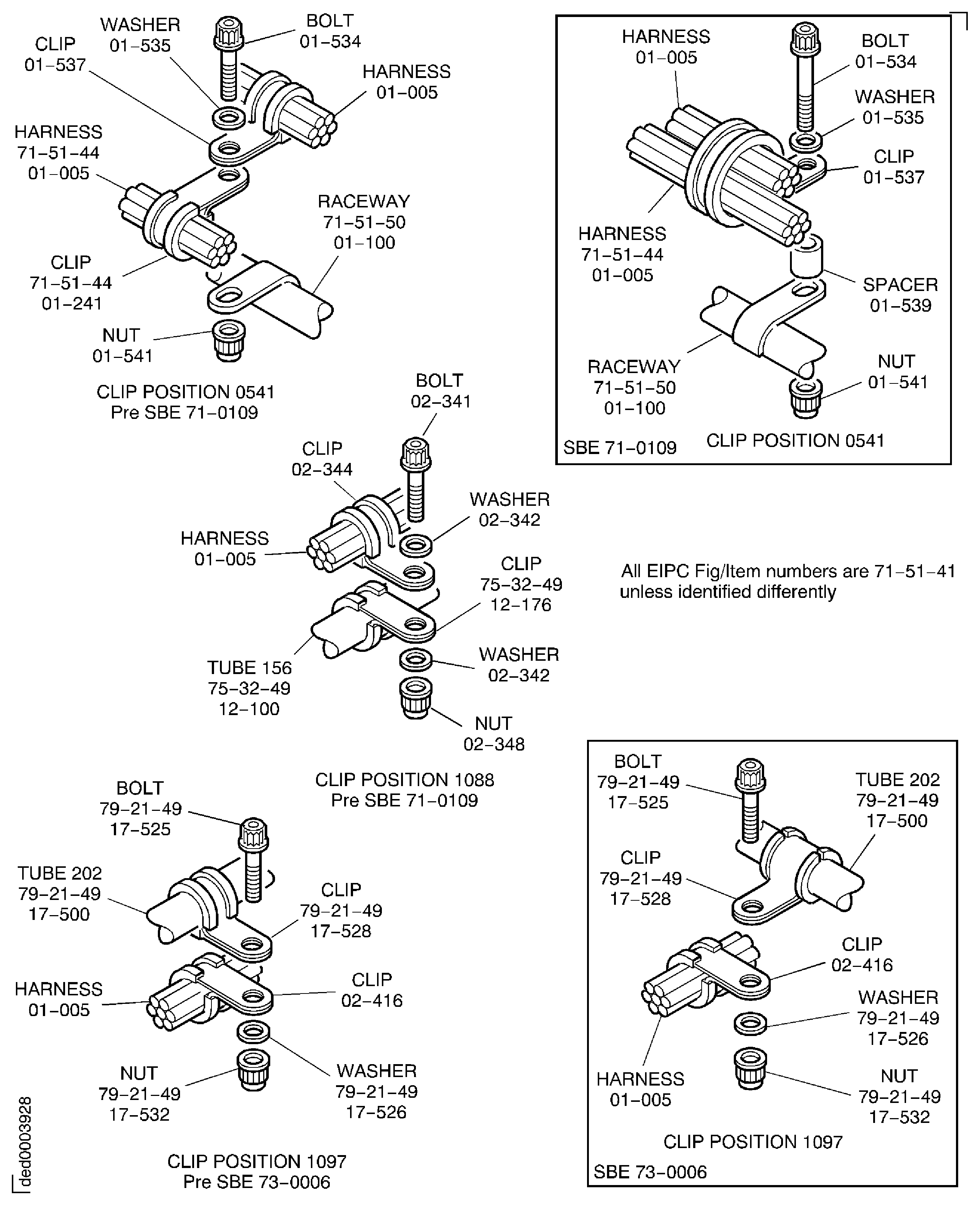

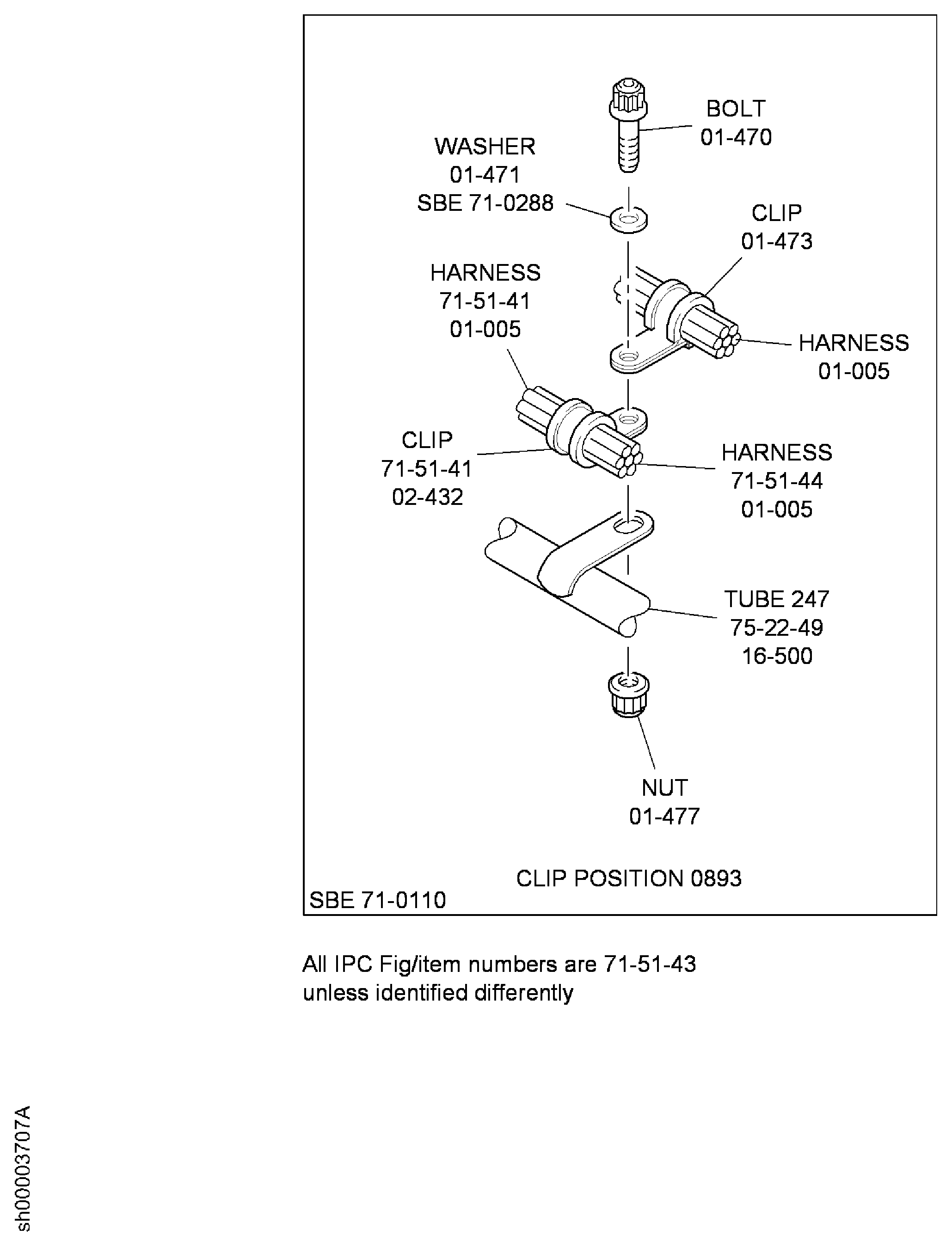

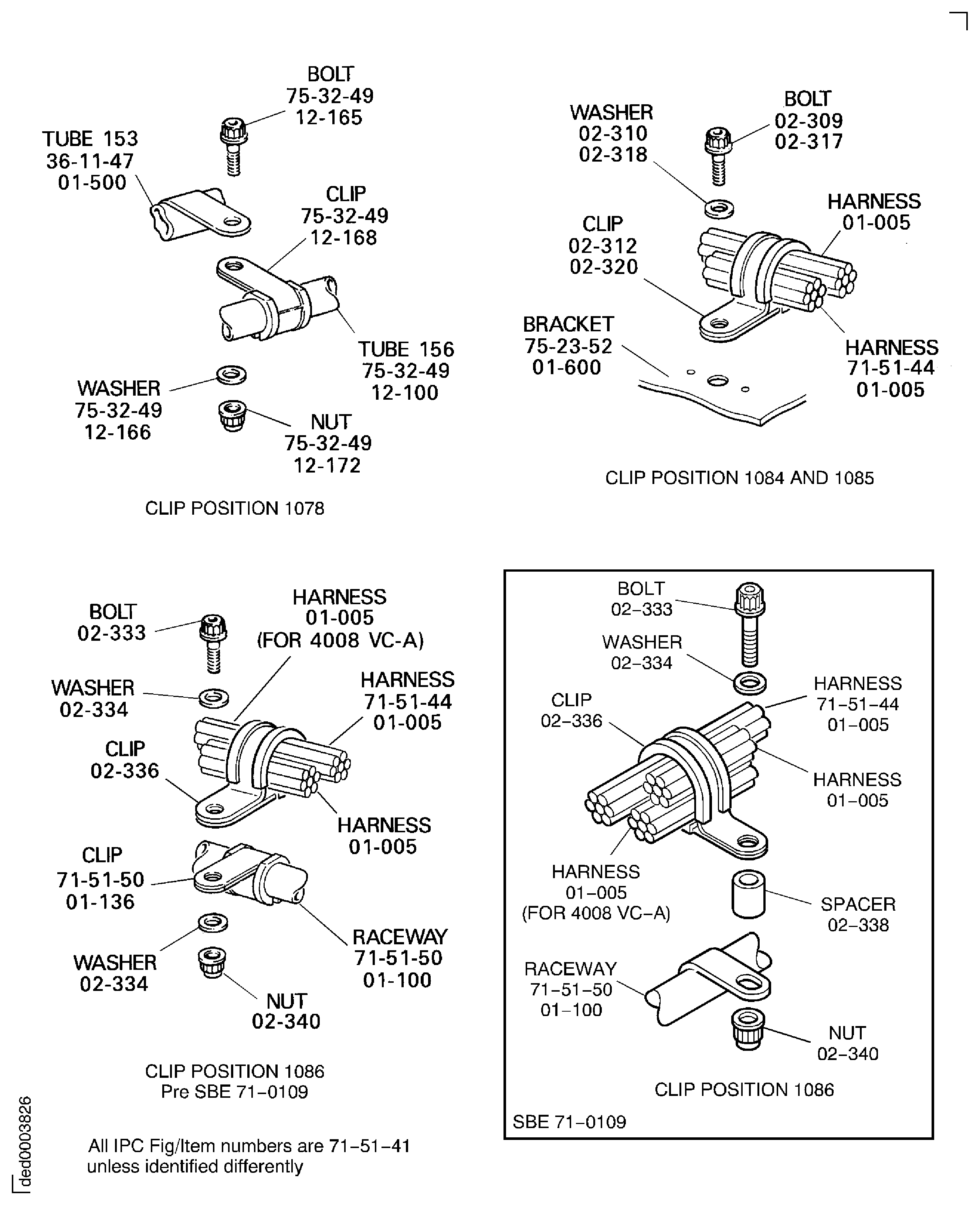

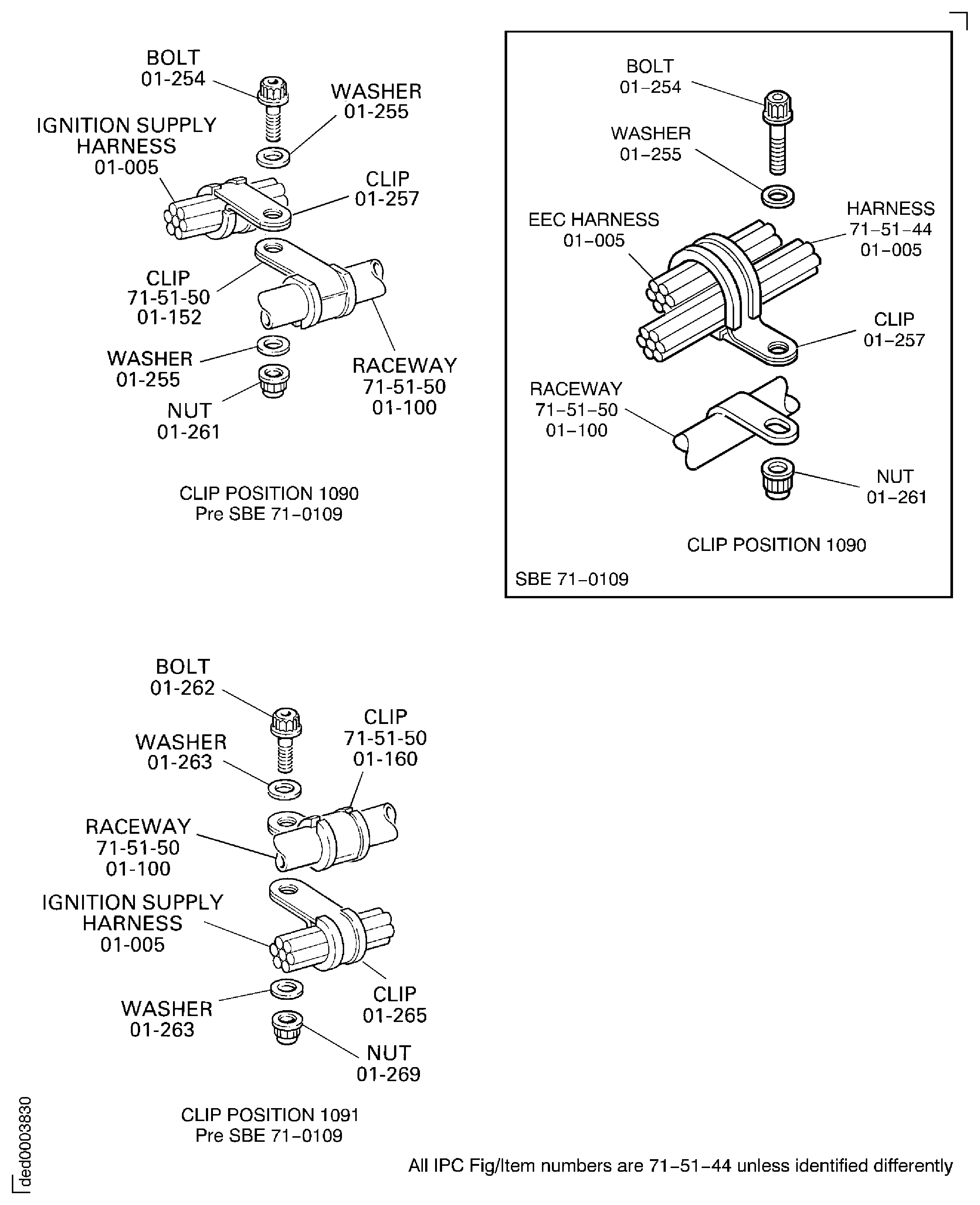

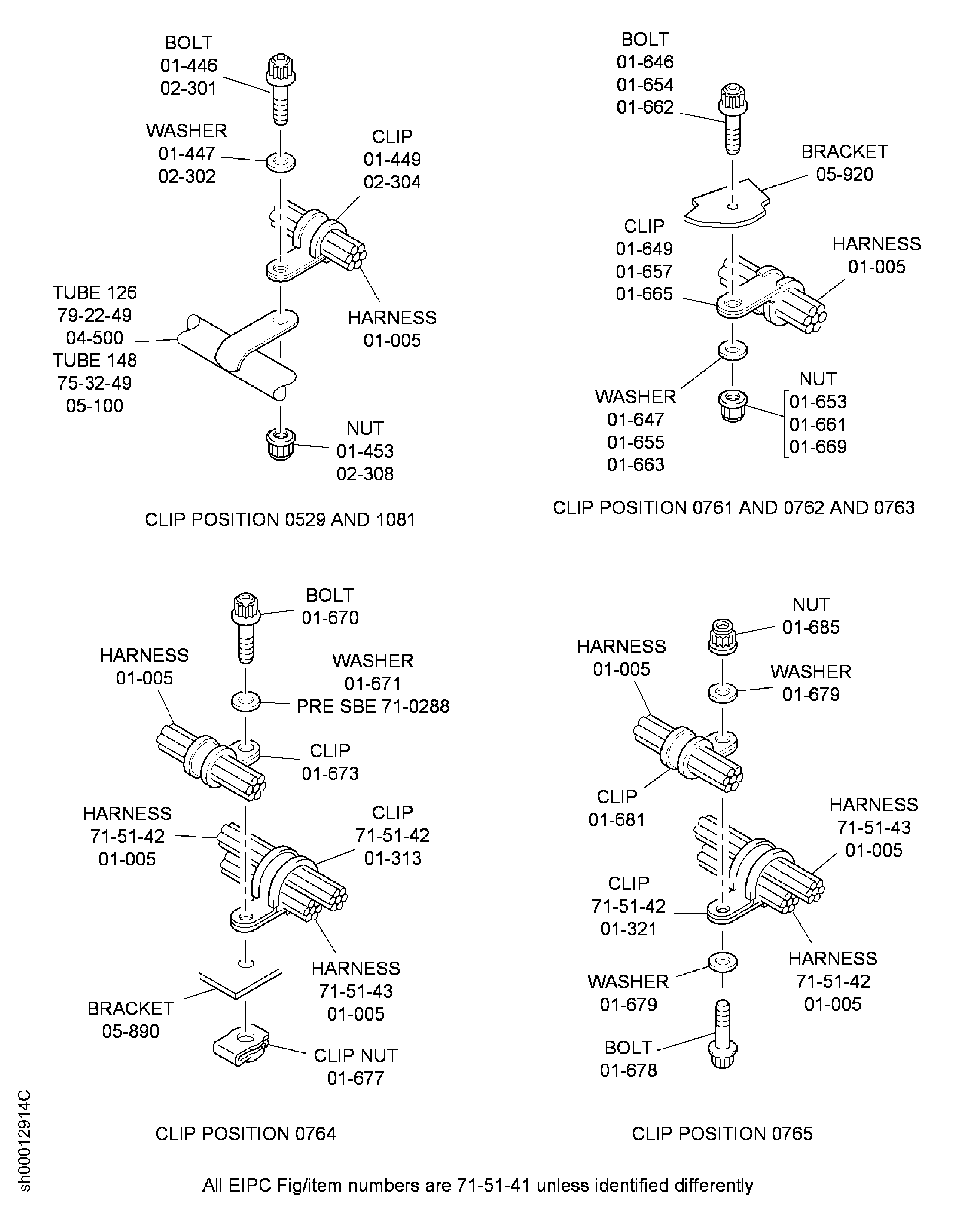

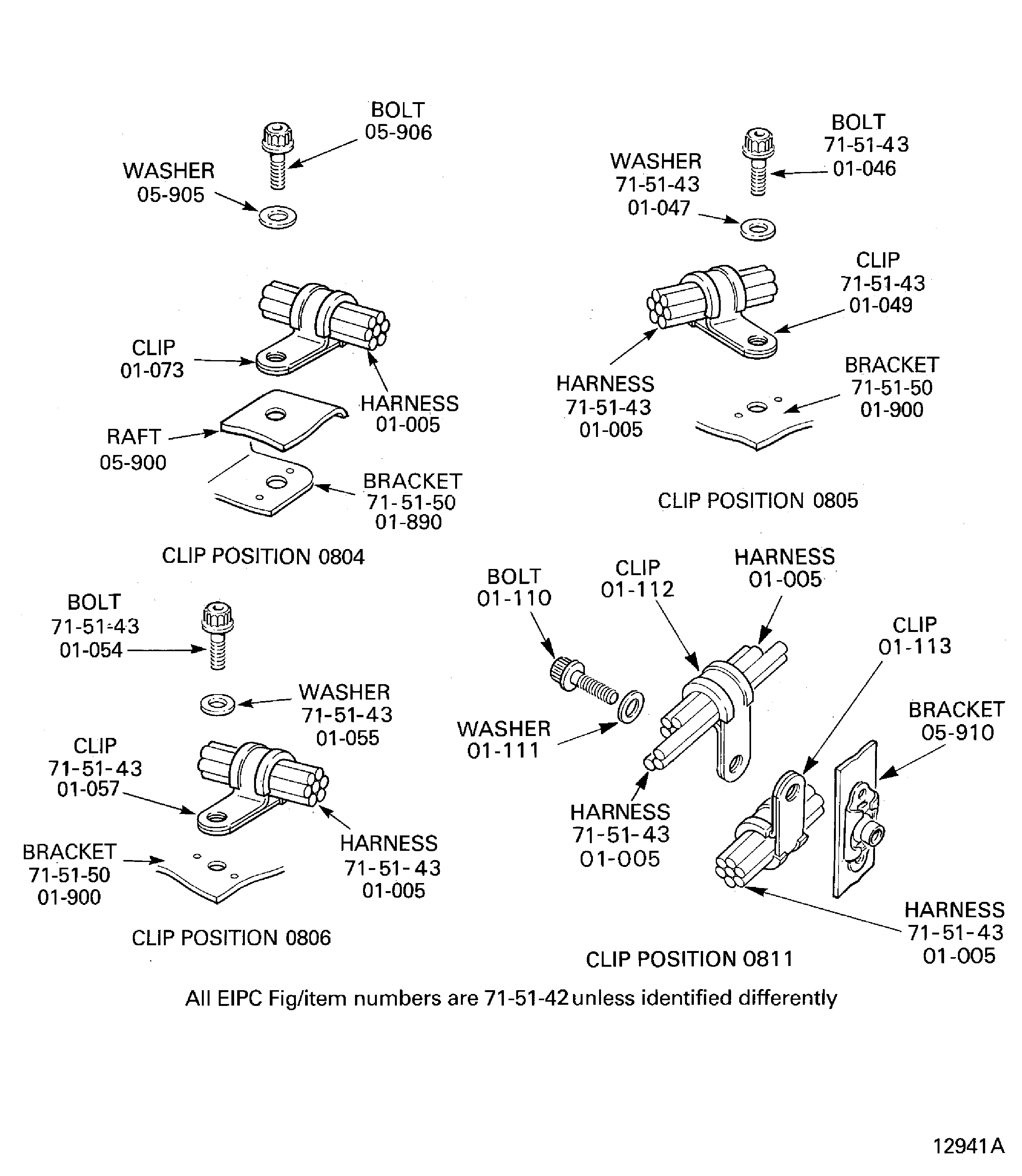

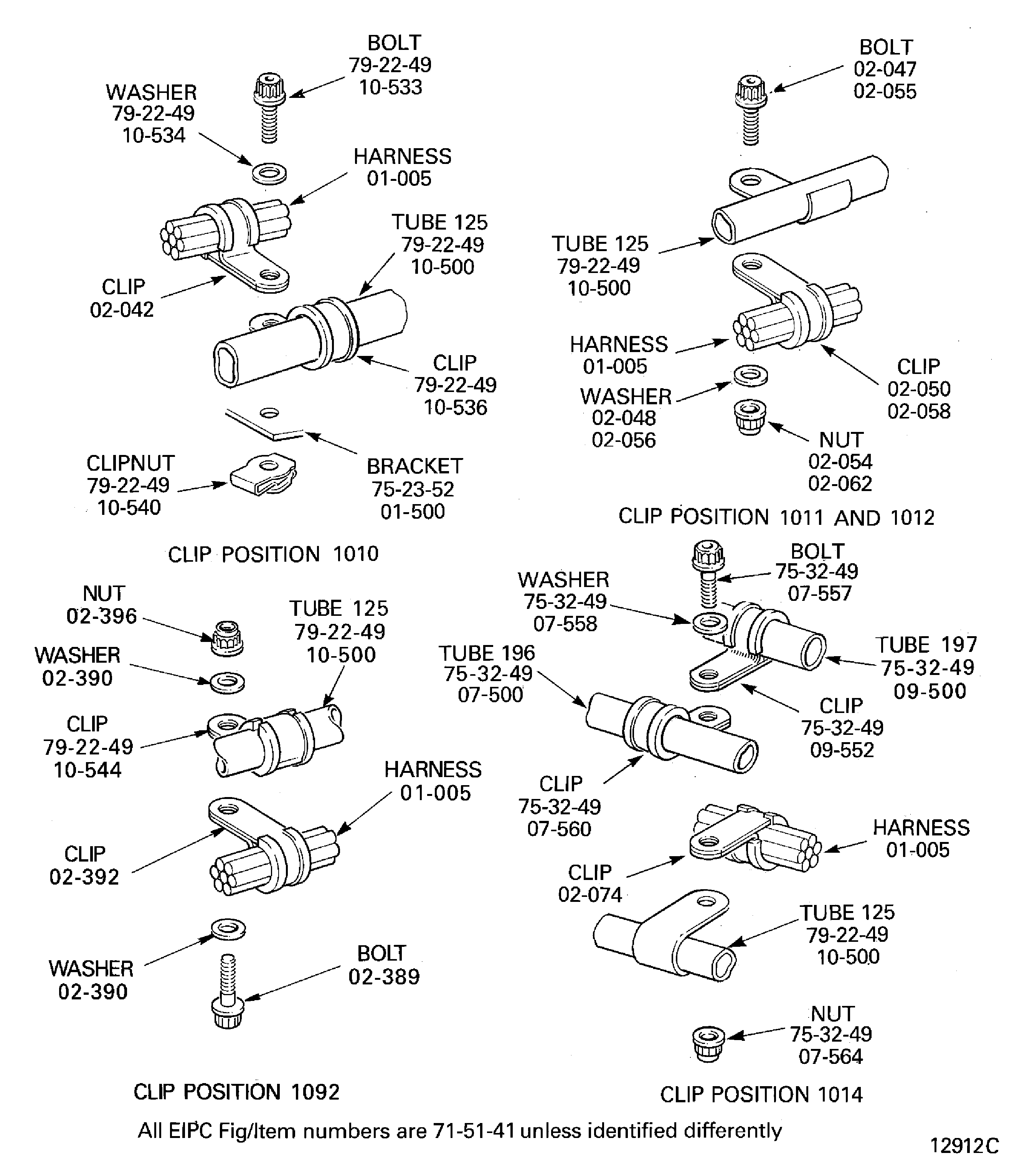

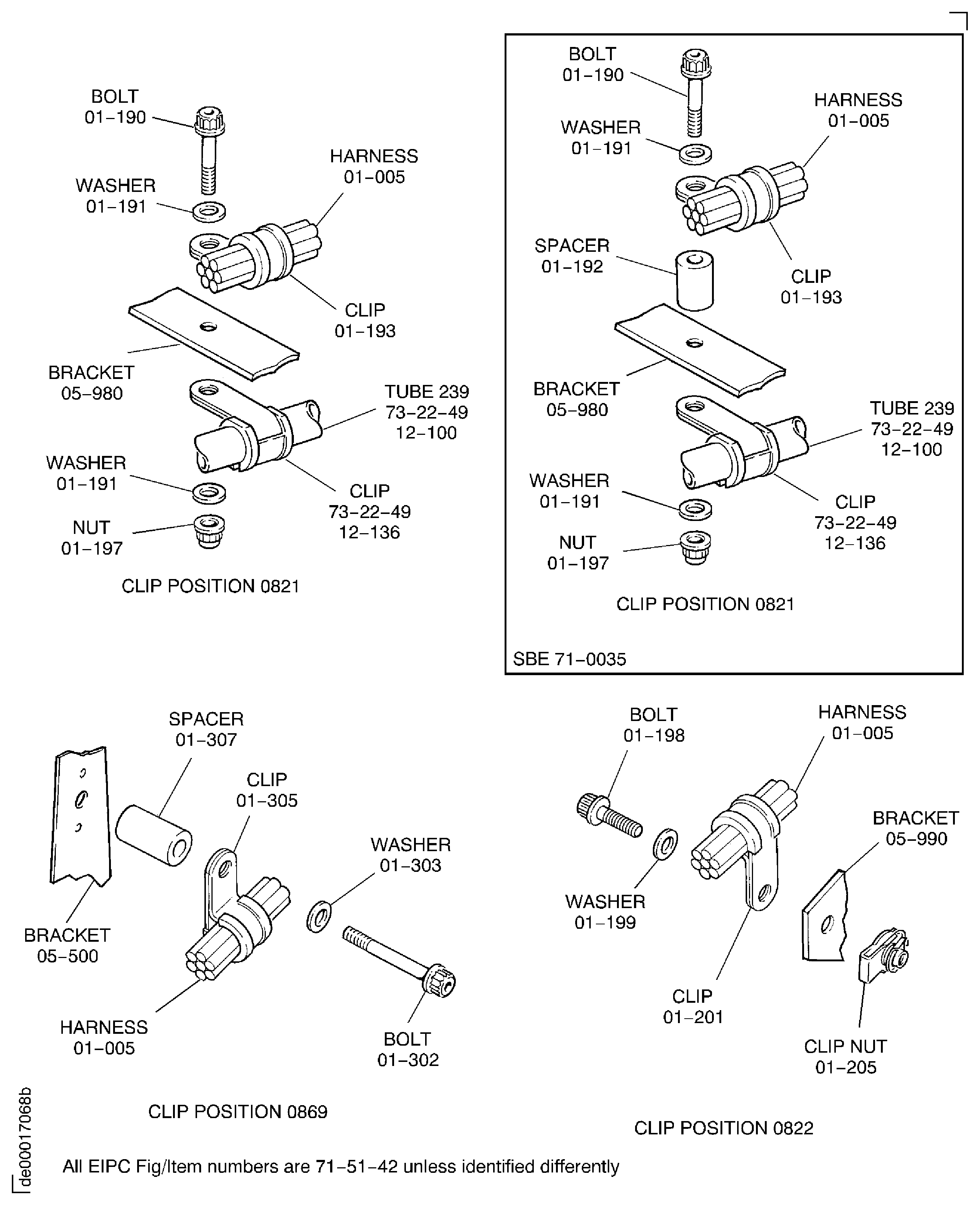

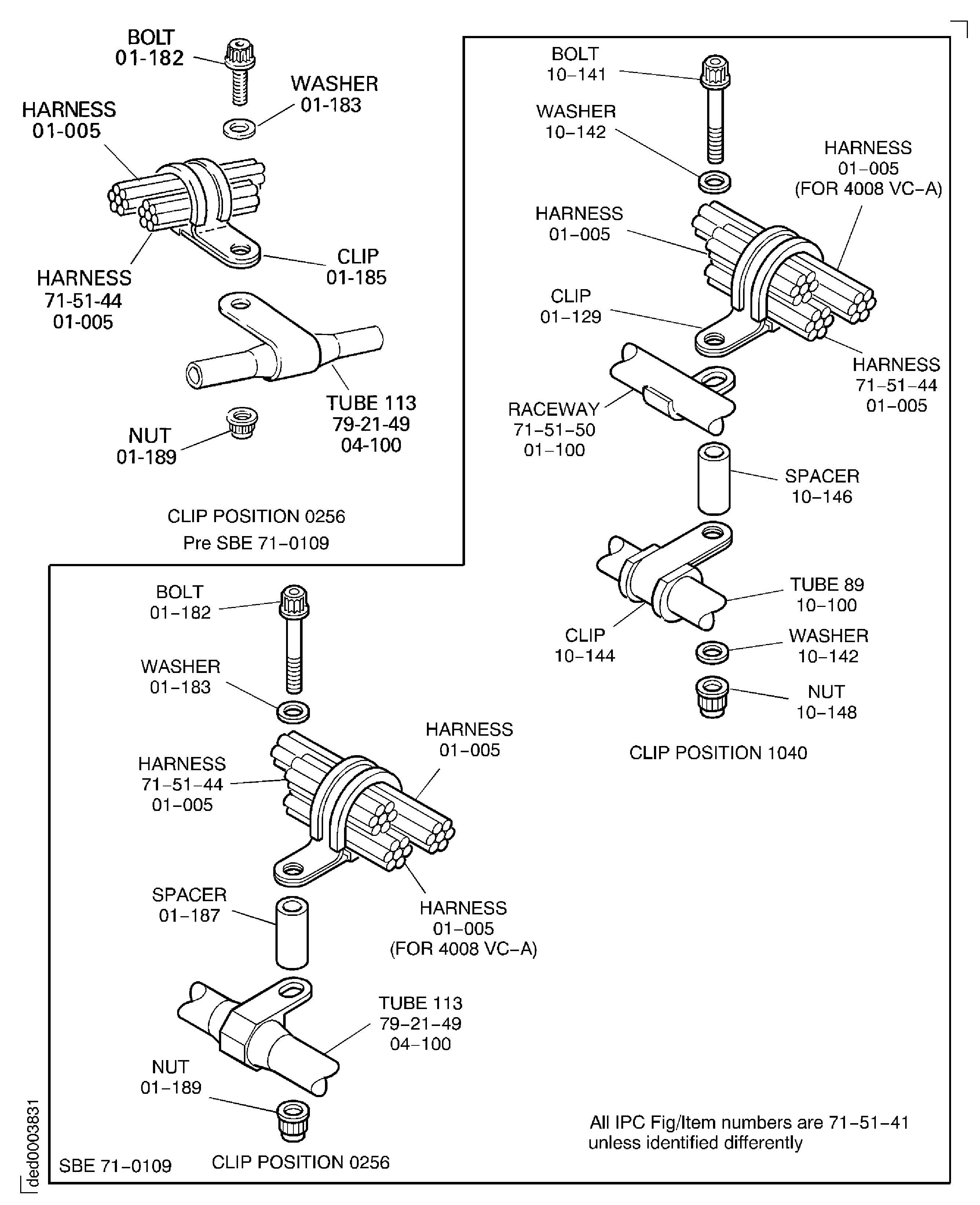

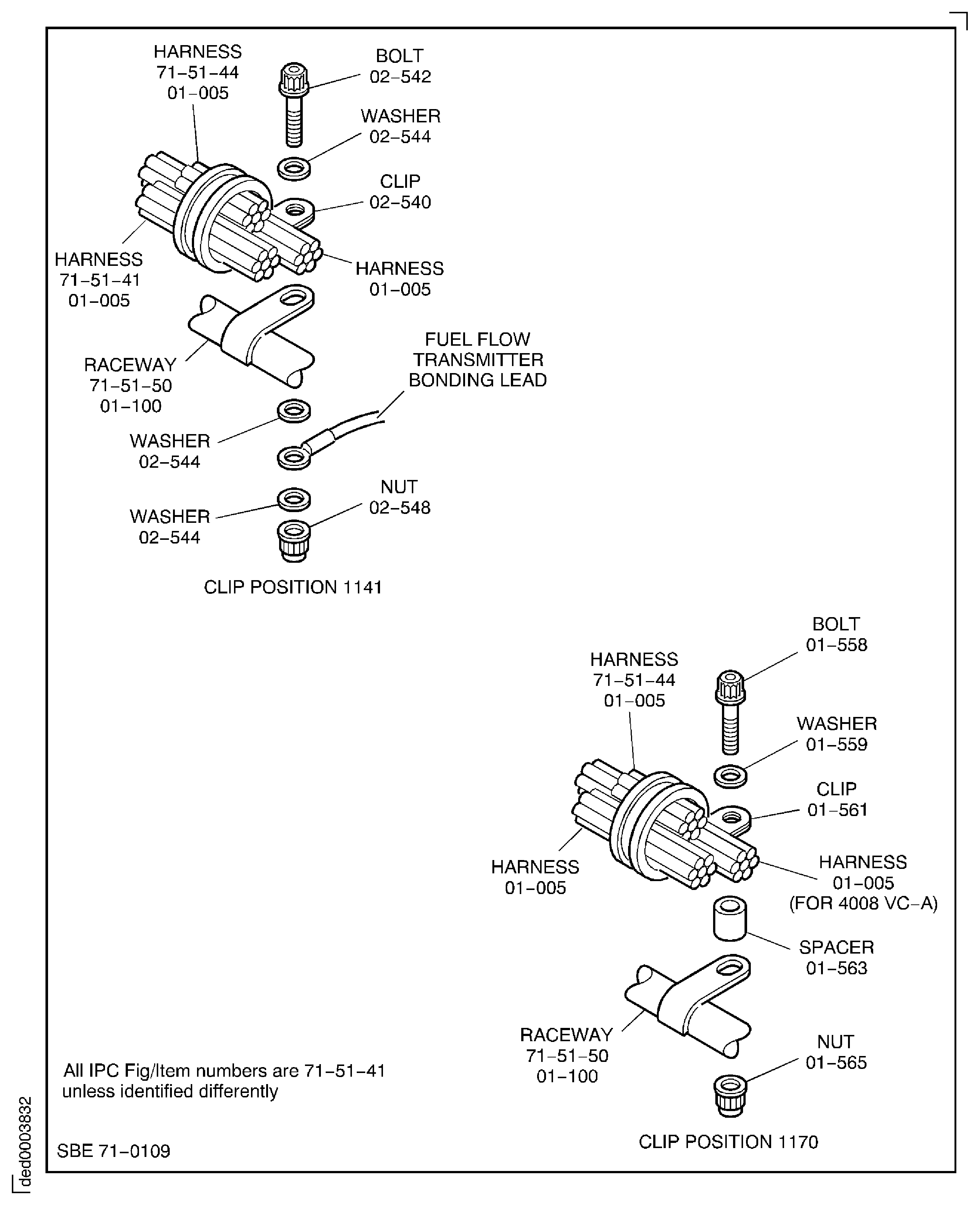

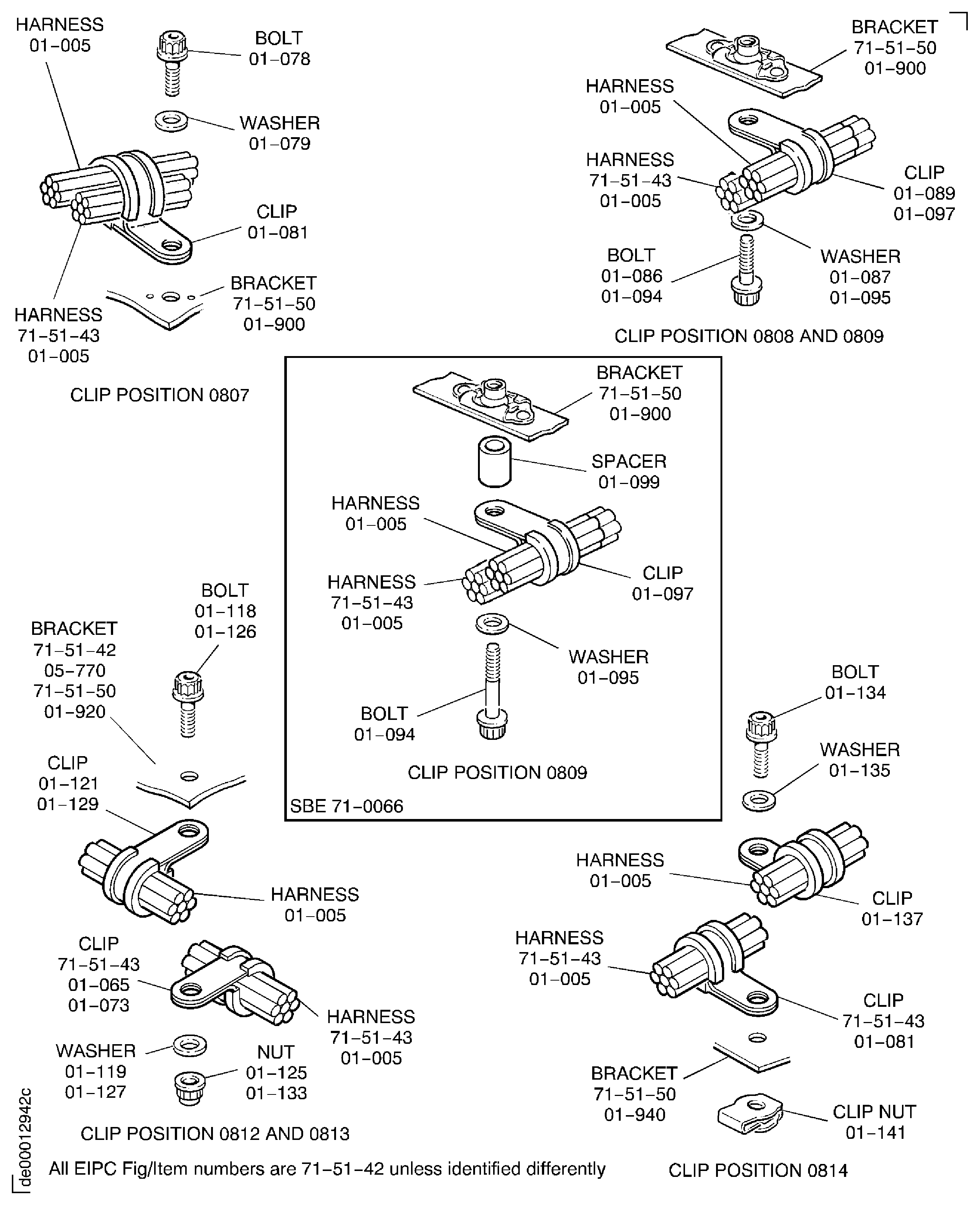

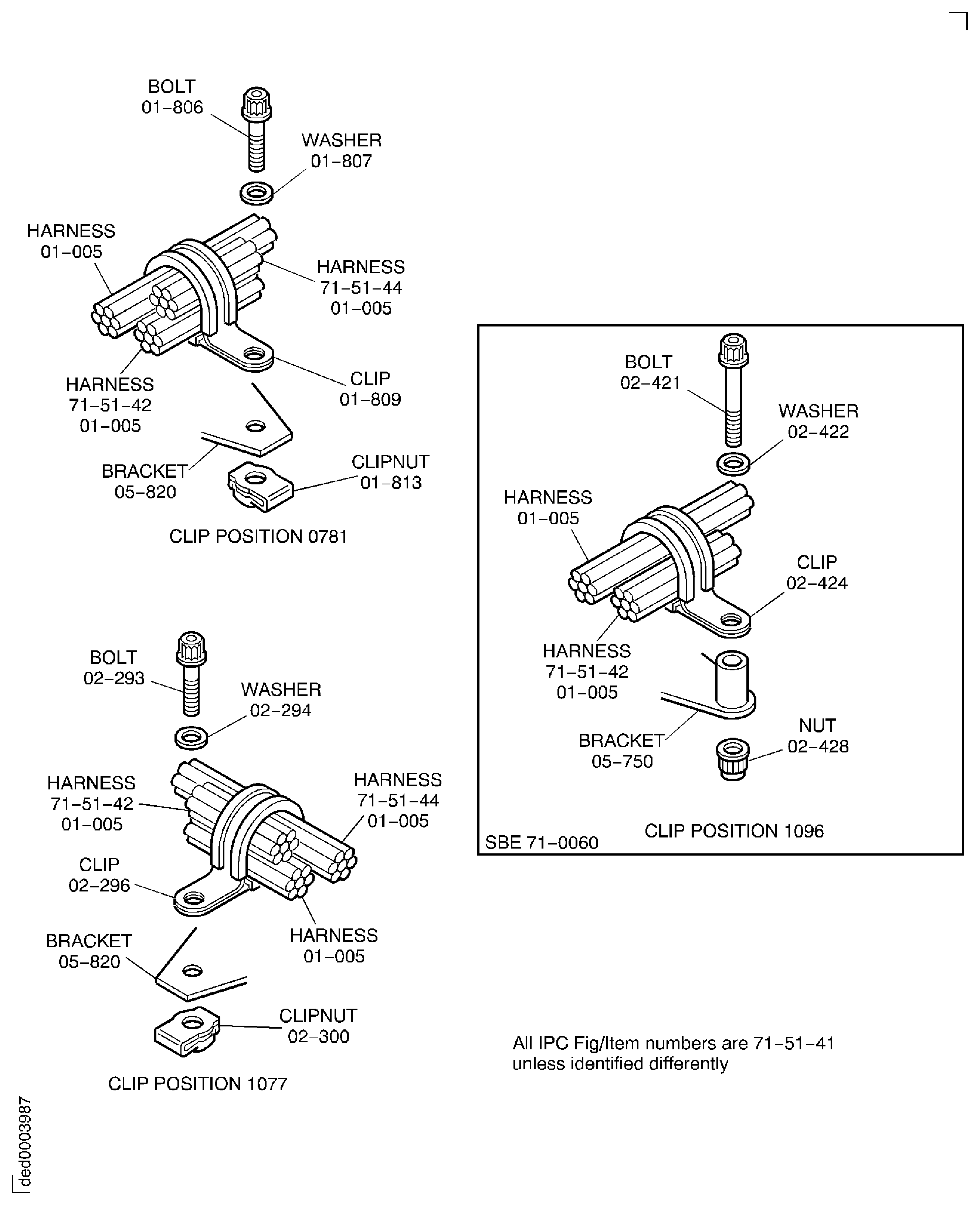

Identify the Clip Location

Sheet 1

Sheet 2

Sheet 3

Sheet 4

Sheet 5

Sheet 6

Sheet 7

Sheet 8

Sheet 9

Sheet 1

Sheet 2

Sheet 3

Sheet 4

Sheet 5

Sheet 6

Sheet 7

Sheet 8

Sheet 9

Sheet 10

Sheet 11

Sheet 12

Sheet 13

Sheet 14

Sheet 15

Sheet 16

Sheet 17

Sheet 18

Sheet 19

Sheet 20

Install the Terminal Module

Sheet 1

Sheet 2

Sheet 3

Sheet 4

Sheet 5

Sheet 6

Sheet 1

Sheet 2

Sheet 3

Sheet 4

Sheet 5

Sheet 6

Sheet 7

Sheet 8

Sheet 9

Sheet 10

Sheet 11

Sheet 12

Sheet 13

Sheet 14

Sheet 15

Sheet 16

Sheet 17

Sheet 18

Sheet 19

Sheet 20

Sheet 21

Sheet 22

Sheet 23

Sheet 24

Sheet 25

Sheet 26

Sheet 27

Sheet 28

Sheet 29

Sheet 30

Sheet 31

Sheet 32

Sheet 33

Sheet 34

Sheet 35

Sheet 36

Sheet 37

Sheet 38

Sheet 39

Sheet 40

Sheet 41

Sheet 42

Sheet 43

Sheet 44

Sheet 45

Sheet 46

Sheet 47

Install the EEC Flexible Hoses and the Tube 235

Visually Inspect the Backshells and Cable Clamps

Requirements After Job Completion

Follow-On Conditions

NONE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	18992
Enterprise Name:	HANSCOM INC
BU Name:	HANSCOM INC
Street:	331 MARKET STREET
P.O. Box:	364
City:	WARREN
State:	RI
Zip Code:	02885
Country:	USA
Phone Number:	1-401-247-1999, 1-800-725-6788
Fax Number:	1-401-247-4575
Internet:	www.hanscominc.com

Manufacturer Code:	LOCAL
Enterprise Name:	LOCALLY SUPPLIED

Manufacturer Code:	0AM53
Tool Number:	IAE 1J12018
Tool Name:	IAE 1J12018 EEC harness wrench

TASK 72-00-32-420-004-A00 LPC/Intermediate Case Module - Install The Electrical Harnesses, Installation-004

Export Control

Copyright

Applicability

Common Information

TASK 72-00-32-420-004-A00 LPC/Intermediate Case Module - Install The Electrical Harnesses, Installation-004

General

NOTE

Preliminary Requirements

Pre-Conditions

Support Equipment

Consumables, Materials and Expendables

Spares

Safety Requirements

Procedure

SUBTASK 72-00-32-420-145 Electrical Harness Installation Procedure

SUBTASK 72-00-32-420-051 Install the 400VC to IDG Cable Assembly (01-010)

WARNING

SUBTASK 72-00-32-420-052 Install the Vibration Harnesses/Transducer (Pre SBE 71-0271 and SBE 71-0271)

SUBTASK 72-00-32-420-053Install the EEC and Ignition Supply Harness (Pre SBE 71-0019, Pre SBE 71-0070, Pre SBE 71-0177, SBE 71-0019, SBE 71-0070 and SBE 71-0177)

NOTE

NOTE

SUBTASK 72-00-32-420-056 Install the EEC Harness (Pre SBE 70-0088, SBE 70-0088, Pre SBE 71-0070, SBE 71-0070, Pre SBE 71-0107, SBE 71-0107, SBE 71-0109 and Pre SBE 73-0040)

NOTE

NOTE

WARNING

NOTE

WARNING

NOTE

NOTE

SUBTASK 72-00-32-420-055 Install the Ignition Supply Harness

NOTE

SUBTASK 72-00-32-420-135 Install the EEC Flexible Hoses and the Tube 235 (SBE 71-0108)

SUBTASK 72-00-32-220-077 Measure the Harness Clearance and Examine the Routing

SUBTASK 72-00-32-420-146 Attach the Harnesses Together

SUBTASK 72-00-32-210-077 Visually Inspect the Electrical Backshells and Cable Clamps

SUBTASK 72-00-32-210-078 Visually Inspect the EEC Harness (01-005) Electrical Backshells and Cable Clamps (SBE 70-0813)

NOTE

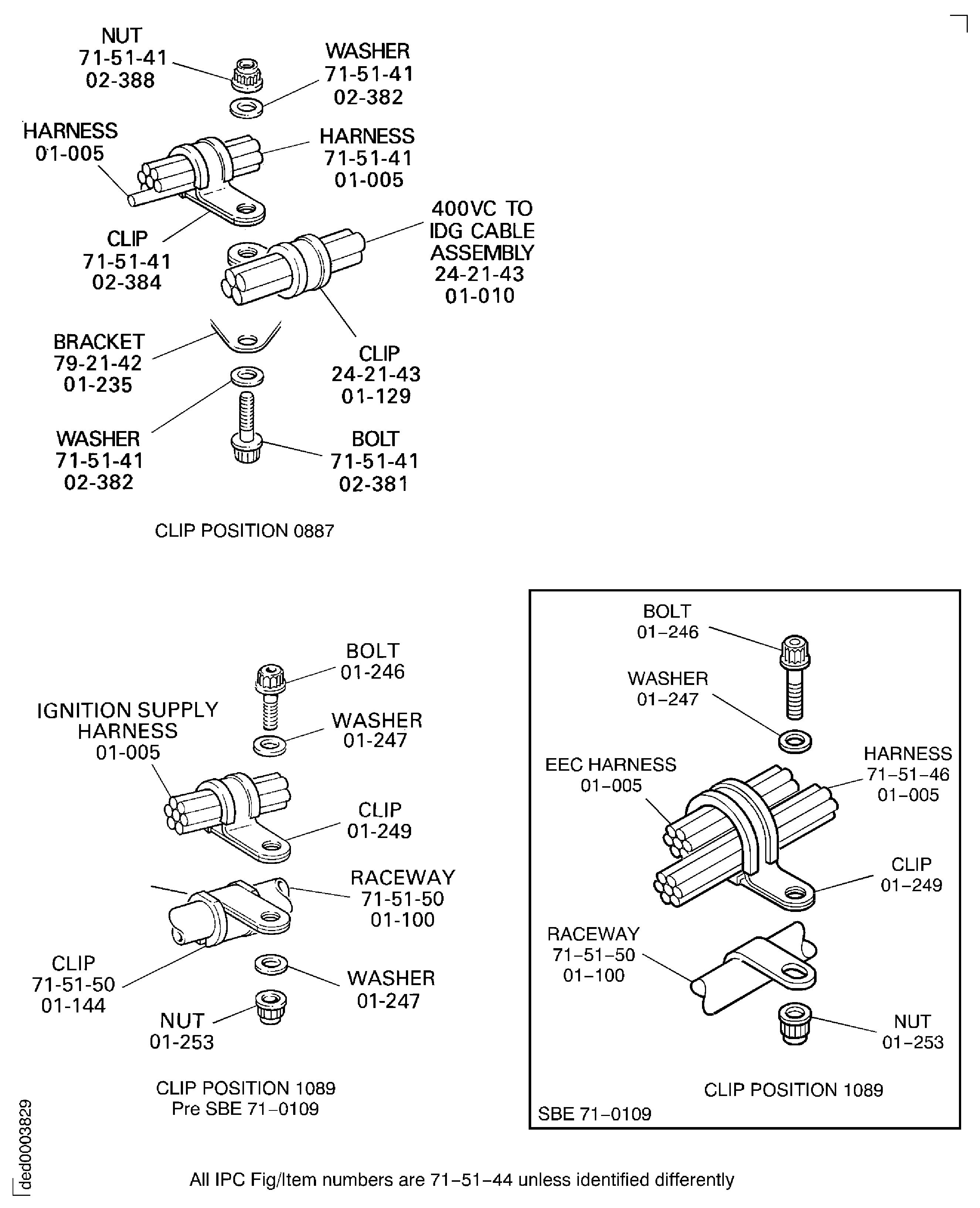

Figure: Install the 400VC to IDG Cable Assembly

Sheet 1

Figure: Install the 400VC to IDG Cable Assembly

Sheet 2

Figure: Install the 400VC to IDG Cable Assembly

Sheet 3

Figure: Install the Vibration Harnesses/Transducer

Sheet 1

Figure: Install the Vibration Harnesses/Transducer

Sheet 2

Figure: Install the Vibration Harnesses/Transducer

Sheet 3

Figure: Install the Vibration Harnesses/Transducer

Sheet 4

Figure: Identify the Clip Location

Identify the Clip Location

Figure: Pre SBE 71-0177: Install the EEC and Ignition Supply Harness

Sheet 1

Figure: Pre SBE 71-0177: Install the EEC and Ignition Supply Harness

Sheet 2

Figure: Pre SBE 71-0177: Install the EEC and Ignition Supply Harness

Sheet 3

Figure: Pre SBE 71-0177: Install the EEC and Ignition Supply Harness

Sheet 4

Figure: Pre SBE 71-0177: Install the EEC and Ignition Supply Harness

Sheet 5

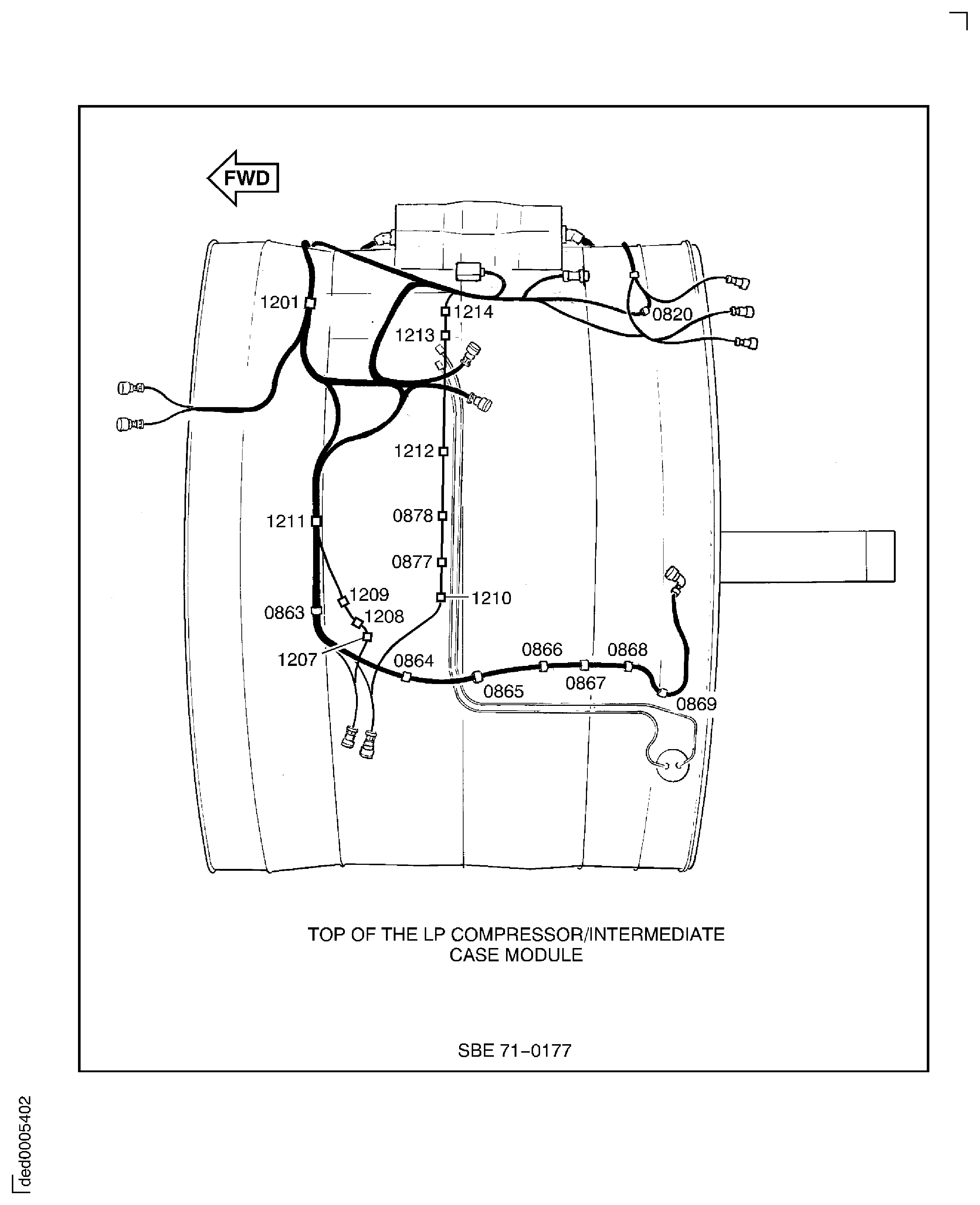

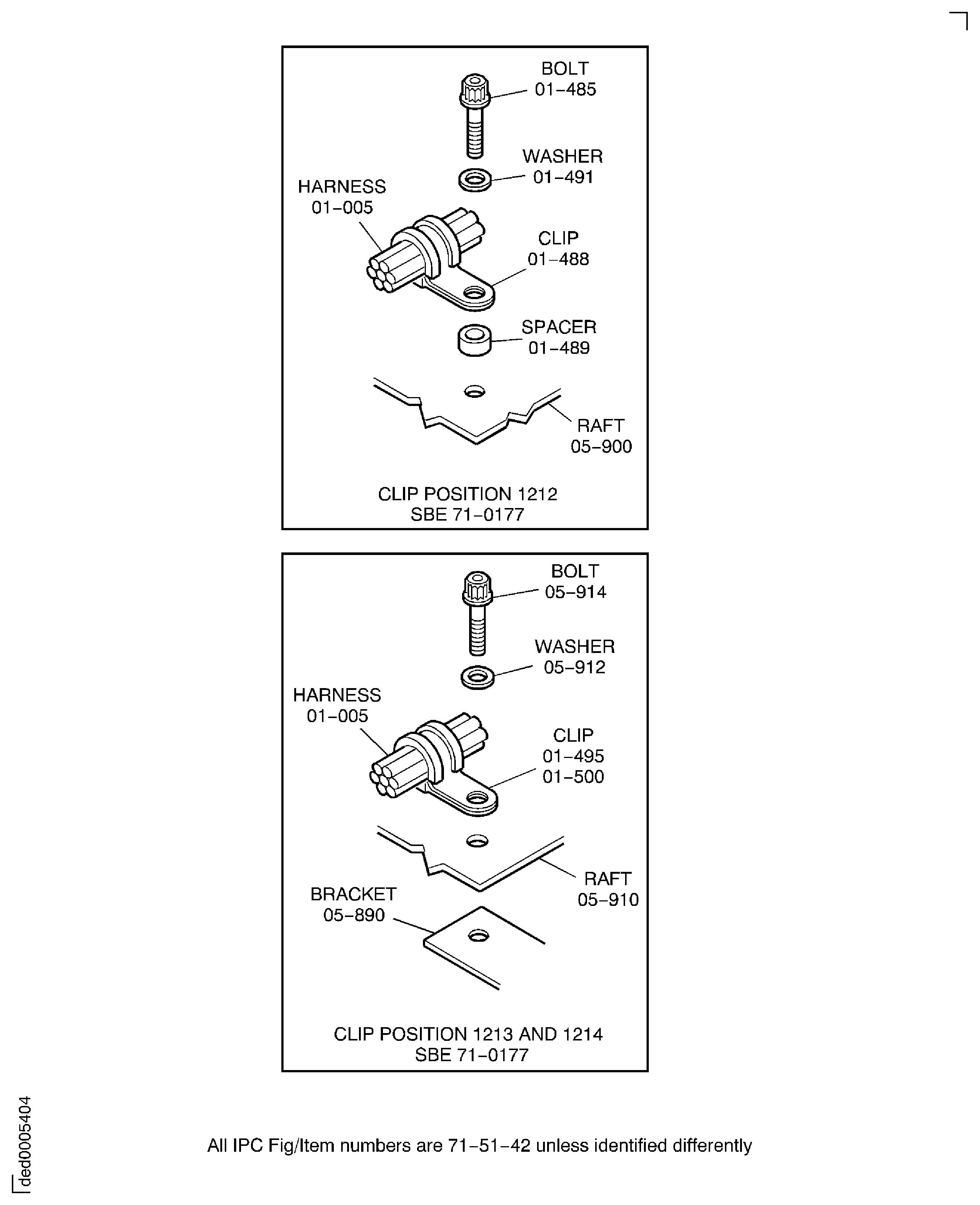

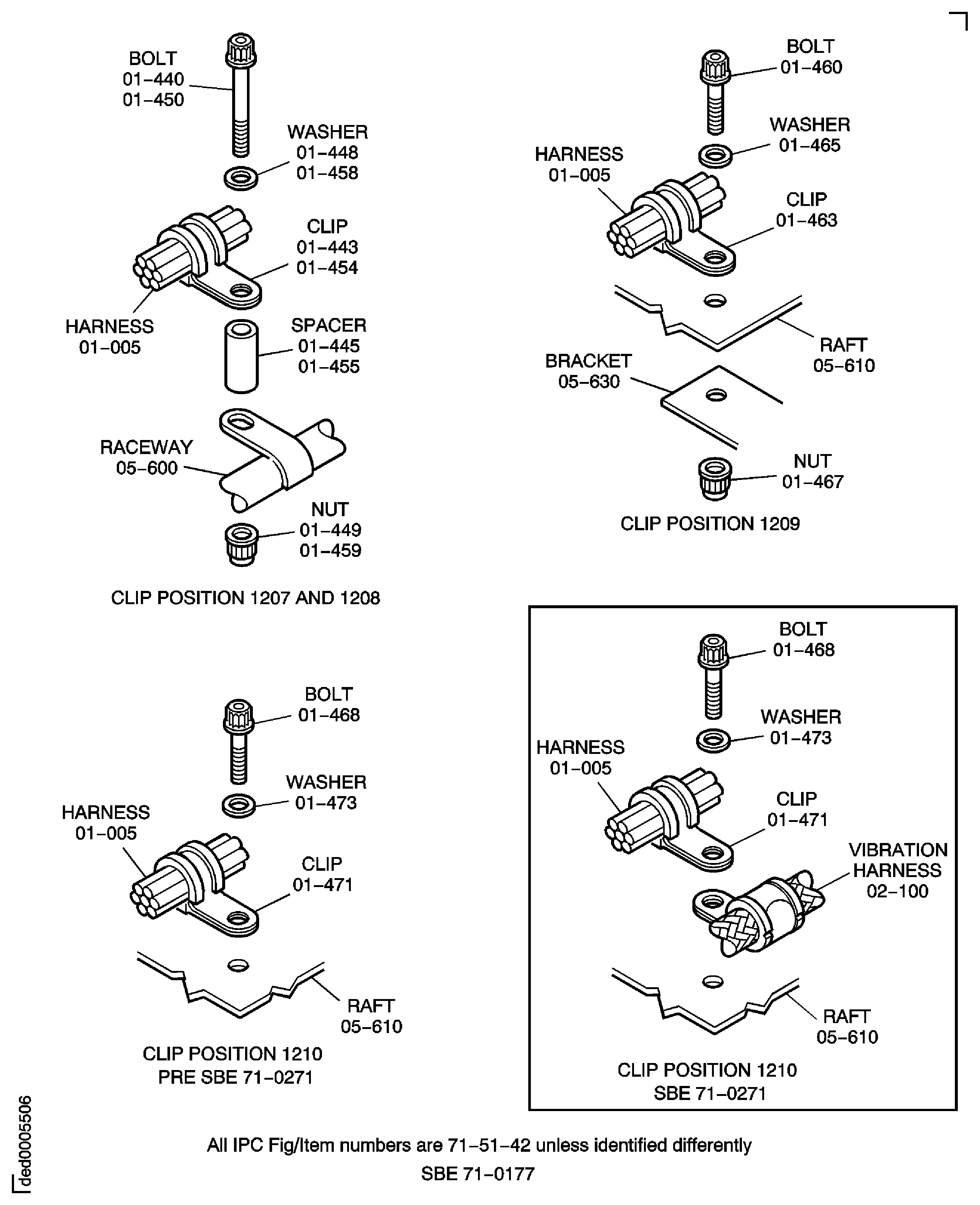

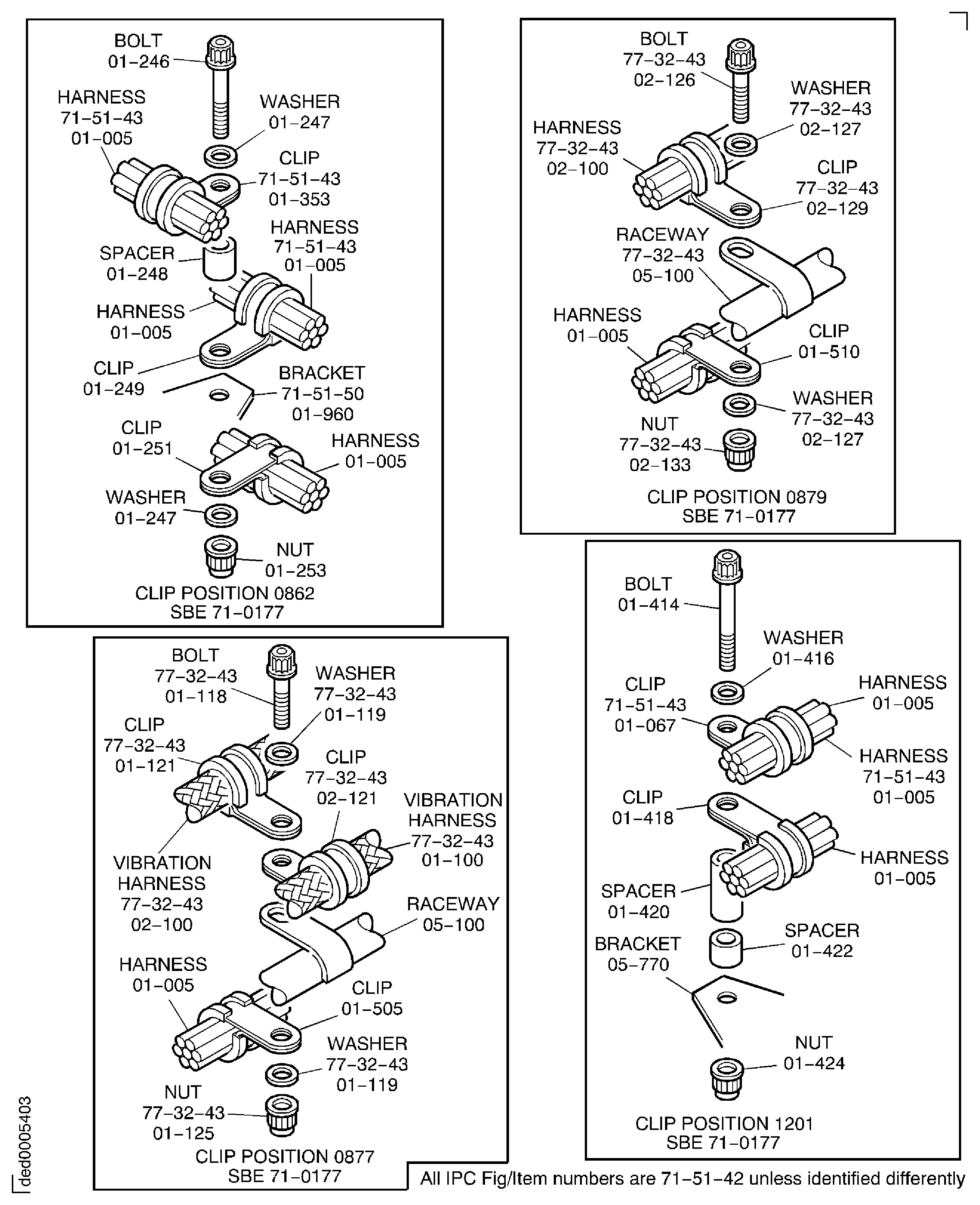

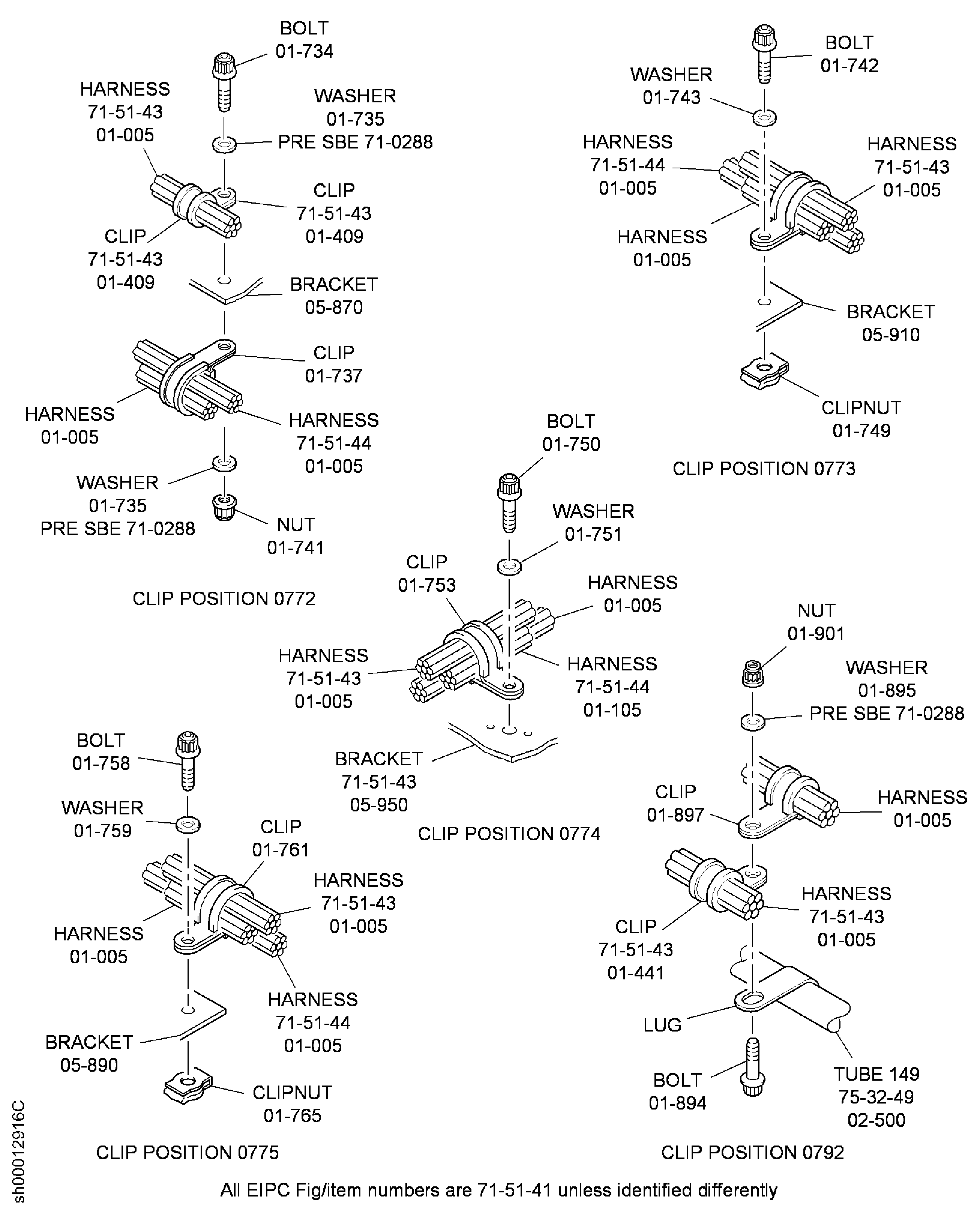

Figure: SBE 71-0177: Install the EEC and Ignition Supply Harness

Sheet 6

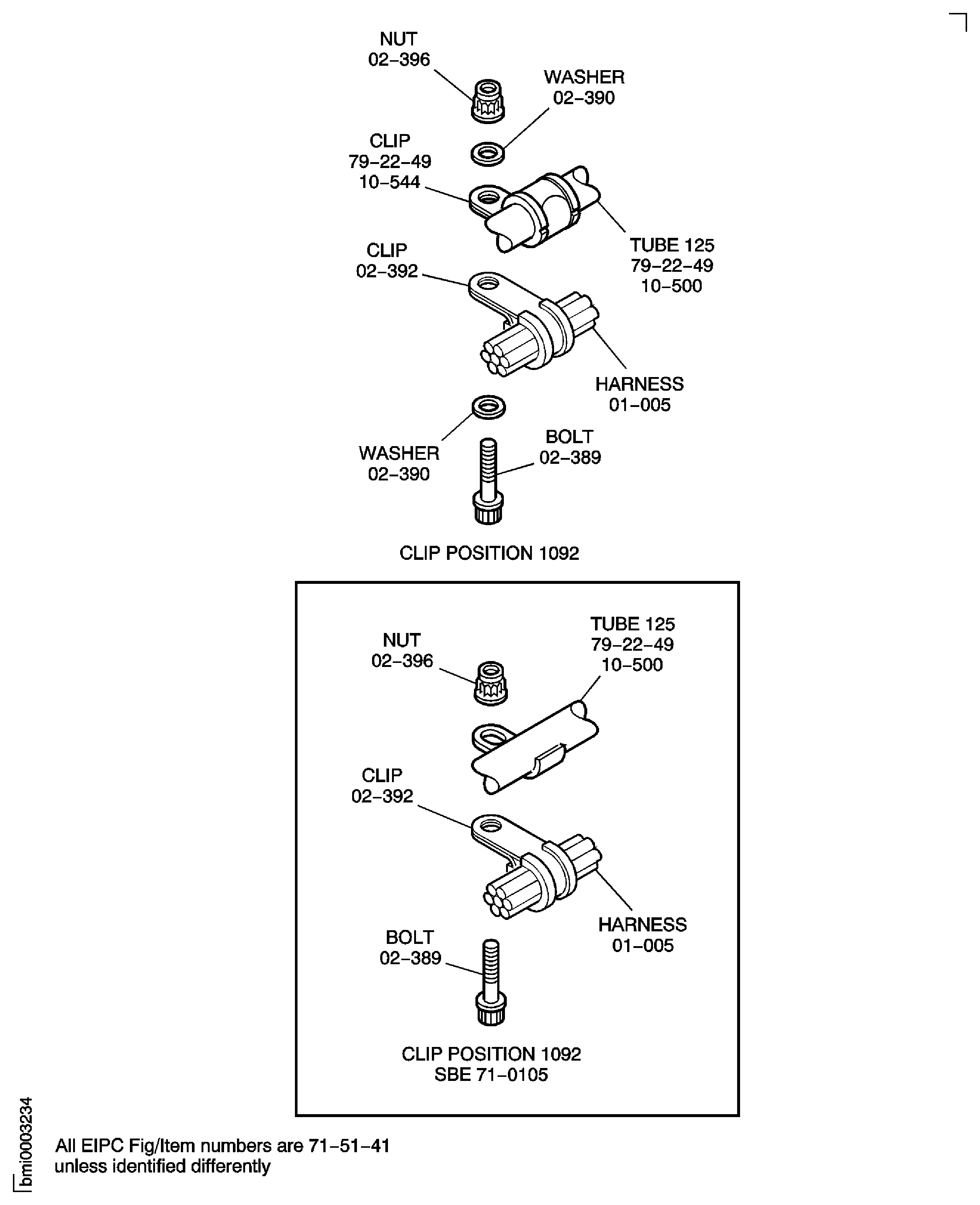

Figure: SBE 71-0177: Install the EEC and Ignition Supply Harness

Sheet 7

Figure: SBE 71-0177: Install the EEC and Ignition Supply Harness

Sheet 8

Figure: SBE 71-0177: Install the EEC and Ignition Supply Harness

Sheet 9

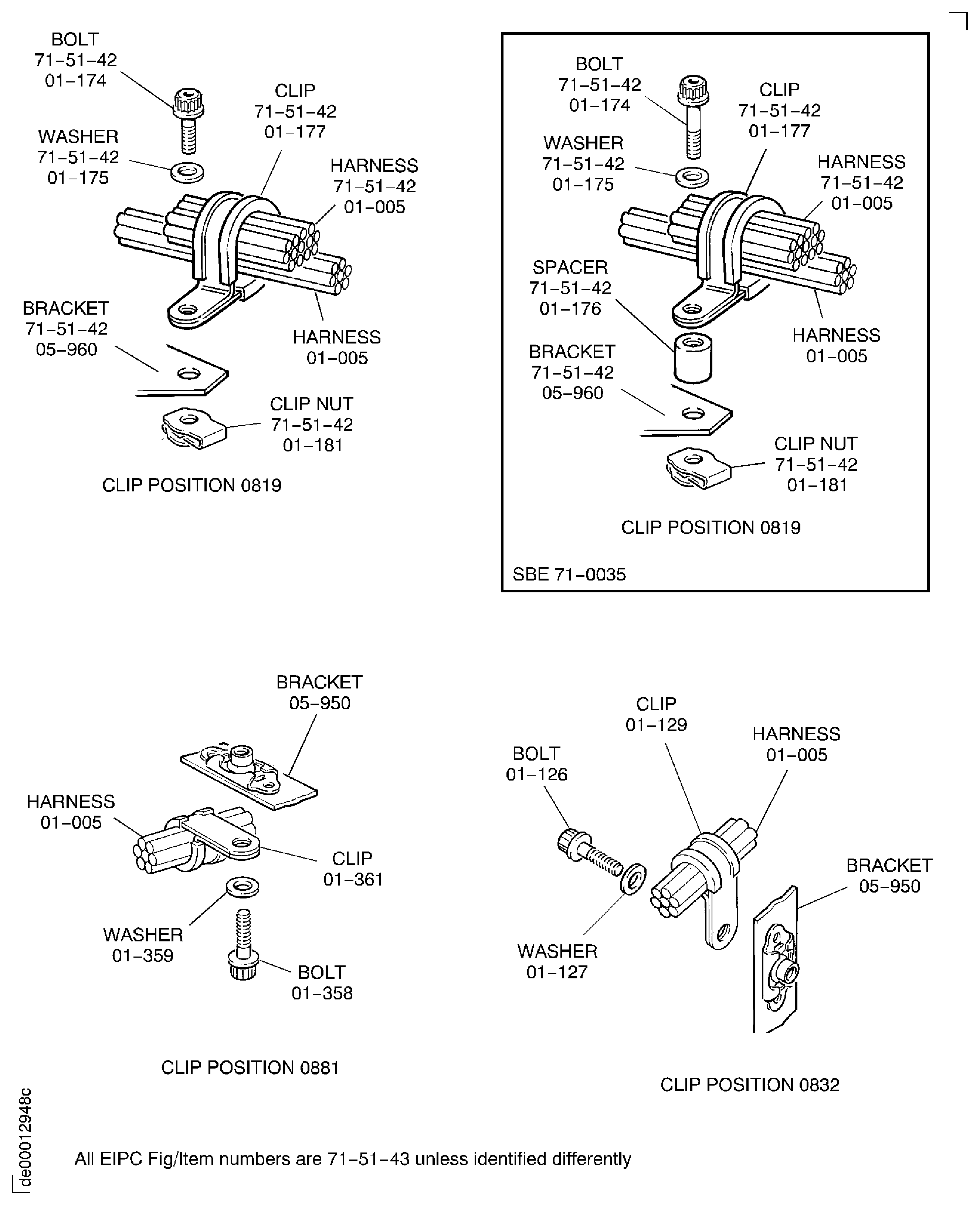

Figure: Install the General Services Harness

Sheet 1

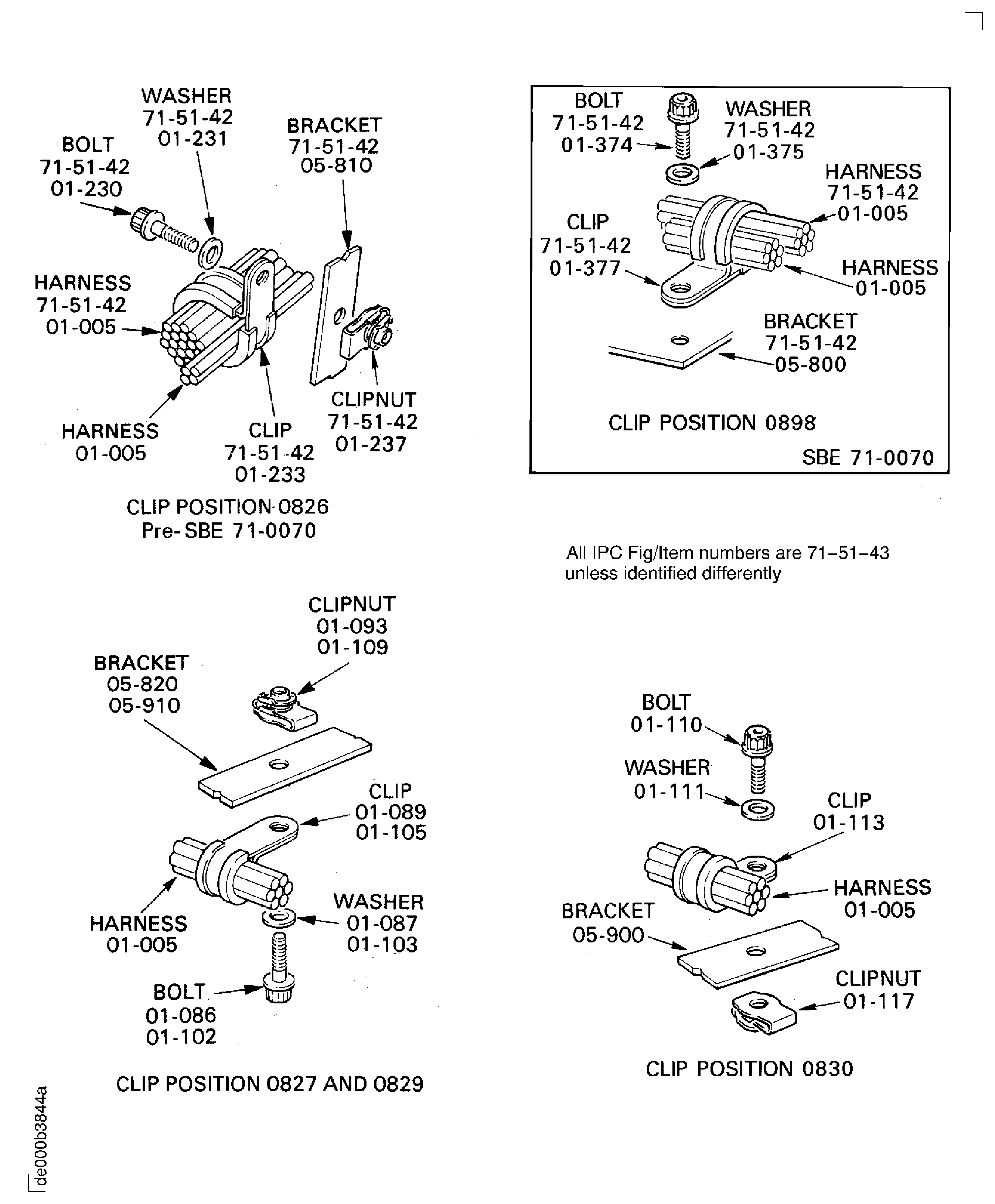

Figure: Install the General Services Harness

Sheet 2

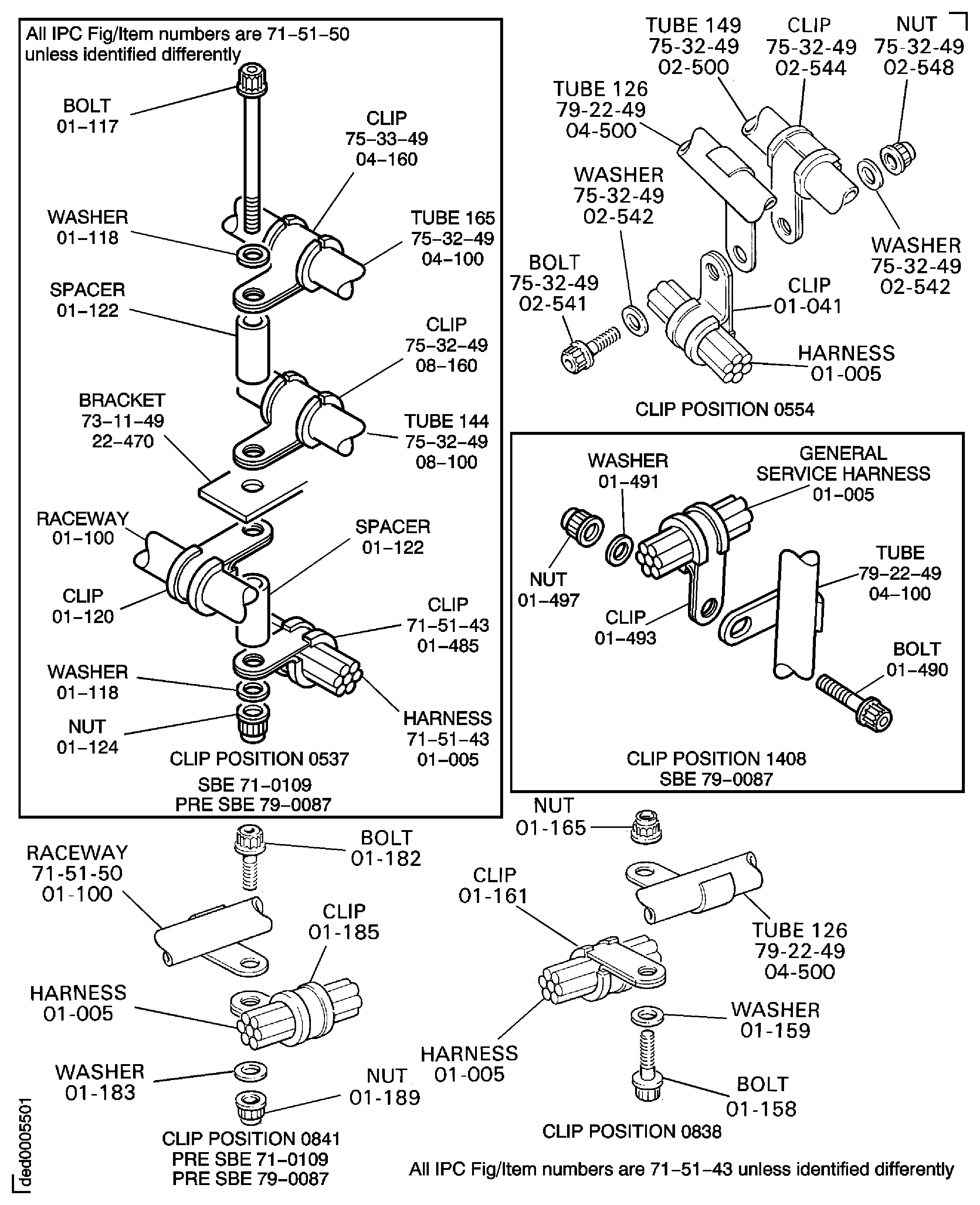

Figure: Install the General Services Harness

Sheet 3

Figure: Install the General Services Harness

Sheet 4
