TASK 72-00-32-420-004-B00 LPC/Intermediate Case Module - Install The Electrical Harnesses, Installation-004

DMC:V2500-A5-72-00-3200-04C-720A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 72-00-32-420-004-B00 LPC/Intermediate Case Module - Install The Electrical Harnesses, Installation-004

General

Refer to the TASKS which follow for the other related procedures.

TASK 72-00-32-420-001-B00 (INSTALLATION-001, CONFIG-002) - Install the LP compressor/intermediate case brackets and the bifurcation panel

TASK 72-00-32-420-002 (INSTALLATION-002) - Install the LP compressor/intermediate case components

TASK 72-00-32-420-003-B00 (INSTALLATION-003, CONFIG-002) - Install the LP compressor/intermediate case tubes and the electrical harness raceways

TASK 72-00-32-420-005-B00 (INSTALLATION-005, CONFIG-002) - Install the pneumatic starter duct, the thermal anti-ice (TAI) duct, and the hydraulic tubes, to the LP compressor/intermediate case module

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.

For the lockwire data and procedures refer to SPM TASK 70-42-05-400-501.

For safety cable data and procedures refer to SPM TASK 70-42-08-400-501.

Safety the threaded fasteners in the ATA Chapter/Section/Subject 71-51-41 and 73-22-49 as applicable with CoMat 02-274 SAFETY CABLE KIT safety cable or CoMat 02-275 SAFETY CABLE KIT safety cable.

To identify, lubricate and install the seal rings refer to the SPM TASK 70-44-00-400-501.

For the torque tightening procedures, refer to the SPM TASK 70-41-00-400-501, SPM TASK 70-41-01-400-501 and SPM TASK 70-41-02-410-501.

Special torque data and assembly tolerances are included in this procedure.

Special torque data is identified with the symbol * after the torque value.

Transportation covers/blanks must be removed immediately before the connection of the hoses to the components.

For the connection of electrical connectors, refer to the SPM TASK 70-43-01-400-501.

For the installation of open wire harnesses, refer to the SPM TASK 70-43-02-400-501.

NOTE

To identify the consumable materials refer to the PCI.
SBE 70-0813: Announcement of introduction of safety cable as a preferred method to lockwire.
Safety the threaded fasteners in this TASK with safety cable for the ATA Chapter/Section/Subject detailed in 2. General.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1R19416 EEC harness wrench0AM53IAE 1R194161

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-148 ADHESIVE TAPE (ELECTRICAL)LOCALCoMat 02-148
CoMat 06-086 TIES18992CoMat 06-086
CoMat 01-002 SOLVENT, DELETED.0AM53CoMat 01-002
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077
CoMat 02-126 LOCKWIRELOCALCoMat 02-126
CoMat 01-003 SOLVENT, DELETEDLOCALCoMat 01-003
CoMat 02-159 LACING TAPELOCALCoMat 02-159
CoMat 02-274 SAFETY CABLE KITLOCALCoMat 02-274
CoMat 02-275 SAFETY CABLE KITLOCALCoMat 02-275

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Packing1
Tape1
Braid lacing1

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-32-420-218 Electrical Harness Installation Procedure

    1. Refer to Figure.

    2. During the installation procedure make sure the harnesses are held temporarily along their different lengths. Always install the datum clip positions when you install each electrical connector. This will give the correct installation of the different harnesses and prevent too much strain on the electrical connectors. It will also give the necessary drip loops (the drip loop makes sure moisture or fluids do not go into the electrical connector).

    3. Refer to TASK 72-00-32-420-001-B00 (INSTALLATION-001, CONFIG-002) for the position on a raft or bracket of a particular clip position.

    4. Because of the differences between the harness diameters, the specified clip could be too large or too small. You can use a clip from a range of six clips (that have the same part numbers) refer to the IPC (70-40-10). If the harness diameter is between two of the clips in the range, use the larger clip. When you do this use CoMat 02-148 ADHESIVE TAPE (ELECTRICAL) to increase the harness diameter.

    5. Do not remove the special plastic caps from the electrical connectors and receptacles until immediately before they are installed. This will give protection from unwanted fluids or materials.

    6. For the data on the electrical connectors refer to the SPM TASK 70-43-00-400-501 and the SPM TASK 70-43-01-400-501.

    2. SUBTASK 72-00-32-420-219 Install the 400VC to IDG Cable Assembly (24-21-43,01-010)

    1. Refer to Figure, Figure and Figure.

    2. Temporarily attach the IDG cable connector to a safe position on the LP compressor/intermediate case with CoMat 06-086 TIES.

    3. Install the bolts, the washers, the clips and the nuts to attach the cables to the brackets at the clip positions 0883 to 0888. Do not tighten the nuts at this step.

    4. WARNING

      WHEN YOU USE CoMat 01-002 SOLVENT, DELETED. YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

      Clean the mating faces of the brackets ELECTRICAL POWER-IDG CABLES (24-21-43, 01-950 ,ELECTRICAL POWER-IDG CABLES 01-952) and the clamp ELECTRICAL POWER-IDG CABLES (24-21-43, 01-030) with a clean lint free cloth made moist with CoMat 01-002 SOLVENT, DELETED..

    5. Install the clamp ELECTRICAL POWER-IDG CABLES (24-21-43, 01-030) on the cables. Attach the clamp to the brackets ELECTRICAL POWER-IDG CABLES (24-21-43, 01-950) and ELECTRICAL POWER-IDG CABLES (24-21-43, 01-952) with the two bolts and the two nuts ELECTRICAL POWER-IDG CABLES (24-21-43, 01-020) and ELECTRICAL POWER-IDG CABLES (24-21-43, 01-040) at the clip position 0882.

    6. Clean the mating faces of the bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-940) and the cable terminals at the earth position with a clean lint free cloth made moist with CoMat 01-002 SOLVENT, DELETED..

    7. Install the two cable terminals to the earth position on the bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-940). Install the nut ELECTRICAL POWER-IDG CABLES (24-21-43, 01-140) on the bracket. Refer to the view on A.

    8. Remove the CoMat 06-086 TIES which hold the IDG cable connector.

    9. Measure dimension B from the IDG cable connector to the clamp at the clip position 0882. Dimension B must be a minimum of 12.25 in. (311 mm) and a maximum of 12.52 in. (318 mm) for the cables T1 and T2. For the cables T3 and N, the minimum dimension B must be 11.8 in. (300 mm) and the maximum must be 12.07 in. (306 mm). Refer to the view on B.

    10. Make sure there is not too much bend on the IDG Harness to cause too much force on the connector contacts.

      11. SBN 24-0020: If there is too much bend on the IDG Harness adjust the IDG Harness routing and the bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-940) as follows:

      1. Loosen the nuts ELECTRICAL POWER-IDG CABLES (24-21-43, 01-945).

      2. Move bracket along slots to remove the bend on the harness.

      3. Torque the nuts to 85 to 105 lbf.in. (10 to 12 Nm).

    12. Torque the nuts at the clip positions to 36 to 45 lbf.in. (4 to 5 Nm).

    13. Torque the nut ELECTRICAL POWER-IDG CABLES (24-21-43, 01-140) at the earth position to 110 lbf.in (12.4 Nm).

    3. SUBTASK 72-00-32-420-220 Install the Vibration Harnesses/Transducer (Pre SBE 71-0271 and SBE 71-0271)

    1. Refer to Figure, Figure, Figure and Figure.

      2. Install the vibration transducer Vibration Transducer (77-32-15, 01-100) as follows:

      1. Lightly lubricate a new Vibration Transducer (77-32-15, 01-420) packing 1 off with CoMat 10-077 APPROVED ENGINE OILS approved engine oils.

      2. Install the Vibration Transducer (77-32-15, 01-420) packing 1 off on the baseplate Vibration Transducer (77-32-15, 01-410).

      3. Install the three bolts Vibration Transducer (77-32-15, 01-400) through the transducer and the baseplate. Install the transducer assembly to the LP compressor/intermediate case. Torque the bolts to 35 to 44 lbf.in (3.9 to 4.9 Nm).

      4. Install the bolts, washers, the nut, the clipnut and the clips at the clip positions 0870 to 0875.

      5. Install the transducer bracket to the flange brackets EEC Fan Harness And Ignition Supply Harness (71-51-42, 05-080) and EEC Fan Harness And Ignition Supply Harness (71-51-42, 05-090) with the two bolts and the two nuts Vibration Transducer (77-32-15, 01-101) and Vibration Transducer (77-32-15, 01-104). Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).

      6. Torque the bolts at the clip positions 0870 to 0874 and the nut at clip position 0875 to 36 to 45 lbf.in (4 to 5 Nm).

      3. Install the vibration harnesses Vibration Indication Harness (77-32-43, 01-100) and Vibration Indication Harness (77-32-43, 02-100) as follows:

      1. Pre SBE 71-0271: Install the bolts, the washers, the nuts and the clips at the clip positions 0876 to 0880.

      2. SBE 71-0271: Install the bolts, the washers, the nuts and the clips at the clip positions 0876 to 0880 and 1210.

      3. Align the master keyways then connect and torque the electrical connectors P800 and P801 to J800 and J801 to 14 * lbf.in (1.6 Nm), refer to the view on C.

      4. Pre SBE 71-0271: Torque the nuts at the clip positions 0876 to 0880 to 36 to 45 lbf.in (4 to 5 Nm).

      5. SBE 71-0271: Torque the nuts at the clip positions 0876 to 0880 and 1210 to 36 to 45 lbf.in (4 to 5 Nm).

    4. SUBTASK 72-00-32-420-221 Install the EEC and Ignition Supply Harness (Pre SBE 71-0165, SBE 71-0165 and SBE 71-0177)

      SBE 71-0165: Introduction of a new EEC and Ignition Supply Harness (for controlled service use).

      SBE 71-0177: Introduction of a new EEC and Ignition Supply Harness (for production use).

      1. NOTE

        The EEC and ignition supply harness and the general services harness are previously attached to the terminal module. Refer to the Component Maintenance Manual (CMM-EHC-V2500-1IA) TASK 73-22-34-440-301 (ASSEMBLY-001). Install both these harnesses at the same time. Refer to Step.

        Install the EEC and ignition supply harness EEC Fan Harness And Ignition Supply Harness (71-51-42, 01-005) as follows:

      3. Identify the correct datum clip positions as follows: 1075, 0781, 0764, 0550, 0818, 0819, 0822, 0800 to 0802, 0809, 0863, 0864 and 0869.

      4. Connect and torque the electrical connectors 4000KS-J1 and 4000KS-J7 to the EEC V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-280) with the IAE 1R19416 EEC harness wrench 1 off to 32 * lbf.in (3.6 Nm).

      5. Temporarily attach the harnesses to the applicable bracket at the datum clip positions 1075, 0781 and 0764 with CoMat 06-086 TIES. Also datum clip position 0550 to the tube lug, Figure.

      6. Install the terminal module V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-560) to the hole No.9 on the flange FB with the bolt and the nut V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-240 and 01-260). Torque the nut to 85 to 105 lbf.in (10 to 12 Nm). Refer to Figure.

      7. NOTE

        Hole No. 1 is at 12.5 degrees from the engine top position on the flange FB when you look from the rear of the engine.

        Install the harnesses at the datum clip positions 0818 and 0822. Temporarily attach the datum clip position 0819 to the bracket with CoMat 06-086 TIES. Refer to Figure and Figure.

      8. Install the remaining datum clip positions 0800 to 0802, 0809, 0863, 0864 and 0869.

      9. Install the bolts, the washers, the nuts and the clipnuts, the spacers and the clips at the clip positions.

      10. Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm) in the anchor/clipnuts at the clip positions.

      11. At the remaining clip positions, torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).

      12. Make sure that no harness length has too much strain on it. If it is necessary, loosen the bolt or nut at the applicable clip position. Adjust the harness and torque the bolt or nut to that given in Step and Step.

    5. SUBTASK 72-00-32-420-222 Install the General Services Harness

      1. Install the general services harness General Services Harness (71-51-43, 01-005) as follows:

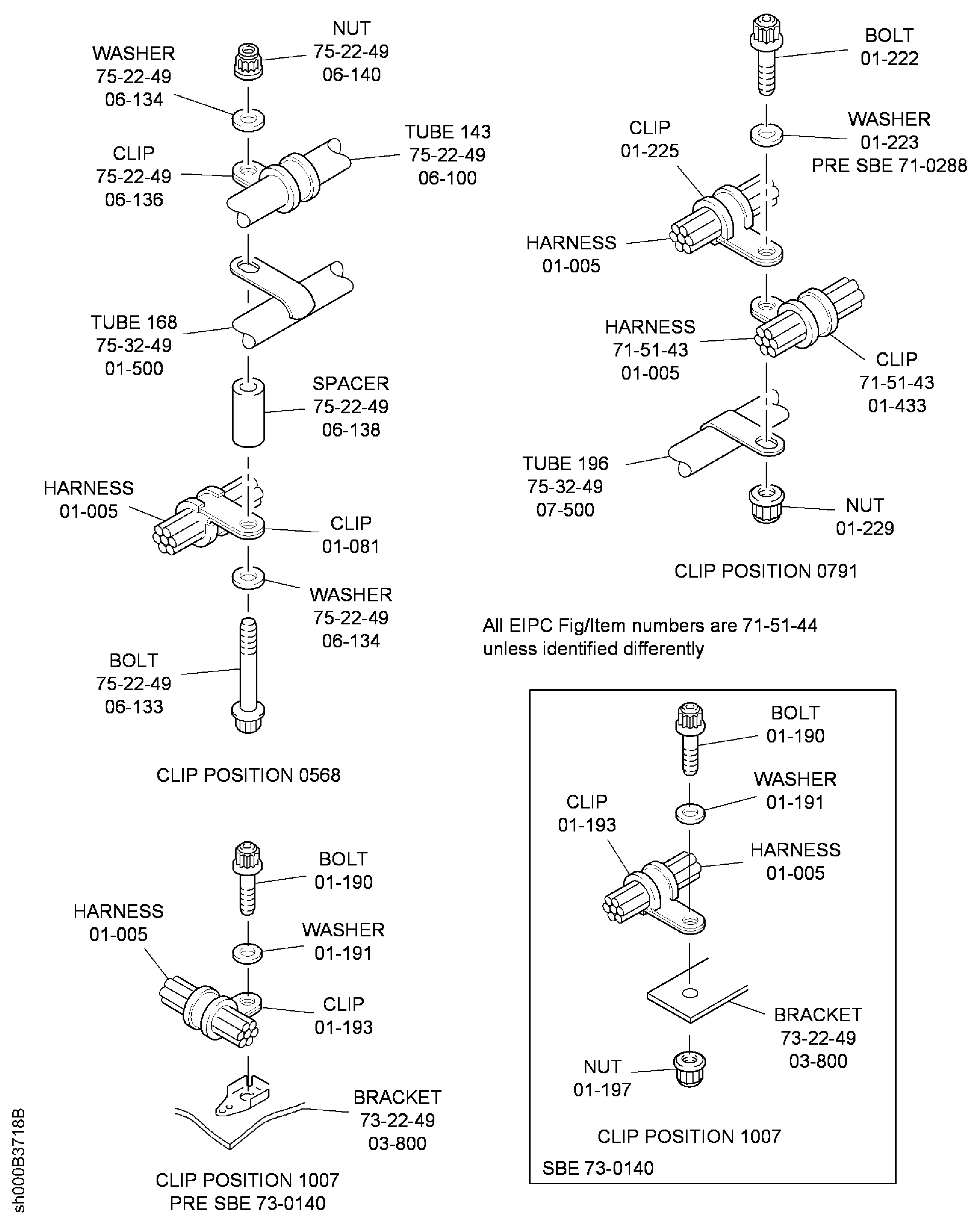

      2. Identify the correct datum clip positions 0800, 0809, 0791, 0830 to 0834, 0881, 0852 to 0855, 0903, 0848, 0258, 0892, 0787, 0788 and 0922.

      3. Install the datum clip positions 0809 and 0800.

      4. Install the general services harness to the LP compressor/intermediate case, connect and torque the electrical connectors:

        4005EN-A to the No.4 bearing pressure transducer OIL-NO.4 BEARING PRESSURE TRANSDUCER (79-33-16,01-100) to 12 * lbf.in (1.4 Nm). Install the datum clip positions 0881 and 0841.

        4100KS-B to the relay box Ignition Relay Box (71-51-49, 01-100) to 18 * lbf.in (2.0 Nm). Temporarily attach the datum clip position 0791 to the tube lug with CoMat 06-086 TIES. Refer to Figure.

        4003EN-A to the oil pressure transmitter OIL-OIL PRESSURE TRANSMITTER (79-33-15, 01-010) to 18 * lbf.in (2.0 Nm). Install the datum clip positions 0852 and 0853.

        4000EN-A to the low oil pressure switch LOW OIL PRESSURE SWITCH (79-34-15, 01-010) to 14 * lbf.in (1.6 Nm). Install the datum clip position 0854.

        1074GK-A to the hydraulic pressure switch HYDRAULIC POWER-HYDRAULIC PRESSURE SWITCH (29-11-17, 01-010) to 14 * lbf.in (1.6 Nm).

        4001EN-A to the scavenge filter differential pressure switch OIL-SCAVENGE FILTER DIFFERENTIAL PRESSURE SWITCH (79-35-16, 01-010)to 14 * lbf.in (1.6 Nm). Install the datum clip position 0903.

      5. Attach the terminals at GP1, GP2, GP3 and GP4 with the 24 bolts and the 24 washers General Services Harness (71-51-43, 01-010 and General Services Harness 01-011). Install four of the bolts/washers at the positions which are not used. Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm).

      6. Install the bolts, the washers, the clipnuts, the nut and the clips at the datum clip positions 0855, 0848, 0833 and 0831. Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm).

      7. Install the remaining datum clip positions 0830, 0832 and 0834.

      8. Temporarily attach the datum clip positions 0892, 0787, 0258 and 0922 to the applicable brackets with CoMat 06-086 TIES. Refer to Figure and Figure.

      9. Install the bolts, the washers, the nuts, the clipnuts and the clips at the clip positions.

      10. Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm) in the anchor/clipnuts at the clip positions.

      11. At the remaining clip positions torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).

      2. Install the terminal module, Figure.

      1. Refer to Step.

      3. Examine the harness.

      1. Make sure that no harness length has too much strain on it. If it is necessary, loosen the bolt or nut at the applicable clip position. Adjust the harness and torque the bolt or the nut to that given in Step or Step.

    6. SUBTASK 72-00-32-420-223 Install the EEC Harness (Pre SBE 75-0081 and SBE 75-0081)

      SBE 75-0081: Air - Deletion of the HPC stage 10 make-up air valve

      1. NOTE

        Install the ignition supply harness with the EEC harness. Refer to Step.

        Install the EEC harness EEC Fan Harness (71-51-41, 01-005) as follows:

      2. Identify the correct datum clip positions 1075, 0783, 0761, 0764, 1015, 1021, 1022, 0540, 0529, 0792, 1009, 0256, 0325, 0753, 0754, 0295 and 0778.

      3. Connect and torque the electrical connectors 4000KS-J2 to -J5 and 4000KS-J8 to -J11 to the EEC V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-280) with the IAE 1R19416 EEC harness wrench 1 off to 32* lbf.in (3.6 Nm).

      4. Install the datum clip position 0783. Temporarily attach the harness at the datum clip position 0764 with CoMat 06-086 TIES.

      5. Install the electrical harness receptacle 4000VC, attached to the EEC harness EEC Fan Harness (71-51-41, 01-005), to the bracket EEC Fan Harness (71-51-41, 05-935) with the four bolts and the four assembled washer nuts EEC Fan Harness (71-51-41, 01-027 and EEC Fan Harness 01-025). Make sure the master keyway is in the outboard direction. Refer to the detail on B, Figure. Install the datum clip position 0761.

      6. Torque the assembled washer nuts to 10 to 14 lbf.in (1.1 to 1.6 Nm).

      7. Connect the electrical connector 4000VC-A EEC Fan Harness And Ignition Supply Harness (71-51-42, 01-005) to the harness receptacle 4000VC, align the master keyway. Torque the connector to 46 * lbf.in (5.2 Nm). Refer to Figure and Figure. Remove the temporary ties and install the datum clip positions 0764.

      8. Install the electrical harness receptacle 4001VC, attached to the EEC harness EEC Fan Harness (71-51-41, 01-005), to the bracket POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN (71-51-41, 06-560) with the four bolts and the four assembled washer nuts EEC Fan Harness (71-51-41, 01-022 and EEC Fan Harness 01-020). Make sure the direction of the master keyway is at the top (in relation to the bracket). Refer to the detail on A. Remove the temporary ties and install the datum clip position 1075.

      9. Torque the assembled washer nuts to 10 to 14 lbf.in (1.1 to 1.6 Nm).

      10. Connect the electrical connector 4001VC-A EEC Fan Harness And Ignition Supply Harness (71-51-42, 01-005) to the harness receptacle 4001VC, align the master keyway. Torque the connector to 46 * lbf.in (5.2 Nm). Refer to Figure and Figure.

      11. Remove the temporary ties and install the datum clip position 0819, Figure and Figure.

      2. Connect and torque the electrical connectors (Right side):

      1. 4100KS-E and 4100KS-A to the relay box Ignition Relay Box (71-51-49, 01-100) to 21 * lbf.in (2,4Nm). Install the the datum clip position 1015.

      2. 4016KS-A to the ACOC oil temperature thermocouple ACOC Oil Temperature Thermocouple (79-32-15, 01-200) to 18 * lbf.in (2.0 Nm). Install the datum clip position 1022.

      3. 4029KS-A to the HP stage 7 and 10 air solenoid valve STAGE 10 AIR SOLENOID VALVE (36-11-57, 01-100) to 18 * lbf.in (2.0 Nm).

      4. 4020KS1-A to the HP compressor stage 7 solenoid valve (51.9 degrees) HPC Stage 7 Solenoid Valve(75-32-51, 01-100) to 18 * lbf.in (2.0 Nm). Install the datum clip position 1021.

      5. 4020KS3-A to the HP compressor stage 7 solenoid valve (228 degrees) HPC Stage 7 Solenoid Valve (75-32-51, 01-100) to 18 * lbf.in (2.0 Nm).

      6. 4020KS2-A to the HP compressor stage 7 solenoid valve (108.8 degrees) HPC Stage 7 Solenoid Valve (75-32-51, 01-100) to 18 * lbf.in (2.0 Nm).

      7. 4028KS-A to the stage 10 air solenoid valve AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-100) to 18 * lbf.in (2.0 Nm).

      8. 4023KS-A to the HP compressor stage 10 solenoid valve AIR-HPC STAGE 10 SOLENOID VALVE (75-32-53, 01-400) to 18 * lbf.in (2.0 Nm).

      9. 4019KSA and 4019KS-B to the ACOC air modulating valve Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51,01-100) to 18 * lbf.in (2.0 Nm). Install the datum clip positions 1009, 0792, 0540 and 0778. Temporarily attach the datum clip positions 0529 with CoMat 06-086 TIES.

      3. Route the harness at the bifurcation panel.

        1. CAUTION

          YOU MUST ROUTE THE EEC HARNESS AND THE IGNITION SUPPLY HARNESS NEXT TO EACH OTHER TO THE ELECTRICAL CONNECTOR 4009VC-A. FOLLOW THE ROUTING PROCEDURE TO KEEP THE RIGHT SIDE EEC HARNESS FROM TOUCHING THE RIGHT SIDE C DUCT AND ADJACENT TUBE INSTALLATIONS.

          Route the right side EEC harness and the right side ignition supply harness next to each other to the electrical connection 4009VC-A as follows:

        1. Remove the two nuts and the two bolts which temporarily attach the tube 153 to the bifurcation panel.

        2. Route the EEC harness from the right side of the engine and between the tubes 153 and 138. This is the bundle attached with the bundle for the electrical connector 4009VC-A.

        3. Put the electrical connector 4008VC-A (from the left side of the engine) between the tubes 153 and 138.

        4. Route the ignition supply harness through the gap below the right side and the left side EEC harness looms to the electrical connectors 4008VC-A and 4009VC-A. Make sure the ignition supply harness is routed in the rear direction through the clip position 0568.

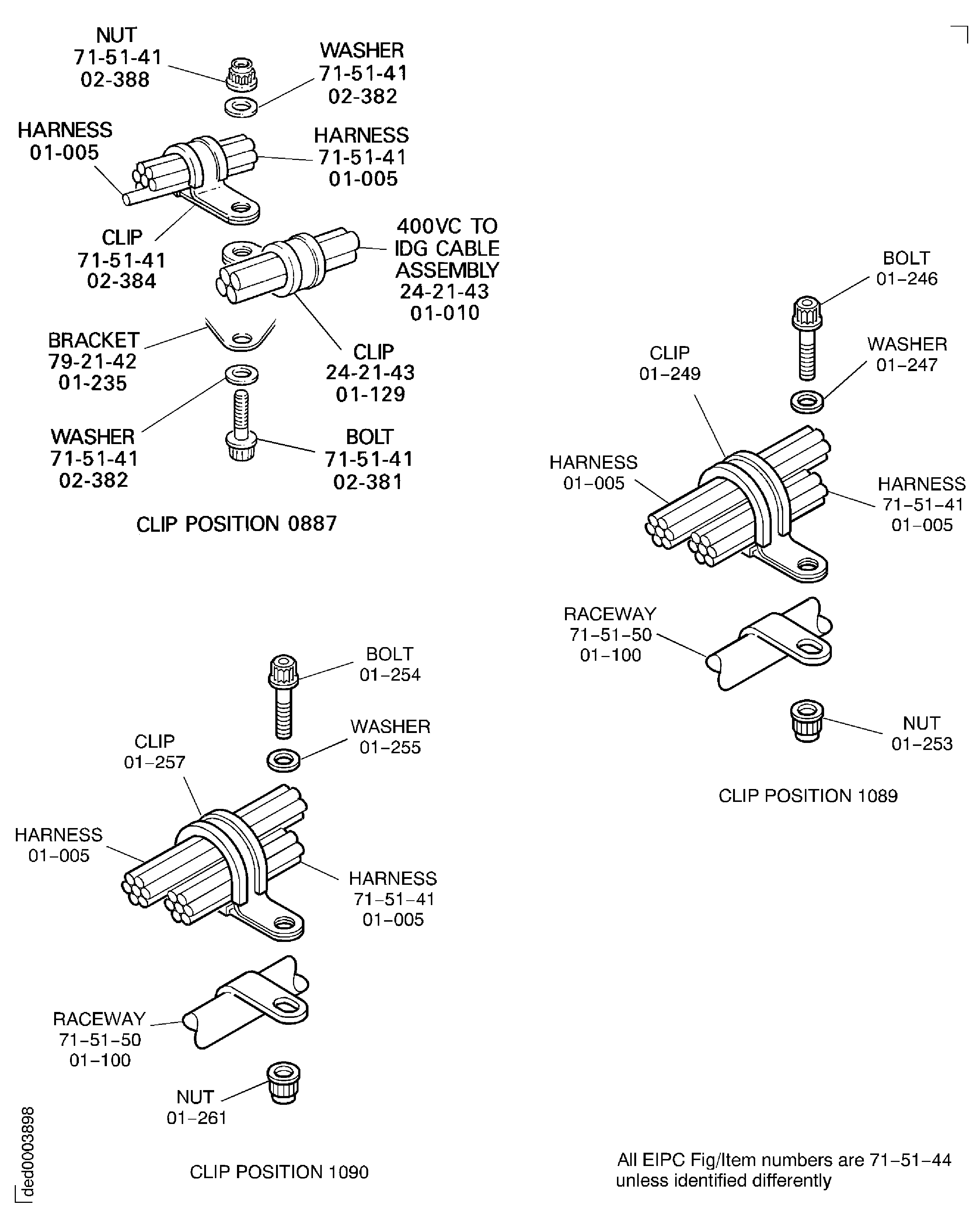

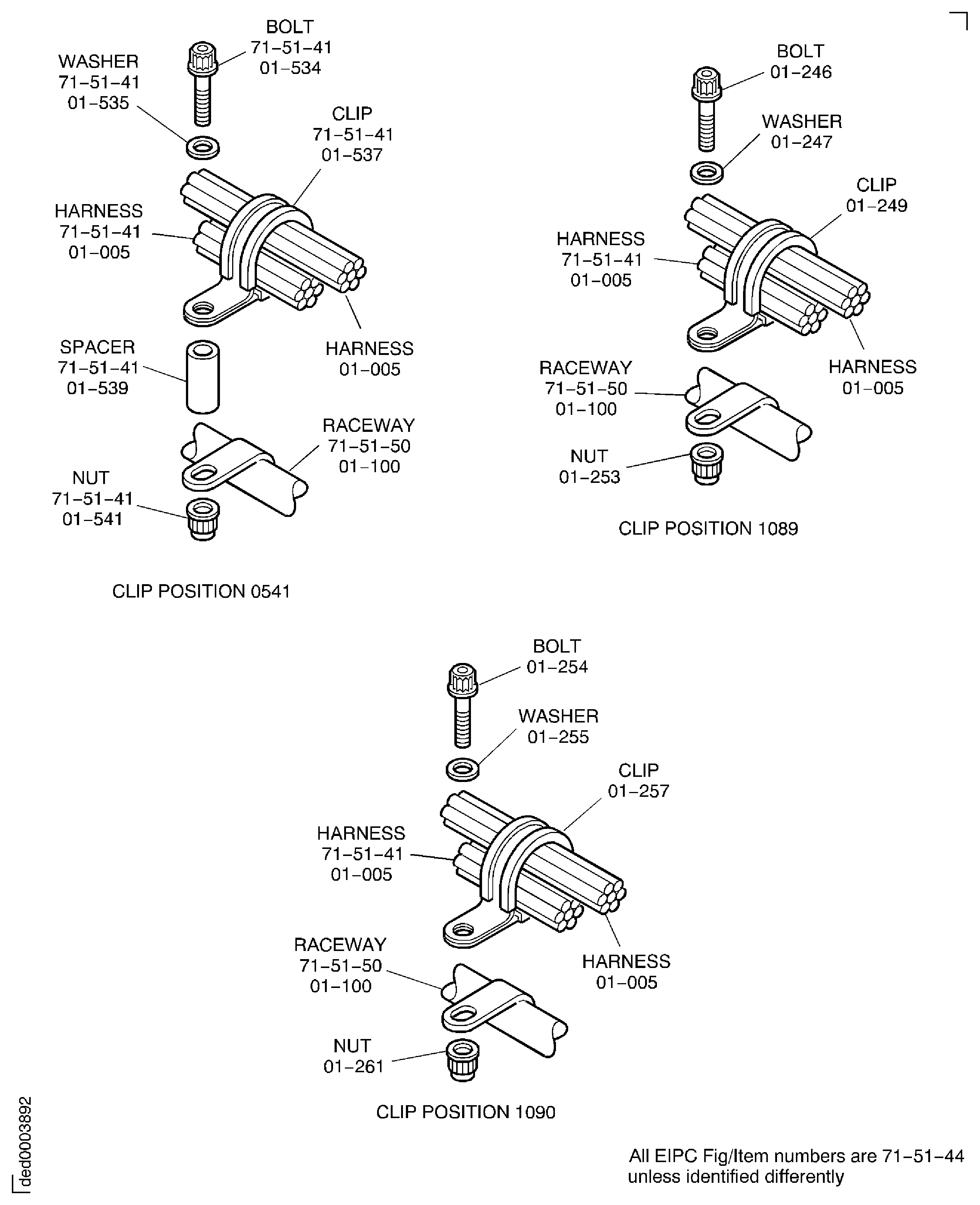

        5. Both harnesses must be held at clip position 1089.

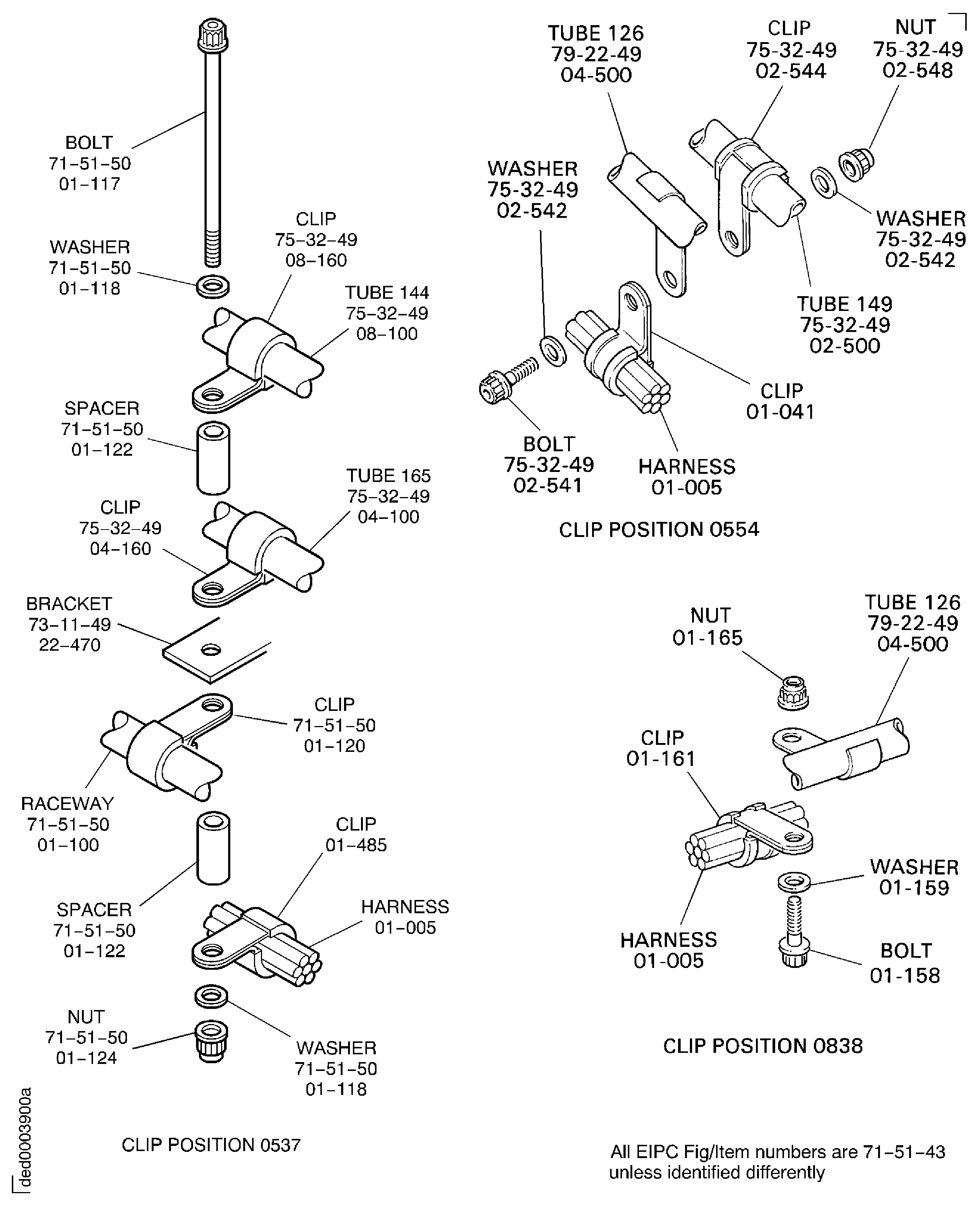

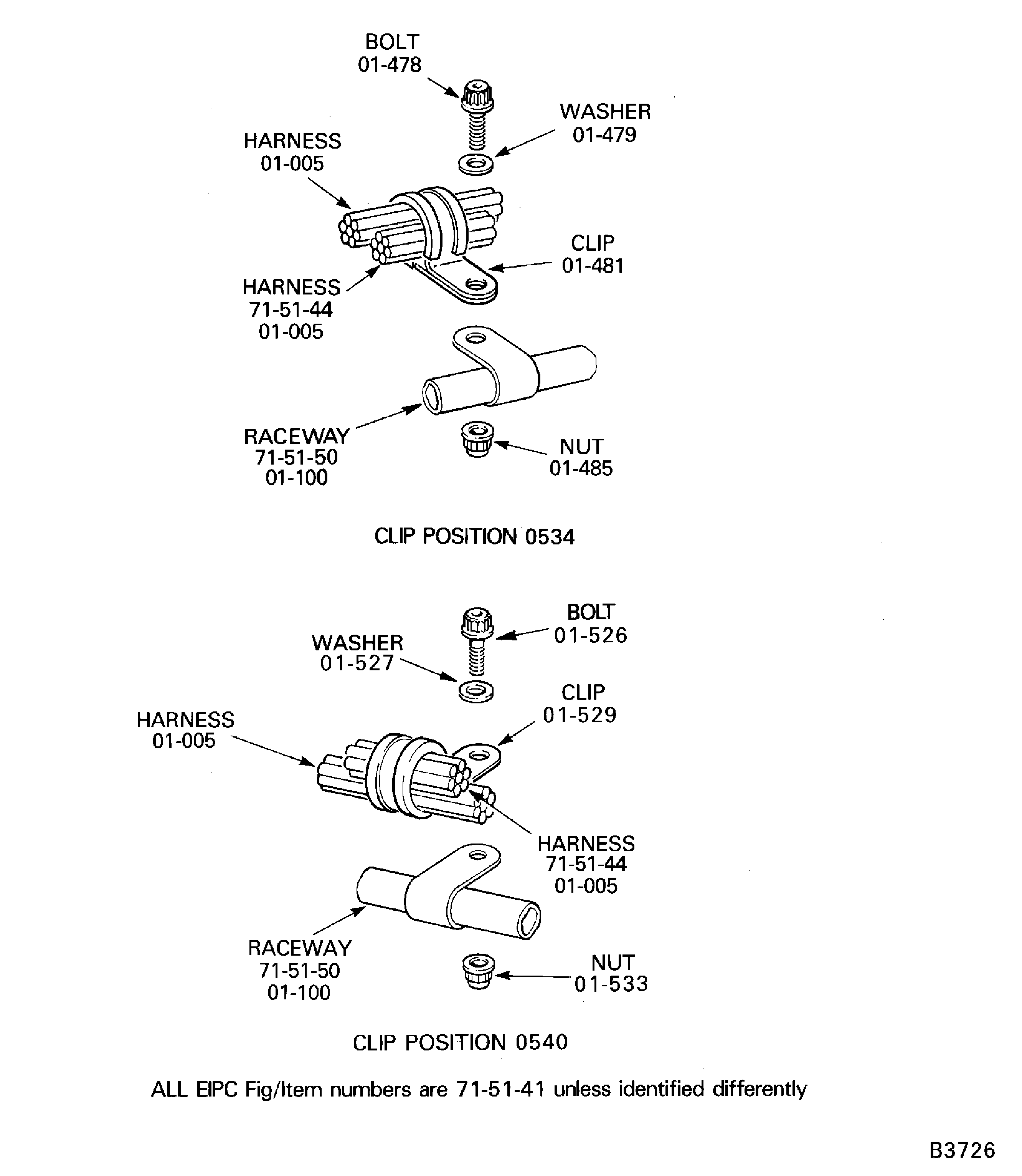

        6. Attach the bundles together at the datum clip positions 0540 and 0256.

        7. NOTE

          Refer to TASK 72-00-32-420-003 (INSTALLATION-003, CONFIG-002) for the installation procedure for the tubes 153 and 156.

          Install the bolt AIR-HP COMPRESSOR BLEED CONTROL TUBES (75-32-49, 12-165), the washer AIR-HP COMPRESSOR BLEED CONTROL TUBES (75-32-49, 12-166), the nut AIR-HP COMPRESSOR BLEED CONTROL TUBES (75-32-49, 12-172) and the clip AIR-HP COMPRESSOR BLEED CONTROL TUBES (75-32-49, 12-168) at the clip position 1078 to attach the tube 153 PNEUMATIC-TUBES-HP BLEED CONTROL AIR (36-11-47, 01-500) to the tube 156.

        8. Attach the tube 153 to bifurcation panel with the two bolts and the two nuts PNEUMATIC-TUBES-HP BLEED CONTROL AIR (36-11-47, 01-506 and PNEUMATIC-TUBES-HP BLEED CONTROL AIR 01-502).

        9. Torque the tube 236 HP Bleed Control Air Tubes (36-11-47, 02-100) nut (attached to the tube 153) to 159 to 177 lbf.in (18 to 20 Nm). Safety the tube nut with CoMat 02-126 LOCKWIRE.

        10. Torque the two nuts PNEUMATIC-TUBES-HP BLEED CONTROL AIR (36-11-47, 01-502) to 85 to 105 lbf.in (10 to 12 Nm).

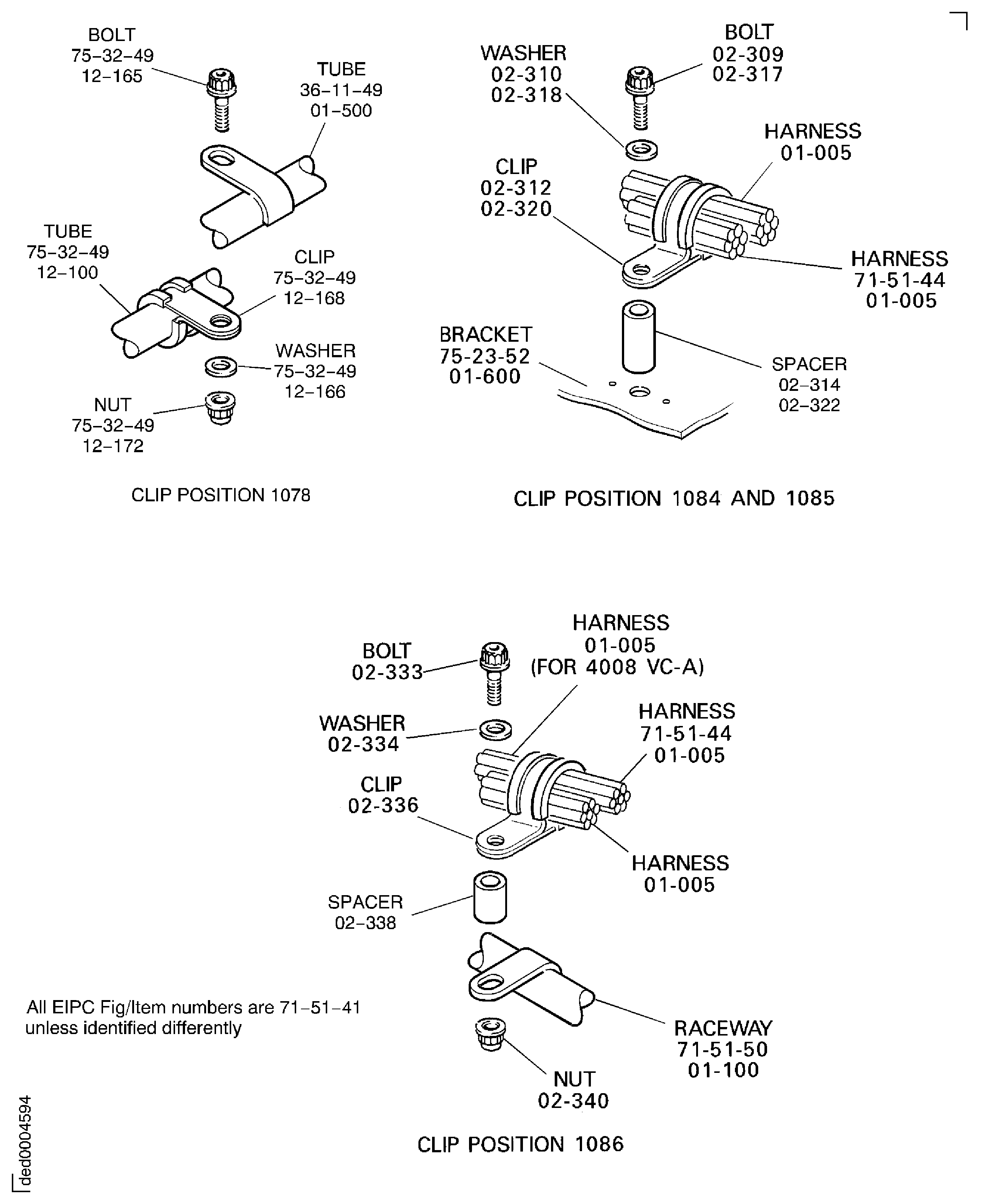

        11. Torque the nut at the clip position 1078 to 36 to 45 lbf.in (4 to 5 Nm).

        12. Refer to TASK 72-00-40-420-006-B00 (INSTALLATION-009, CONFIG-002) to complete the installation procedure of the ignition supply and the EEC harness to the core engine.

      4. Connect and torque the electrical connectors (Left side):

      1. 4015KS-A to the IDG FCOC Electrical Power-Fuel Cooled IDG Oil Cooler (24-21-42, 01-100) to 18 * lbf.in (2.0 Nm).

      2. Install the datum clip position 0325.

      3. Refer to Step or Step for the installation procedure for the electrical connector 4017KS-A.

      4. 4018KS-A to the fuel diverter and return valve Fuel Diverter and Return Valve (73-13-42, 01-100) to 20 * lbf.in (2.3 Nm). Install the datum clip position 0295.

      5. 4018KS-B to the fuel diverter and return valve Fuel Diverter and Return Valve (73-13-42, 01-100) to 24 * lbf.in (2.7 Nm). Install the datum clip position 0753.

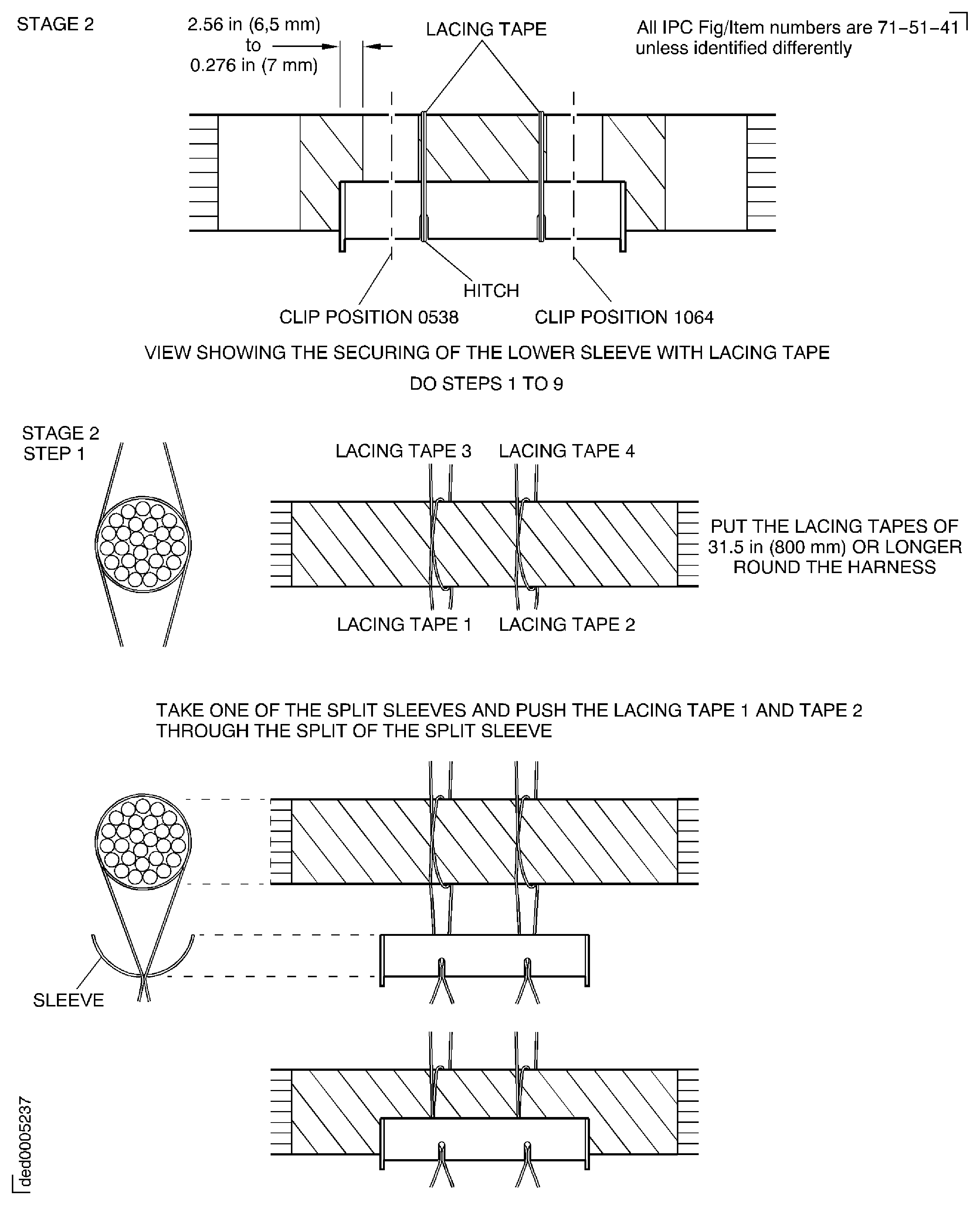

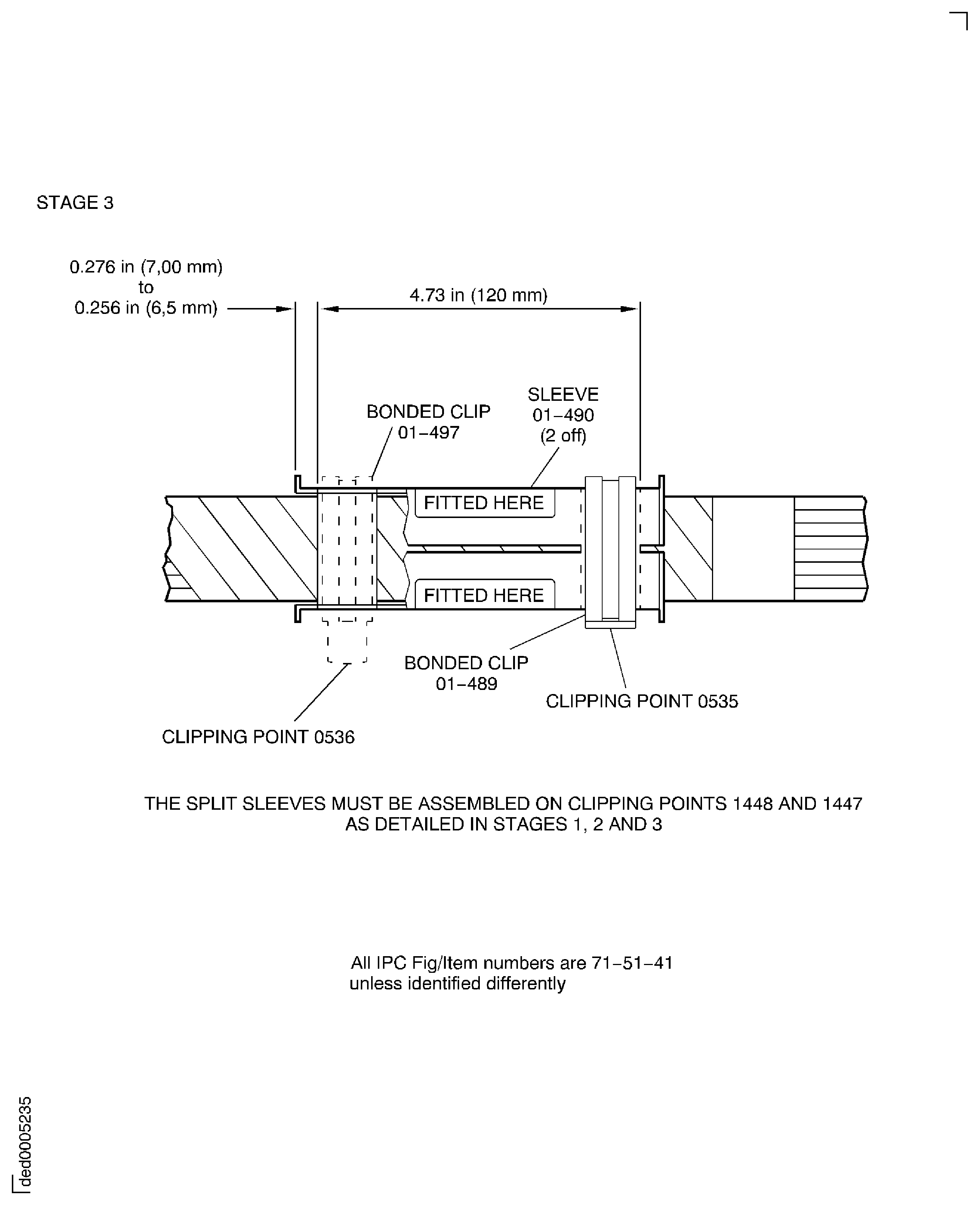

      5. Pre SBE 75-0081: Install the split sleeves EEC Fan Harness (71-51-41, 01-514 and EEC Fan Harness 01-490) and the bonded clips at the clip positions 0535, 0536, 0538 and 1064.

      1. Attach the EEC harness and the ignition supply harness Ignition Supply Harness (71-51-44, 01-005) together with the EEC Fan Harness (71-51-41, 03-964) tape 1 off.

      2. Attach one end of the tape between the cables, in the center of the harness bundle at the clip positions 0538, 1064 and 0536, 0535. Use a sufficient length of the tape to reduce the diameter of the harnesses.

      3. Hold the split sleeves together at both positions around the harness and measure the diameter of the split sleeves. The diameter must not be more than 1.5 in. (38 mm).

      4. WARNING

        WHEN YOU USE CoMat 01-002 SOLVENT, DELETED. YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

        Clean the split sleeves EEC Fan Harness (71-51-41, 01-490 and EEC Fan Harness 01-514), the bonded clip EEC Fan Harness (71-51-41, 01-489 , EEC Fan Harness 01-497, EEC Fan Harness 01-513 and EEC Fan Harness 02-224) earth fingers, the clip and the raceway lugs with CoMat 01-002 SOLVENT, DELETED.. Use a clean cloth made moist with the solvent.

        5. Install the split sleeve EEC Fan Harness (71-51-41, 01-490) around the harnesses. Make sure the CAUTION label on one of the split sleeves can be seen when the installation procedure is complete. Attach them with CoMat 02-148 ADHESIVE TAPE (ELECTRICAL) as follows:

        1. Put one end of the braid lacing, minimum length 31.5 in. (800 mm), through the harness cables. Put both ends of the lacing through the slot of the split sleeve. Step 1.

        2. Wind the longest end of the lacing four times around the harness/sleeve assembly. Make sure the lacing is tight and does not go out of the slot. Step 2.

        3. Make a clove hitch (at the bottom of the slot) with the longest end of the lacing. Step 3.

        4. Pull both ends of the lacing tight. Make a reef knot. Steps 4 and 5.

        5. Make one more hitch. Steps 6 to 9.

        6. Attach the split sleeve at the other slot with the braid lacing, refer to the paragraphs Step to Step.

        7. Install the remaining split sleeve with two more pieces of braid lacing refer to paragraphs Step to Step. Make the hitch at the top of the split sleeve. Steps 1 to 10.

      6. Install the split sleeve EEC Fan Harness (71-51-41, 01-514) around the harnesses, refer to paragraph Step.

      7. Measure the diameter of the harnesses. The diameter must not be more than 1.5 inches (38 mm).

      8. Install the bonded clips around the harnesses.

      9. Install the bolts, the washers and the nuts at the clip positions 0538, 1064, 0535 and 0536. Torque the four nuts to 85 to 105 lbf.in (10 to 12 Nm).

      6. SBE 75-0081: Install split sleeves EEC Fan Harness (71-51-41, 01-514 and EEC Fan Harness 01-490) and the bonded clips at the clip positions 0535, 0536, 0538 and 1064.

        1. Stage 1: Attach the EEC harness and the ignition supply harness Ignition Supply Harness (71-51-44, 01-005) together.

          1. Step 1: Secure the end of the reinforced silicone rubber tape EEC Fan Harness (71-51-41, 03-964) in the cable wire of the harness.

          1. Wind the tape around the harness bundle and along the length of harness. Use a sufficient length of the tape to reduce the diameter of the harnesses to give the dimensions on Figure.

          2. At the start of the wrapping wrap the tape around the harness twice, to give two complete turns. Wind the tape so there is a 50 percent width overlap as it is wrapped around the harness.

          2. Step 2 : Build-up the harness diameter to match the inside diameter of the split sleeves.

          1. Wrap the 0.750 in. tape EEC Fan Harness (71-51-41, 01-492) around the harness at the raceway lug clip positions 0535, 0536, 0538 and 1064 to give the dimensions on Figure.

          2. Lightly clamp the split sleeves around the harness and measure the outside diameter of the split sleeves. The diameter must be between 1.5 in. and 1.505 in. (38.10 to 38.77 mm). This is to allow the bonded clips to be installed.

          3. Step 3: Secure the ends of the silicone rubber tape.

          1. Wrap the 1 in. wide tape EEC Fan Harness (71-51-41, 03-966) twice around the harness at both ends of the silicone rubber tape to hold it securely to give the dimensions on Figure.

        2. Stage 2 : Attach the split sleeves EEC Fan Harness (71-51-41, 01-514 and EEC Fan Harness 01-490) to the harness.

        1. Do the following procedure to install both the split sleeve assemblies to the harness.

          2. Steps 1 and 2 :

          1. Position and attach the lower split sleeve to the harness with lacing tape number 1 EEC Fan Harness (71-51-41, 01-491) as given in Figure. Use a length of 31.5 in (800 mm) or longer.

          2. Take one half of the split sleeves and push the lacing tape number 1 and 2 through the slit of the split sleeve, step 1 Fig. 72-00-32-990-613-011.

          3. Take one end of the lacing tape and turn it around the harness four times. Make sure the lacing is tight and that it does not go out of the sleeve slit, step 2 Figure.

        3. Steps 3 to 8 : Tie and secure the sleeve half to the harness as shown in Figure.

        4. Step 9 : Do the procedure in steps 2 to 8 for lacing tape number 2, Figure.

        5. Take the other half of the sleeve and install and secure it with lacing tape numbers 3 and 4 as given in the procedure in stage 2, steps 1 through 9.

        6. Position the sleeve so that at least one CAUTION identification label can be read when it is installed, refer to stage 3 for the completed view, Figure.

        7. Check the gap between the split sleeves after assembly, the gap must be between zero to 0.1 in. (0 to 2,54 mm).

        3. Clean the fayed surfaces, sleeves and bonded clips.

        1. Do this operation immediately before the assembly of the clips and sleeves to the raceway.

        2. WARNING

          WHEN YOU USE CoMat 01-003 SOLVENT, DELETED YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

          Clean the outer surface of the split sleeves EEC Fan Harness (71-51-41, 01-490 and EEC Fan Harness 01-514), the bonded clips EEC Fan Harness (71-51-41, 02-822 , EEC Fan Harness 02-814, EEC Fan Harness 02-806 and EEC Fan Harness 02-798) earth fingers, the clip and the raceway lugs with CoMat 01-003 SOLVENT, DELETED. Use a clean cloth made moist with the solvent. Refer to the SPM TASK 70-11-26-300-503 for the procedure to locally swab clean components.

        4. Stage 3 : Install the bonded clips around the harnesses, refer to Figure.

        1. Install the bolts, the washers and the nuts at the clip positions 0535, 0536, 0538 and 1064. Refer to Figure.

        2. Install the bonded clips to get the dimensions in Figure.

        3. Torque the four nuts at the clip positions 0535, 0536, 0538 and 1064 to 85 to 105 lbf.in (10 to 12 Nm).

        5. Check the electrical continuity.

        1. After the installation of the harness to the raceway at the clip positions 0535, 0536, 0538 and 1064 to the raceway check the electrical continuity.

        2. Check the continuity between the sleeves and the bonding clips attached to the raceway with an ohmeter. The electrical resistance between each sleeve and racway that the clip is attached to must not be more than 15 milliohms.

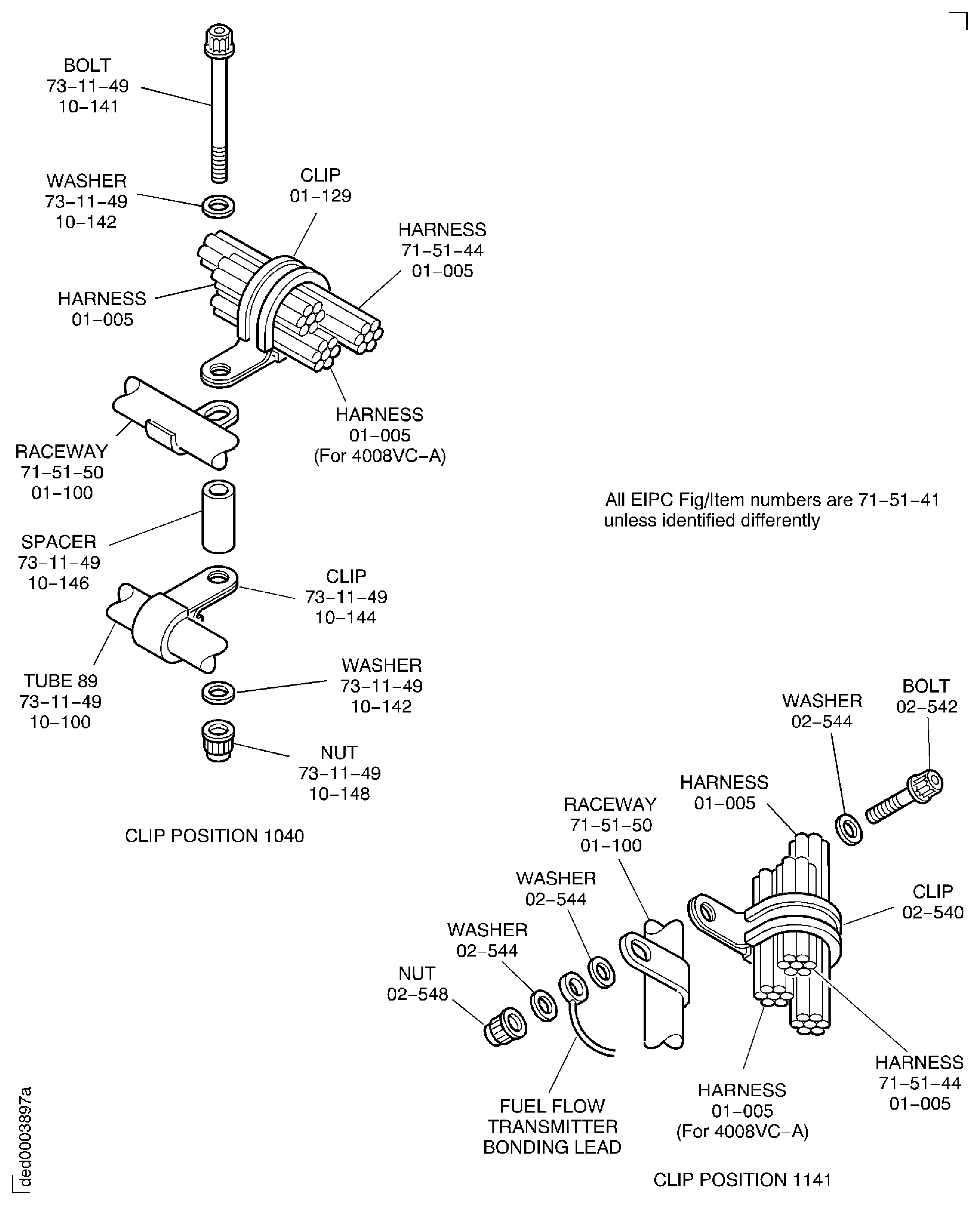

      7. Install clip position 1141, refer to Figure.

      1. WARNING

        WHEN YOU USE CoMat 01-002 SOLVENT, DELETED. YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

        NOTE

        The raceway bonding lug at clip position 1141 is between clip positions 0251 and 1040.

        Remove the grease, the fingerprints and the unwanted material from the mating surfaces of the raceway Fan Harness Support Raceways (71-51-50, 01-100) bonding lug, the fuel flow transmitter bonding lead with CoMat 01-002 SOLVENT, DELETED.. Use a clean lint free cloth moistened with the solvent.

      2. Clean the contact (washer) surfaces of the bolt, the nut and the two washers at clip position 1141.

      3. Install the bolt, washers, clip, bonding lead and nut to attach the EEC harness EEC Fan Harness (71-51-41, 01-005) and the Ignition Supply harness Ignition Supply Harness (71-51-44, 01-005) to the raceway Fan Harness Support Raceways (71-51-50, 01-100) at clip position 1141. Torque the nut to 36 to 45 lbf.in (4 to 5 Nm).

      8. Install the remaining clip positions.

      1. NOTE

        Install the clip positions 0766 and 0767 during the procedure given in Step.

        Install the bolts, the washers, the spacers, the nuts or the clipnuts and the clips at the remaining clip positions.

      2. Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm) in the anchor nuts and the clipnuts.

      3. Torque the nuts at the remaining clip positions to 36 to 45 lbf.in (4 to 5 Nm).

      4. Make sure that no harness length has too much strain on it. If it is necessary loosen the bolt or nut at the applicable clip position. Adjust the harness and torque the bolt or the nut to 36 to 45 lbf.in (4 to 5 Nm) or to 85 to 105 lbf.in (10 to 12 Nm) at the clip positions 0538, 1064, 0535 and 0536.

    7. SUBTASK 72-00-32-420-280-A00 Connect the EEC Harness Connector 4017KS-A (Pre SBE 73-0071 and Pre SBE 71-0183)

    1. Refer to Figure.

    2. Connect the 4017KS-A to the fuel temperature thermocouple FUEL TEMPERATURE THERMOCOUPLE (73-35-15, 01-100) and torque the connector to 18 * lbf.in (2.0 Nm).

    3. Adjust the harness in the datumn clip position 0295 as necessary to obtain the correct clearance and drip loop. Torque the clip bolt to 36 to 45 lbf.in (4 to 5 Nm).

    8. SUBTASK 72-00-32-420-280-B00 Connect the EEC Harness Terminal Connector 4017KS-A, and (SBE 73-0071 and SBE 71-0183)

      SBE 73-0071: Fuel and Control - Replacement of fuel temperature thermocouple with stud and nut terminations

      SBE 71-0183: Power Plant - Electrical harnesses - Introduction of production standard EEC harness to suit FCOC fuel temperature thermocouple with stud type thermocouple

    1. Refer to Figure and Figure.

      2. Connect the terminal connectors to the fuel temperature thermocouple FUEL TEMPERATURE THERMOCOUPLE (73-35-15, 01-100).

      1. If the thermocouple is not to be removed, remove and install the thermocouple securing bolts one at a time. Refer to Figure.

      2. Remove the two bolts FUEL TEMPERATURE THERMOCOUPLE (73-35-15, 01-110) that secure the thermocouple to the FCOC Fuel Cooled Oil Cooler (FCOC) (79-21-43, 01-100).

      3. WARNING

        WHEN YOU USE CoMat 01-002 SOLVENT, DELETED. YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

        Remove the grease, the fingerprints and the unwanted material from the mating surfaces of the ground terminals and thermocouple earth positions with CoMat 01-002 SOLVENT, DELETED.. Use a clean lint free cloth moistened with the solvent.

      4. Install the harness ground terminal connectors to the two bolts. Install the two bolts and torque to between 85 and 105 lbf.in (10 to 12 Nm).

      5. CAUTION

        YOU MUST NOT EXCEED THE RECOMMENED TORQUE VALUES. OVER TORQUING CAN RESULT IN FRACTURE OF THE THERMOCOUPLE STUDS.

        Install channel A and B thermocouple lead assemblies EEC Fan Harness(71-51-41,04-900) to the fuel temperature thermocouple studs. Install the two nuts FUEL TEMPERATURE THERMOCOUPLE (73-35-15, 01-140) to the top studs and torque to between 18 and 22 * lbf.in (2.03 to 2.48 Nm). Install the two nuts FUEL TEMPERATURE THERMOCOUPLE (73-35-15, 01-130) to the bottom studs and torque to between 15 and 18 * lbf.in (1.69 to 2,03 Nm).

      6. Adjust the harness in the datumn clip position 0295 as necessary to obtain the correct clearance and drip loop. Torque the clip bolt to 36 to 45 lbf.in (4 to 5 Nm).

    9. SUBTASK 72-00-32-420-224 Install the Ignition Supply Harness

      1. Install the ignition supply harness Ignition Supply Harness (71-51-44, 01-005) as follows:

      2. Identify the correct datum clip positions 0791, 0550 and 1007.

      3. Connect the electrical connectors 4100KS-D and 4100KS-C to the relay box Ignition Relay Box (71-51-49, 01-100). Torque the electrical connectors to 18 * lbf.in (2.0 Nm). Remove the temporary ties and install the datum clip position 0791.

      2. Install the electrical harness receptacles.

      1. Attach the electrical harness receptacle 4002VC (attached to the ignition supply harness) to the bracket Ignition Relay Box (71-51-49,01-330) with the four bolts and the four assembled washer nuts Ignition Supply Harness (71-51-44, 01-022 and Ignition Supply Harness 01-020). Make sure the master keyway is in the outboard direction, refer to the detail on E. Remove the temporary ties and install the datum clip position 0550 and the clip position 0207.

      2. Attach the receptacle 4003VC to the bracket Fuel System Air Tubes (73-22-49,03-800) with the four bolts and the four assembled washer nuts Ignition Supply Harness (71-51-44, 01-027 and Ignition Supply Harness 01-025). Make sure the master keyway is in the outboard direction, refer to the detail on D. Install the datum clip position 1007.

      3. Torque the assembled washer nuts installed in Step and Step to 6 to 8 lbf.in (0.70 to 0.90 Nm).

      3. Connect and torque the electrical connectors, as follows:

      1. 4002VC-A and 4003VC-A EEC Fan Harness And Ignition Supply Harness (71-51-42, 01-005) to the receptacles, align the master keyways. Refer to Figure and Figure. Torque the electrical connectors to 14 * lbf.in (1.6 Nm).

      2. Remove the temporary ties and install the datum clip position 0781. Refer to Figure and Figure.

      4. Install the harness at the remaining clip positions.

      1. Route the harness with the EEC harness at the given clip positions. Refer to Step.

      2. Install the bolts, the washers, the spacer, the nuts and the clips at the clip positions 0545 and 0568 (at the bifurcation panel).

      3. Remove the retaining lockwire from the combined fume and fireseal. Assemble and install the assembly to the bifurcation panel with the four bolts, the four nuts and the two flame trap brackets Ignition Supply Harness (71-51-44, 01-032 , Ignition Supply Harness 01-030 and Ignition Supply Harness 01-034). Tighten the four nuts to 36 to 45 lbf.in (4 to 5 Nm).

      4. Remove the temporary ties and install the clip positions 0892 and 0258. Refer to Figure and Figure.

      5. Torque the bolts at the clip positions to 36 to 45 lbf.in (4 to 5 Nm).

      6. NOTE

        Refer to TASK 72-00-40-420-006-B00 (INSTALLATION-009, CONFIG-002) for the installation of the ignition supply harness to the core engine.

        Torque the nuts at the remaining clip positions to 36 to 45 lbf.in (4 to 5 Nm).

    10. SUBTASK 72-00-32-420-225 Install the EEC Flexible Hoses and the Tube 235

    1. Refer to Figure.

    2. Connect the hose 238 to the EEC union and the tube 239. Torque the hose nuts to 142 to 150 lbf.in (16 to 17 Nm).

    3. Connect the hose 134 to the EEC union and the tube 135. Torque the hose nuts to 142 to 150 lbf.in (16 to 17 Nm).

    4. Attach the tube 235 to the bracket Ignition Relay Box (71-51-49, 01-390) with the locknut Fuel System Air Tubes (73-22-49, 08-310). Connect the tube 142 to the tube 235. Torque the locknut to 70 to 80 * lbf.in (7.9 to 9.0 Nm).

    5. Install the bolts, the washers, the clips and the nuts at the clip positions 0766 and 0767.

    6. Connect the hose 133 to the EEC union and the tube 235. Torque the hose 133 nuts to 182 to 199 * lbf.in (20.5 to 22.5 Nm). Torque the tube 142 nut to 159 to 177 lbf.in (18 to 20 Nm).

    7. Connect the hose 240 to the EEC union and the tube 241. Torque the hose nuts to 142 to 150 lbf.in (16 to 17 Nm).

    8. Connect the hose 129 to the EEC union and the tube 159. Torque the hose nut at the EEC to 182 to 199 * lbf.in (20.5 to 22.5 Nm). Torque the hose nut at the tube 159 to 159 to 177 lbf.in (18 to 20 Nm).

    9. Safety the hose 133 and the locknut Fuel System Air Tubes (73-22-49, 08-310) separately to the bracket Ignition Relay Box (71-51-49, 01-390) with CoMat 02-126 LOCKWIRE.

    10. Safety the the tube/hose nuts with CoMat 02-126 LOCKWIRE.

    11. Safety the hose 238 nut to the bracket Fuel System Air Tubes (73-22-49, 03-790) with CoMat 02-126 LOCKWIRE.

    12. Torque the nuts at the clip positions 0766 and 0767 to 36 to 45 lbf.in (4 to 5 Nm).

    11. SUBTASK 72-00-32-220-083 Measure the Harness Clearance and Examine the Routing

      1. Measure the clearance between all the different harnesses and engine parts.

      1. Do a check on the clearance. Push the harness with a light pressure of the thumb then release. The harness must spring back and give the minimum clearance. If the pressure moves the harness through the adjacent clips, change the clip or adjust the harness thickness. Refer to Step.

      2. The general clearance must be a minimum of 0.250 in. (6.35 mm).

        3. A minimum clearance of 0.100 in. (2.5 mm) is necessary as follows:

        1. For a harness length which has spiral wrapping/sleeving (Spirap) protection around it. Each end of the Spirap must be held with a clip position.

        2. Between the harness bundle breakout at the clip positions 0540 adjacent to clip positions 1171 and 1123 and the raceway Fan Harness Support Raceways (71-51-50, 01-100).

        3. Between the harness and the tubes 114/170 adjacent to the clip position 0913 and 0753.

        4. Between the harness bundle breakouts and the flange FC, between the clip positions 0819 and 0820.

        5. The harness length between the clip positions 1075 and 0897 and the flange FD.

      4. The harness can touch the smooth parts of brackets and rafts if the harness is clipped to them. Make sure the harness is held to prevent movement between the harness and the bracket or raft.

      2. Adjust the harness.

      1. Adjust the harness to get the minimum clearances. Refer to Step.

    3. Torque the bolt or nut, as necessary, to the value given in the applicable installation SUBTASK for each of the harnesses.

      4. Examine the harness wire bundle breakouts.

      1. Make sure each harness wire bundle breakout curves smoothly from its primary harness. It must go to the component to which it attaches and not across the primary harness.

      2. If the primary harness and the wire bundle breakout touch each other you must attach them together. Both harness bundles must not move in relation to each other. Refer to Step.

      5. Examine the harness routing.

      1. If one harness goes across or it is parallel with a different harness (and they can touch) you must attach them together. Each harness must not move in relation to each other. Refer to Step.

    12. SUBTASK 72-00-32-420-226 Attach the Harnesses Together

    1. Attach the wire bundle breakout to the primary harness with CoMat 02-159 LACING TAPE to prevent movement of them in relation to each other.

    2. Attach the parallel harnesses and those which go across each other together. If it is necessary wrap CoMat 02-148 ADHESIVE TAPE (ELECTRICAL) around the harness to prevent abrasion. Then attach the harnesses together with the lacing tape.

    13. SUBTASK 72-00-32-210-081 Visually Inspect the Electrical Backshells and Cable Clamps

    1. Refer to Figure.

    2. Make sure that all the applicable connectors, backshells and cable clamps are secure.

    3. Make sure that all the applicable backshells and cable clamps are safetied with CoMat 02-126 LOCKWIRE. Refer to the SPM TASK 70-42-05-400-501.

    14. SUBTASK 72-00-32-210-082 Visually Inspect the EEC Harness (01-005) Electrical Backshells and Cable Clamps (SBE 70-0813)

      SBE 70-0813: Announcement of introduction of safety cable as a preferred method to lockwire.

    1. NOTE

      Use this procedure to safety the EEC harness backshells and cable clamps with safety cable.

      Refer to Figure.

    2. Make sure that all the EEC harness connectors, backshells and cable clamps are secure.

    3. Make sure that all the EEC harness backshells and cable clamps are safetied. Safety with CoMat 02-274 SAFETY CABLE KIT or with CoMat 02-275 SAFETY CABLE KIT. Refer to the SPM TASK 70-42-08-400-501.

    15. Figure: Install the 400VC to IDG Cable Assembly

    Sheet 1

    Legend
    Install the 400VC to IDG Cable Assembly

    Sheet 1

    Close

    Figure: Install the 400VC to IDG Cable Assembly

    Sheet 2

    Legend
    Install the 400VC to IDG Cable Assembly

    Sheet 2

    Close

    Figure: Install the 400VC to IDG Cable Assembly

    Sheet 3

    Legend
    Install the 400VC to IDG Cable Assembly

    Sheet 3

    Close

    Figure: Install the Vibration Harnesses/Transducer

    Sheet 1

    Legend
    Install the Vibration Harnesses/Transducer

    Sheet 1

    Close

    Figure: Install the Vibration Harnesses/Transducer

    Sheet 2

    Legend
    Install the Vibration Harnesses/Transducer

    Sheet 2

    Close

    Figure: Install the Vibration Harnesses/Transducer

    Sheet 3

    Legend
    Install the Vibration Harnesses/Transducer

    Sheet 3

    Close

    Figure: Install the Vibration Harnesses/Transducer

    Sheet 4

    Legend
    Install the Vibration Harnesses/Transducer

    Sheet 4

    Close

    Figure: Identify the Clip Location

    Identify the Clip Location

    Figure: Install the EEC and Ignition Supply Harness

    Sheet 1

    Legend
    Install the EEC and Ignition Supply Harness

    Sheet 1

    Close

    Figure: Install the EEC and Ignition Supply Harness

    Sheet 2

    Legend
    Install the EEC and Ignition Supply Harness

    Sheet 2

    Close

    Figure: SBE 71-0165 and SBE 71-0177: Install the EEC and Ignition Supply Harness

    Sheet 3

    Legend
    SBE 71-0165 and SBE 71-0177: Install the EEC and Ignition Supply Harness

    Sheet 3

    Close

    Figure: Install the EEC and Ignition Supply Harness

    Sheet 4

    Legend
    Install the EEC and Ignition Supply Harness

    Sheet 4

    Close

    Figure: Install the EEC and Ignition Supply Harness

    Sheet 5

    Legend
    Install the EEC and Ignition Supply Harness

    Sheet 5

    Close

    Figure: Install the EEC and Ignition Supply Harness

    Sheet 6

    Legend
    Install the EEC and Ignition Supply Harness

    Sheet 6

    Close

    Figure: SBE 71-0165 and SBE 71-0177: Install the EEC and Ignition Supply Harness

    Sheet 7

    Legend
    SBE 71-0165 and SBE 71-0177: Install the EEC and Ignition Supply Harness

    Sheet 7

    Close

    Figure: SBE 71-0165 and SBE 71-0177: Install the EEC and Ignition Supply Harness

    Sheet 8

    Legend
    SBE 71-0165 and SBE 71-0177: Install the EEC and Ignition Supply Harness

    Sheet 8

    Close

    Figure: SBE 71-0165: Install the EEC and Ignition Supply Harness

    Sheet 9

    Legend
    SBE 71-0165: Install the EEC and Ignition Supply Harness

    Sheet 9

    Close

    Figure: Install the General Services Harness

    Sheet 1

    Legend
    Install the General Services Harness

    Sheet 1

    Close

    Figure: Install the General Services Harness

    Sheet 2

    Legend
    Install the General Services Harness

    Sheet 2

    Close

    Figure: Install the General Services Harness

    Sheet 3

    Legend
    Install the General Services Harness

    Sheet 3

    Close

    Figure: Install the General Services Harness

    Sheet 4

    Legend
    Install the General Services Harness

    Sheet 4

    Close

    Figure: Install the General Services Harness

    Sheet 5

    Legend
    Install the General Services Harness

    Sheet 5

    Close

    Figure: Install the General Services Harness

    Sheet 6

    Legend
    Install the General Services Harness

    Sheet 6

    Close

    Figure: Install the General Services Harness

    Sheet 7

    Legend
    Install the General Services Harness

    Sheet 7

    Close

    Figure: Install the General Services Harness

    Sheet 8

    Legend
    Install the General Services Harness

    Sheet 8

    Close

    Figure: Install the General Services Harness

    Sheet 9

    Legend
    Install the General Services Harness

    Sheet 9

    Close

    Figure: Install the General Services Harness

    Sheet 10

    Legend
    Install the General Services Harness

    Sheet 10

    Close

    Figure: Install the General Services Harness

    Sheet 11

    Legend
    Install the General Services Harness

    Sheet 11

    Close

    Figure: Install the General Services Harness

    Sheet 12

    Legend
    Install the General Services Harness

    Sheet 12

    Close

    Figure: Install the General Services Harness

    Sheet 13

    Legend
    Install the General Services Harness

    Sheet 13

    Close

    Figure: Install the General Services Harness

    Sheet 14

    Legend
    Install the General Services Harness

    Sheet 14

    Close

    Figure: Install the General Services Harness

    Sheet 15

    Legend
    Install the General Services Harness

    Sheet 15

    Close

    Figure: Install the General Services Harness

    Sheet 16

    Legend
    Install the General Services Harness

    Sheet 16

    Close

    Figure: Install the General Services Harness

    Sheet 17

    Legend
    Install the General Services Harness

    Sheet 17

    Close

    Figure: Install the Terminal Module

    Install the Terminal Module

    Figure: Install the Ignition Supply Harness

    Sheet 1

    Legend
    Install the Ignition Supply Harness

    Sheet 1

    Close

    Figure: Install the Ignition Supply Harness

    Sheet 2

    Legend
    Install the Ignition Supply Harness

    Sheet 2

    Close

    Figure: Install the Ignition Supply Harness

    Sheet 3

    Legend
    Install the Ignition Supply Harness

    Sheet 3

    Close

    Figure: Install the Ignition Supply Harness

    Sheet 4

    Legend
    Install the Ignition Supply Harness

    Sheet 4

    Close

    Figure: Install the EEC Harness

    Sheet 5

    Legend
    Install the EEC Harness

    Sheet 5

    Close

    Figure: Install the EEC Harness

    Sheet 1

    Legend
    Install the EEC Harness

    Sheet 1

    Close

    Figure: Install the EEC Harness

    Sheet 2

    Legend
    Install the EEC Harness

    Sheet 2

    Close

    Figure: SBE 73-0071: Install the EEC Harness

    Sheet 3

    Legend
    SBE 73-0071: Install the EEC Harness

    Sheet 3

    Close

    Figure: Install the EEC Harness

    Sheet 4

    Legend
    Install the EEC Harness

    Sheet 4

    Close

    Figure: Install the EEC Harness

    Sheet 5

    Legend
    Install the EEC Harness

    Sheet 5

    Close

    Figure: Pre SBE 75-0081: Install the EEC Harness

    Sheet 6

    Legend
    Pre SBE 75-0081: Install the EEC Harness

    Sheet 6

    Close

    Figure: SBE 75-0081: Install the EEC Harness

    Sheet 7

    Legend
    SBE 75-0081: Install the EEC Harness

    Sheet 7

    Close

    Figure: Install the EEC Harness

    Sheet 8

    Legend
    Install the EEC Harness

    Sheet 8

    Close

    Figure: Pre SBE 75-0081: Install the EEC Harness

    Sheet 9

    Legend
    Pre SBE 75-0081: Install the EEC Harness

    Sheet 9

    Close

    Figure: Pre SBE 75-0081: Install the EEC Harness

    Sheet 10

    Legend
    Pre SBE 75-0081: Install the EEC Harness

    Sheet 10

    Close

    Figure: Pre SBE 75-0081: Install the EEC Harness

    Sheet 11

    Legend
    Pre SBE 75-0081: Install the EEC Harness

    Sheet 11

    Close

    Figure: Install the EEC Harness

    Sheet 12

    Legend
    Install the EEC Harness

    Sheet 12

    Close

    Figure: SBE 75-0081: Install the EEC Harness

    Sheet 13

    Legend
    SBE 75-0081: Install the EEC Harness

    Sheet 13

    Close

    Figure: SBE 75-0081: Install the EEC Harness

    Sheet 14

    Legend
    SBE 75-0081: Install the EEC Harness

    Sheet 14

    Close

    Figure: SBE 75-0081: Install the EEC Harness

    Sheet 15

    Legend
    SBE 75-0081: Install the EEC Harness

    Sheet 15

    Close

    Figure: SBE 75-0081: Install the EEC Harness

    Sheet 16

    Legend
    SBE 75-0081: Install the EEC Harness

    Sheet 16

    Close

    Figure: SBE 75-0081: Install the EEC Harness

    Sheet 17

    Legend
    SBE 75-0081: Install the EEC Harness

    Sheet 17

    Close

    Figure: SBE 75-0081: Install the EEC Harness

    Sheet 18

    Legend
    SBE 75-0081: Install the EEC Harness

    Sheet 18

    Close

    Figure: Install the EEC Harness

    Sheet 19

    Legend
    Install the EEC Harness

    Sheet 19

    Close

    Figure: Install the EEC Harness

    Sheet 20

    Legend
    Install the EEC Harness

    Sheet 20

    Close

    Figure: Install the EEC Harness

    Sheet 21

    Legend
    Install the EEC Harness

    Sheet 21

    Close

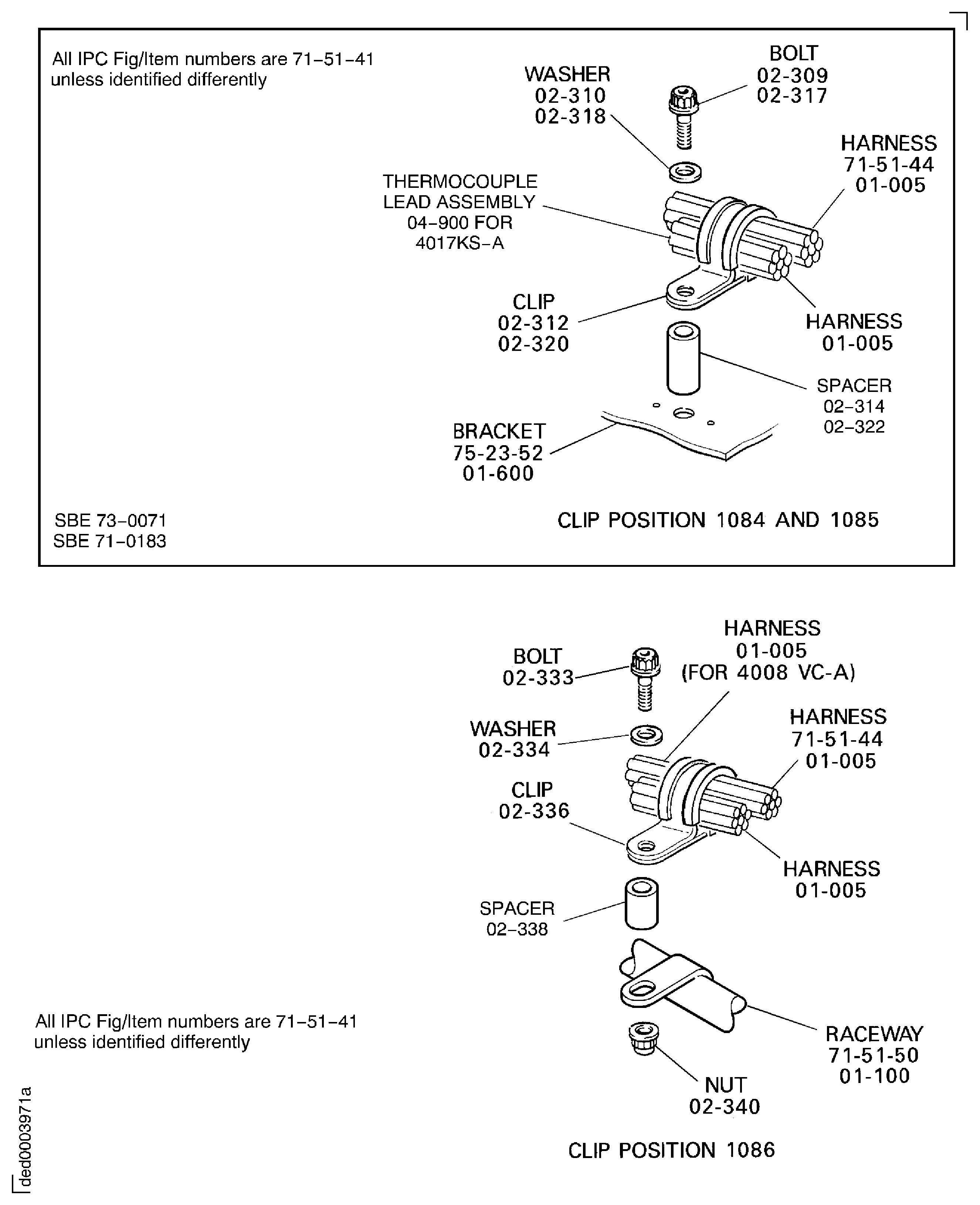

    Figure: Install the EEC Harness

    Sheet 22

    Legend
    Install the EEC Harness

    Sheet 22

    Close

    Figure: Install the EEC Harness

    Sheet 23

    Legend
    Install the EEC Harness

    Sheet 23

    Close

    Figure: Install the EEC Harness

    Sheet 24

    Legend
    Install the EEC Harness

    Sheet 24

    Close

    Figure: SBE 73-0071: Install the EEC Harness

    Sheet 25

    Legend
    SBE 73-0071: Install the EEC Harness

    Sheet 25

    Close

    Figure: Install the EEC Harness

    Sheet 26

    Legend
    Install the EEC Harness

    Sheet 26

    Close

    Figure: Install the EEC Harness

    Sheet 27

    Legend
    Install the EEC Harness

    Sheet 27

    Close

    Figure: Install the EEC Harness

    Sheet 28

    Legend
    Install the EEC Harness

    Sheet 28

    Close

    Figure: Install the EEC Harness

    Sheet 29

    Legend
    Install the EEC Harness

    Sheet 29

    Close

    Figure: Install the EEC Harness

    Sheet 30

    Legend
    Install the EEC Harness

    Sheet 30

    Close

    Figure: Install the EEC Harness

    Sheet 31

    Legend
    Install the EEC Harness

    Sheet 31

    Close

    Figure: Install the EEC Harness

    Sheet 32

    Legend
    Install the EEC Harness

    Sheet 32

    Close

    Figure: Install the EEC Harness

    Sheet 33

    Legend
    Install the EEC Harness

    Sheet 33

    Close

    Figure: Install the EEC Harness

    Sheet 34

    Legend
    Install the EEC Harness

    Sheet 34

    Close

    Figure: SBE 73-0071: Install the EEC Harness

    Sheet 35

    Legend
    SBE 73-0071: Install the EEC Harness

    Sheet 35

    Close

    Figure: Install the EEC Harness

    Sheet 36

    Legend
    Install the EEC Harness

    Sheet 36

    Close

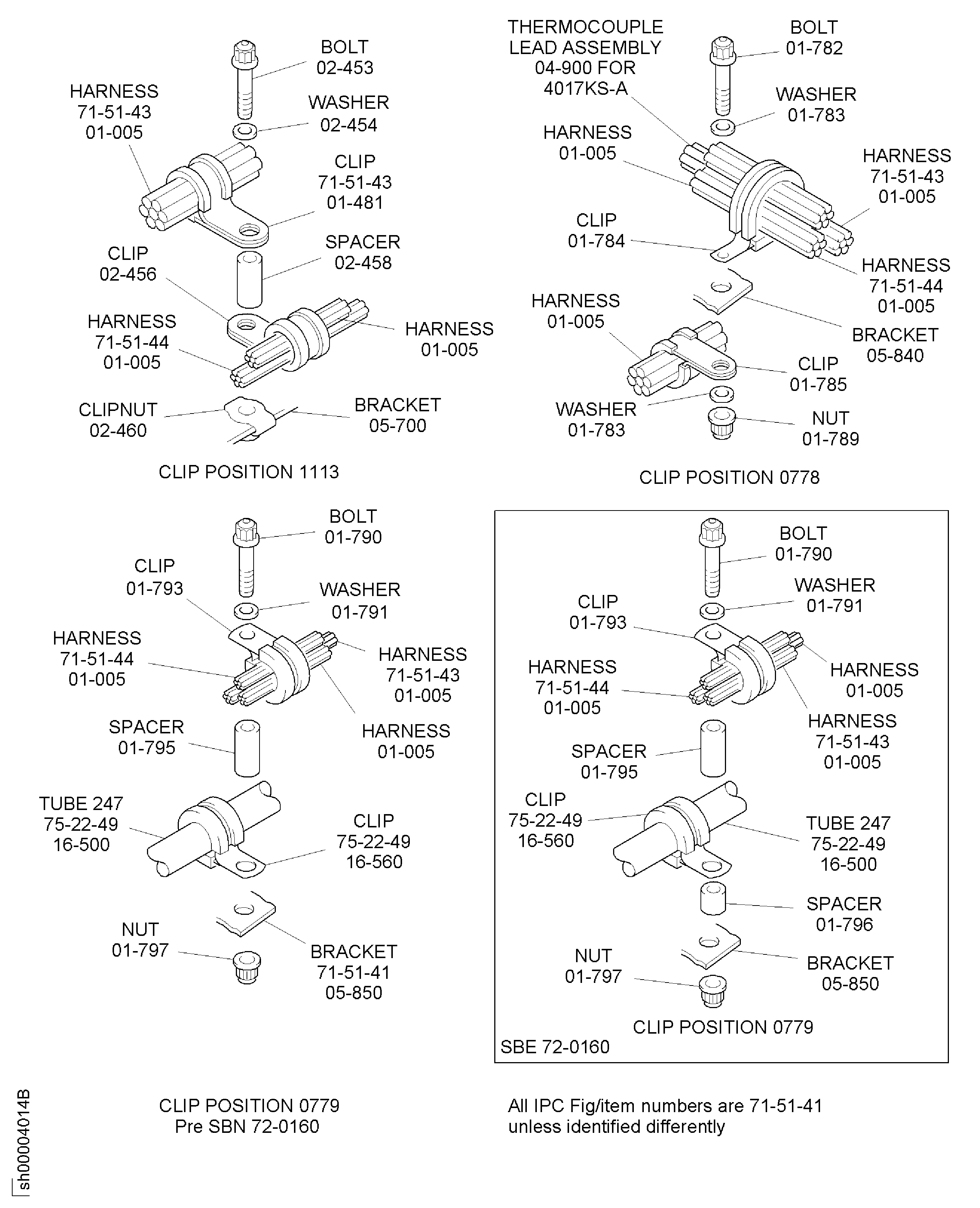

    Figure: Install the EEC Harness

    Sheet 37

    Legend
    Install the EEC Harness

    Sheet 37

    Close

    Figure: Install the EEC Harness

    Sheet 38

    Legend
    Install the EEC Harness

    Sheet 38

    Close

    Figure: Install the EEC Harness

    Sheet 39

    Legend
    Install the EEC Harness

    Sheet 39

    Close

    Figure: Install the EEC Harness

    Sheet 40

    Legend
    Install the EEC Harness

    Sheet 40

    Close

    Figure: Install the EEC Harness

    Sheet 41

    Legend
    Install the EEC Harness

    Sheet 41

    Close

    Figure: Install the EEC Harness

    Sheet 42

    Legend
    Install the EEC Harness

    Sheet 42

    Close

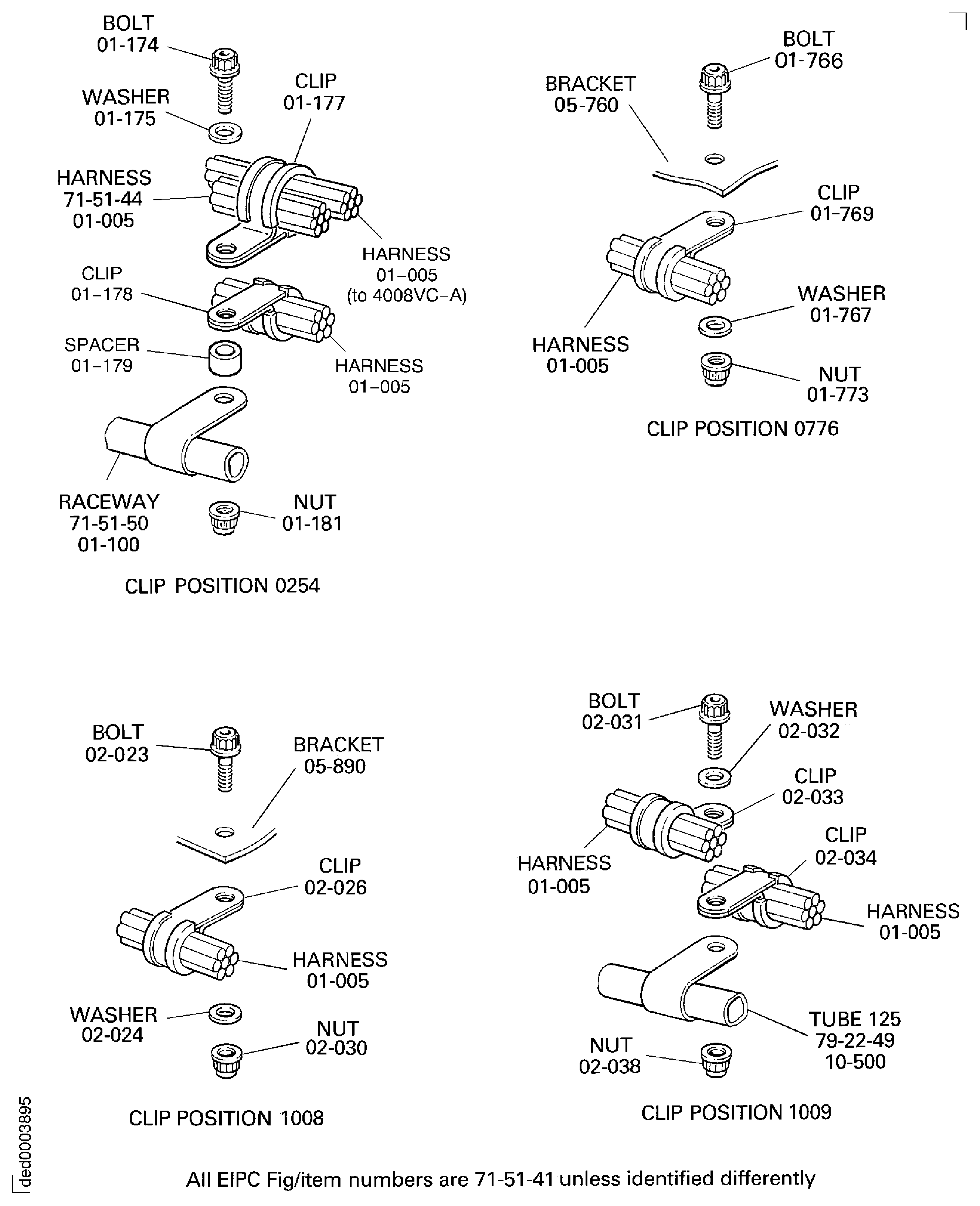

    Figure: Install the EEC Harness

    Sheet 43

    Legend
    Install the EEC Harness

    Sheet 43

    Close

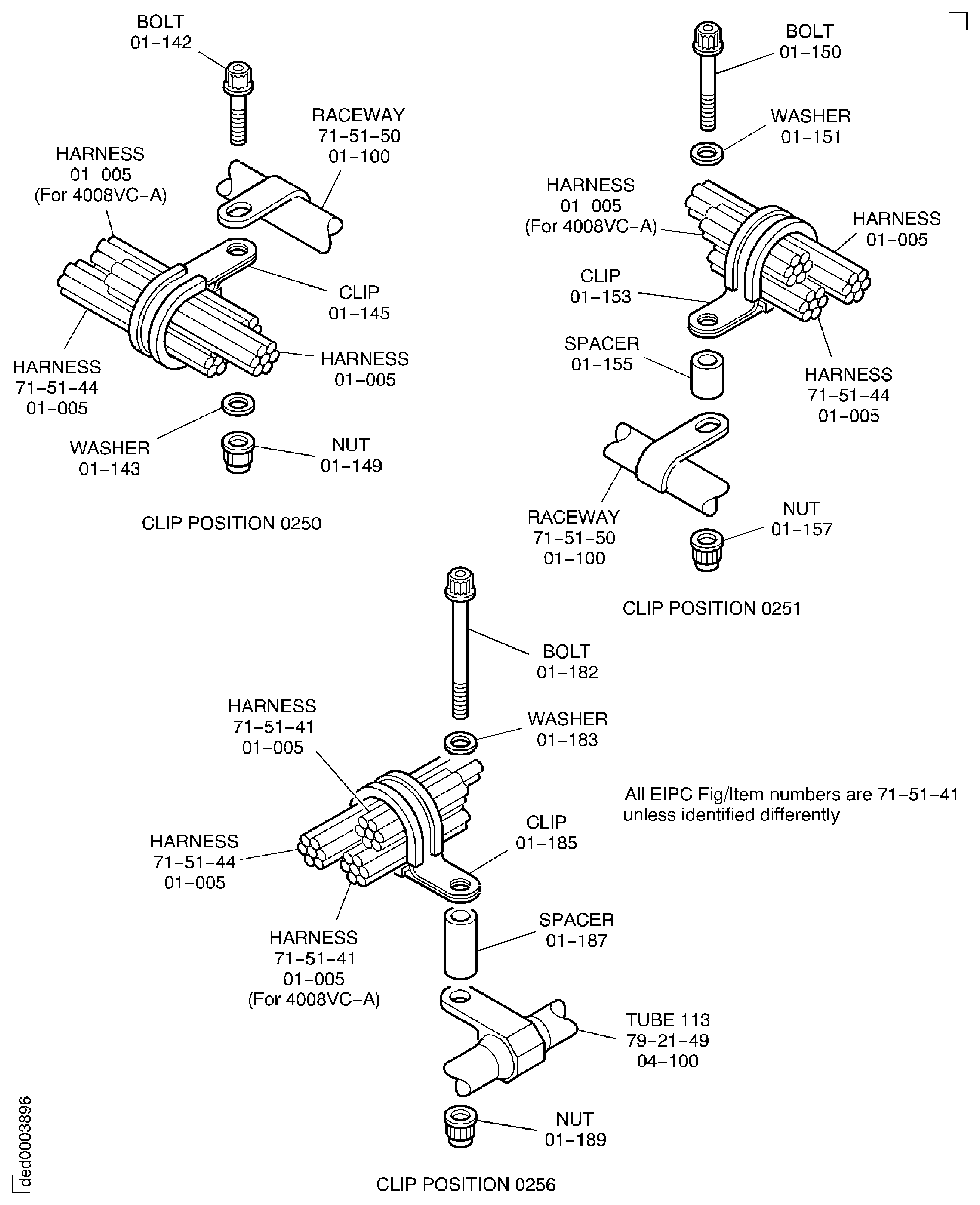

    Figure: Install the EEC Harness

    Sheet 44

    Legend
    Install the EEC Harness

    Sheet 44

    Close

    Figure: Install the EEC Harness

    Sheet 45

    Legend
    Install the EEC Harness

    Sheet 45

    Close

    Figure: Install the EEC Harness

    Sheet 46

    Legend
    Install the EEC Harness

    Sheet 46

    Close

    Figure: SBE 73-0071: Install the EEC Harness

    Sheet 47

    Legend
    SBE 73-0071: Install the EEC Harness

    Sheet 47

    Close

    Figure: Install the EEC Harness

    Sheet 48

    Legend
    Install the EEC Harness

    Sheet 48

    Close

    Figure: SBE 73-0071: Install the EEC Harness

    Sheet 49

    Legend
    SBE 73-0071: Install the EEC Harness

    Sheet 49

    Close

    Figure: Install the EEC Harness

    Sheet 50

    Legend
    Install the EEC Harness

    Sheet 50

    Close

    Figure: Install the EEC Harness

    Sheet 51

    Legend
    Install the EEC Harness

    Sheet 51

    Close

    Figure: SBE 73-0071: Install the EEC Harness

    Sheet 52

    Legend
    SBE 73-0071: Install the EEC Harness

    Sheet 52

    Close

    Figure: Install the EEC Harness

    Sheet 53

    Legend
    Install the EEC Harness

    Sheet 53

    Close

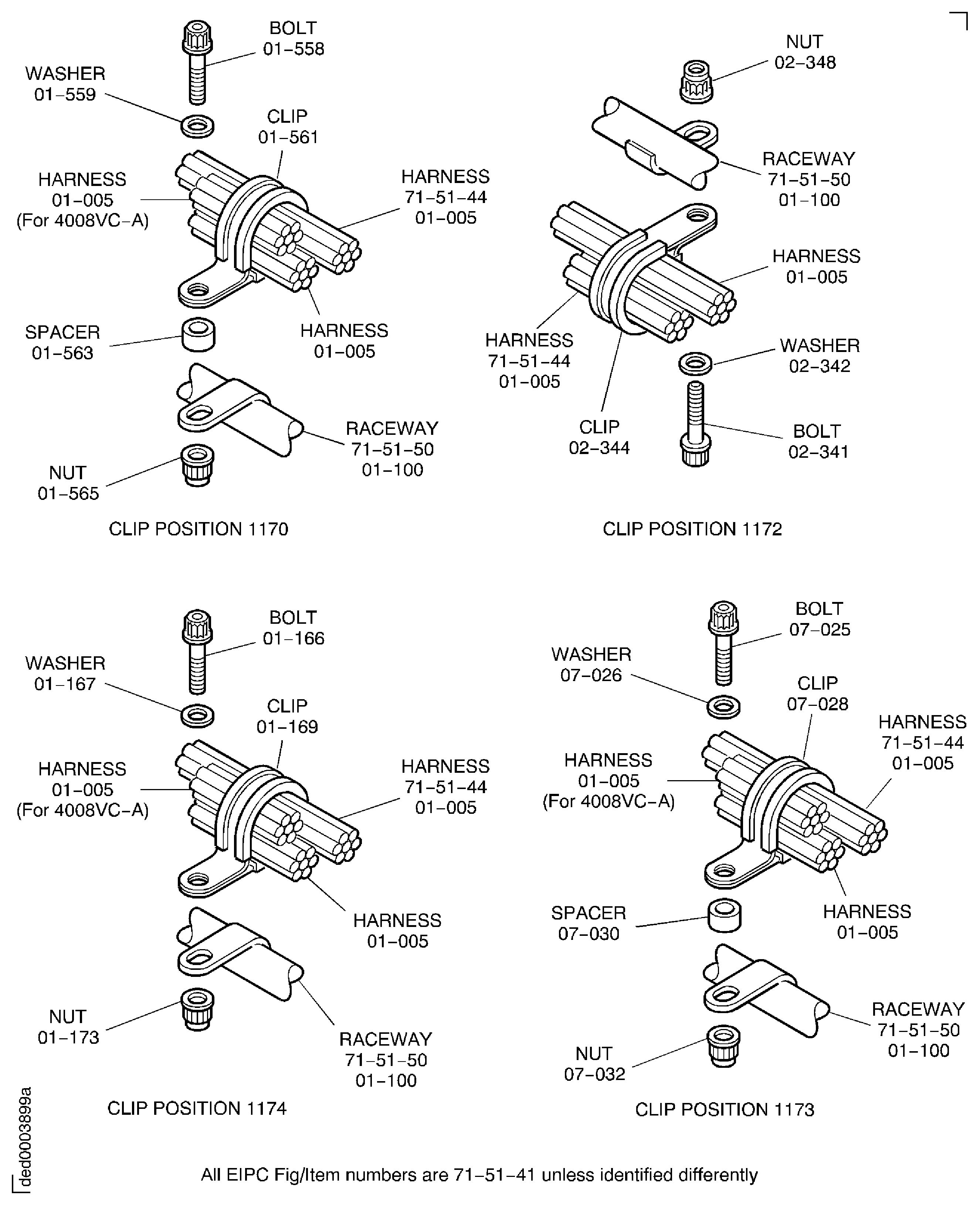

    Figure: Install the EEC Harness

    Sheet 54

    Legend
    Install the EEC Harness

    Sheet 54

    Close

    Figure: Install the EEC Flexible Hoses and the Tube 235

    Install the EEC Flexible Hoses and the Tube 235

    Figure: Visually Inspect the Backshells and Cable Clamps

    Visually Inspect the Backshells and Cable Clamps

Requirements After Job Completion

Follow-On Conditions

NONE
Link not Found
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:18992
Enterprise Name:HANSCOM INC
BU Name:HANSCOM INC
Street:331 MARKET STREET
P.O. Box:364
City:WARREN
State:RI
Zip Code:02885
Country:USA
Phone Number:1-401-247-1999, 1-800-725-6788
Fax Number:1-401-247-4575
Internet:www.hanscominc.com
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Link not Found
Manufacturer Code:X111X
Supply Number:CoMat 01-002
Type:sp01
Supply Short Name:CoMat 01-002 SOLVENT, DELETED.
Supply Name:CoMat 01-002 SOLVENT, DELETED.
Specification Groups:
Doc NumberType
wiring harnesses. Where CoMat 01‐002 is specified to clean mechanical components, use one or more of the solvents that SPM TASK 70‐11‐26‐300‐503 specifies as applicable.DELETED. Where CoMat 01‐002 is specified to clean electrical contacts or wiring harnesses, use one or more of the solvents that SPM TASK 70‐11‐57‐110‐501 specifies to clean electrical contacts or
Suppliers:
ManufacturerRemarks
X111X
Manufacturer Code:X111X
Supply Number:CoMat 01-003
Type:sp01
Supply Short Name:CoMat 01-003 SOLVENT, DELETED
Supply Name:CoMat 01-003 SOLVENT, DELETED
Specification Groups:
Doc NumberType
wiring harnesses. Where CoMat 01‐003 is specified to clean mechanical components, use one or more of the solvents that SPM TASK 70‐11‐26‐300‐503 specifies as applicable.DELETED. Where CoMat 01‐003 is specified to clean electrical contacts or wiring harnesses, use one or more of the solvents that SPM TASK 70‐11‐57‐110‐501 specifies to clean electrical contacts or
Suppliers:
ManufacturerRemarks
X111X
Manufacturer Code:K6835
Supply Number:CoMat 02-126
Type:sp01
Supply Short Name:CoMat 02-126 LOCKWIRE
Supply Name:CoMat 02-126 LOCKWIRE
Specification Groups:
Doc NumberType
DTD 189A, 0.028 TO 0.032 IN DIA
Suppliers:
ManufacturerRemarks
K6835
KB362
LOCAL
U06C8
Manufacturer Code:LOCAL
Supply Number:CoMat 02-148
Type:sp01
Supply Short Name:CoMat 02-148 ADHESIVE TAPE (ELECTRICAL)
Supply Name:CoMat 02-148 ADHESIVE TAPE (ELECTRICAL)
Specification Groups:
Doc NumberType
OMAT: 296SCOTCH NO. 69 (WHITE)
Suppliers:
ManufacturerRemarks
LOCAL
76381
94960
K0993
K6835
Manufacturer Code:LOCAL
Supply Number:CoMat 02-159
Type:sp01
Supply Short Name:CoMat 02-159 LACING TAPE
Supply Name:CoMat 02-159 LACING TAPE
Specification Groups:
Doc NumberType
T085 OMAT: 274
Suppliers:
ManufacturerRemarks
LOCAL
IE218
K6835
Manufacturer Code:LOCAL
Supply Number:CoMat 02-274
Type:sp01
Supply Short Name:CoMat 02-274 SAFETY CABLE KIT
Supply Name:CoMat 02-274 SAFETY CABLE KIT
Specification Groups:
Doc NumberType
SAE AS3510-0218K (DIA 0,032 IN LENGTH 18IN)
Suppliers:
ManufacturerRemarks
LOCAL
11851
U0419
70958
H7503
SA221
V384V
Manufacturer Code:X111X
Supply Number:CoMat 02-275
Type:sp01
Supply Short Name:CoMat 02-275 SAFETY CABLE KIT
Supply Name:CoMat 02-275 SAFETY CABLE KIT
Specification Groups:
Doc NumberType
Deleted. Use CoMat 02-274.
Suppliers:
ManufacturerRemarks
X111X
Manufacturer Code:18992
Supply Number:CoMat 06-086
Type:sp01
Supply Short Name:CoMat 06-086 TIES
Supply Name:CoMat 06-086 TIES
Specification Groups:
Doc NumberType
PMC 4272SPECIAL WIRE TIES
Suppliers:
ManufacturerRemarks
18992
Manufacturer Code:X333X
Supply Number:CoMat 10-077
Type:sp01
Supply Short Name:CoMat 10-077 APPROVED ENGINE OILS
Supply Name:CoMat 10-077 APPROVED ENGINE OILS
Specification Groups:
Doc NumberType
For V2500-A1/A5/D5 models - Refer to V2500 Service Bulletin ENG-79-0108
For V2500-E5 model - Refer to Service Bulletin E5-79-0001
Suppliers:
ManufacturerRemarks
X333X
Manufacturer Code:0AM53
Tool Number:IAE 1R19416
Tool Name:IAE 1R19416 EEC harness wrench
