DMC:V2500-A1-72-00-3200-01B-720A-B|Issue No:003|Issue Date:2014-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-00-32-420-001-A00 LPC/Intermediate Case Module - Install The Case Brackets And The Bifurcation Panel, Installation-001

General

Refer to the TASKs which follow for the other related procedures.

TASK 72-00-32-420-002 (INSTALLATION-002) Install the LP compressor/intermediate case components

TASK 72-00-32-420-003-A00 (INSTALLATION-003 CONFIG-001) Install the LP compressor/intermediate case tubes and the electrical harness raceways

TASK 72-00-32-420-004-A00 (INSTALLATION-004 CONFIG-001) Install the LP compressor/intermediate case electrical harnesses

TASK 72-00-32-420-005-A00 (INSTALLATION-005 CONFIG-001) Install the hydraulic tubes, the thermal anti-ice (TAI) duct, the pneumatic starter duct and the EEC cooling ducts to the LP compressor/intermediate case module

Fig./item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig./item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig./item number.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS unless other lubricants are referred to in the procedure.

For the torque tightening procedures, refer to the SPM TASK 70-41-00-400-501 and SPM TASK 70-41-01-400-501.

After assembly apply CoMat 07-038 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and attach parts. Use the correct color of the air drying enamel. Refer to SPM TASK 70-38-21-380-501..

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

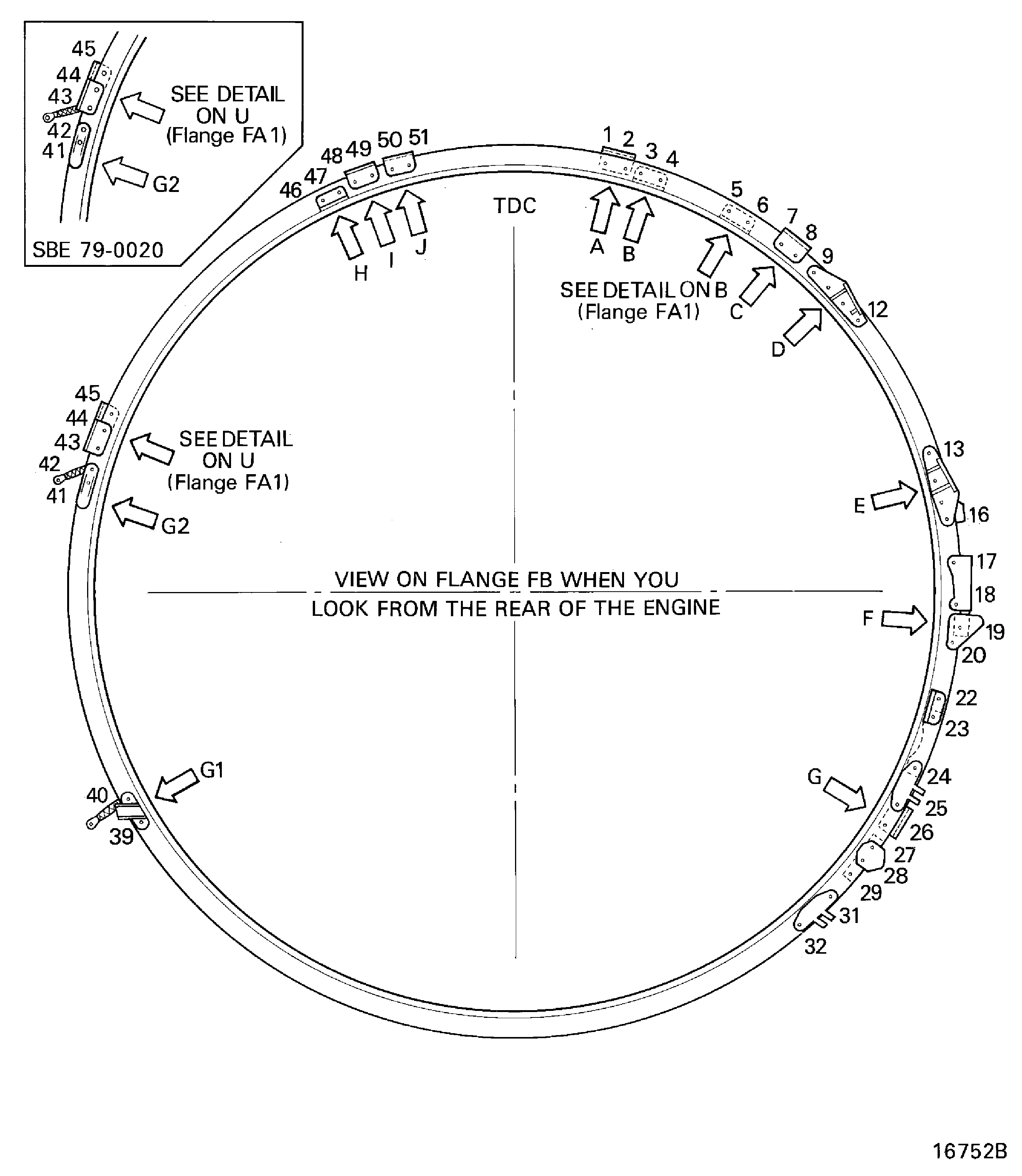

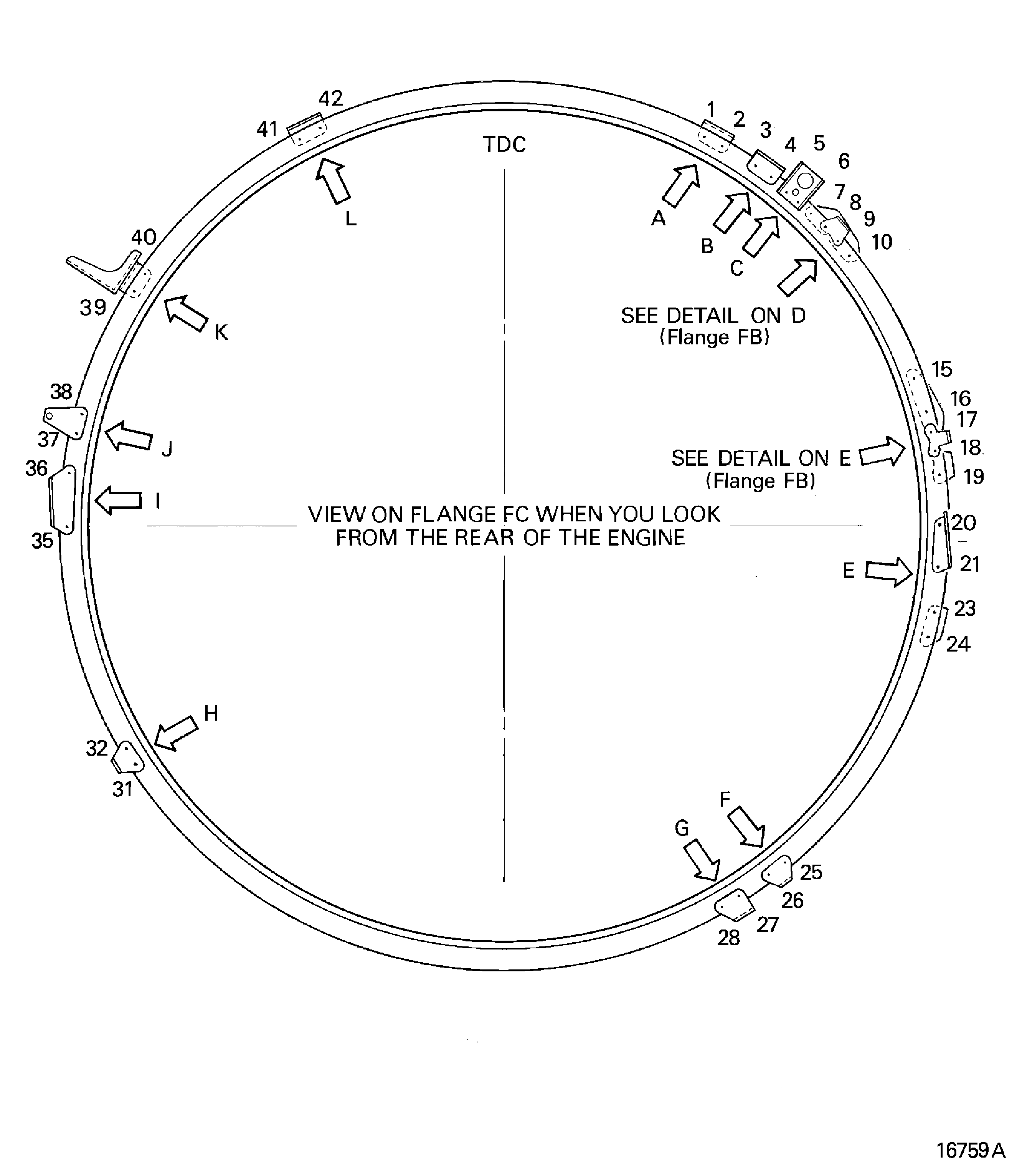

Refer to Figure for details of the module flanges given in this procedure.

Refer to the applicable Figure for each raft or bracket clip position.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

Name	Manufacturer	Part Number / Identification	Quantity	Remark
ACR Torq-Set bit 212-10-ACR	LOCAL	Torq Set
ACR Torq-Set bit 212-1/4-ACR	LOCAL	Torq-Set

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification
CoMat 01-002 SOLVENT, DELETED.	0AM53	CoMat 01-002
CoMat 01-076 METHYL ETHYL KETONE	LOCAL	CoMat 01-076
CoMat 07-038 AIR DRYING ENAMEL	K3504	CoMat 07-038
CoMat 07-066 THINNER	0AM53	CoMat 07-066
CoMat 07-067 PRIMER CONVERTER	0AM53	CoMat 07-067
CoMat 08-029 PRIMER BASE	0AM53	CoMat 08-029
CoMat 10-072 ANTISEIZE COMPOUND (MoDISULFIDE)	K6835	CoMat 10-072
CoMat 10-073 SYNTHETIC GREASE, MoDISULFIDE	0AM53	CoMat 10-073
CoMat 10-077 APPROVED ENGINE OILS	LOCAL	CoMat 10-077

Spares

Name	Manufacturer	Part Number / Identification	Quantity	Remark
Sealing ring			1
Sealing ring			1

Safety Requirements

NONE

Procedure

1. Refer to Figure.
2. Examine the LP compressor/intermediate case module identification plate. Make sure the module is correctly identified with the module mark/serial number and is correct for the build procedures.
1. Install the forward mount support. Refer to TASK 71-21-11-420-001 (INSTALLATION).
1. Refer to Figure.
2. 1. Install a new AIR COOLING-IGNITION COOLING LEADS (75-27-49, 01-095) sealing ring 1 off on the air inlet fitting.
  2. Install the air inlet fitting and the bracket AIR COOLING-IGNITION COOLING LEADS (75-27-49, 01-050) on the LP compressor/intermediate case with the two screws and the two nuts AIR COOLING-IGNITION COOLING LEADS (75-27-49, 01-115 and 01-110).
  3. Hold the two screws with the ACR Torq-Set bit 212-10-ACR 1 off and torque the two nuts to 36 to 45 lbf.in. (4 to 5 Nm).
3. 1. Install a new AIR COOLING-IGNITION COOLING LEADS (75-27-49, 01-495) sealing ring 1 off on the air inlet fitting.
  2. Install the air inlet fitting and the bracket AIR COOLING-IGNITION COOLING LEADS (75-27-49, 01-450) on the LP compressor/intermediate case with the two screws and the two nuts AIR COOLING-IGNITION COOLING LEADS (75-27-49, 01-515 and 01-510).
  3. Hold the two screws with the ACR Torq-Set bit 212-10-ACR 1 off and torque the two nuts to 36 to 45 lbf.in. (4 to 5 Nm).

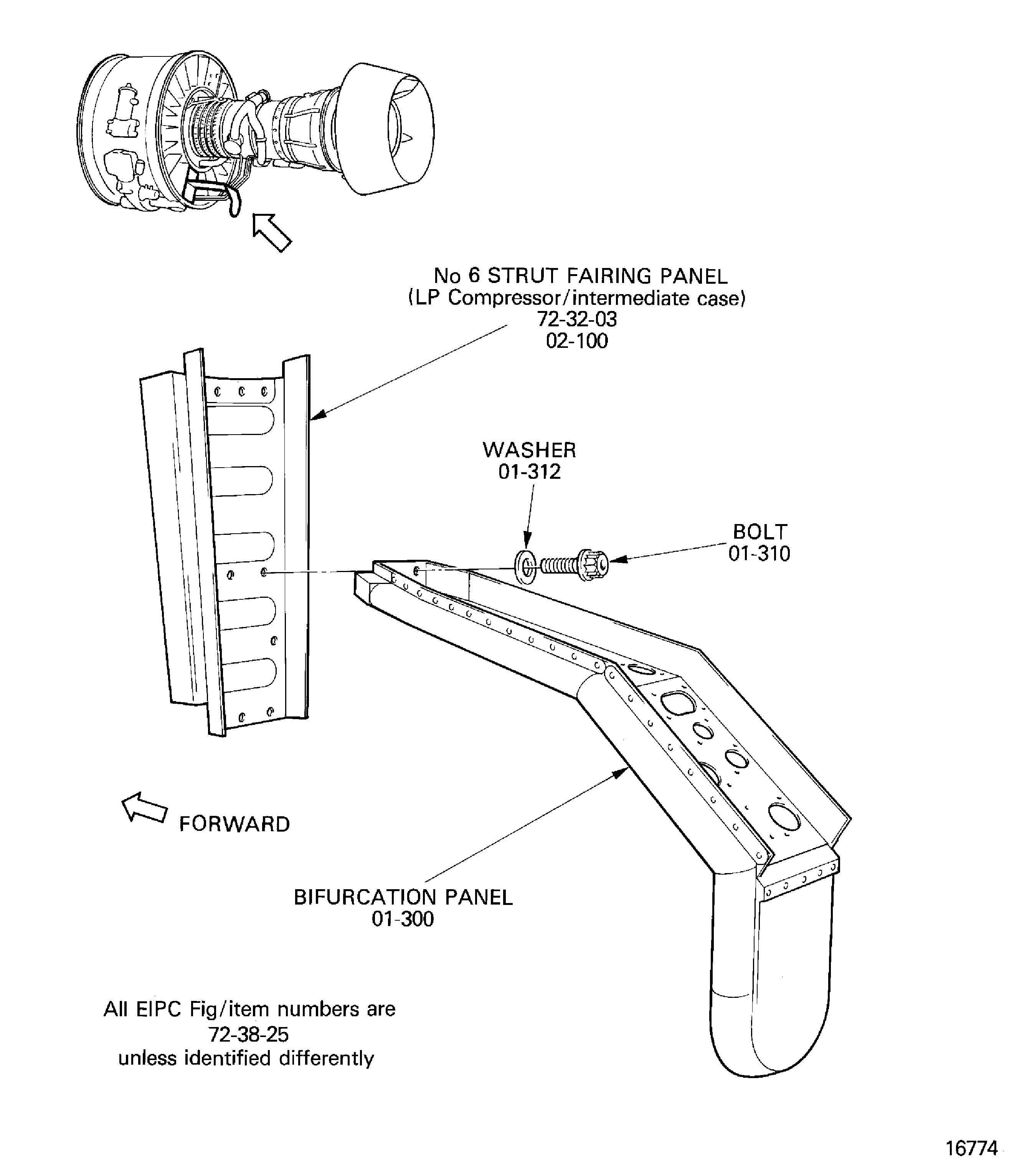

1. Refer to Figure.
2. WARNING
  WHEN YOU USE COMAT 01-002 INHIBITED AND STABILIZED TRICHLOROETHANE YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.
  Clean the mating surfaces of the bifurcation panel ENGINE-BIFURCATION PANEL AND SERVICES DISCONNECT (72-38-25, 01-300) and the No. 6 strut fairing panel with a clean cloth made moist with CoMat 01-002 SOLVENT, DELETED..
3. Install the bifurcation panel to the No. 6 strut fairing panel with the two bolts and the two washers ENGINE-BIFURCATION PANEL AND SERVICES DISCONNECT (72-38-25, 01-310 and 01-312). Torque the bolts to 85 to 105 lbf.in. (10 to 12 Nm).
1. Refer to Figure.
2. Pre SBE 72-0435: Remove the outer two of the three bolts, washers and nuts ENGINE-INTERMEDIATE STRUCTURE (72-32-03, 02-130), ENGINE-INTERMEDIATE STRUCTURE (72-32-03, 02-120) and ENGINE-INTERMEDIATE STRUCTURE (72-32-03, 02-110) which attach the No.6 strut fairing panel ENGINE-INTERMEDIATE STRUCTURE (72-32-03, 02-100) to the panel support bracket ENGINE-FAN CASE (72-32-85, 01-010). It is not necessary to remove the center bolt/washer/nut.
3. SBE 72-0435: There are only two bolts, washers and nuts ENGINE-INTERMEDIATE STRUCTURE (72-32-03, 02-130), ENGINE-INTERMEDIATE STRUCTURE (72-32-03, 02-120) and ENGINE-INTERMEDIATE STRUCTURE (72-32-03, 02-110) which attach the No. 6 strut fairing panel ENGINE-INTERMEDIATE STRUCTURE (72-32-03, 02-100) to the panel support bracket ENGINE-FAN CASE (72-32-85, 01-010).
4. 1. WARNING
    WHEN YOU USE COMAT 01-076 METHYL ETHYL KETONE YOU MUST MAKE SURE THERE IS SUFFICIENT VENTILATION. YOU MUST USE THE CORRECT PROTECTIVE CLOTHING. YOU MUST NOT SMOKE. DO NOT PUT THE SOLVENT NEAR A SOURCE OF HEAT.
    THE MATERIALS USED IN THE COMPOUND ARE FLAMMABLE AND TOXIC. DO NOT BREATHE THE VAPORS GIVEN OFF. YOU MUST PUT ON GLOVES WHEN YOU MIX AND USE THE COMPOUND.
    CAUTION
    YOU MUST USE CARE WHEN YOU USE COMAT 01-076 METHYL ETHYL KETONE AS IT CAN CAUSE DAMAGE TO THE SURFACE PROTECTION. REFER TO SPM TASK 70-38-21-380-501 TO REPAIR THE SURFACE PROTECTION.
    Mix a sufficient quantity of CoMat 08-029 PRIMER BASE, CoMat 07-067 PRIMER CONVERTER and CoMat 07-066 THINNER in a ratio of one part each by volume of the primer base/curing solution and one tenth by volume of the thinner.
  2. Clean the mating surfaces of the open latch indicator and the bolts/washers with CoMat 01-076 METHYL ETHYL KETONE. Use a clean cloth made moist with the solvent. Dry the mating surfaces with a clean dry cloth.
  3. Apply a thin layer of the compound (mixed in Step) to the surfaces of the four bolt head washer faces and the two washers FORWARD OPEN LATCH INDICATOR-THRUST REVERSER (71-00-23, 01-020), FORWARD OPEN LATCH INDICATOR-THRUST REVERSER (71-00-23, 01-030) and ENGINE-INTERMEDIATE STRUCTURE (72-32-03, 02-130).
5. 1. Attach the open latch indicator and the two shims FORWARD OPEN LATCH INDICATOR-THRUST REVERSER (71-00-23, 01-010) and FORWARD OPEN LATCH INDICATOR-THRUST REVERSER (71-00-23, 01-040) to the No.6 strut fairing panel ENGINE-INTERMEDIATE STRUCTURE (72-32-03, 02-100) with the two bolts and the two washers FORWARD OPEN LATCH INDICATOR-THRUST REVERSER (71-00-23, 01-020) and FORWARD OPEN LATCH INDICATOR-THRUST REVERSER (71-00-23, 01-030) (at the top position). Do this while the bolts and washers are wet with the compound.
  2. Install the two bolts, the two washers and the two nuts ENGINE-INTERMEDIATE STRUCTURE (72-32-03, 02-130), ENGINE-INTERMEDIATE STRUCTURE (72-32-03, 02-120) and ENGINE-INTERMEDIATE STRUCTURE (72-32-03, 02-110) to attach the open latch indicator, the two shims and the No.6 strut fairing panel to the panel support bracket ENGINE-FAN CASE (72-32-85, 01-010). Do this while the two bolts are wet with the compound.
  3. Torque the two bolts FORWARD OPEN LATCH INDICATOR-THRUST REVERSER (71-00-23, 01-020) and the two nuts ENGINE-INTERMEDIATE STRUCTURE (72-32-03, 02-110) to 85 to 105 lbf.in. (10 to 12 Nm).
  4. Remove the unwanted compound from the adjacent surfaces with a clean cloth made moist with CoMat 01-076 METHYL ETHYL KETONE. Try to keep a small ring of the compound around the bolt head.

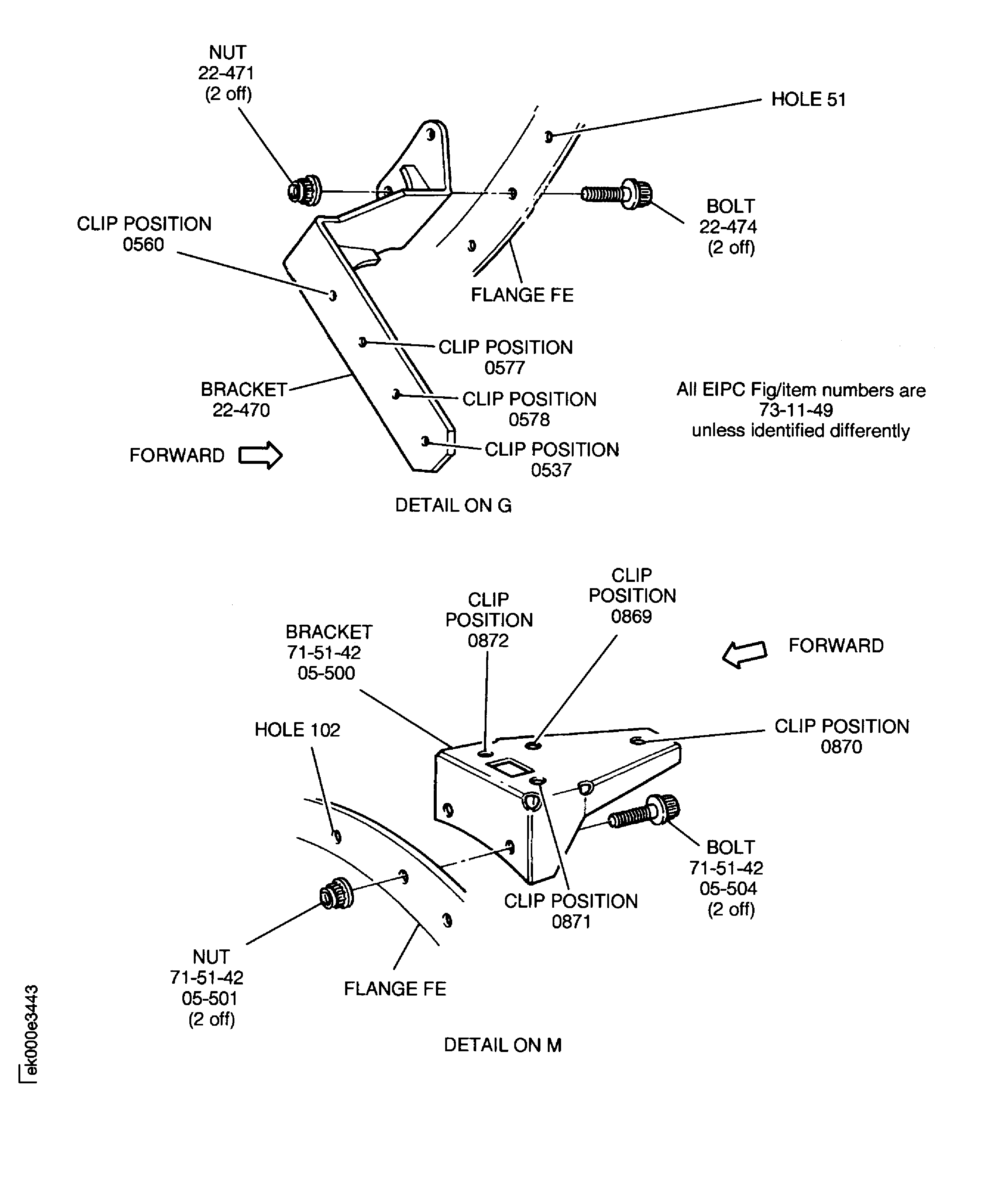

1. Refer to Figure, Figure. Figure, Figure. Figure, Figure, Figure and Figure.
2. 1. WARNING
    WHEN YOU USE COMAT 01-002 INHIBITED AND STABILIZED TRICHLOROETHANE YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

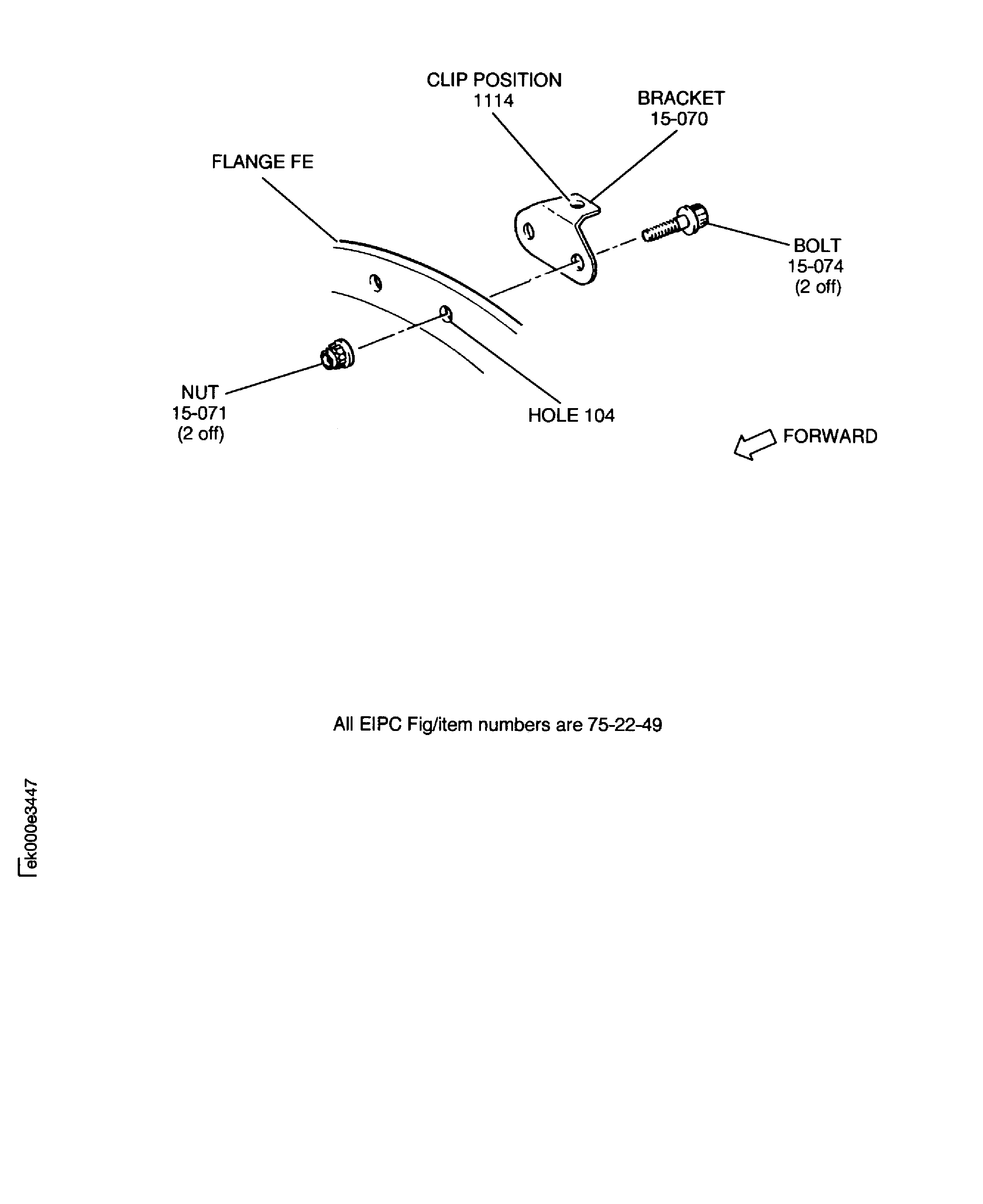

    Clean the mating surfaces of the brackets and the flange FE with CoMat 01-002 SOLVENT, DELETED. as follows.
    NOTE
    Flange FE hole number taken from top dead center. The two large holes at 90 degrees, engine hoist bolt attach holes must not be counted when the brackets are installed.
    Bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-950) and the front/rear surfaces of the flange FE (holes 16 and 17).
    Bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-952).
    Bracket (24-21-43, 01-940) and the front surface of the flange FE (holes 20 and 21).
    Bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-930) and the rear surface of the flange FE (holes 23 and 24).
    Bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-920) and the rear surface of the flange FE (holes 29 and 30).
    Bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-910) and the rear surface of the flange FE (holes 32 and 33).
    Bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-900) and the rear surface of the flange FE (holes 34 and 35).
  2. Keep the brackets and the flange FE from contamination with finger prints and unwanted materials.

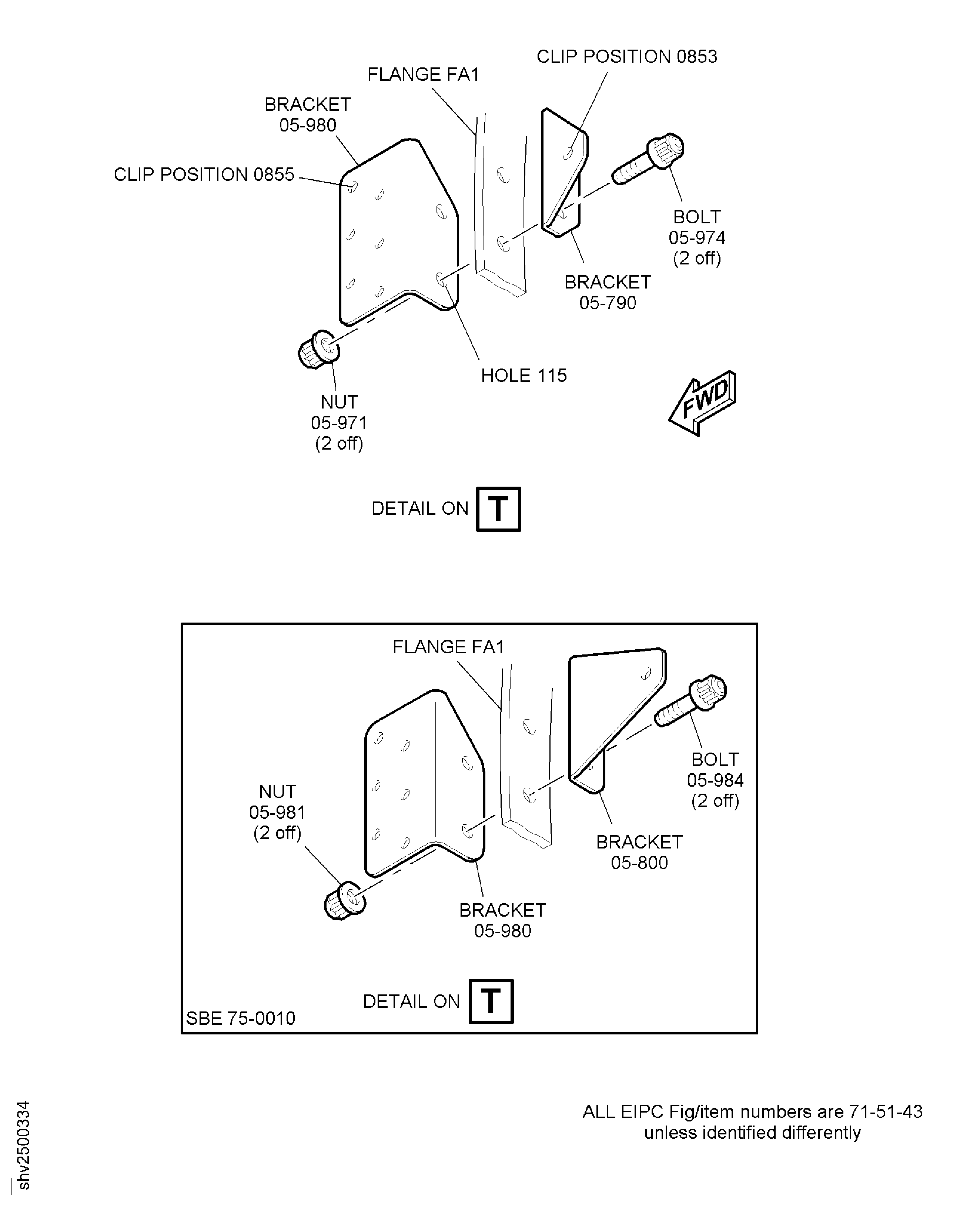

3. 1. Clean the mating surfaces of the brackets and the flange FA/FA1 with CoMat 01-002 SOLVENT, DELETED. as follows.
    Bracket (GP1) ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-980) and the front surface of the the flange FA1 (holes 115 and 116). Refer to the detail on T, Figure.
    Bracket (GP2) ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-960) and the front surface of the flange FA1 (holes 92 and 93). Refer to the detail on R, Figure.
    Bracket (GP3), the packing piece ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-940) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-943) and the rear surface of the flange FA (holes 46 and 47). Refer to the detail on M, Figure.
    Bracket (GP4), the packing piece ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-920) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-923) and the rear surface of the flange FA (holes 39 to 41). Refer to the detail on K.
  2. Keep the brackets, the packing pieces and the flanges FA/FA1 from contamination with finger prints and unwanted materials.
1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure and Figure.
2. 1. Install the two brackets ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-980) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-990) at the holes 11 and 12 with the two bolts and two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-984) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-981). Torque the nuts 85 to 105 lbf.in. (10 to 12 Nm).
3. 1. Install the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 12-060) at the holes 23 and 24 with the two bolts and two nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 12-064) and ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 12-062). Refer to the detail on B.
  2. Install the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 12-055) at the holes 28 and 29 with two bolts and the two nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 12-059) and ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 12-057). Refer to the detail on C.
  3. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
4. 1. NOTE
    The remaining bolt OIL-AIR COOLED OIL COOLER (79-21-42, 01-410) for the installation of the bracket OIL-AIR COOLED OIL COOLER (79-21-42, 01-350) at the hole 39, is installed during TASK 72-00-32-420-002.
    Install the bracket OIL-AIR COOLED OIL COOLER (79-21-42, 01-350) at hole 38 with the bolt OIL-AIR COOLED OIL COOLER (79-21-42, 01-354) and the nut OIL-AIR COOLED OIL COOLER (79-21-42, 01-351). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
  2. Install the LH bracket POWER PLANT-F/C ROD SUPPORT BKTS (71-00-24, 01-010) at the holes 76 and 77 with the two bolts, the two washers and the two nuts POWER PLANT-F/C ROD SUPPORT BKTS (71-00-24, 01-040), POWER PLANT-F/C ROD SUPPORT BKTS (71-00-24, 01-030) and POWER PLANT-F/C ROD SUPPORT BKTS (71-00-24, 01-020). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm). Refer to the detail on L.
5. 1. Install the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 22-470) at the holes 51 and 52 with the two bolts and the two nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 22-474) and ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 22-471). Refer to the detail on G.
  2. Install the bracket OIL-PRESSURE OIL TUBES-ENGINE (79-21-49, 06-070) at the holes 54 and 55 with the two bolts and the two nuts OIL-PRESSURE OIL TUBES-ENGINE (79-21-49, 06-074) and OIL-PRESSURE OIL TUBES-ENGINE (79-21-49, 06-071). Refer to the detail on H.
  3. Install the bracket OIL-PRESSURE OIL TUBES-ENGINE (79-21-49, 04-070) at the holes 59 and 60 with the two bolts and the two nuts OIL-PRESSURE OIL TUBES-ENGINE (79-21-49, 04-074) and OIL-PRESSURE OIL TUBES-ENGINE (79-21-49, 04-071). Refer to the detail on I.
  4. Install the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 05-070) at the holes 65 and 66 with the two bolts and the two nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 05-074) and ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 05-071). Refer to the detail on J.
  5. Pre SBE 73-0040: Install the bracket OIL-PRESSURE OIL TUBES-ENGINE (79-21-49, 04-070) at the holes 67 and 68 with the two bolts and the two nuts OIL-PRESSURE OIL TUBES-ENGINE (79-21-49, 04-074) and OIL-PRESSURE OIL TUBES-ENGINE (79-21-49, 04-071). Refer to the detail on K.
  6. SBE 73-0040: Install the two brackets OIL-PRESSURE OIL TUBES-ENGINE (79-21-49, 04-070) and ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 21-264) at the holes 67 and 68 with the two bolts, the four washers and the two nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 21-267), ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 21-269) and ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 21-270). Refer to the detail on K.
  7. SBE 73-0040: Install the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 21-264) at the holes 63 and 64 with the two bolts, the two washers and the two nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 21-266), ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 21-268) and ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 21-270). Refer to the detail on I.
  8. Torque the nuts installed in Step to Step to 85 to 105 lbf.in (10 to 12 Nm).
6. 1. Install the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-500) at the holes 101 and 102 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-504) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-501). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).

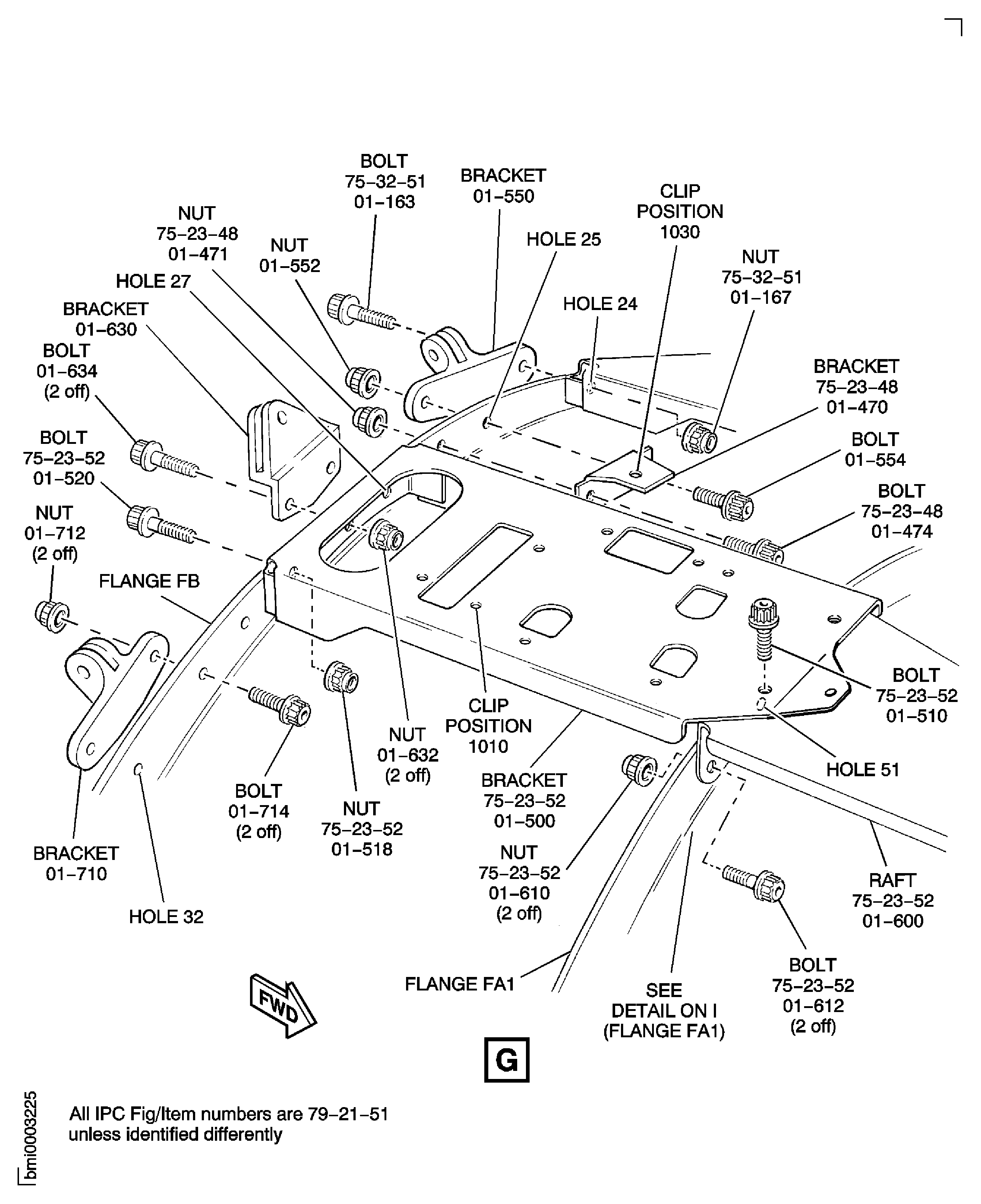

1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure andFigure.
2. 1. Install the bracket AIR-BEARING COMPARTMENT COOLING & SEALING TUBES (75-22-49, 15-070) at the holes 104 and 105 with the two bolts and the two nuts AIR-BEARING COMPARTMENT COOLING & SEALING TUBES (75-22-49, 15-074) and AIR-BEARING COMPARTMENT COOLING & SEALING TUBES (75-22-49, 15-071). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
1. 1. Bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-950).
  2. Bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-952).
  3. Bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-940).
  4. Bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-930).
  5. Bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-920).
  6. Bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-910).
  7. Bracket ELECTRICAL POWER-IDG CABLES (24-21-43, 01-900).

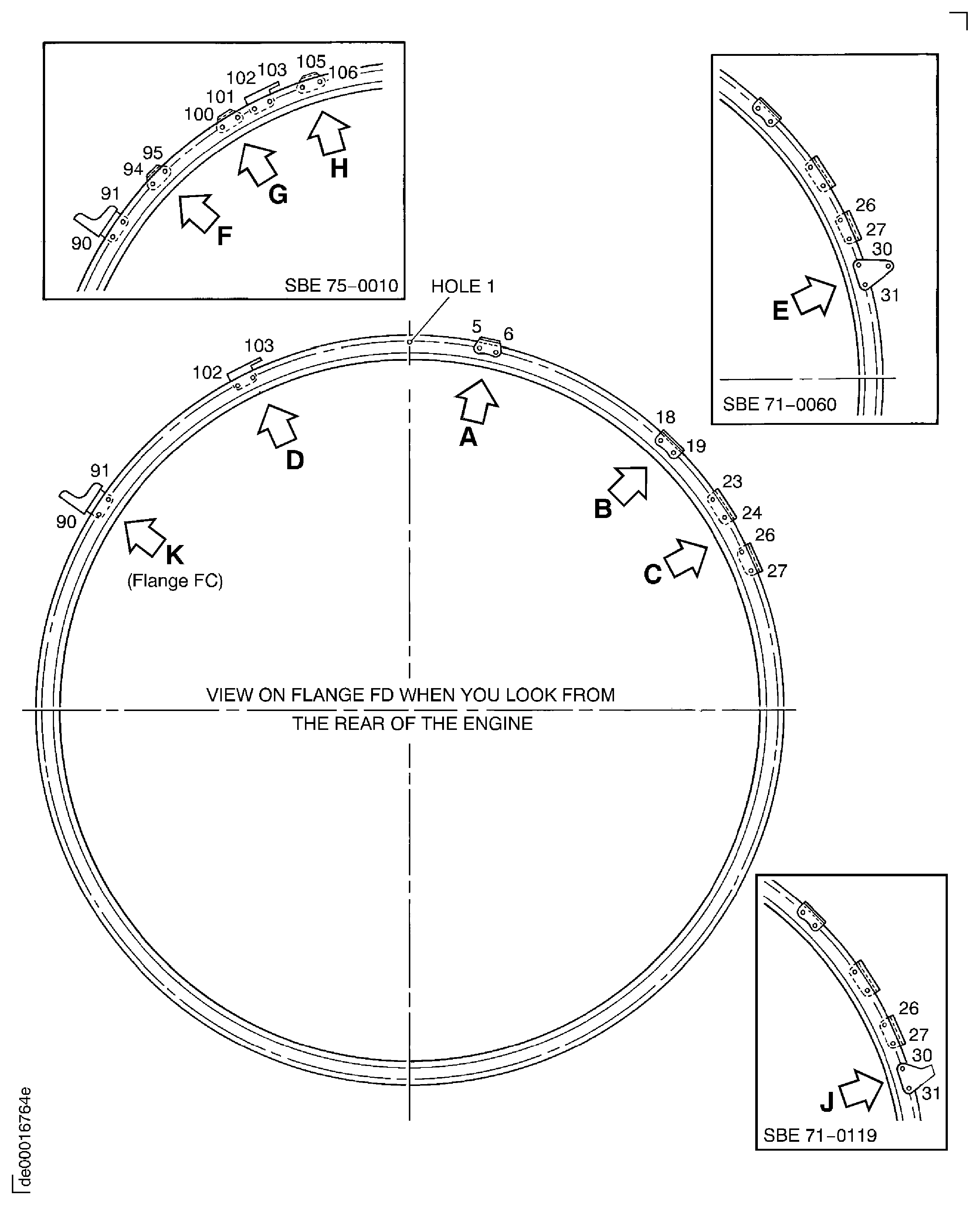

1. Refer to Figure and Figure.
2. 1. Install the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 12-065) at the holes 5 and 6 with the two bolts and the two nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 12-069) and ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 12-067). Torque the two nuts to 85 to 105 lbfin. (10 to 12 Nm).
3. 1. Install the two brackets ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-690) and ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 12-060) at the holes 18 and 19 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-694) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-691). Torque the two nuts to 85 to 105 lbf.in (10 to 12 Nm).

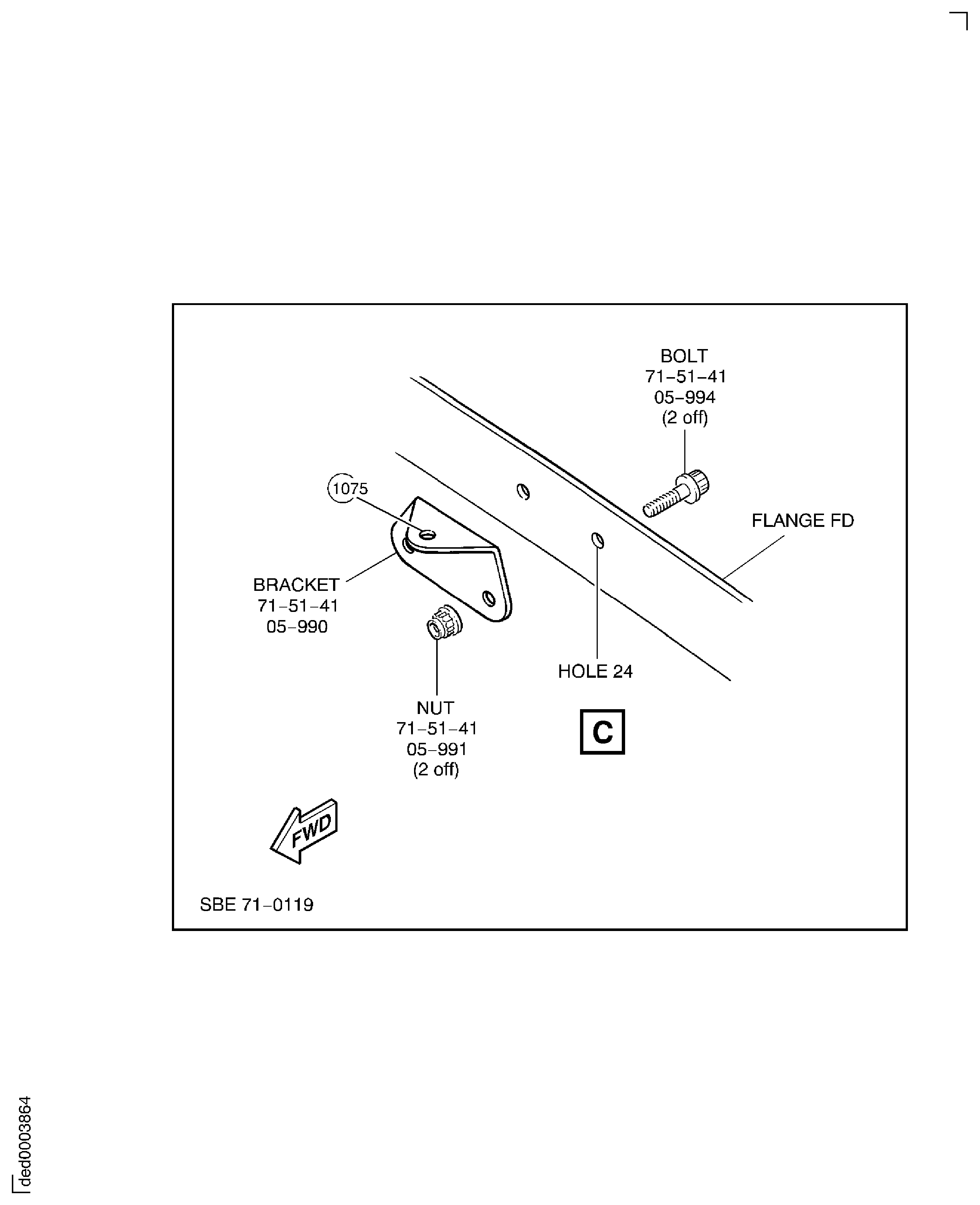

4. 1. Install the two brackets V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-990) at the holes 23, 24 and 26, 27 with the four bolts and the four nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-994) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-991). Torque the four nuts to 85 to 105 lbf.in (10 to 12 Nm).
5. 1. Install the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-840) at the holes 102 and 103 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-844) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-841). Torque the two nuts to 85 to 105 lbf.in

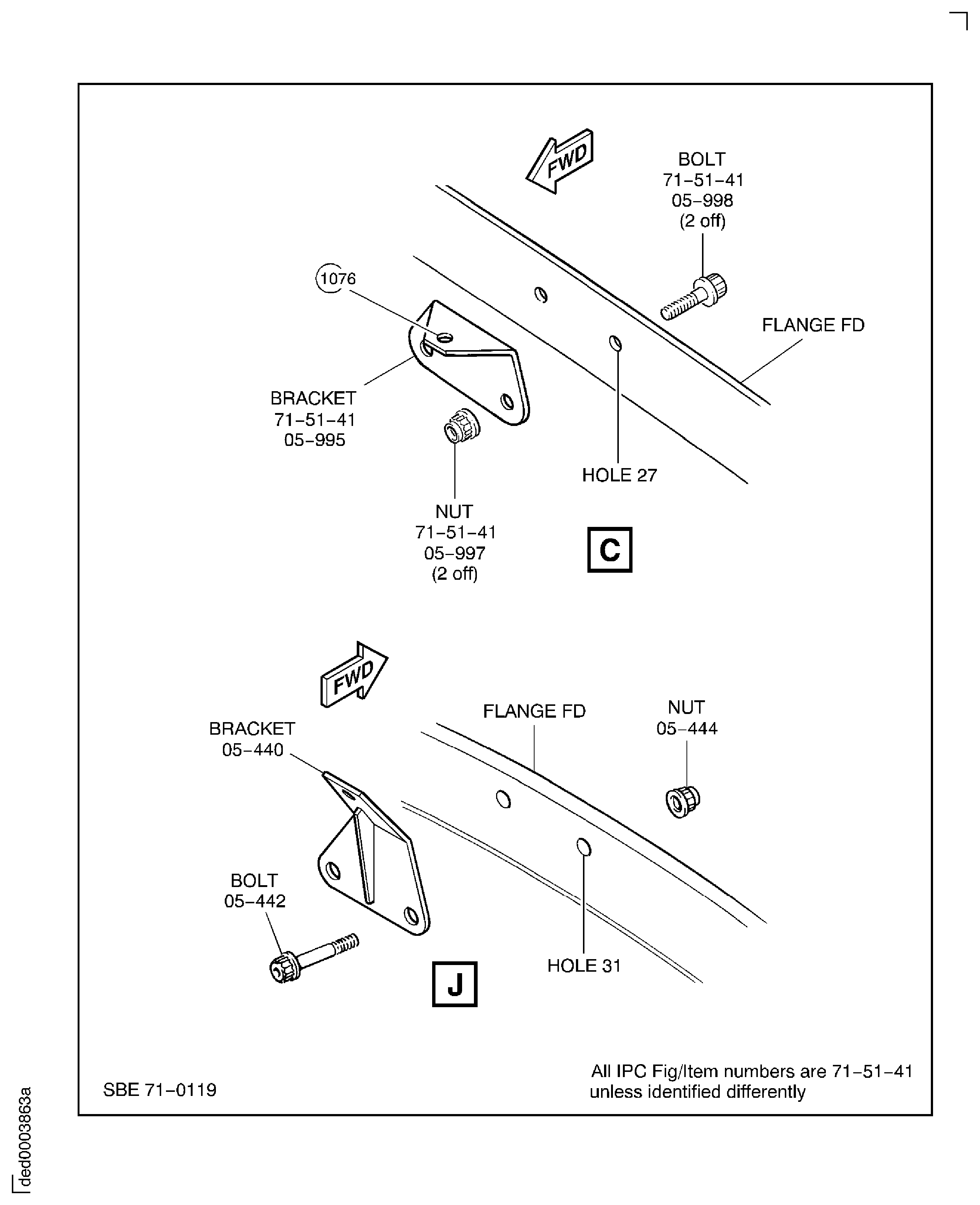

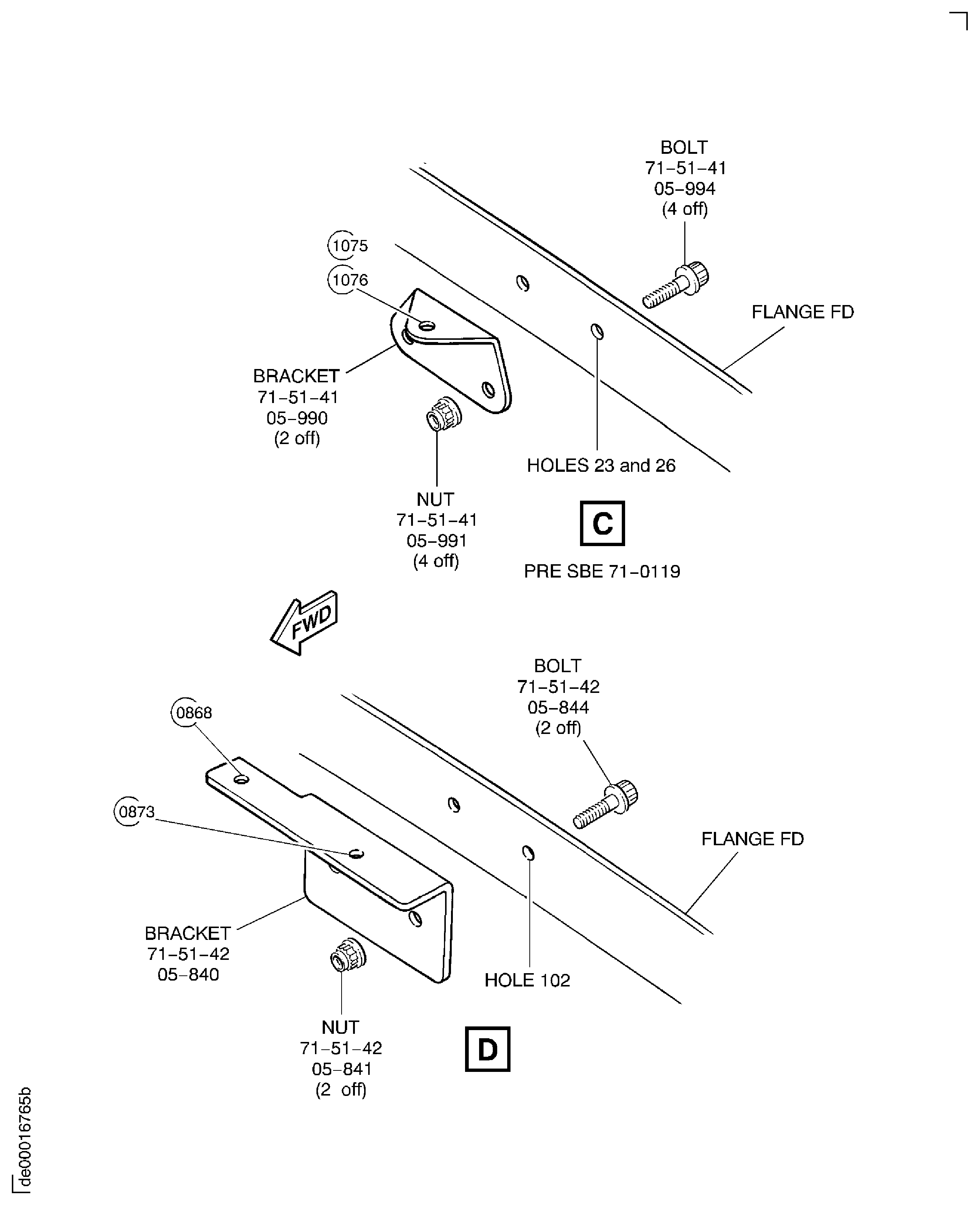

1. Refer to Figure, Figure and Figure.
2. 1. Install the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 12-065) at the holes 5 and 6 with the two bolts and the two nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 12-069) and ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 12-067). Torque the two nuts to 85 to 105 lbf.in (10 to 12 Nm).
3. 1. Install the two brackets ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-690) and ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 12-060) at the holes 18 and 19 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-694) and (05-691). Torque the two nuts to 85 to 105 lbf.in (10 to 12 Nm).
4. 1. Install the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-990) at the holes 23 and 24 with the two bolts and the two nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-994) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-991). Torque the two nuts to 85 to 105 lbf.in (10 to 12 Nm). Refer to Figure.
  2. Install the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-995) at the holes 26 and 27 with the two bolts and the two nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-998) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-997). Torque the two nuts to 85 to 105 lbf.in (10 to 12 Nm). Refer to Figure.
5. 1. Install the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-840) at the holes 102 and 103 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-844) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-841). Torque the two nuts to 85 to 105 lbf.in
6. 1. Install the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-440) at the holes 30 and 31 with the two bolts and the two nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-442) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-444). Torque the two nuts to 85 to 105 lbf.in (10 to 12 Nm). Refer to Figure.
1. Refer to Figure and Figure.
2. 1. Install the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-750) at the holes 30 and 31 with the two bolts and the two nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-754) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-751). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).

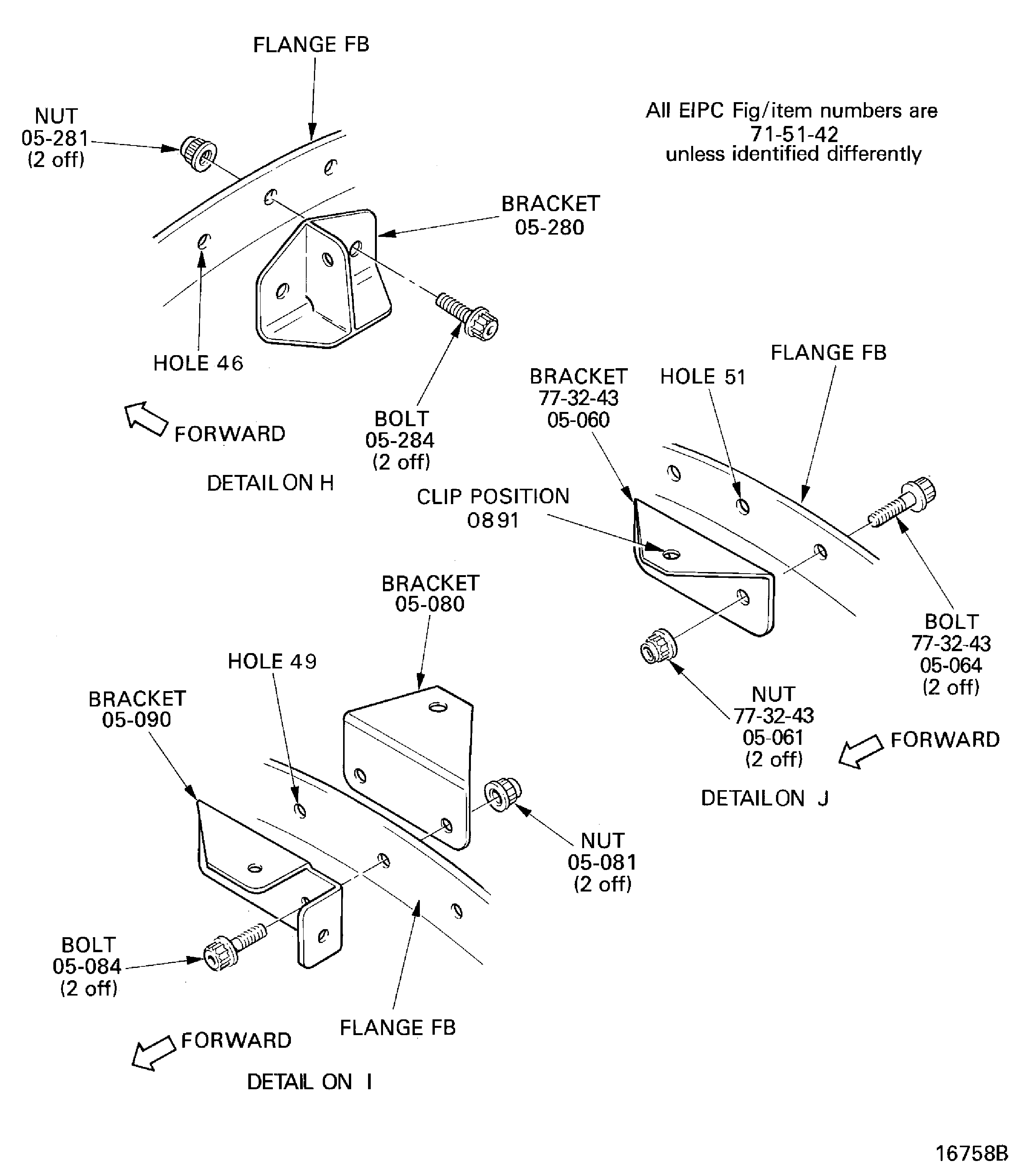

1. Refer to Figure, Figure and Figure.
2. 1. Install the bracket AIR-BEARING COMPARTMENT COOLING & SEALING TUBES (75-22-49, 15-070) at the holes 94 and 95 with the two bolts and the two nuts AIR-BEARING COMPARTMENT COOLING & SEALING TUBES (75-22-49, 15-074) and AIR-BEARING COMPARTMENT COOLING & SEALING TUBES (75-22-49, 15-071). Refer to the detail on F.
  2. Install the bracket AIR-BEARING COMPARTMENT COOLING & SEALING TUBES (75-22-49, 15-070) at the holes 100 and 101 with the two bolts and the two nuts AIR-BEARING COMPARTMENT COOLING & SEALING TUBES (75-22-49, 15-074) and AIR-BEARING COMPARTMENT COOLING & SEALING TUBES (75-22-49, 15-071). Refer to the detail on G.
  3. Install the bracket AIR-BEARING COMPARTMENT COOLING & SEALING TUBES (75-22-49, 15-080) at the holes 105 and 106 with the two bolts and the two nuts AIR-BEARING COMPARTMENT COOLING & SEALING TUBES (75-22-49, 15-084) and AIR-BEARING COMPARTMENT COOLING & SEALING TUBES (75-22-49, 15-081). Refer to the detail on H.
  4. Torque the nuts installed in steps Step to Step to 85 to 105 lbf.in (10 to 12 Nm).
1. Refer to: Figure, Figure, Figure, Figure and Figure.
2. 1. Install the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-970) at the holes 1 and 2 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-974) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-971). Refer to the detail on A.
  2. Install the brackets ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-860 and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS 05-960) at the holes 3 and 4 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-864) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-861). Refer to the detail on B.
  3. Install the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 06-560) at the holes 5 and 6 with the two bolts and the two nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 06-567) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 06-569). Refer to the detail on C.
  4. Torque the nuts installed in Step to Step to 85 to 105 lbfin. (10 to 12 Nm).

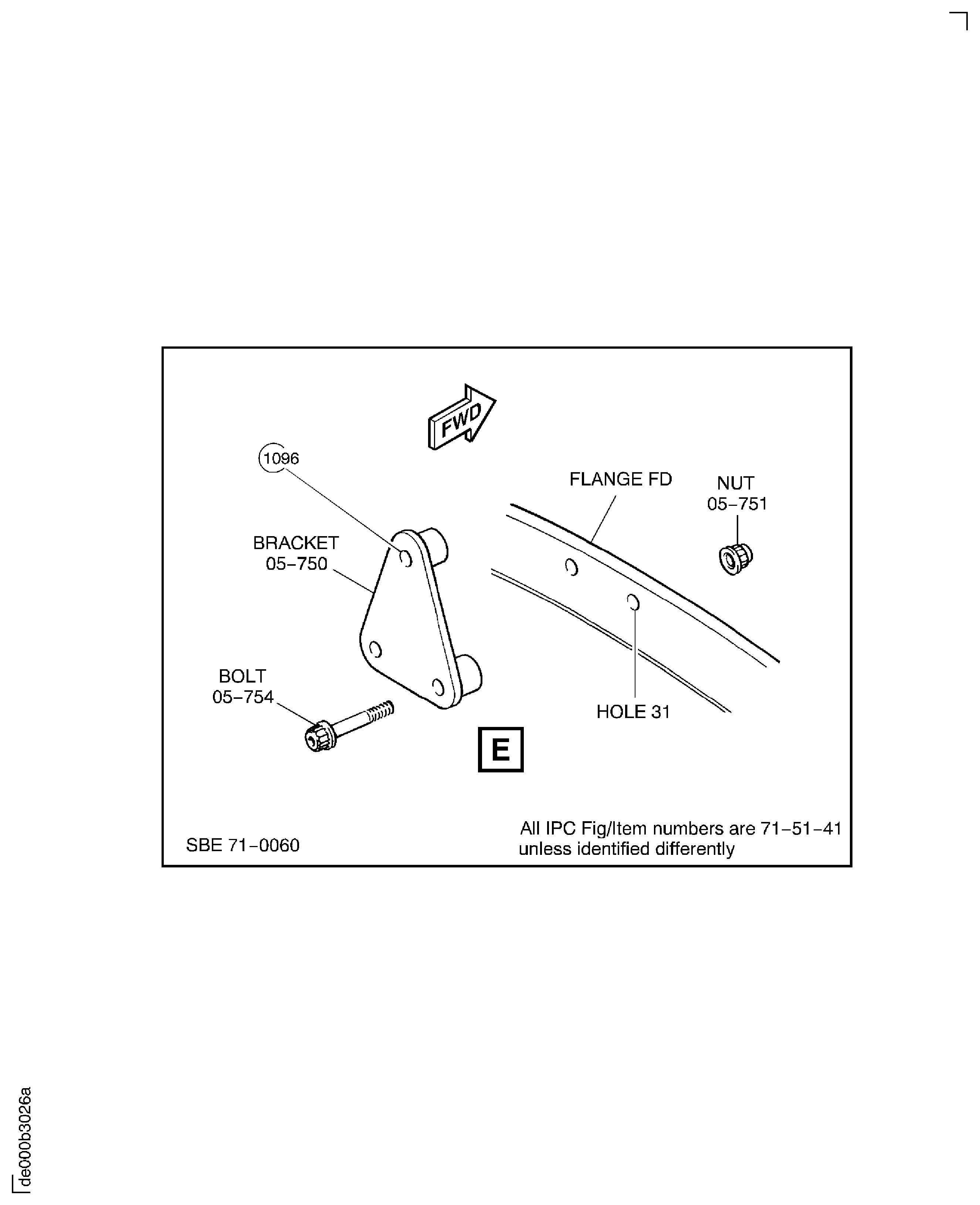

3. Install the brackets at E, refer to Step or Step.
4. 1. Install the bracket OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 04-470) at the holes 25 and 26 with the two bolts and the two nuts OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 04-474) and OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 04-471). Refer to the detail on F.
  2. Install the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 23-070) at the holes 27 and 28 with the two bolts and the two nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 23-074) and ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 23-071). Refer to the detail on G.
  3. Install the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 02-070) at the holes 31 and 32 with the two bolts and the two nuts. Refer to the detail on H.
  4. Install the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 02-080) at the holes 35 and 36 with the two bolts and the two nuts. Refer to the detail on I.
  5. Torque the nuts installed in Step to Step to 85 to 105 lbf.in (10 to 12 Nm).
5. 1. Install the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 02-060) at the holes 37 and 38 with the two bolts and the two nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 02-064) and ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 02-061). Refer to the detail on J.
  2. Install the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-830) at the holes 41 and 42 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-834) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-831). Refer to the detail on L.
  3. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
1. 1. Attach the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-800) and the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-790) to the bracket POWER PLANT-RELAY BOX (71-51-49, 01-370) with the three bolts and the three clipnuts ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-805) and ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-808). Refer to the Figure at detail on F.
    Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).
  2. NOTE
    The procedure for the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-800) at the flange FB is given in SUBTASK 72-00-32-420-132, the detail on F.
    Temporarily install the bracket assembly at the hole 18 on the flange FB with the bolt and the nut POWER PLANT-RELAY BOX (71-51-49, 01-403) and POWER PLANT-RELAY BOX (71-51-49, 01-404). Tighten the nut.
  3. Install the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-800) and the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-820) at the hole 20 (on the flange FC) with the nut and the bolt ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-804) and ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-801). Refer to Figure. at detail on E.
  4. Attach the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-820) at the hole 21 with the bolt and the nut V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-824) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-821).
  5. Install the bracket OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 10-070) at the holes 23 and 24 with two bolts and the two nuts OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 10-074) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 10-071).
  6. Torque the nuts installed in Step to Step to 85 to 105 lbf.in (10 to 12 Nm).
1. 1. Attach the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-800) to the bracket POWER PLANT-RELAY BOX (71-51-49, 01-370) with the two bolts ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-805), the two washers ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-806) and the two nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-808). Refer to the Figure. at detail on F.
    Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).
  2. Attach the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-790) to the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 01-370) with the two bolts ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-792), two washers ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-794) and the two nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-796). Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).
  3. NOTE
    The procedure for the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-800) at the flange FB is given in SUBTASK 72-00-32-420-132, the detail on F.
    Temporarily install the bracket assembly at the hole 18 on the flange FB with the bolt and the nut POWER PLANT-RELAY BOX (71-51-49, 01-403 and 01-404). Tighten the nut.
  4. Install the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-800) and the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-820) at the hole 20 (on the flange FC) with the nut and the bolt ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-804) and ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-801). Refer to Figure. at detail on E.
  5. Attach the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-820) at the hole 21 with the bolt and the nut V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-824) and (71-51-41, 05-821).
  6. Install the bracket OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 10-070) at the holes 23 and 24 with two bolts and the two nuts OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 10-074 and 10-071).
  7. Torque the nuts installed in steps Step to Step to 85 to 105 lbf.in (10 to 12 Nm).
1. Refer to Figure.

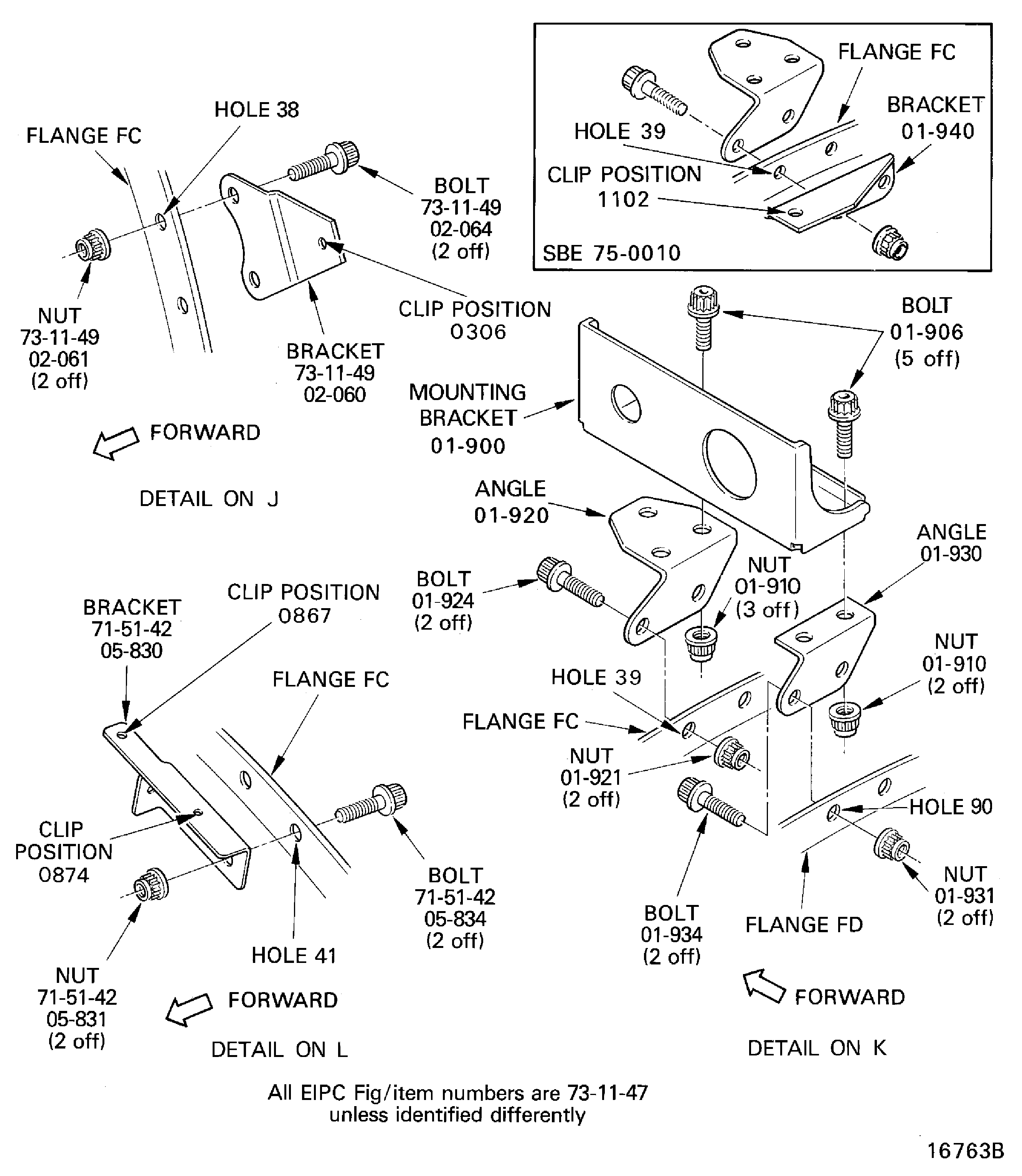

2. 1. Install the angle FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-920) at the holes 39 and 40 with the two bolts and the two nuts FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-924 and 01-921). Refer to the detail on K.
  2. Install the angle FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-930) at the holes 90 and 91 on the flange FD with the two bolts and the two nuts FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-934) and FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-931).
  3. Install the mounting bracket FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-900) to the two angles with the five bolts and the five nuts FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-906) and FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-910).
  4. NOTE
    During the connection of the tube 110 to the LP fuel pump TASK 72-00-60-420-002-A00 (INSTALLATION-003, CONFIG-001) it could be necessary to adjust the mounting bracket position on the slots.
    Torque the nuts installed in Step to Step to 85 to 105 lbf.in (10 to 12 Nm).
1. Refer to Figure.
2. 1. Install the angle FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-920) and the bracket FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-940) at the holes 39 and 40 with the two bolts and the two nuts FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-924) and FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-921). Refer to the detail on K.
  2. Install the angle FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-930) at the holes 90 and 91 on the flange FD with the two bolts and the two nuts FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-934) and FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-931).
  3. Install the mounting bracket FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-900) to the two angles with the five bolts and the five nuts FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-906) and FUEL SYSTEM TUBES (RIGID)-POWER PLANT (73-11-47, 01-910).
  4. NOTE
    During the connection of the tube 110 to the LP fuel pump (TASK 72-00-60-420-002) it could be necessary to adjust the mounting bracket position on the slots.
    Torque the nuts installed in Step to Step to 85 to 105 lbf.in (10 to 12 Nm).
1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure and Figure.
2. 1. Install the bracket VIBRATION TRANSDUCER JUNCTION BOX (77-32-43, 05-080) at the holes 1 and 2 with the two bolts and the two nuts VIBRATION TRANSDUCER JUNCTION BOX (77-32-43, 05-086) and VIBRATION TRANSDUCER JUNCTION BOX (77-32-43, 05-082). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
3. 1. NOTE
    The remaining bolt ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-906) is installed during TASK 72-00-32-420-004-A00 (INSTALLATION-004, CONFIG-001). Refer to the clip position 0804.
    Attach the bracket BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-890) to the raft ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-900) with the bolt ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-906). Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).
  2. Install the raft at the holes 3 and 4 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-904) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-901). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
  3. NOTE
    The procedure for the bracket BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-890) at the flange FA1 is given in Step.
    Temporarily attach the bracket BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-890) to the flange FA1 with the bolt and the nut BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-894) and V2500-A5-71-51-51-01A-941A-D (71-51-51, 01-891). Tighten the nut.
4. 1. Install the brackets ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-940) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-950) at the holes 7 and 8 with the two bolts and the two nuts. Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
5. 1. Install the EEC support V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-010) at the holes 7 to 10 and the bracket V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-580) at the holes 8 and 9 on the flange FC with the four bolts and the four nuts V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-240) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-260). Tighten the nuts, but do not torque them at this time. Refer to the detail on D.
  2. Install the laminated shim V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-250) between the EEC support and the flange FB. Remove the laminated layers of the shim (as necessary) to get a maximum clearance of 0.004 in. (0.10 mm) between the shim and the flange FB.
  3. NOTE
    The remaining bolt and nut V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-240) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-260) at the hole 9 is installed during the procedure for the terminal module V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-560) given in TASK 72-00-32-420-004-A00 (INSTALLATION-004, CONFIG-001).
    Install the EEC support V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-120) and the laminated shim at the holes 10 to 12 with the three bolts and the three nuts V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-240) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-260).
  4. WARNING
    WHEN YOU USE CoMat 01-002 SOLVENT, DELETED. YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.
    Clean the mating surfaces of the ground cable V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-320) and the EEC support V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-010) with CoMat 01-002 SOLVENT, DELETED.. Use a clean cloth made moist with the solvent to remove the grease, fingerprints and the unwanted material.
  5. Attach the ground cable V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-320) to the EEC support with the bolt and the nut V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-340) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-350).
  6. Torque the nuts installed in Step, Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
  7. Install the EEC support V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-060) and the two brackets V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-500) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-520) at the holes 15 to 19 on the flange FC with the five bolts and the five nuts V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-240) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-260). Tighten the nuts, but do not torque them at this time. Refer to the detail on E.
  8. Install the laminated shim V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-250) as given in Step.
  9. Install the EEC support V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-180), the brackets V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-420) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-440) and the laminated shim V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-250) at the holes 13 to 16 with the four bolts and the four nuts V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-240) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-260).
  10. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
6. 1. Install the bracket POWER PLANT-RELAY BOX (71-51-49, 01-310) at the holes 35 and 38 on the flange FA1 with the two bolts and the two nuts POWER PLANT-RELAY BOX (71-51-49, 01-312) and POWER PLANT-RELAY BOX (71-51-49, 01-316). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
  2. Attach the bracket POWER PLANT-RELAY BOX (71-51-49, 01-390) to the relay box mounting bracket POWER PLANT-RELAY BOX (71-51-49, 01-400) with the two bolts POWER PLANT-RELAY BOX (71-51-49, 01-394).
  3. Attach the bracket POWER PLANT-RELAY BOX (71-51-49, 01-330) to the relay box mounting bracket with the two bolts POWER PLANT-RELAY BOX (71-51-49, 01-332).
  4. Torque the bolts installed in Step and Step to 36 to 45 lbf.in (4 to 5 Nm).
  5. Remove the bolt and the nut temporarily installed at the hole 18 on the flange FB.
  6. Install the relay box mounting bracket to the bracket POWER PLANT-RELAY BOX (71-51-49, 01-310) at the flange FA1, with the two bolts and the two clipnuts POWER PLANT-RELAY BOX (71-51-49, 01-404) and POWER PLANT-RELAY BOX (71-51-49, 01-410).
  7. WARNING
    WHEN YOU USE CoMat 01-002 SOLVENT, DELETED. YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.
    Clean the mating surfaces of the bracket POWER PLANT-RELAY BOX (71-51-49, 01-380) and the rear of the flange FB (at the holes 19 and 20) with CoMat 01-002 SOLVENT, DELETED.. Use a clean cloth made moist with the solvent to remove the grease, fingerprints and the unwanted material.
  8. NOTE
    The remaining installation procedure for the bracket POWER PLANT-RELAY BOX (71-51-49, 01-380) at the hole 20 is given in TASK 72-00-32-420-005-A00 (INSTALLATION-005, CONFIG-001), during the installation of the EEC inlet AIR-EEC COOLING DUCTS (75-28-49, 02-100).
    Attach the brackets POWER PLANT-RELAY BOX (71-51-49, 01-370) and POWER PLANT-RELAY BOX (71-51-49, 01-380) at the flange FB with the three bolts and the three nuts POWER PLANT-RELAY BOX (71-51-49, 01-403), POWER PLANT-RELAY BOX (71-51-49, 01-402), POWER PLANT-RELAY BOX (71-51-49, 01-413) and POWER PLANT-RELAY BOX (71-51-49, 01-414).
  9. Torque the two bolts POWER PLANT-RELAY BOX (71-51-49, 01-404) and the three nuts POWER PLANT-RELAY BOX (71-51-49, 01-413) and POWER PLANT-RELAY BOX (71-51-49, 01-414) to 85 to 105 lbf.in (10 to 12 Nm).
7. 1. Install the bracket OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-710) at the holes 31 and 32 with the two bolts and the two nuts OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-714) and OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-712).
  2. Install the raft AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-600), refer to Step, the detail on I.
  3. NOTE
    The remaining bolt and washer AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-110) and AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-113) which attaches the bracket AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-500) to the raft AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-600) is installed during TASK 72-00-32-420-002 (INSTALLATION-002).
    Attach the bracket AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-500) to the raft AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-600) with the bolt AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-510).
  4. Attach the bracket AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-500) and the bracket OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-630) at the holes 27 and 28 with the two bolts and the two nuts OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-634) and OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-632). Attach the bracket AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-500) at the hole 29 with the bolt and the nut AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-520) and AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-518).
  5. Install the bracket AIR-TURBINE COOLING CONTROLLED AIR TUBES (75-23-48, 01-470) and the bracket OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-550) at the holes 25 and 26 with the two bolts and the two nuts OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-554) and OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-552) and AIR-TURBINE COOLING CONTROLLED AIR TUBES (75-23-48, 01-474) and AIR-TURBINE COOLING CONTROLLED AIR TUBES (75-23-48, 01-471).
  6. Install the solenoid angle bracket AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-140) at the holes 43 and 46 on the flange FA1 with the two bolts and the two nuts AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-142) and AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-143).
  7. Attach the solenoid mounting bracket AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-160) to the solenoid angle bracket AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-140) with the two bolts and the two clipnuts AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-162) and AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-170).
  8. Attach the solenoid mounting bracket AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-160) and the bracket OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-550) at the hole 24 with the bolt and the nut AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-163) and AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-167).
  9. NOTE
    The remaining bolt, the washer and the nut which attach the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-470) and the EEC inlet AIR-EEC COOLING DUCTS (75-28-49, 02-100) at the hole 22 is installed during TASK 72-00-32-420-005 (INSTALLATION-005).
    Attach the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-470) and the solenoid mounting bracket AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-160) at the hole 23 with the bolt and the nut AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-161) and AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-167).
  10. Pre SBE 75-0047: Attach the two brackets AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-150) to the solenoid mounting bracket AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-160) with the two bolts and the two nuts AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-154) and AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-152). Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
  11. Torque the two bolts AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-162) and the nuts installed in Step to Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
8. 1. WARNING
    WHEN YOU USE CoMat 01-002 SOLVENT, DELETED. YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

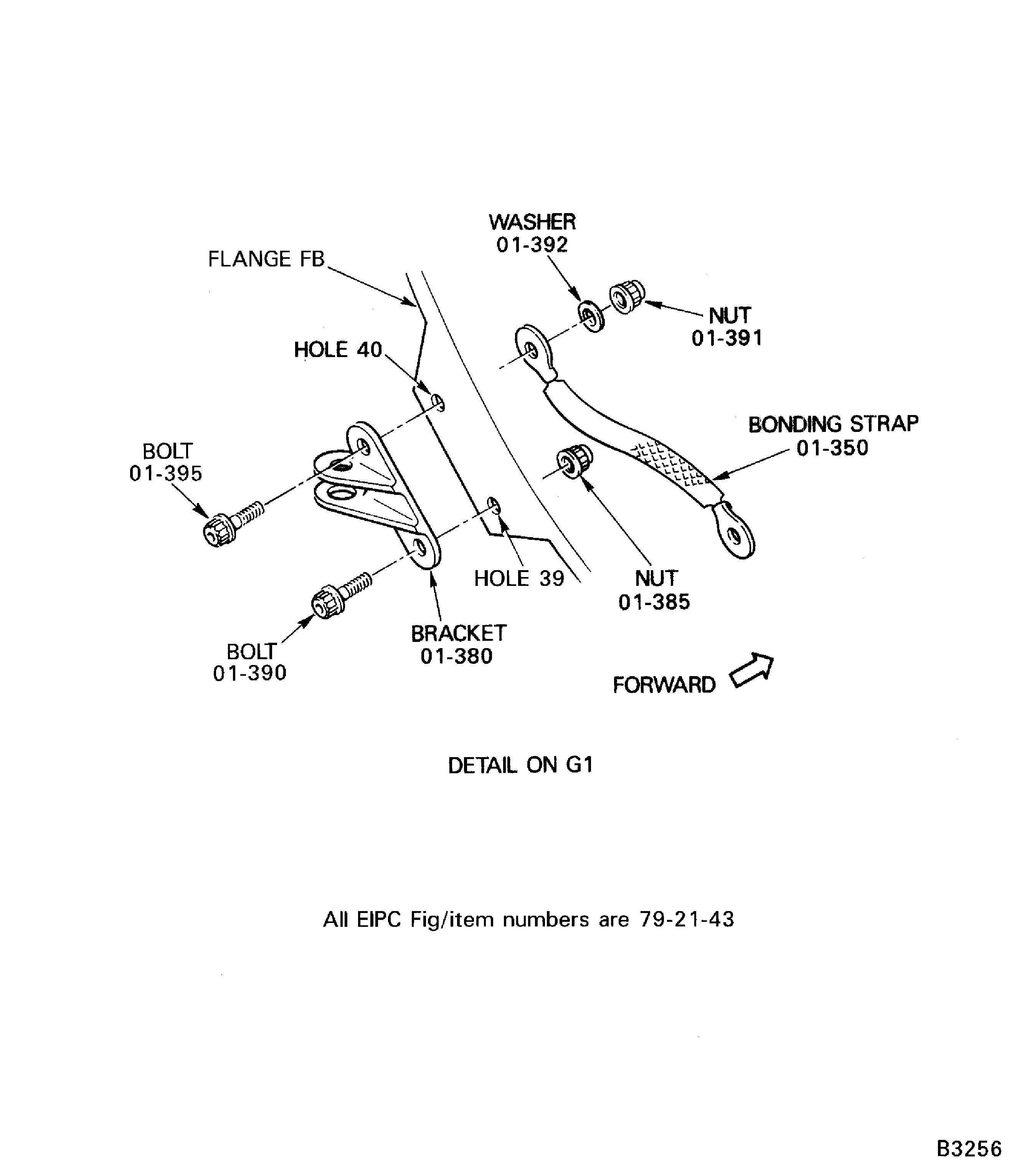

    Clean the mating surfaces of the bonding strap and the washer OIL-FUEL COOLED OIL COOLER (79-21-43, 01-350), and OIL-FUEL COOLED OIL COOLER (79-21-43, 01-392) with CoMat 01-002 SOLVENT, DELETED.. Use a clean cloth made moist with the solvent to remove the grease, fingerprints and the unwanted material.
  2. Clean the forward side of the flange FB at the hole 39, 40 as given in Step.
  3. Install the bracket and the bonding strap OIL-FUEL COOLED OIL COOLER (79-21-43, 01-380) and OIL-FUEL COOLED OIL COOLER (79-21-43, 01-350) at the holes 39 and 40 with the two bolts, the washer and the two nuts OIL-FUEL COOLED OIL COOLER (79-21-43, 01-390), OIL-FUEL COOLED OIL COOLER (79-21-43, 01-395), OIL-FUEL COOLED OIL COOLER (79-21-43, 01-385), OIL-FUEL COOLED OIL COOLER (79-21-43, 01-392) and OIL-FUEL COOLED OIL COOLER (79-21-43, 01-391). Refer to the detail on G1.
  4. Torque the nuts installed in steps (3) and (4) to 85 to 105 lbfin. (10 to 12 Nm).
9. 1. Install the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-280) at the holes 46 and 47 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-284) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-281). Refer to the detail on H.
  2. Install the brackets ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-080) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-090) at the holes 48 and 49 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-084) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-081). Refer to the detail on I.
  3. Install the bracket VIBRATION TRANSDUCER JUNCTION BOX (77-32-43, 05-060) at the holes 50 and 51 with the two bolts and the two nuts VIBRATION TRANSDUCER JUNCTION BOX (77-32-43, 05-064) and VIBRATION TRANSDUCER JUNCTION BOX (77-32-43, 05-061). Refer to the detail on J.
  4. Torque the nuts installed in Step to Step to 85 to 105 lbf.in (10 to 12 Nm).
1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure and Figure.
2. 1. Install the bracket VIBRATION TRANSDUCER JUNCTION BOX (77-32-43, 05-080) at the holes 1 and 2 with the two bolts and the two nuts VIBRATION TRANSDUCER JUNCTION BOX (77-32-43, 05-086) and VIBRATION TRANSDUCER JUNCTION BOX (77-32-43, 05-082). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
3. 1. NOTE
    The remaining bolt ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-906) is installed during TASK 72-00-32-420-004-A00 (INSTALLATION-004, CONFIG-001). Refer to the clip position 0804.
    Attach the bracket BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-890) to the raft ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-900) with the bolts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-906). Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).
  2. Install the raft at the holes 3 and 4 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-904) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-901). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
  3. NOTE
    The procedure for the bracket BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-890) at the flange FA1 is given in Step.
    Temporarily attach the bracket BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-890) to the flange FA1 with the bolt and the nut BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-894) and BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-891). Tighten the nut.
4. 1. Install the brackets ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-940) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-950) at the holes 7 and 8 with the two bolts and the two nuts. Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
5. 1. Install the EEC support V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-010) at the holes 7 to 10 and the bracket V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-580) at the holes 8 and 9 on the flange FC with the four bolts and the four nuts V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-240) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-260). Tighten the nuts, but do not torque them at this time. Refer to the detail on D.
  2. Install one or more laminated shims V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-250) as required between the EEC support and the flange FB. Remove the laminated layers of the shim(s) (as necessary) to get a maximum clearance of 0.004 in. (0.10 mm) between the shim(s) and the flange FB.
  3. NOTE
    The remaining bolt and nut V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-240) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-260) at the hole 9 is installed during the procedure for the terminal module V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-560) given in TASK 72-00-32-420-004-A00 (INSTALLATION-004, CONFIG-001).
    Install the EEC support V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-120) and the laminated shim(s) at the holes 10 to 12 with the three bolts and the three nuts V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-240) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-260).
  4. WARNING
    WHEN YOU USE CoMat 01-002 SOLVENT, DELETED. YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.
    Clean the mating surfaces of the ground cable V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-320) and the EEC support V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-010) with CoMat 01-002 SOLVENT, DELETED.. Use a clean cloth made moist with the solvent to remove the grease, fingerprints and the unwanted material.
  5. Attach the ground cable V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-320) to the EEC support with the bolt and the nut V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-340) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-350).
  6. Torque the nuts installed in Step, Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
  7. Install the EEC support V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-060) and the two brackets V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-500) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-520) at the holes 15 to 19 on the flange FC with the five bolts and the five nuts V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-240) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-260). Tighten the nuts, but do not torque them at this time. Refer to the detail on E.
  8. Install one or more laminated shims V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-250) as required as given in Step.
  9. Install the EEC support V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-180), the brackets V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-420) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-440) and the laminated shim(s) V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-250) at the holes 13 to 16 with the four bolts and the four nuts V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-240) and V2500-A5-73-22-34-01A-941A-D (73-22-34, 01-260).
  10. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
6. 1. Install the bracket POWER PLANT-RELAY BOX (71-51-49, 01-310) at the holes 35 and 38 on the flange FA1 with the two bolts and the two nuts POWER PLANT-RELAY BOX (71-51-49, 01-312) and POWER PLANT-RELAY BOX (71-51-49, 01-316). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
  2. Attach the bracket POWER PLANT-RELAY BOX (71-51-49, 01-390) to the relay box mounting bracket POWER PLANT-RELAY BOX (71-51-49, 01-400) with the two bolts POWER PLANT-RELAY BOX (71-51-49, 01-394).
  3. Attach the bracket POWER PLANT-RELAY BOX (71-51-49, 01-330) to the relay box mounting bracket with the two bolts POWER PLANT-RELAY BOX (71-51-49, 01-332).
  4. Torque the bolts installed in Step and Step to 36 to 45 lbf.in (4 to 5 Nm).
  5. Remove the bolt and the nut temporarily installed at the hole 18 on the flange FB.
  6. Install the relay box mounting bracket to the bracket POWER PLANT-RELAY BOX (71-51-49, 01-310) at the flange FA1, with the two bolts and the two clipnuts POWER PLANT-RELAY BOX (71-51-49, 01-404) and POWER PLANT-RELAY BOX (71-51-49, 01-410).
  7. WARNING
    WHEN YOU USE CoMat 01-002 SOLVENT, DELETED. YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.
    Clean the mating surfaces of the bracket POWER PLANT-RELAY BOX (71-51-49, 01-380) and the rear of the flange FB (at the holes 19 and 20) with CoMat 01-002 SOLVENT, DELETED.. Use a clean cloth made moist with the solvent to remove the grease, fingerprints and the unwanted material.
  8. NOTE
    The remaining installation procedure for the bracket POWER PLANT-RELAY BOX (71-51-49, 01-380) at the hole 20 is given in TASK 72-00-32-420-005-A00 (INSTALLATION-005, CONFIG-001) during the installation of the EEC inlet AIR-EEC COOLING DUCTS (75-28-49, 02-100).
    Attach the brackets POWER PLANT-RELAY BOX (71-51-49, 01-370) and POWER PLANT-RELAY BOX (71-51-49, 01-380) at the flange FB with the three bolts and the three nuts POWER PLANT-RELAY BOX (71-51-49, 01-403), POWER PLANT-RELAY BOX (71-51-49, 01-402), POWER PLANT-RELAY BOX (71-51-49, 01-413) and POWER PLANT-RELAY BOX (71-51-49, 01-414).
  9. Torque the two bolts POWER PLANT-RELAY BOX (71-51-49, 01-404) and the three nuts POWER PLANT-RELAY BOX (71-51-49, 01-413) and POWER PLANT-RELAY BOX (71-51-49, 01-414) to 85 to 105 lbf.in (10 to 12 Nm).
7. 1. Install the bracket OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-710) at the holes 31 and 32 with the two bolts and the two nuts OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-714) and OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-712).
  2. Install the raft AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-600), refer to Step, the detail on I.
  3. NOTE
    The remaining bolt and washer AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-110) and AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-113) which attaches the bracket AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-500) to the raft AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-600) is installed during TASK 72-00-32-420-002 (INSTALLATION-002).
    Attach the bracket AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-500) to the raft AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-600) with the bolt AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-510).
  4. Attach the bracket AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-500) and the bracket OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-630) at the holes 27 and 28 with the two bolts and the two nuts OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-634) and OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-632). Attach the bracket AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-500) at the hole 29 with the bolt and the nut AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-520) and AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-518).
  5. Install the bracket AIR-TURBINE COOLING CONTROLLED AIR TUBES (75-23-48, 01-470) and the bracket OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-550) at the holes 25 and 26 with the two bolts and the two nuts OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-554) and OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-552), AIR-TURBINE COOLING CONTROLLED AIR TUBES (75-23-48, 01-474) and AIR-TURBINE COOLING CONTROLLED AIR TUBES (75-23-48, 01-471).
  6. Install the solenoid angle bracket AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-140) at the holes 43 and 46 on the flange FA1 with the two bolts and the two nuts AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-142) and AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-143).
  7. Attach the solenoid mounting bracket AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-160) to the solenoid angle bracket AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-140) with the two bolts and the two clipnuts AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-162) and AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-170).
  8. Attach the solenoid mounting bracket AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-160) and the bracket OIL-AIR COOLED OIL COOLER MODULATING VALVE (79-21-51, 01-550) at the hole 24 with the bolt and the nut AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-163) and AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-167).
  9. NOTE
    The remaining bolt, the washer and the nut which attach the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-470) and the EEC inlet AIR-EEC COOLING DUCTS (75-28-49, 02-100) at the hole 22 is installed during TASK 72-00-32-420-005-A00 (INSTALLATION-005, CONFIG-001).
    Attach the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 03-470) and the solenoid mounting bracket AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-160) at the hole 23 with the bolt and the nut AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-161) and AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-167).
  10. Pre SBE 75-0047: Attach the two brackets AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-150) to the solenoid mounting bracket AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-160) with the two bolts and the two nuts AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-154) and AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-152). Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
  11. Torque the two bolts AIR-HPC STAGE 7 SOLENOID VALVE (75-32-51, 01-162) and the nuts installed in Step to Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
8. 1. WARNING
    WHEN YOU USE CoMat 01-002 SOLVENT, DELETED. YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.
    Clean the mating surfaces of the bonding strap and the washer OIL-FUEL COOLED OIL COOLER (79-21-43, 01-350) and OIL-FUEL COOLED OIL COOLER (79-21-43, 01-392) with CoMat 01-002 SOLVENT, DELETED.. Use a clean cloth made moist with the solvent to remove the grease, fingerprints and the unwanted material.
  2. Clean the forward side of the flange FB at the hole 39, 40 as given in step (1).
  3. Install the bracket and the bonding strap OIL-FUEL COOLED OIL COOLER (79-21-43, 01-380) and OIL-FUEL COOLED OIL COOLER (79-21-43, 01-350) at the holes 39 and 40 with the two bolts, the washer and the two nuts OIL-FUEL COOLED OIL COOLER (79-21-43, 01-390), OIL-FUEL COOLED OIL COOLER (79-21-43, 01-395), OIL-FUEL COOLED OIL COOLER (79-21-43, 01-385), OIL-FUEL COOLED OIL COOLER (79-21-43, 01-392) and OIL-FUEL COOLED OIL COOLER (79-21-43, 01-391). Refer to the detail on G1.
  4. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
9. 1. Install the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-280) at the holes 46 and 47 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-284) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-281). Refer to the detail on H.
  2. Install the brackets ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-080) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-090) at the holes 48 and 49 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-084) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-081). Refer to the detail on I.
  3. Install the bracket VIBRATION TRANSDUCER JUNCTION BOX (77-32-43, 05-060) at the holes 50 and 51 with the two bolts and the two nuts VIBRATION TRANSDUCER JUNCTION BOX (77-32-43, 05-064) and VIBRATION TRANSDUCER JUNCTION BOX (77-32-43, 05-061). Refer to the detail on J.
  4. Torque the nuts installed in Step to Step to 85 to 105 lbf.in (10 to 12 Nm).
1. Refer to Figure.
2. 1. WARNING
    WHEN YOU USE COMAT 01-002 INHIBITED AND STABILIZED TRICHLOROETHANE YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

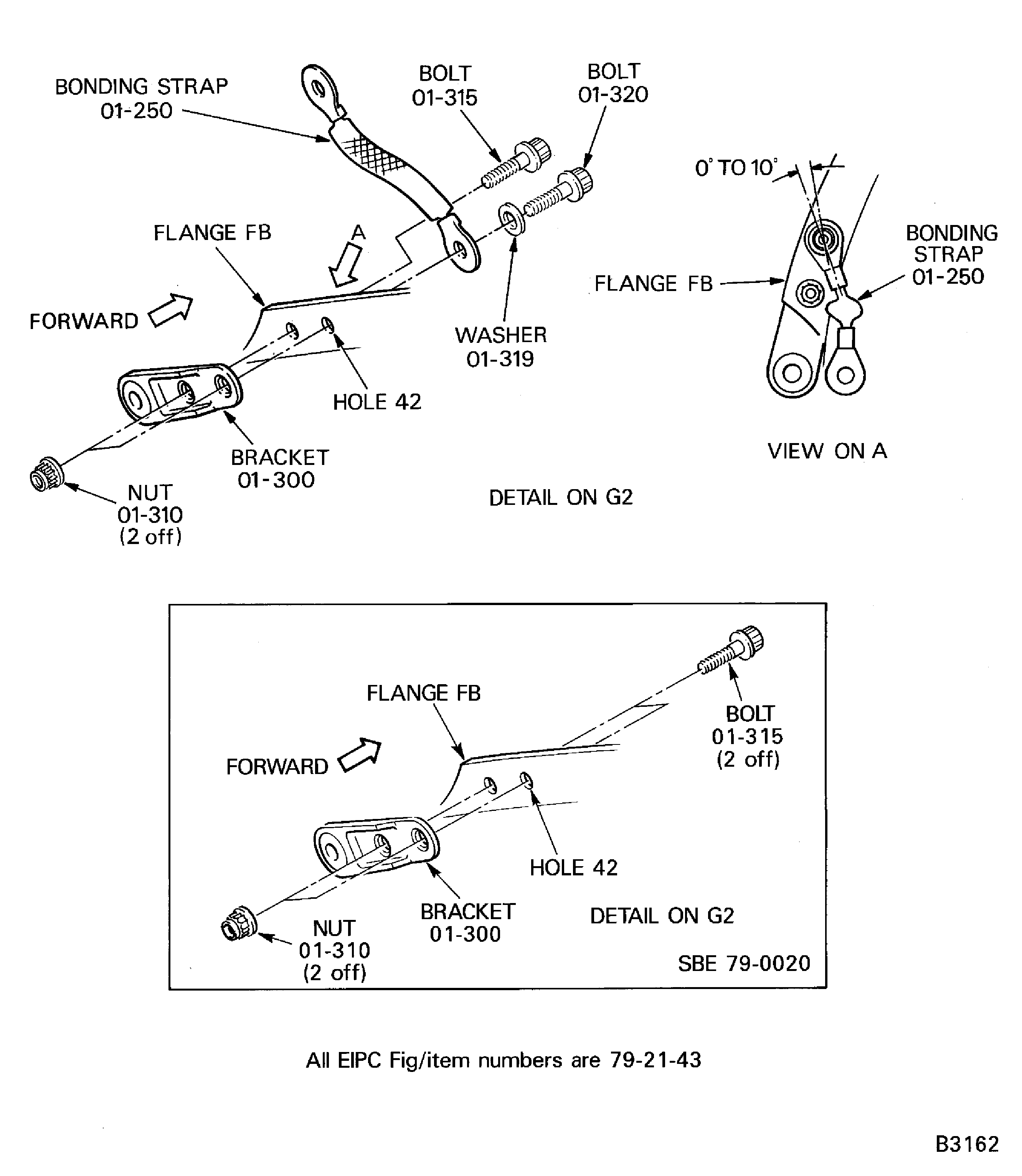

    Clean the mating surfaces of the bonding strap and the washer OIL-FUEL COOLED OIL COOLER (79-21-43, 01-250) and OIL-FUEL COOLED OIL COOLER (79-21-43, 01-319) with CoMat 01-002 SOLVENT, DELETED.. Use a clean cloth made moist with the solvent to remove the grease, fingerprints and the unwanted material.
  2. Clean the forward side of the flange FB at the hole 39, 40 and 41, 42 as given in Step.
  3. Install the bracket and the bonding strap OIL-FUEL COOLED OIL COOLER (79-21-43, 01-300) and OIL-FUEL COOLED OIL COOLER (79-21-43, 01-250) at the holes 41 and 42 with the two bolts, the washer and the two nuts OIL-FUEL COOLED OIL COOLER (79-21-43, 01-315), OIL-FUEL COOLED OIL COOLER (79-21-43, 01-320), OIL-FUEL COOLED OIL COOLER (79-21-43, 01-319) and OIL-FUEL COOLED OIL COOLER (79-21-43, 01-310). Refer to the detail on G2.
  4. Adjust the bonding strap OIL-FUEL COOLED OIL COOLER (79-21-43, 01-250) at the hole 42 to the correct angle. Refer to the view on A.
  5. Torque the nuts installed in Step to 85 to 105 lbf.in (10 to 12 Nm).
1. Refer to Figure.
2. 1. Install the bracket OIL-FUEL COOLED OIL COOLER (79-21-43, 01-300) at the holes 41 and 42 with the two bolts, and the two nuts OIL-FUEL COOLED OIL COOLER (79-21-43, 01-315) and OIL-FUEL COOLED OIL COOLER (79-21-43, 01-310). Refer to detail on G2.
  2. Torque the nuts installed inStep to 85 to 105 lbf.in (10 to 12 Nm).
1. Refer to Figure, Figure. Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, and Figure.
2. 1. Install the bracket BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-960) at the holes 3 and 4 with the two bolts and the two nuts BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-964) and BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-961). Refer to the detail on A.
  2. Install the bracket BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-920) at the holes 15 and 16 with the two bolts and the two nuts BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-924) and V2500-A5-71-51-51-01A-941A-D (71-51-51, 01-921). Refer to the detail on C.
  3. Lightly lubricate the holes 17 and 18 with CoMat 10-072 ANTISEIZE COMPOUND (MoDISULFIDE).
  4. Lightly lubricate the bolt shanks BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-944) with CoMat 10-073 SYNTHETIC GREASE, MoDISULFIDE.
  5. Install the two support brackets and the bracket BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-990), BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-980) and BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-940) at the holes 17 and 18 with the two bolts, the two washers and the two nuts BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-944), BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-945) and BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-941). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm). Refer to the detail on D.
  6. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
3. 1. Attach the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-890) to the raft ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-910) with the two bolts and the two washers ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-912) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-914). Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm).
  2. Lightly lubricate the holes 12 to 14 with CoMat 10-072 ANTISEIZE COMPOUND (MoDISULFIDE).
  3. Lightly lubricate the bolt shanks ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-754) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-774) with CoMat 10-073 SYNTHETIC GREASE, MoDISULFIDE.
  4. Install the raft assembly and the three brackets ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-750), ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-760) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-770) at the holes 12 to 14 with the three bolts, the two washers, the spacer and the three nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-774), ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-754), ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-755), ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-752), ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-772), ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-771) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-751). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
  5. Attach the raft assembly at the holes 5 and 6 on the flange FB with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-915) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-911). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
4. 1. Install the two brackets ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-920) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-930) at the holes 19 and 20 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-934) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-931).
  2. Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
5. 1. Install the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-920) at the holes 26 and 27 with the two bolts and the two nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-924) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-921). Refer to the detail on F.
  2. Install the two brackets V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-890 and POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN 05-920) at the holes 29 and 30 with the two bolts and the two nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-894) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-891). Refer to the detail on G.
  3. Install the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-890) at the holes 32 and 33 with the two bolts and the two nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-894) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-891). Refer to the detail on H.
  4. Torque the nuts installed in steps (1) to (3) to 85 to 105 lbf.in (10 to 12 Nm).
6. 1. Install the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-870) and the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-890) at the holes 55 to 57 with the three bolts and the three nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-874), V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-871) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-894), V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-891). Refer to the detail on I.
  2. Install the two brackets V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-760 and POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN 05-910) at the holes 59 and 61 with the two bolts and the two nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-914) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-911). Refer to the detail on J.
  3. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
7. 1. Install the two brackets V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-890) at the holes 67 and 68 with the two bolts and the two nuts v (71-51-41, 05-894) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-891). Refer to the detail on K.
  2. Install the two brackets V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-880) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-890) at the holes 71 and 72 with the two bolts and the two nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-884) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-881). Refer to the detail on L.
  3. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
8. 1. Install the two brackets V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-840) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-920) at the holes 74 to 76 with the three bolts and the three nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-844), V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-841) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-924), V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-921). Refer to the detail on M.
  2. Install the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-850) at the holes 79 and 80 with the two bolts and the two nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-854) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-851). Refer to the detail on N.
  3. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
9. 1. Install the bracket ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-970) at the holes 85 and 86, with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-974) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-971). Refer to the detail on Q.
  2. Install the bracket ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-830) at the holes 83 and 84 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-834) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-831). Refer to the detail on P.
  3. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
10. 1. Install the bracket (GP2) and the bracket ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-960) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-970) at the holes 92 and 93 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-964) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-961). Refer to the detail on R.
  2. Measure the electrical resistance between the bracket (GP2) and the flange FA1, it must not be more than 0.005 ohms. If the electrical resistance is more than 0.005 ohms, clean the area again as necessary, refer to Step.
  3. Torque the nuts and the bolts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
11. 1. Pre SBE 75-0010: Install the bracket (GP1) and the bracket ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-970) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-980) at the holes 115 and 116 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-974) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-971). Refer to the detail on T.
  2. SBE 75-0010: Install the bracket (GP1) and the bracket ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-800) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-980) at the holes 115 and 116 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-984) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-981). Refer to the detail on T.
  3. Measure the electrical resistance between the bracket (GP1) and the flange FA1, it must not be more than 0.005 ohms. If the electrical resistance is more than 0.005 ohms, clean the area again as necessary, refer to Step.
  4. Torque the nuts and the bolts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
12. 1. Install the attachment angle, the brackets ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-840) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-970) at the holes 121 and 122 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-974) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-971).
  2. Torque the nuts installed in Step to 85 to 105 lbf.in (10 to 12 Nm).
13. 1. Install the two brackets ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-970) at the holes 124, 125 and 130, 131 with the four bolts and the four nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-974) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-971). Refer to the details on V and X.
  2. Install the bracket ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-970) and the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-850) at the holes 135 to 137 with the three bolts and the three nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-974), ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-971) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-854), ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-851). Refer to the detail on Y.
  3. Install the bracket BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-960) at the holes 141 and 142 with the two bolts and the two nuts BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-964) and BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-961). Refer to the detail on Z.
  4. Torque the nuts installed in Step to Step to 85 to 105 lbf.in (10 to 12 Nm).
1. Refer to Figure.
2. 1. Install the two brackets ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-890) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-970) at the holes 104 and 105 with the two bolts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-974). Refer to the detail on S.
  2. Torque the bolts installed in Step to 85 to 105 lbf.in (10 to 12 Nm).
1. Refer to Figure.
2. 1. Install the two brackets ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-890) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-800) at the holes 104 and 105 with the two bolts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-804). Refer to the detail on S.
  2. Torque the bolts installed in Step to 85 to 105 lbf.in (10 to 12 Nm).
1. Refer to Figure.
2. 1. Attach the two attachment angles ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-870) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-880) to the raft ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-990) with the four bolts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-994). Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).
  2. Install the raft assembly at the holes 117 and 119 with the two bolts, the two washers and the nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-884), ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-882) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-881).
  3. Install the raft assembly and the bracket OIL-SCAVENGE OIL TUBES-ENGINE(79-22-49, 13-900) at the holes 43 to 45 on the flange FB with the three bolts, the three washers and the three nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-874), ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-872), ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-871) and OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 13-904), OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 13-902) and OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 13-901).
  4. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
1. Refer to Figure.
2. 1. Attach the two attachment angles ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-870) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-880) to the raft ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-990) with the four bolts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-994). Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).
  2. WARNING
    WHEN YOU USE COMAT 01-002 INHIBITED AND STABILIZED TRICHLOROETHANE YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOU SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.
    Clean the forward side of the flange FB at hole 43 and the mating surfaces of the bonding strap and the washer OIL-FUEL COOLED OIL COOLER (79-21-43, 01-250) and OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 13-902) with CoMat 01-002 SOLVENT, DELETED.. Use a clean cloth made moist with the solvent to remove the grease, fingerprints and the unwanted material.
  3. Install the raft assembly at the holes 117 and 119 with the two bolts, the two washers and the two nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-884), ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-882) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-881).
  4. Install the raft assembly, the bracket OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 13-900) and the bonding strap OIL-FUEL COOLED OIL COOLER (79-21-43, 01-250) at the holes 43 and 45 at the flange FB with the two bolts, the two washers and the two nuts OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 13-904), OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 13-902) and OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 13-901).
  5. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
1. Refer to Figure, Figure. Figure, Figure. Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, and Figure.
2. 1. Lightly lubricate the bracket ICE AND RAIN PROTECTION-ANTI-ICE DUCTS (30-21-49, 01-200) bolt holes with CoMat 10-072 ANTISEIZE COMPOUND (MoDISULFIDE).
  2. Lightly lubricate the bolt ICE AND RAIN PROTECTION-ANTI-ICE DUCTS (30-21-49, 01-205) shanks with CoMat 10-073 SYNTHETIC GREASE, MoDISULFIDE.
  3. Attach the bracket ICE AND RAIN PROTECTION-ANTI-ICE DUCTS (30-21-49, 01-200) to the raft BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-900) with the two bolts ICE AND RAIN PROTECTION-ANTI-ICE DUCTS (30-21-49, 01-205).
  4. Attach the bracket BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-880) to the raft with the two bolts BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-904). Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).
  5. NOTE
    There are two types of nuts for BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-881) and BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-891) bihexagon and hexagon. The hexagon nut has a dry film lubricant, it is not necessary to lubricate their bolts.
    Install the raft assembly and the packing piece BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN(71-51-50, 01-883) at the holes 3 and 4 with the two screws, the two washers and the two nuts BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-884), BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-882) and BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-881).
  6. Attach the raft assembly and the bracket BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-890) at the holes 8 and 9 on the flange FA1 with the two bolts and the two nuts BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-894) and BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-891).
  7. Torque the bolts installed in Step to 36 to 45 lbf.in (4 to 5 Nm) and the nuts in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
3. 1. Install the two brackets ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 08-070) at the holes 6, 8 and 19, 20 with the four screws and the four nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 08-074) and ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 08-071). Hold the four screws with the ACR Torq-Set bit 212-1/4-ACR 1 off and torque the four nuts to 85 to 105 lbf.in (10 to 12 Nm).
4. 1. Install the two brackets ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 08-060) at the holes 10, 11 and 13, 14 with the four screws and the four nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 08-064) and ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 08-061). Hold the four screws with the ACR Torq-Set bit 212-1/4-ACR 1 off and torque the four nuts to 85 to 105 lbf.in (10 to 12 Nm).
5. 1. Install the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 08-030) at the holes 22 and 23 with the two screws and the two nuts ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 08-034) and ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES (73-22-49, 08-031). Hold the two screws with the ACR Torq-Set bit 212-1/4-ACR 1 off and torque the two nuts to 85 to 105 lbf.in (10 to 12 Nm).
6. 1. Install the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-940) to the raft ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-800) with the two bolts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-944) and torque the two bolts to 36 to 45 lbf.in (4 to 5 Nm).
  2. Pre SBE 71-0070: Attach the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-810) to the raft with the two bolts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-814) and torque the two bolts to 36 to 45 lbf.in (4 to 5 Nm).
  3. NOTE
    There are two type of nuts for ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-781) bihexagon and hexagon. The hexagon nut has a dry film lubricant, it is not necessary to lubricate their bolts.
    Install the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-780) and the packing piece ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-783) at the holes 22 and 23 with the two screws, the two washers and the two nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-784), ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-782) and ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-781). Torque the nuts 85 to 105 lbf.in (10 to 12 Nm).
  4. Attach the raft assembly to the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-780) with the two bolts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-804).
  5. Attach the raft assembly and the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-920) at the holes 22 to 24 on the flange FA1 with the three bolts and the three nuts ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-805), ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-801) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-924), V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-921).
  6. Torque the bolts installed in Step and the nuts installed in Step to 85 to 105 lbf.in (10 to 12 Nm).
7. 1. NOTE
    There are two type of nuts for ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-821 and 05-911) bihexagon and hexagon. The hexagon nut has a dry film lubricant, it is not necessary to lubricate their bolts.
    Install the bracket ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-900) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-820) and the packing piece ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-823) at the holes 30 and 31 with the two screws, the two washers and the two nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-824), ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-822) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-821). Refer to the detail on H.
  2. Install the bracket ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-910) and the packing piece ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-913) at the holes 36 and 37 with the two screws, the two washers and the two nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-914), ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-912) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-911). Refer to the detail on J.
  3. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
8. 1. Install the attachment angle and the packing piece (01-065) and AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-653) to the holes 33 and 34 with the two screws and the two nuts AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-654) and AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-651). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm). Refer to the detail on I.
  2. Attach the link bracket and the raft AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-570) and AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-600) to the attachment angle with the two bolts AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-573) and AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-574).
  3. Attach the raft AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-600) to the holes 51 and 52 on the flange FA1 with the two bolts and the two nuts AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-612) and AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-610).
  4. Torque the two bolts installed in Step to 36 to 45 lbf.in (4 to 5 Nm). Torque the two nuts installed in Step to 85 to 105 lbf.in (10 to 12 Nm).
  5. Install the bracket AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-500). Refer to SUBTASK 72-00-32-420-179-A00 or SUBTASK 72-00-32-420-179-B00, at the detail G.
9. 1. NOTE
    There are two type of nuts for ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-921) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-941) bihexagon and hexagon. The hexagon nut has a dry film lubricant, it is not necessary to lubricate their bolts.
    Install the bracket (GP4) ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-920) and the packing piece ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-923) at the holes 39 and 41 with the two screws, the two washers and the two nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-924), ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-922) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-921). Refer to the detail on K.
  2. Install the bracket (GP3) ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-940) and the packing piece ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-943) at the holes 46 and 47 with the two screws, the two washers and the two nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-944), ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS(71-51-43, 05-942) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-941). Refer to the detail on M.
  3. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).
  4. Measure the electrical resistance between the brackets (GP3 and GP4) and the flange FA, it must not be more than 0.005 ohms. If the electrical resistance is more than 0.005 ohms, clean the area again as necessary, refer to Step.
10. 1. NOTE
    There are two type of nuts for ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-931) bihexagon and hexagon. The hexagon nut has a dry film lubricant, it is not necessary to lubricate their bolts.
    Install the bracket ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-930) and the packing piece ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-933) at the holes 43 and 44 with the two screws, the two washers and the two nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-934), ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-932) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-931).
  2. Attach the raft ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-950) to the bracket ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-930) with the two bolts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-954). Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm).
  3. Install the raft and the bracket V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-890) at the holes 63 to 65 on the flange FA1 with the three bolts and the three nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-894), V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-891) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-955), ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-952).
  4. Torque the nuts installed in Step and in Step to 85 to 105 lbf.in (10 to 12 Nm).
11. 1. NOTE
    There are two type of nuts for CASE DRAIN HYDRAULIC FILTER ASSEMBLY (29-11-43, 01-941) bihexagon and hexagon. The hexagon nut has a dry film lubricant, it is not necessary to lubricate their bolts.
    Install the attachment angle CASE DRAIN HYDRAULIC FILTER ASSEMBLY (29-11-43, 01-930) and the packing piece CASE DRAIN HYDRAULIC FILTER ASSEMBLY (29-11-43, 01-940) at the holes 56 and 57 with the two screws and the two nuts CASE DRAIN HYDRAULIC FILTER ASSEMBLY (29-11-43, 01-944 and CASE DRAIN HYDRAULIC FILTER ASSEMBLY 01-941).
  2. Install the attachment angle ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-850) and the bracket ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-970) at the holes 88 to 90 on the flange FA1 with the three bolts and the three nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-854), ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-851) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-974), ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-971).
  3. Torque the nuts installed in Step and in Step to 85 to 105 lbfin. (10 to 12 Nm).
  4. Attach the raft CASE DRAIN HYDRAULIC FILTER ASSEMBLY (29-11-43, 01-910) to the two attachment angles with the four bolts CASE DRAIN HYDRAULIC FILTER ASSEMBLY (29-11-43, 01-914). Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).
12. 1. Install the attachment angle V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-730) and the packing piece V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-733) at the holes 56 and 57 with the two screws, two washers and the two nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-734), V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-732) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-731).
  2. Install the attachment angle V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-720) at the holes 88 and 89 on the flange FA1 with the two bolts and the two nuts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-724) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-721).
  3. Torque the nuts installed in Step and in Step to 85 to 105 lbf.in (10 to 12 Nm).
  4. Attach the raft V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-710) to the two attachment angles with the four bolts V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-714) and V2500-A5-71-51-41-05A-941A-D (71-51-41, 05-715). Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).
13. 1. NOTE
    There are two type of nuts for OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 14-901) and OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 14-881) bihexagon and hexagon. The hexagon nut has a dry film lubricant, it is not necessary to lubricate their bolts.
    Install the attachment angle OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 14-880) and the packing piece OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 14-883) at the holes 60 and 61 with the two screws, the two washers and the two nuts OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 14-884), OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 14-882) and OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 14-881). Torque the nuts to 85 to 105 lbf.in (10 to 12 Nm).
  2. Attach the raft OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 14-900) to the attachment angle with the two bolts OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 14-904). Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).
  3. Attach the raft and install the bracket ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-970) at the holes 97 to 99 on the flange FA1 with the three bolts and the three nuts OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 14-903), OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 14-901) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-974), ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-971). Torque the nut OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 14-901) and the nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-971) to 85 to 105 lbf.in (10 to 12 Nm).
14. 1. NOTE
    There are two type of nuts for HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES (29-11-49, 04-956) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-861) bihexagon and hexagon. The hexagon nut has a dry film lubricant, it is not necessary to lubricate their bolts.
    Install the attachment angle HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES (29-11-49, 04-950) and the packing piece HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES (29-11-49, 04-952) at the holes 65 and 66 with the two screws the two washers and the two nuts HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES (29-11-49, 04-954), HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES (29-11-49, 04-955) and HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES (29-11-49, 04-956).
  2. Install the attachment angle and the bracket ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-860) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-970) at the holes 109 and 110 on the flange FA1 with the two bolts and the two nuts ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-864) and ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-861).
  3. Attach the raft HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES (29-11-49, 04-930) to the two attachment angles with the four bolts (29-11-49 ,04-935). Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).
  4. Torque the nuts installed in Step and Step to 85 to 105 lbf.in (10 to 12 Nm).

Identify the LP Compressor/Intermediate Case Module

The LP Compressor/Intermediate Case Module Flanges

Install the Ignition Exciter Cooling Air Inlet Fittings

Install the Bifurcation Panel

Install the Open Latch Indicator

Sheet 1

Sheet 2

Sheet 3

Sheet 4

Sheet 5

Sheet 6

Sheet 7

Sheet 8

SBE 75-0010: Install the Brackets at the Flange FE

Sheet 1

Sheet 2

Sheet 3

Sheet 4

Sheet 5

SBE 71-0060: Install the Brackets at the Flange FD

Sheet 1

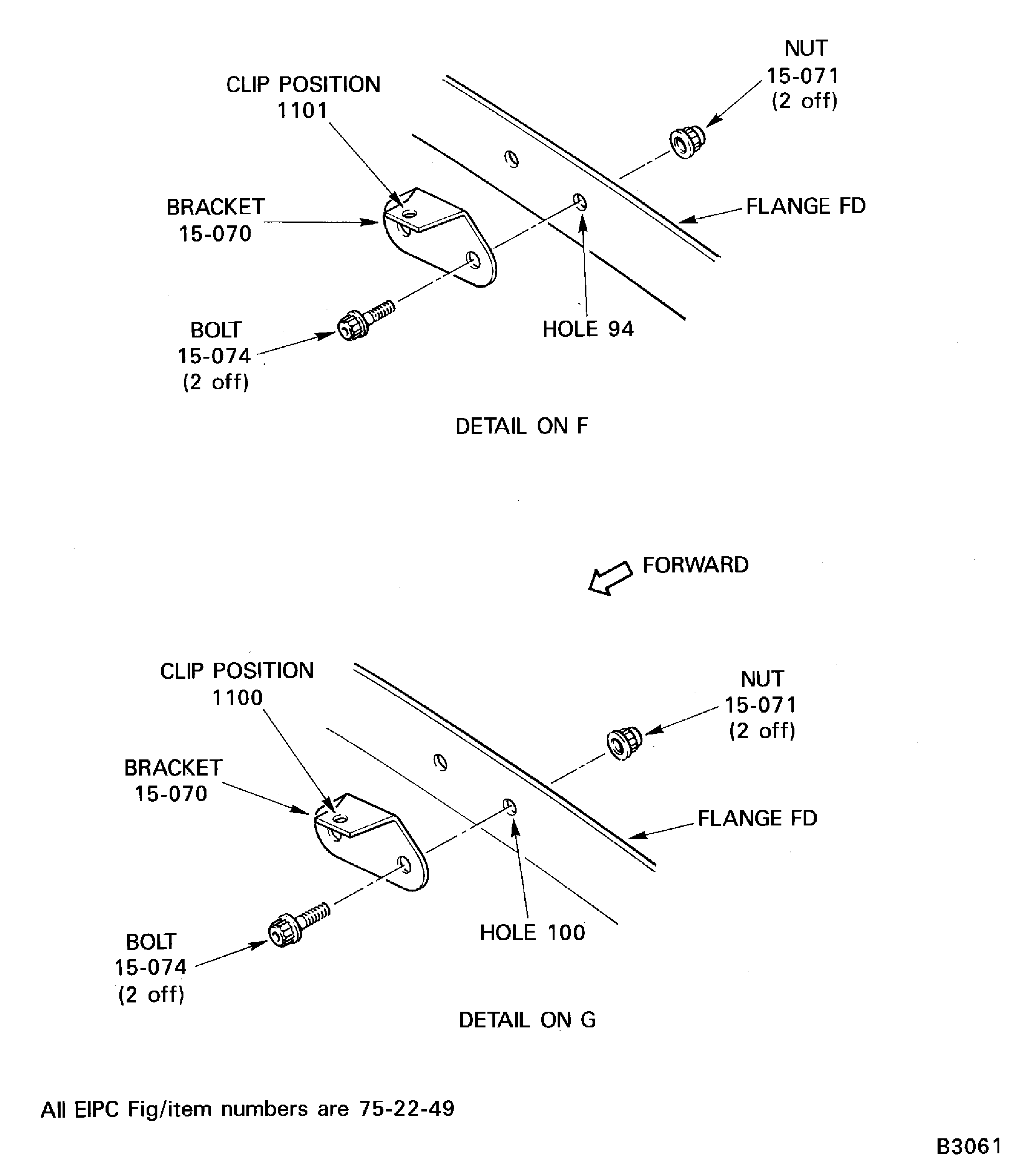

Sheet 2

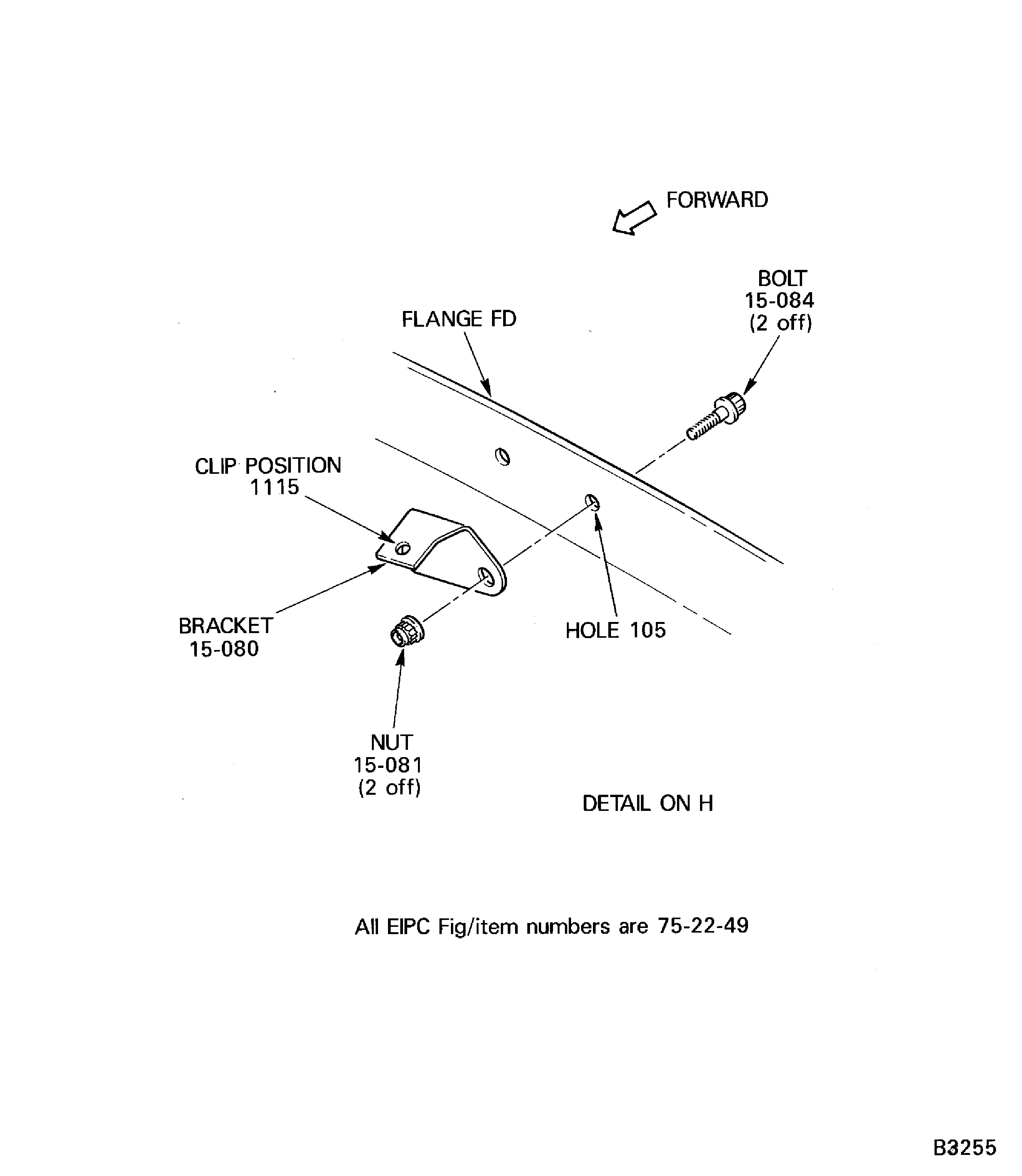

Sheet 1

Sheet 2

Sheet 3

Sheet 4

Sheet 5

Sheet 1

Sheet 2

Sheet 3

Sheet 4

Sheet 5

Sheet 6

Sheet 7

Sheet 8

Sheet 9

Sheet 10

Sheet 11

Sheet 12

Install the Brackets at the Flange FB

Sheet 1

Sheet 2

Sheet 3

Sheet 4

Sheet 5

Sheet 6

Sheet 7

Install the Brackets at the Flange FA1

Sheet 9

Sheet 10

Sheet 11

Sheet 12

Sheet 13

Install the Brackets at the Flange FA1

Sheet 1

Sheet 2

Sheet 3

Sheet 4

Sheet 5

Sheet 6

Sheet 7

Sheet 8

Sheet 9

Sheet 10

Sheet 11

Sheet 12

Sheet 13

Requirements After Job Completion

Follow-On Conditions

NONE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	K3504
Enterprise Name:	INDESTRUCTIBLE PAINT CO LTD
BU Name:	NULL
Street:	25 PENTOS DRIVE
City:	SPARKHILL
Province:	BIRMINGHAM
Zip Code:	B11 3TA
Country:	GREAT BRITAIN
Phone Number:	44-121-7022485
Fax Number:	44-121-7784338
Email:	sales@indestructible.co.uk
Internet:	www.indestructible.co.uk

Manufacturer Code:	K6835
Enterprise Name:	MED-LAB LTD
BU Name:	MED-LAB LTD
Street:	COPELAND ST
City:	DERBY
Zip Code:	DE1 2PU
Country:	GREAT BRITAIN
Phone Number:	44-1332-349094
Fax Number:	44-1332-371237
Email:	sales@med-lab.co.uk
Internet:	www.med-lab.co.uk

Manufacturer Code:	LOCAL
Enterprise Name:	LOCALLY SUPPLIED

Manufacturer Code:	LOCAL
Tool Number:	Torq-Set
Tool Name:	ACR Torq-Set bit 212-1/4-ACR

TASK 72-00-32-420-001-A00 LPC/Intermediate Case Module - Install The Case Brackets And The Bifurcation Panel, Installation-001

Export Control

Copyright

Applicability

Common Information

TASK 72-00-32-420-001-A00 LPC/Intermediate Case Module - Install The Case Brackets And The Bifurcation Panel, Installation-001

General

NOTE

Preliminary Requirements

Pre-Conditions

Support Equipment

Consumables, Materials and Expendables

Spares

Safety Requirements

Procedure

SUBTASK 72-00-32-220-075 Identify the LP Compressor/Intermediate Case Module

SUBTASK 72-00-32-420-110 Install the Forward Mount Support

SUBTASK 72-00-32-420-147 Install the Ignition Exciter Cooling Air Inlet Fittings

SUBTASK 72-00-32-420-126 Install the Bifurcation Panel

WARNING

SUBTASK 72-00-32-420-127 Install the Open Latch Indicator (Pre SBE 72-0435 and SBE 72-0435)

WARNING

CAUTION

SUBTASK 72-00-32-160-052 Clean the 400VC to IDG Cable Support Brackets/Flange FE and the GP1 to GP4 Brackets/Flanges FA and FA1

WARNING

NOTE

SUBTASK 72-00-32-420-129 Install the brackets at the flange FE (Pre SBE 73-0040 and SBE 73-0040)

NOTE

SUBTASK 72-00-32-420-160 Install the Bracket at N at the Flange FE (SBE 75-0010)

SUBTASK 72-00-32-220-076 Measure the Electrical Resistance of the 400VC to IDG Cable Support Brackets/Flange FE

SUBTASK 72-00-32-420-130-A00 Install the Brackets at the Flange FD (Pre SBE 71-0119)

SUBTASK 72-00-32-420-130-B00 Install the Brackets at the Flange FD (SBE 71-0119)

SUBTASK 72-00-32-420-161 Install the Bracket at E at the Flange FD (SBE 71-0060)

SUBTASK 72-00-32-420-162 Install the Brackets at F, G and H at the Flange FD (SBE 75-0010)

SUBTASK 72-00-32-420-131 Install the Brackets at the Flange FC

SUBTASK 72-00-32-420-279-A00 Install the Brackets at E at the Flange FC (Pre SBE 73-0140)

NOTE

SUBTASK 72-00-32-420-279-B00 Install the Brackets at E at the Flange FC (SBE 73-0140)

NOTE

SUBTASK 72-00-32-420-163-A00 Install the Bracket at K at the Flange FC (Pre SBE 75-0010)

NOTE

SUBTASK 72-00-32-420-163-B00 Install the Bracket at K at the Flange FC (SBE 75-0010)

NOTE

SUBTASK 72-00-32-420-132-A00 Install the Brackets at the Flange FB (Pre SBE 70-0152 and Pre SBE 75-0047)

NOTE

NOTE

NOTE

WARNING

WARNING

NOTE

NOTE

NOTE

WARNING

SUBTASK 72-00-32-420-132-B00 Install the Brackets at the Flange FB (SBE 70-0152 and Pre SBE 75-0047)

NOTE

NOTE

NOTE

WARNING

WARNING

NOTE

NOTE

NOTE

WARNING

SUBTASK 72-00-32-420-166-A00 Install the Bracket at G2 at the Flange FB (Pre SBE 79-0020)

WARNING

SUBTASK 72-00-32-420-166-B00 Install the Bracket at G2 at the Flange FB (SBE 79-0020)

SUBTASK 72-00-32-420-133 Install the Brackets at the Flange FA1 (Pre SBE 75-0010 and SBE 75-0010)

SUBTASK 72-00-32-420-167-A00 Install the Brackets at S at the Flange FA (Pre SBE 75-0010)

SUBTASK 72-00-32-420-167-B00 Install the Brackets at S at the Flange FA1 (SBE 75-0010)

SUBTASK 72-00-32-420-168-A00 Install the Brackets at U at the Flange FA1 (Pre SBE 79-0020)

SUBTASK 72-00-32-420-168-B00 Install the Brackets at U at the Flange FA1 (SBE 79-0020)

WARNING

SUBTASK 72-00-32-420-134 Install the Brackets at the Flange FA (Pre SBE 71-0110 and SBE 71-0110)

NOTE

NOTE

NOTE

NOTE

NOTE

NOTE

NOTE
